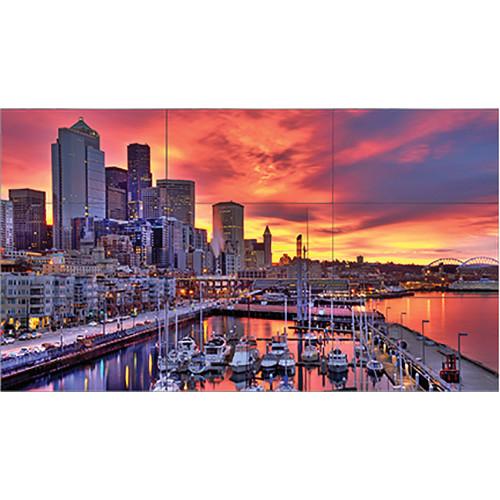

User Manual for NEC X464UNS-TMX9P 3 x 3 LED Video Wall Bundle

• Product category: Commercial Monitors NEC
• Brand: NEC
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for NEC Commercial Monitors

Product description

• X464UNS 46" Full HD Commercial LED Monitor The NEC X464UNS 46" Full HD Commercial LED Monitor is suitable for placement in 1080p video walls. This business-ready monitor features a large 46" LED display with a 1920 x 1080 native resolution for viewing detailed Full HD images without pixel loss. This monitor's 500 cd/m² brightness rating and 3500:1 contrast ratio showcases its ability to handle light and dark on-screen images. For viewing flexibility it can also accommodate portrait and landscape viewing orientations.

  As a digital-signage-capable display, this commercial monitor is suitable for use in environments such as control rooms, broadcast studios, retail, and 24/7 environments. This display is equipped with VGA, DVI, DisplayPort, and HDMI inputs, allowing you interface a variety of video sources. Daisy chaining is also supported via DisplayPort 1.2 connectivity. While this monitor doesn't include a table stand, it is VESA 300 x 300 compliant for wall mounting
  LED Direct Backlighting
  • LED direct backlighting source allows for even distribution of light across the panel, resulting in improved uniformity from bezel-to-bezel
  Auto ID and Auto TileMatrix
  • Auto ID and Auto TileMatrix technology enables up to 100-display video walls in a 10x10 matrix configuration.
  Digital Loop Through
  • Digital loop through with DP 1.2 Multistream supports UHD resolutions for video wall deployments.
  Expandability
  • The Open Pluggable Specification (OPS) and interface expansion slots offer the flexibility of connecting compatible external devices.
  Intelligent Wireless Data via NFC
  • Intelligent Wireless Data functionality through integrated Near Field Communication (NFC) sensor, enables read/ write communication through a special NEC application and a NFC compatible device.
  Optional Human Sensor
  • The optional Human Sensor accessory helps to ensure that video walls are on and directed at a targeted audience.
  Optional Color Calibration
  • The optional color calibration solution ensures color uniformity and fidelity across individual and multiple screens, creating a matched image in tiled environments.
  Additional Features
  • • Supports the optional overbezel kit
    • Slim bezel design
    • ENERGY STAR 6.0 qualified
    • Advanced thermal capabilities
    • Ethernet and RS-232 control and communication
    • Carbon footprint meter
    • Plug and Play (DDC/CI, DDC2B)
    • Scheduler with real-time clock
    • Screen saver function
    • 6-axis color adjustments
    • Metal rear cabinet
    • Side-by-side
    • Handles
    • Variable picture modes and advanced video settings (noise reduction, adaptive contrast)
    • Input labeling
    • Backlight adjust
    • Aspect ratio control
    • Vacation/power switch
• Full-Service Video Wall Mount for 40 to 65" Displays The Peerless Industries Full-Service Video Wall Mount for 40 to 65" Displays holds flat-panel displays up to 150 lb (68 kg) in landscape display orientation to form a perfectly spaced video wall.

  An innovative pull-out/prop-open hinge mechanism provides rapid service access to individual displays in a video wall, while the spring-loaded mechanism smoothly places the display back in place. Custom wall plate spacers ensure easy and quick installation of additional mount on the wall, saving tedious measurement time. The Full-Service Mount offers tool-less micro-adjustments at 8 points for precise and effortless alignment of the displays. Displays and mounts can sit flush against the wall, providing a neat look to the setup. Note: Wall Plate Spacers sold separately.
  Video Wall Mounting
  • • Provides best viewing positions to flat-panel displays ranging from 40 to 65" (102 to 165 cm)
    • Can hold displays up to 150 lb (68 kg)
    • Allows you to create video walls in any number of configurations
    • Landscape display position
  Quick Screen Access
  • • Pull-out/prop-open hinge mechanism provides rapid service access to individual displays in a video wall
    • Spring-loaded mechanism smoothly places the display back in place
  Easy Setup
  • • Custom wall plate spacers (not included) save tedious measurement time
    • Tool-less micro-adjustments at 8 points for precise and effortless alignment of the displays
  Clutter-free Look
  • • Displays and mounts can sit flush against the wall, providing a neat look to the setup
    • Open wall plate architecture offers increased electrical and cable management options
    • Integrated cable management tie-backs organize cables
  Monitor Mounting
  • • Adjustable VESA mounting hole patterns in 100 mm increments, starting at 200 x 200 mm up to 700 x 400 mm
    • Additional VESA patterns are supported with adapter plates
    • Security hardware for preventing the mount from extending out from the wall
  UPC: 735029278771
• Display Wall Calibration Kit The Display Wall Calibrator Kit from NEC allows the exact calibration and enhancement of the digital content on display walls in lobbies, studios, or hospitals.

  Designed specifically for video walls, it measures each display's color and brightness then calibrates them all to have identical optimum settings. This capability helps create the look of one large, seamless display out of the several that make it up--and provides assurance of overall image consistency even if one or more of the displays is replaced.

  With dozens of NEC displays supported, automatic calibration, and internal test patterns, the Display wall Calibrator Kit is a user friendly and efficient solution to help you get the best out of your video wall and displays.
  Automatic Calibration
  • The software automatically adjusts display settings directly using either RS-232 or a LAN (Ethernet) connection
  Internal Test Patterns
  • These patterns simplify the calibration process by allowing it to be performed automatically without manually selecting different test patterns during the process, or connecting a PC to the video input of the displays
  10-bit Internal Lookup Tables (LUTs)
  • Each supported display features three internal LUTs that allow precise adjustments to be made without reducing the number of displayable colors or introducing color banding
  Gamma Correction
  • In addition to adjusting the intensity (luminance) and white point of the displays, the software also calibrates the grayscale using internal LUTs. This results in highly accurate color not only at 100% white but at all steps along the grayscale.
  Flexible Connections
  • Displays can be connected to the host PC using RS-232, LAN or combinations of both, or wirelessly by using a wireless-equipped host PC and LAN
  Projects
  • All display configurations, measurements, and calibration data can be saved as a project file for later reference or re-calibration
  Multiple Calibration Sets
  • Varying calibration projects can be uploaded to each group of displays, allowing for quick and easy switching between calibration settings without the need to re-calibrate
  Informative
  • A summary window shows the results of the calibration and measurement data, allowing for detailed logging and reporting of the calibration procedure
  Colorimeter function
  • The software allows direct measurements to be taken by the color sensor and the results are displayed in a variety of different formats
  Scalable
  • Single displays to a 10x10 video wall are supported
  UPC: 805736039689
• KT-RC2 Human Sensor Accessory for Large Format Displays The NEC KT-RC2 Human Sensor Accessory for Large Format Displays mounts on a compatible display and automatically powers the display on/off based on detection of human motion. It can also be set to dim in brightness at assigned designations. It connects to the display by USB cable and provides access to all the settings via an on-screen menu. A USB cable is sold separately.
  Compatible Displays
  • • P403
    • P403-AVT
    • P403-DRD
    • P403-PC
    • P463
    • P463-AVT
    • P463-DRD
    • P463-PC
    • P553
    • P553-AVT
    • P553-DRD
    • P553-PC
    • P703
    • P703-AVT
    • P703-DRD
    • P703-PC
    • X464UN
    • X464UN-2
    • X464UN-TMX4P
    • X464UN-TMX9P
    • X464UNV
    • X464UNV-TMX4P
    • X464UNV-TMX9P
    • X554UN
    • X554UNS
    • X554UNS-TMX4P
    • X554UNS-TMX9P
    • X554UN-TMX4P
    • X554UN-TMX9P
  UPC: 805736048292

• Power Cord

• 5.9' (1.8 m) DisplayPort Cable

• LAN Cable

• Batteries

• Option Board Slot Cover

• Screws

• Thumbscrews

• Limited 3-Year Warranty including Backlight

• Wall Mount Assembly

• Mounting Attachment Rails

• Fasteners

• 5-Year Limited Warranty

• NEC Display Wall Calibrator software on a USB drive

• Color sensor (A version of the DataColor Spyder 3 Series)

• 1-year Warranty on Parts and Labor

• 3-Year Limited Warranty

Also Includes

• 9 x 9.8' DisplayPort Cables
• 9 x LAN Cables
• 25' Snagless Cat 5e LAN Cable
• 3 x Overframe Bezel Kits
• 3 x Surge Protectors

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• X464UNS 46" Full HD Commercial LED Monitor

  Panel Technology	SPVA (P-DID)
  Backlight Type	LED Direct-lit
  Screen Size	46" (116.84 cm)
  Native Resolution	1920 x 1080
  Brightness	Typical: 500 cd/m² Maximum: 700 cd/m²
  Contrast Ratio	3500:1
  Viewing Angle (H/V)	178° / 178° (89U/89D/89L/89R) at CR>10
  Response Time	White to Black: 8 ms
  Aspect Ratio	16:9
  Active Screen Area	40.1 x 22.5" (1018.1 x 572.7 mm)
  Orientation	Landscape / Portrait
  Colors	More than 16.7 million

  Inputs	1 x DisplayPort 1 x HDMI 1 x DVI-D 1 x VGA 15-pin D-sub 2 x 1/8" (3.5 mm) audio 1 x RS-232C
  Outputs	1 x 1/8" (3.5 mm) audio 1 x DisplayPort 2 x External speaker jack (left and right)
  Other Ports	1 x Power 2 x LAN 1 x 1/8" (3.5 mm) IR 1 x USB (service)
  Expansion Slot	Yes
  Open Pluggable Specification (OPS)	Yes

  Power	On (Typical): 120 W ECO Mode Standby: <0.5 W
  Speakers	Not Specified By Manufacturer
  Current Rating	3.0 A at 100 - 120 VAC / 1.2 A at 220 - 240 VAC
  Environmental Conditions	Operating Temperature: 41 to 104°F (5 to 40°C) Operating Humidity: 20 - 80% Operating Altitude: 13,780' (4,200 m)
  Bezel Width (Left / Right, Top / Bottom)	0.09 / 0.05", 0.09 / 0.05" (2.3 / 1.2 mm, 2.3 / 1.2 mm)
  VESA Compatibility	300 x 300 mm, 4 holes
  Dimensions (WxHxD)	40.2 x 22.7 x 4" (1022 x 576.6 x 101.3 mm)
  Weight	45 lb (20.4 kg)

• Full-Service Video Wall Mount for 40 to 65" Displays

  Supported Screen Sizes	40 to 65" / 102.0 to 165.0 cm
  Supported Weight Capacity	150 lb / 68.2 kg
  Number of Displays Supported	1

  Orientation	Landscape

  Distance from Mounting Surface	3.1 to 3.8" / 7.8 to 9.7 cm
  Dimensions	35 x 20 x 3.1" / 89 x 50.8 x 7.8 cm
  Weight	39.0 lb / 18.0 kg

  Box Dimensions (LxWxH)	36.0 x 22.0 x 3.6"

• Display Wall Calibration Kit

  Windows	Microsoft Windows 2000 Windows XP (Home and Professional editions) Windows XP x64 Windows Vista 32-bit and x64 Windows 7 32-bit and x64 versions
  Mac OS	Mac OS X version 10.5 or higher
  Hardware	Supported model of NEC displays Supported color sensor At least one available USB port for color sensor Standard TCP/IP LAN interface (optional if using RS-232 or a wireless LAN) One or more RS-232 Ports (optional if using LAN) USB to RS-232 adapter (optional if using LAN)
  Supported Devices	NEC MDSVSENSOR iOne Display V2 NEC iOne Display V2 WG NEC SpectraSensor Pro X-Rite/GretagMacbeth iOne Pro and iOne Monitor X-Rite/GretagMacbeth iOne Display V1 and V2 X-Rite DTP94 / MonacoOPTIX-XR Datacolor Spyder2 Datacolor Spyder3 X-Rite ColorMunki X-Rite Hubble X-Rite iOne Display Pro

  Box Dimensions (LxWxH)	9.2 x 7.0 x 6.6"

• KT-RC2 Human Sensor Accessory for Large Format Displays

  Connector 1

  USB Type A

  Box Dimensions (LxWxH)	10.8 x 7.8 x 2.1"
