Product description

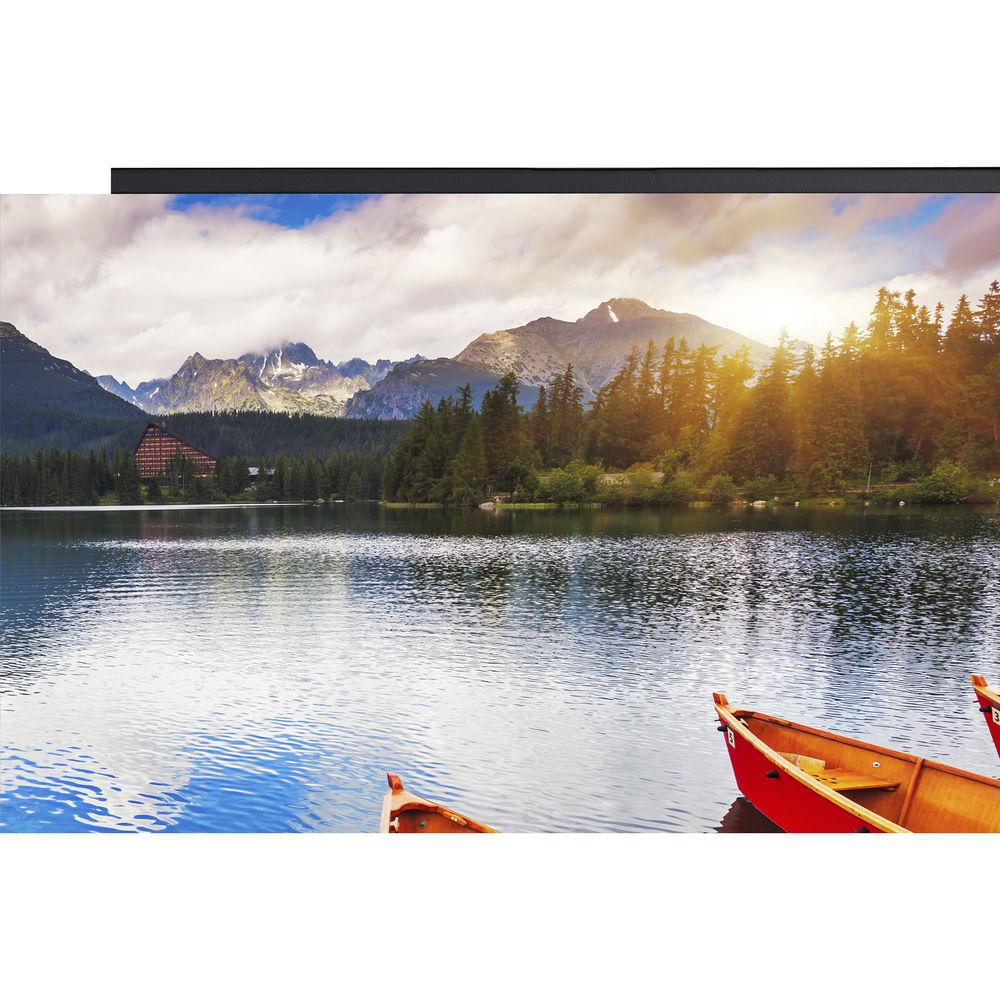

Ultra-Narrow Bezel
• 3.5mm thin bezel ensures a smooth transition across a video wall

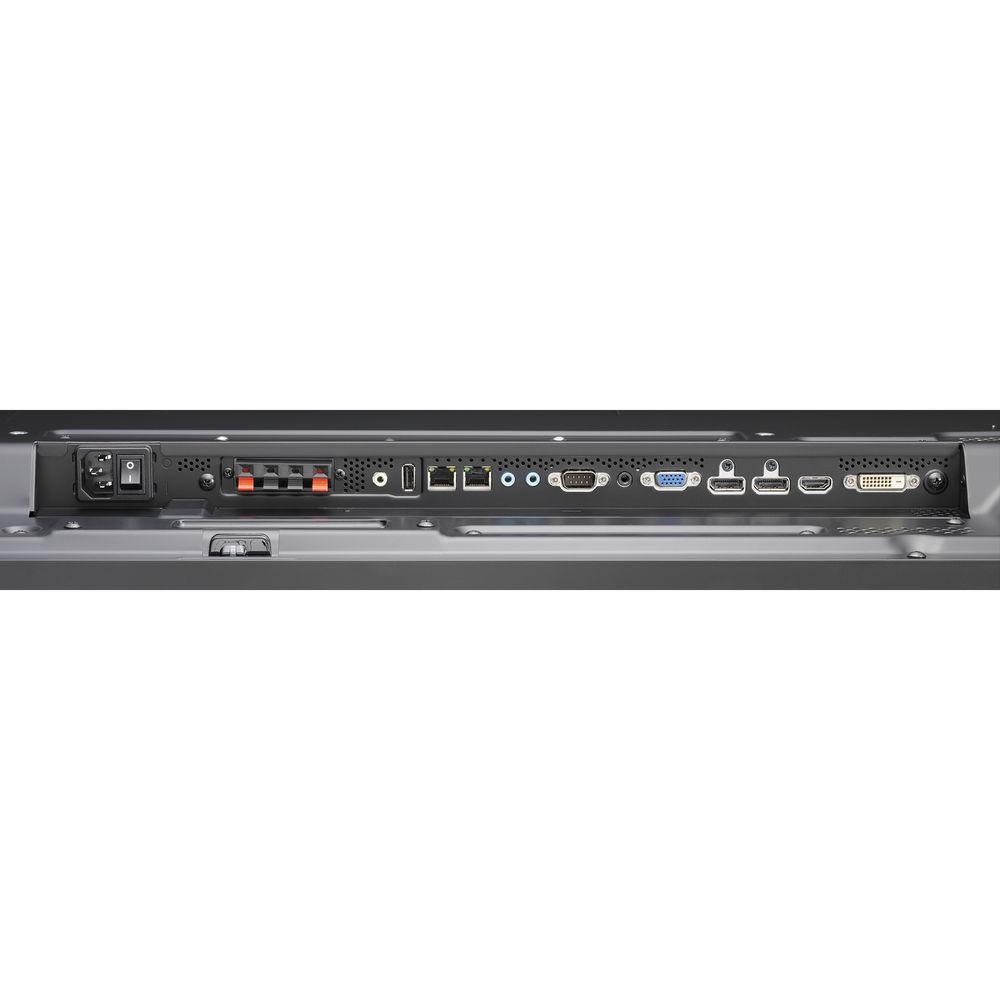

DisplayPort and LAN Control Daisy Chain
• Video signals and control signals can be daisy chained with one DisplayPort and LAN line respectively, meaning that just two cables manage everything for setup

Auto TileMatrix and Auto ID Technology
• Auto TileMatrix and ID features allow a user to simply set up the size of the video wall on the first display and automatically scale the content through the remaining displays, you can set up an entire video wall (of up to 100 displays in a 10×10 matrix).

Intelligent Wireless Data Function
• The built-in near field communication (NFC) chip allows data to be read and written via a mobile phone or tablet PC. Users can significantly reduce installation costs as displays can be easily configured and serviced using the NEC NFC Android app. This is available even when the display is switched off and especially useful on larger installations.

Frame Comp Function
• By synchronizing the content across the wall, this feature supports a seamless appearance and displays uninterrupted content to create one stunning image over all screens.

Advanced Heat Management
• Monitoring and managing the temperature of each display is crucial to secure reliability and longevity. An industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics, and fan-based technology allows for 24/7 operation, and protects your display investment.

DisplayPort Multi-Stream Function
• Thanks to the multi-stream function of DisplayPort, multiple displays can be daisy-chained and still be individually controlled. This also makes a 2×2 video wall with native Ultra High Definition 4K/2K (3840 x 2160) possible.

Human Sensor and Advanced Auto Dimming
• This optional human (motion) sensor accessory (KT-RC2) helps to deliver creative digital signage to end users by allowing for dynamic control of brightness, audio and source inputs while saving operating costs. Auto dimming adjusts the backlight of the LCD automatically depending on the amount of ambient light.

Dedicated Color Calibration Software
• As the brightness and color temperature of the LCD change with time, colors may not match across multiple screens. Our dedicated color calibration software ensures color uniformity and fidelity across multiple screens, creating a perfectly matched image in tiled environments. ¹

  Please Note:

  NEC Display Wall Calibrator Software close

NaViSet Administrator 2
• This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management and control functionality of the majority of NEC display devices and Windows computers. It is ideal for multi-device installations over larger infrastructures.

Proof of Play
• This function provides accurate proof that displays are working as established and is helpful when checking on the status of the displays installed at user's site.

Other Features
• Landscape /portrait capability
  Scheduler w/real-time clock
  Intelligent power management system
  Power on delay
  Screen saver function
  Aspect ratio control
  Memo function
  Carbon footprint meter
  Image and on-screen display flip
  Picture-in-picture, Picture-out-picture
  Point zoom
  Control lock function
  6-axis color adjustments and sRGB standard
  Advanced video settings (noise reduction, adaptive contrast)
  Color temperature adjustment
  Programmable gamma setting (3 settings)
  DICOM simulation
  Plug-and-play (DDC/CI, DDC2B)
  HDCP (High-bandwidth Digital Content Protection)
  Ethernet and RS-232C control and communication
  Crestron RoomView
  AMX Discovery HTTP server
  PJLink
  Self-diagnosis
  Status log function
  Firmware update by LAN

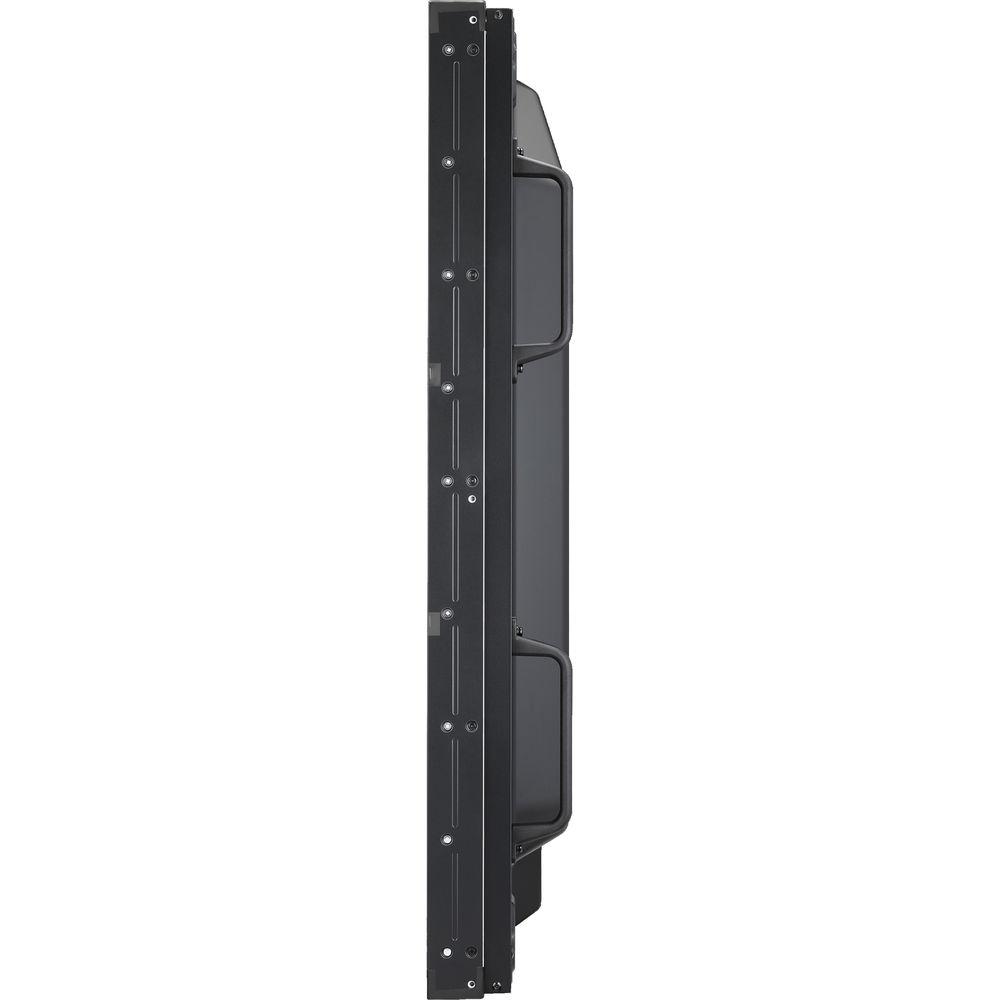

  Metal rear cabinet with VESA Standard (FDMIv1) mounting interface handles

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

NEC X555UNV Specs

Screen Size (Diagonal)	55"
Native Resolution	1920 x 1080
Panel Type	IPS-Type LCD
Brightness	500 cd/m Rating 70% users recommend this product to others. And what about you? This product has already been rated by 78 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
