User Manual for Neewer Bi-Color LED 2-Light Kit with Stands Click to enlarge the picture
Contents of the user manual for the Neewer Bi-Color LED 2-Light Kit with
- Product category: LED Lights Neewer
- Brand: Neewer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neewer LED Lights
 |
User manual for the Neewer Bi-Color LED 2-Light Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neewer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neewer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neewer product will considerably shorten its lifespan!
|

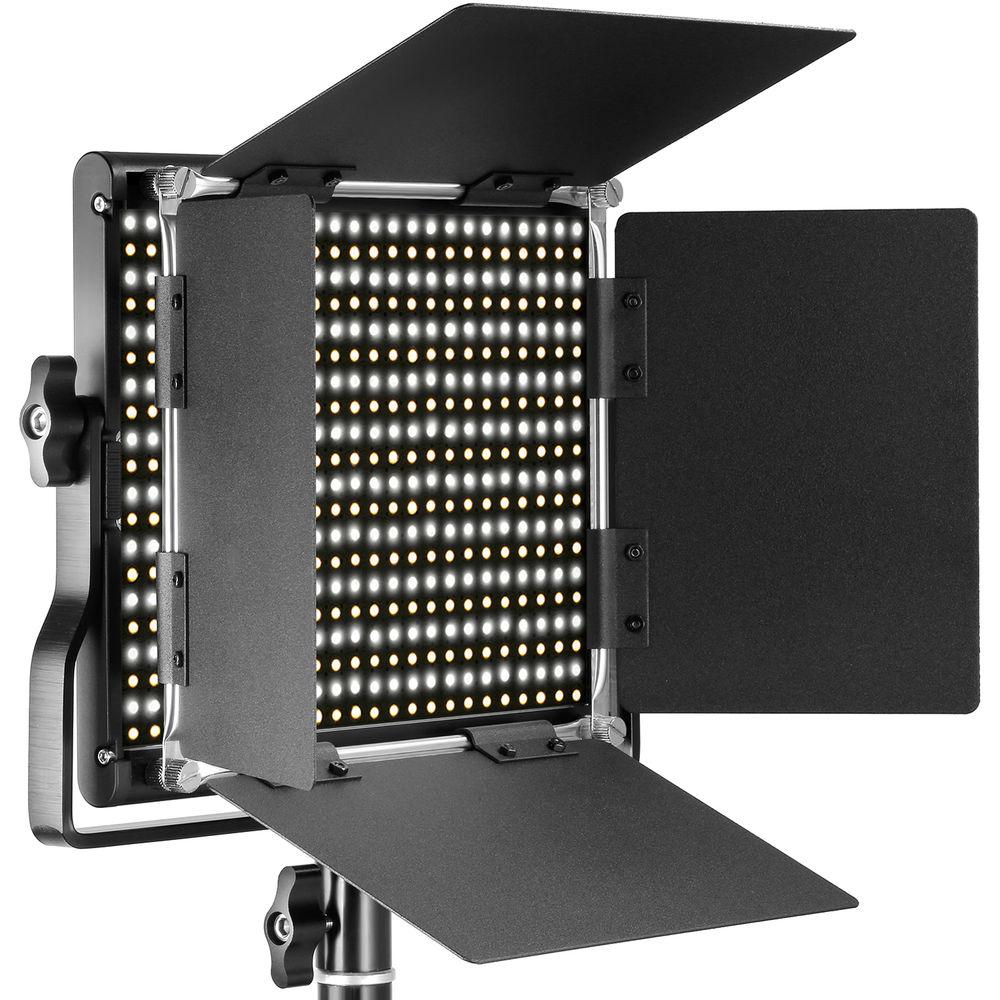

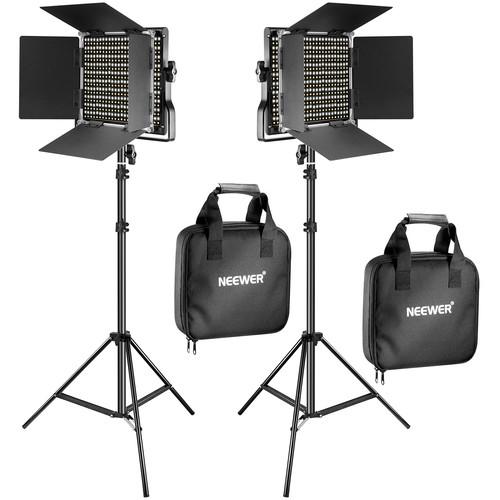

Product description A complete set for a straightforward 2-point setup, this Bi-Color LED 2-Light Kit with Stands from Neewer can be used on location or in the studio for reliable lighting. The kit includes two bi-color LED panels with built-in barndoors, two adjustable stands that go from 26 to 75" in height, two white diffusers to help soften the light, and two carrying cases for easy transport. Also in the package are power adapters and cables for using 100-240 VAC power, however the lights can also run on optional NP-F550 and NP-F970 batteries for when portability is crucial. Each fixture is composed of 660 individual LEDs inside an aluminum alloy housing, outputting approximately 3360 lumens. Half of the LEDs are balanced for daylight and half for tungsten, which allow for gradual color temperature adjustment from 3200K to 5600K. Plus, a rated CRI of 96+ helps ensure color accuracy across the entire temperature range. A tiltable U-shaped yoke is provided with each panel, and together with the four-leaf barndoors, allows for control over the shape and direction of your light. - LED Panel
-
- Bi-color light panel with color temperature range of 3200-5600K
- Composed of 660 LEDs, rated to output 3360 lumens and consume 40W of power

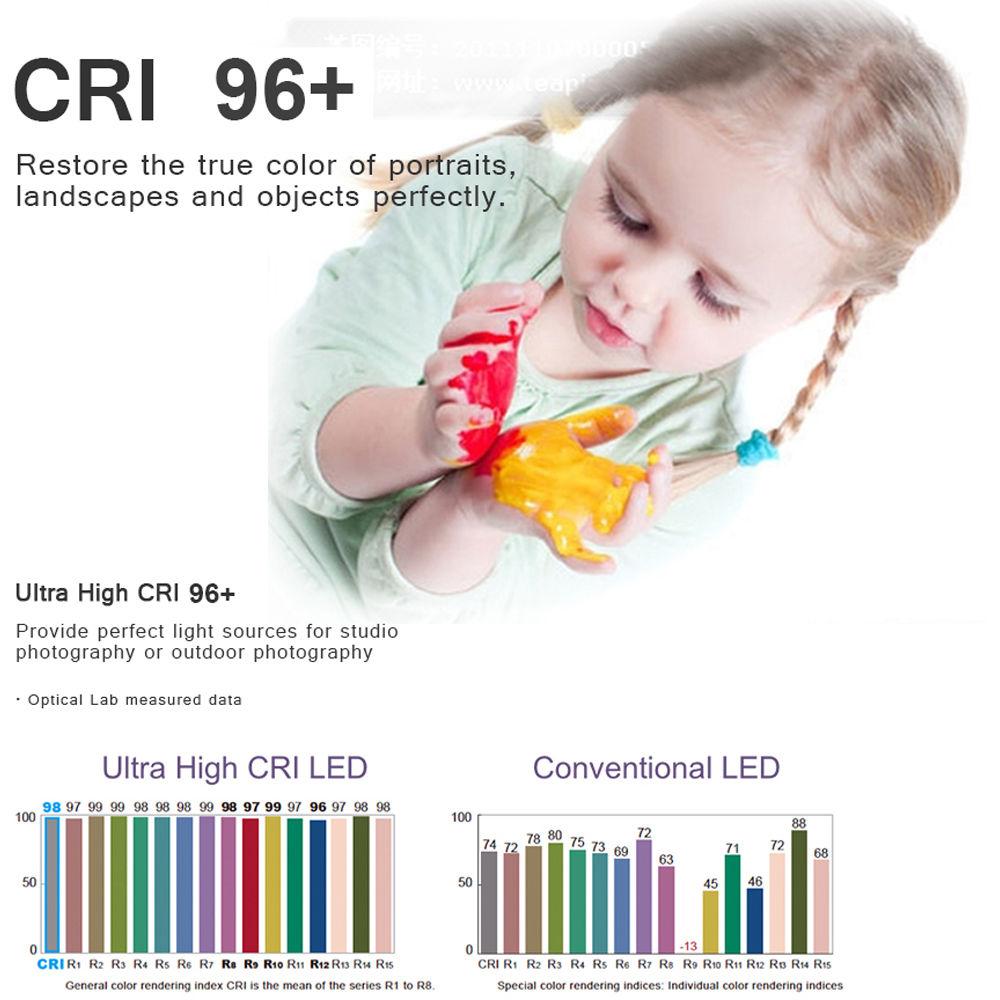

- CRI of 96+ helps with accurate color rendering
- Battery plate accepts optional NP-F550 and NP-F970 batteries for field use

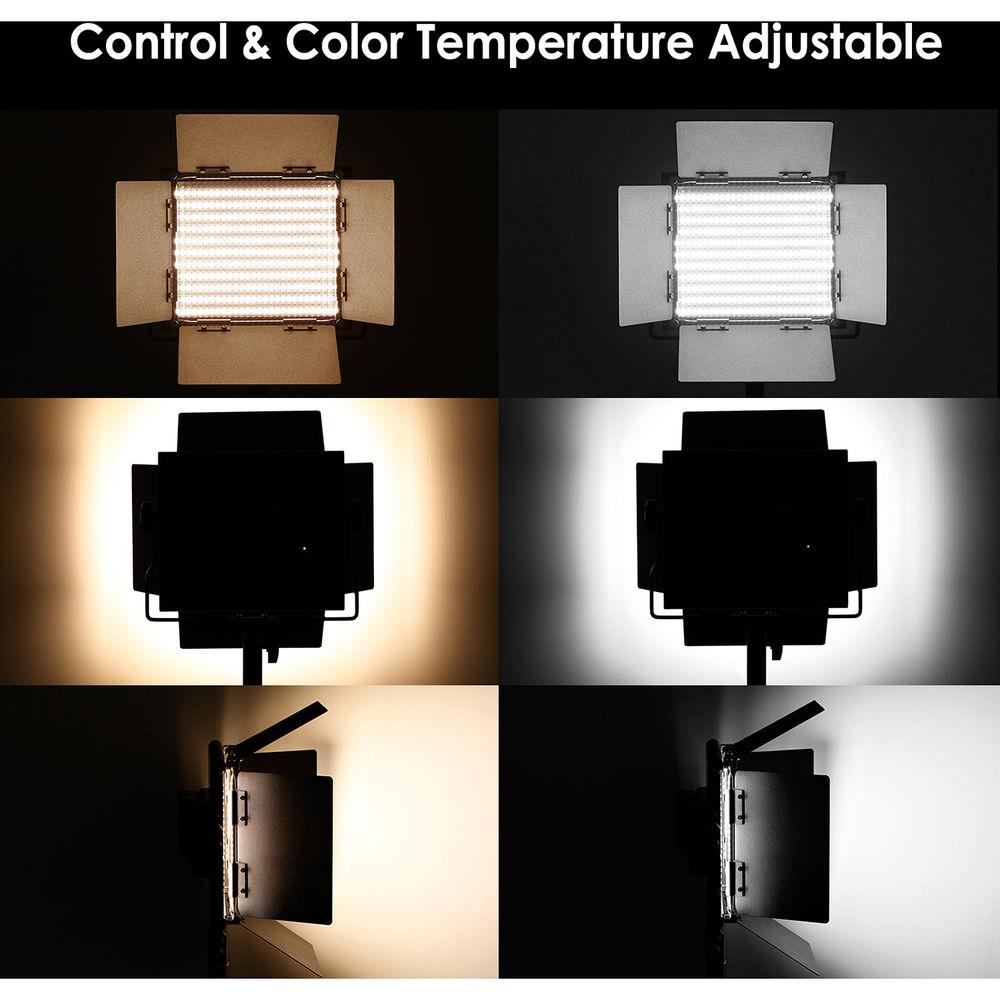

- U-shaped yoke and built-in barndoors allow for directional control
- Durable aluminum alloy construction
- Dimensions of 27.6 x 12.0 x 7.2"
- Included Accessories
-

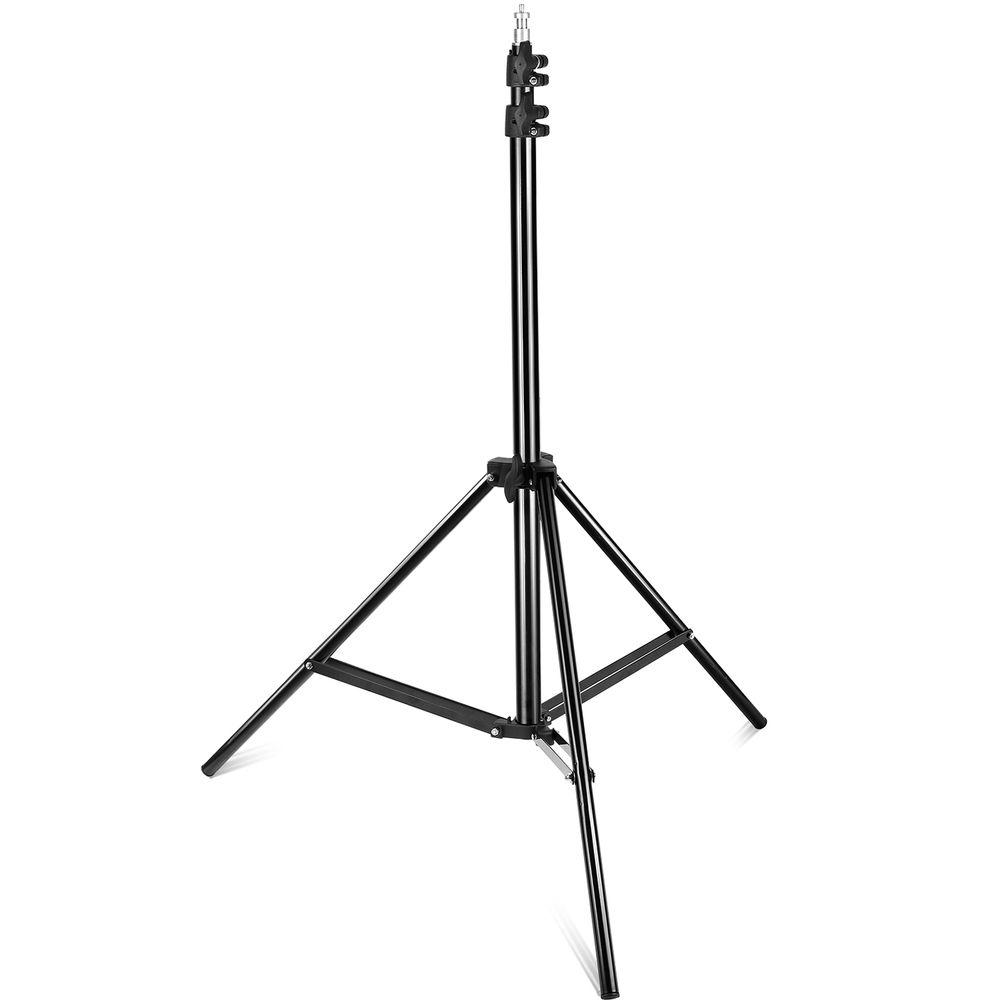

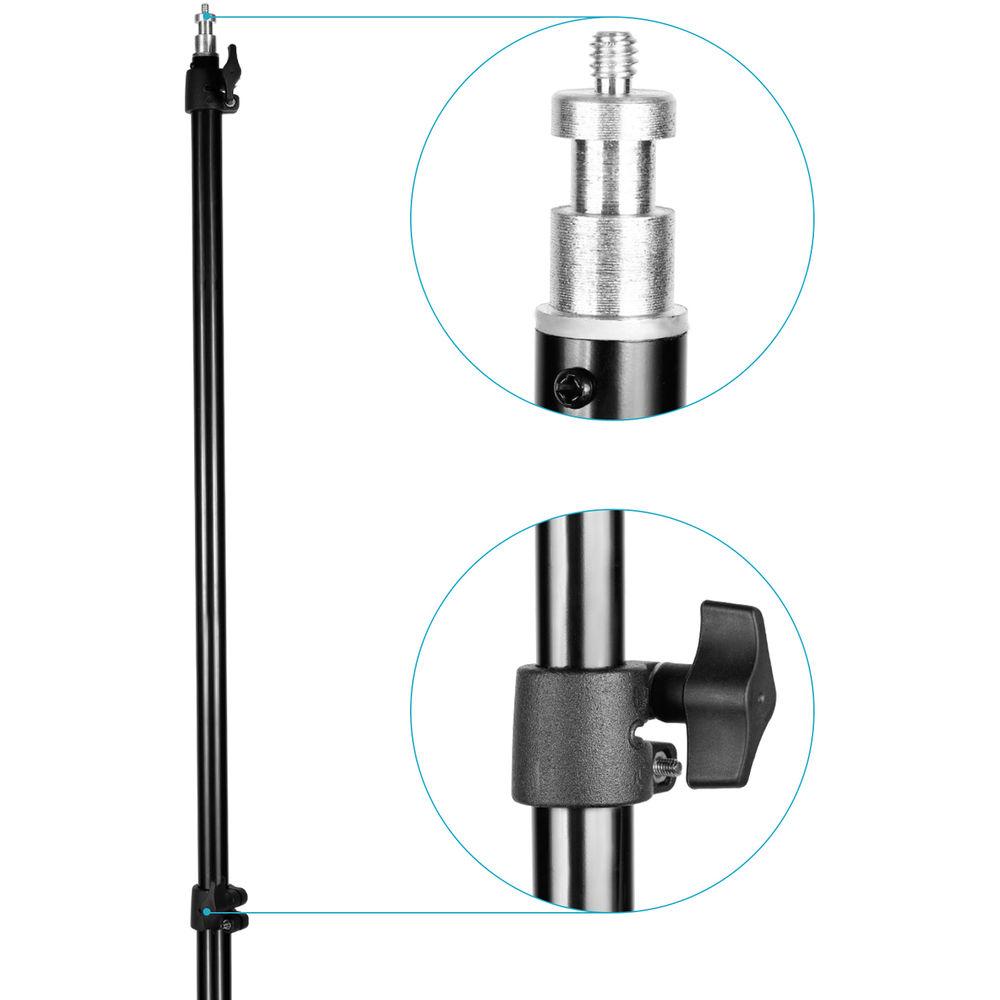

- Three-segment stands with 1/4"-20 screw for mounting, feature a height range from 26 to 75"
- White diffusers help soften the light for a more pleasing quality
- Carrying cases for each panel, help simplify transport
- Adapters and cables included for running off of 100-240 VAC power

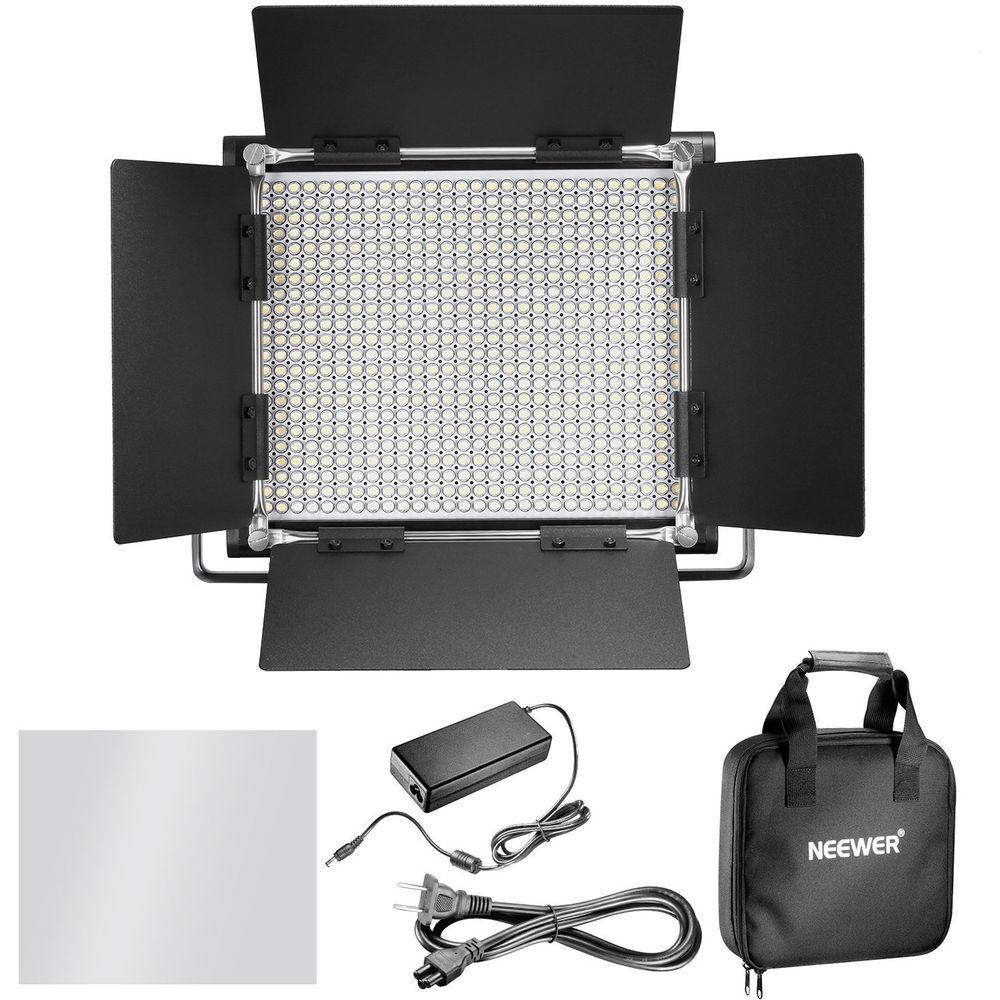

In the Box Neewer Bi-Color LED 2-Light Kit with Stands 2 x Light Stand 2 x White Diffuser 2 x Power Adapter 2 x Power Cable 2 x Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neewer Bi-Color LED 2-Light Kit with Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Neewer Bi-Color LED 2-Light Kit with Stands can be downloaded in PDF format at the link stated below.
Technical parametersNeewer 90089829 Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 96 | | Housing Material | Aluminum | | Lumens | 3360 | | Number of LEDs | 330 (Daylight)
330 (Tungsten) | | Fixture Dimensions | 27.6 x 12.0 x 7.2" / 70.1 x 30.5 x 18.3 cm | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DMX Connector | None | | | | Fixture Mount | 1/4"-20 Female Thread | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 40 W | | Power Pass-Thru | No | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 4.5" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
