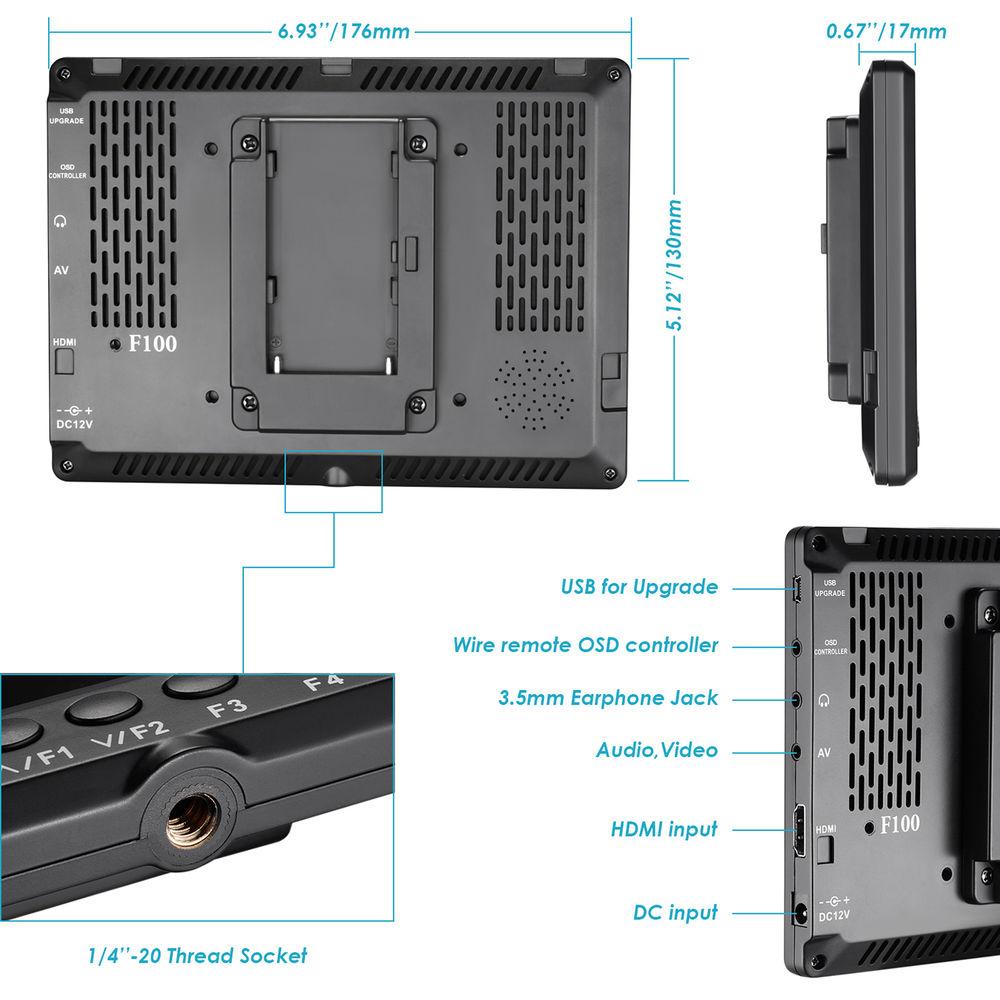

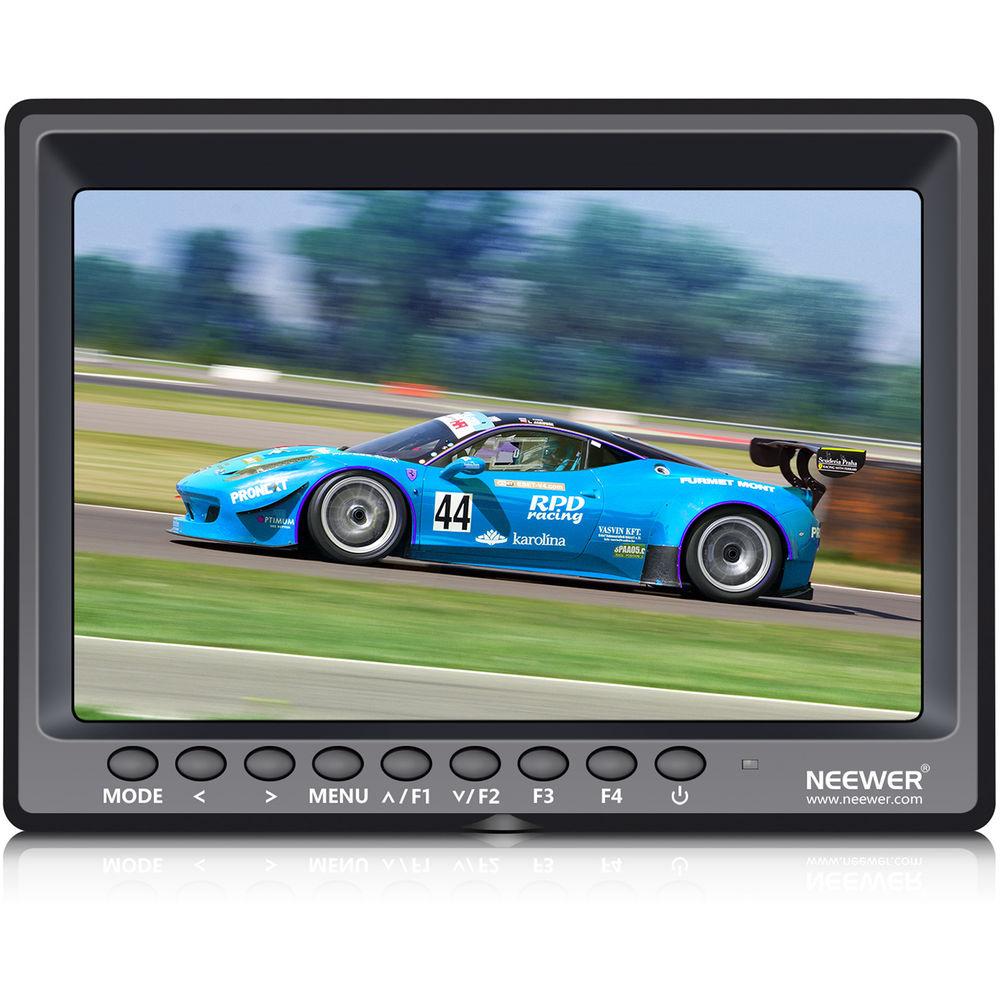

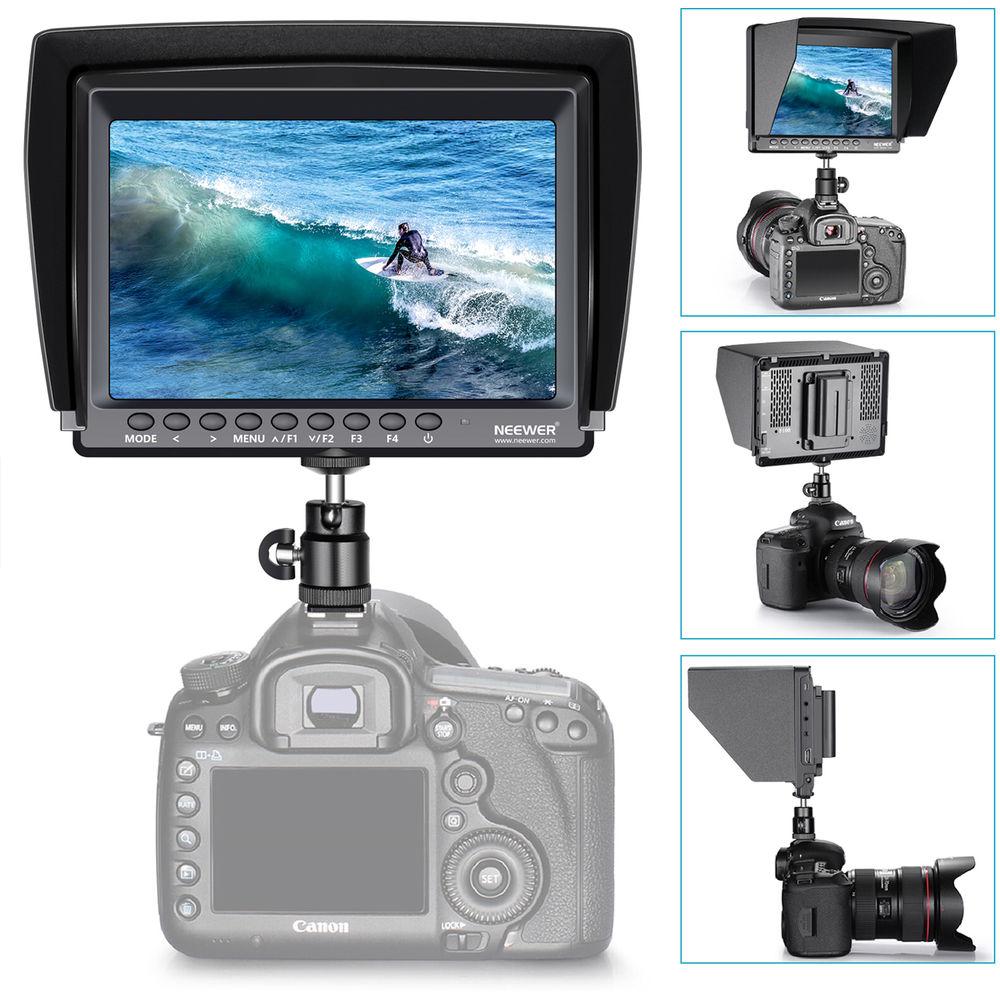

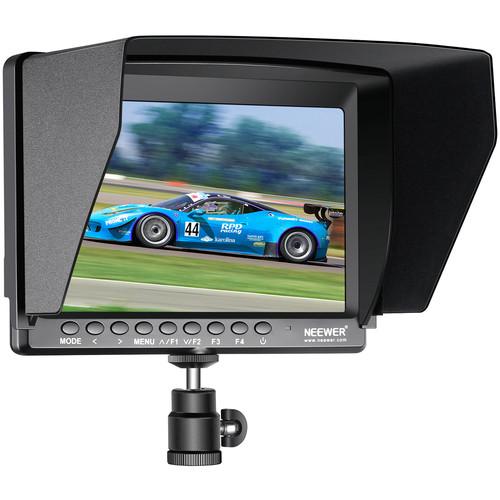

Product description The Neewer F100 7" 4K HDMI On-Camera Monitor features a 1280 x 800 screen resolution and supports up to UHD 4K input signals. The monitor has HDMI and composite inputs as well as a headphone port and built-in speaker. It comes with an interchangeable L-series battery plate attached and supports optional L-series batteries or a 12V AC adapter for power. This affordable monitor also offers focus assist, pixel-to-pixel, and zoom functions for setting up your shot. An HDMI clamp is included for preventing your HDMI cable from accidentally being removed, and a shoe mount is supplied for mounting the monitor on top of your camera. A sun hood is also included for shooting outdoors. Note: AC adapter, battery, and battery charger are not included. - Key Features
-
- 1280 x 800 screen resolution
- Supports up to UHD 4K input signals
- HDMI and composite inputs
- Headphone port
- Built-in speaker
- L-series battery plate
- Focus assist, pixel-to-pixel, and zoom
- USB port for firmware updates
- Remote OSD controller port for optional controller

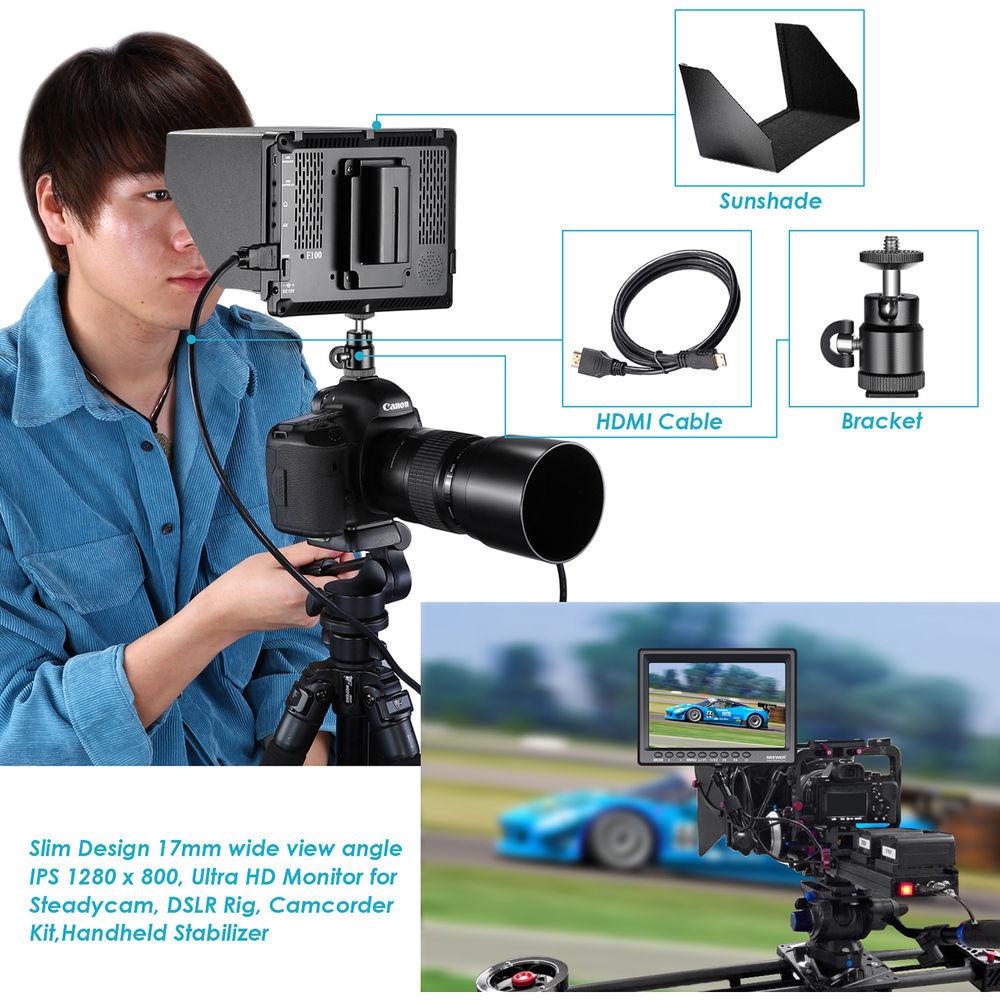

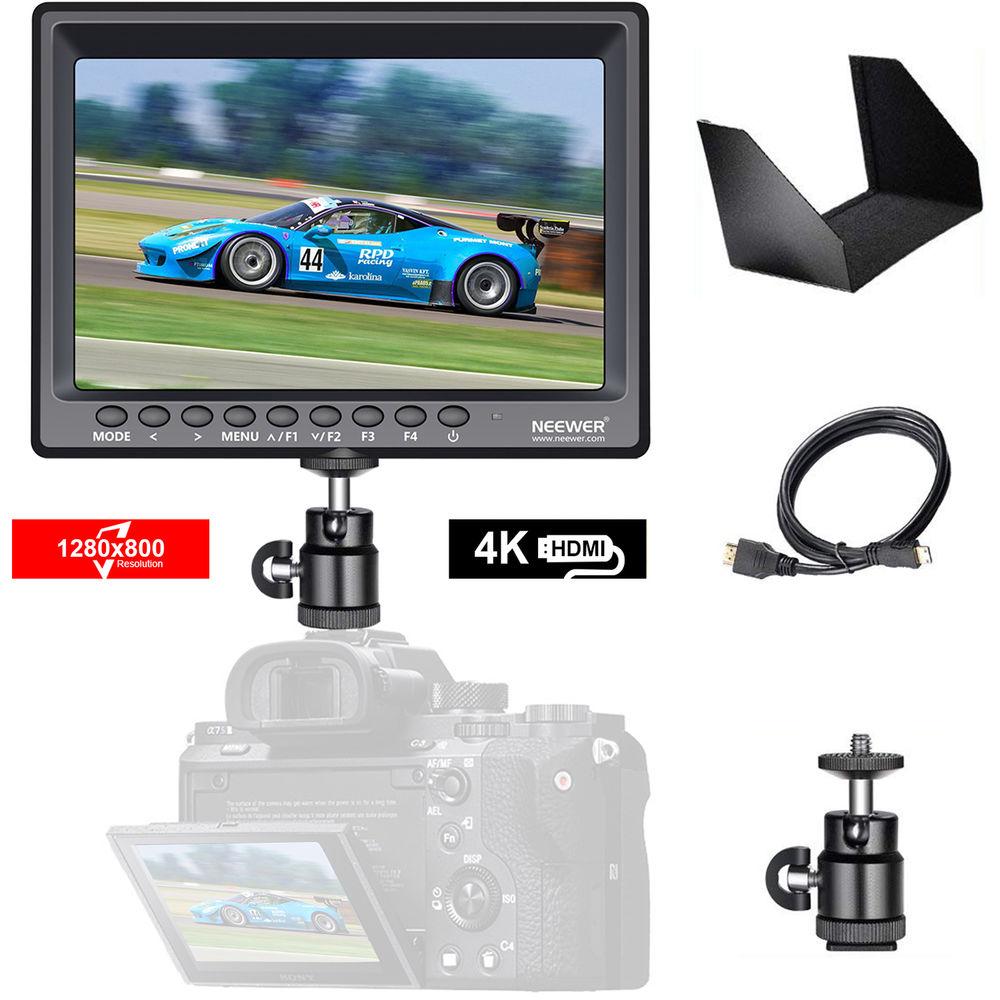

In the Box Neewer F100 7" 4K HDMI On-Camera Monitor Sun Hood HDMI Cable HDMI Clamp Shoe Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neewer F100 7" 4K HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeewer F100 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 160° (80/80)
Vertical: 160° (80/80) | | Touchscreen | No | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 1200:1 | | Dot Pitch | 0.07875 x 0.07875 mm | | Real-Time LUT Monitoring | No | | | | Video | 1 x HDMI Type A Input
1 x RCA (Composite) Input | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x Barrel Input | | Other I/O | None | | Card Slot | None | | | | Video Format | HDMI
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL | | | | Battery Type | 1 x L-Series (Interchangeable Mount) | | Power Consumption | 8 W (Maximum) | | | | Mounting | 1 x 1/4"-20 Female | | | | Operating Temperature | -4 to 131°F / -20 to 55°C | | Storage Temperature | -22 to 149°F / -30 to 65°C | | | | Dimensions (W x H x D) | 5.12 x 6.93 x 0.67" / 13 x 17.6 x 1.7 cm | | Weight | 0.81 lb / 370 g, Including Sun Hood |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Neewer F100 7" 4K HDMI On-Camera Monitor
| Subject: Tecla f4: no resalta zonas enfocadas | | Date: 06.03.2022 16:55:17 | Name: Mario Rodero | | MI monitor no resalta las zonas de la imagen bien enfocadas cuando se activa la tecla F4. la imagen se torna en blanco y negro, pero no resalta lo que está bien enfocado. | | Post reply |
| Subject: mi videocamara no me deja gravar con f 100 | | Date: 04.03.2022 18:52:00 | Name: francisco | cuando conecto el monitor ha la videocamara no me deja gravar
| | Post reply |
| Subject: No signal | | Date: 02.02.2021 09:49:09 | Name: KENNETH FRY | | I have a Sony PXW-Z190V Camcorder which I connected to a f100 Field monitor via the HDIMI Connection no signal appears on the screen I have tried different cables without success if I plug the camera to a Sony television no problems at all any ideas please | | Post reply |
