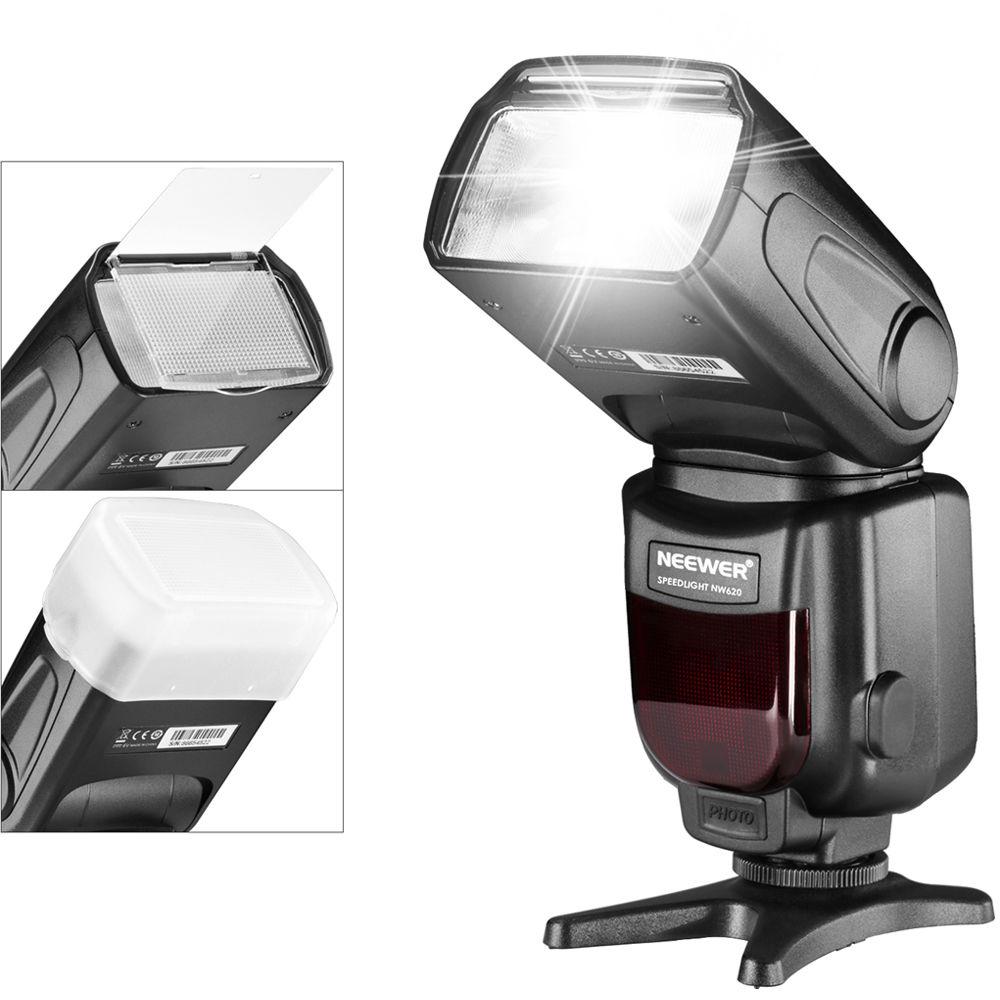

User Manual for Neewer NW620 Flash with FC-16 Trigger and Accessories Kit for Nikon and Canon Cameras Click to enlarge the picture
Contents of the user manual for the Neewer NW620 Flash with FC-16 Trigger
- Product category: On Camera Flashes Neewer
- Brand: Neewer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neewer On Camera Flashes
 |
User manual for the Neewer NW620 Flash with FC-16 Trigger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neewer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neewer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neewer product will considerably shorten its lifespan!
|

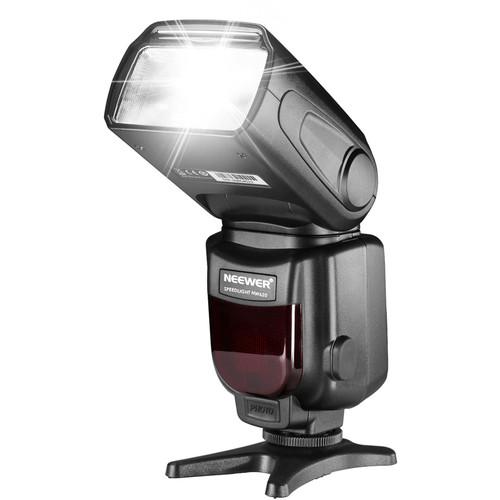

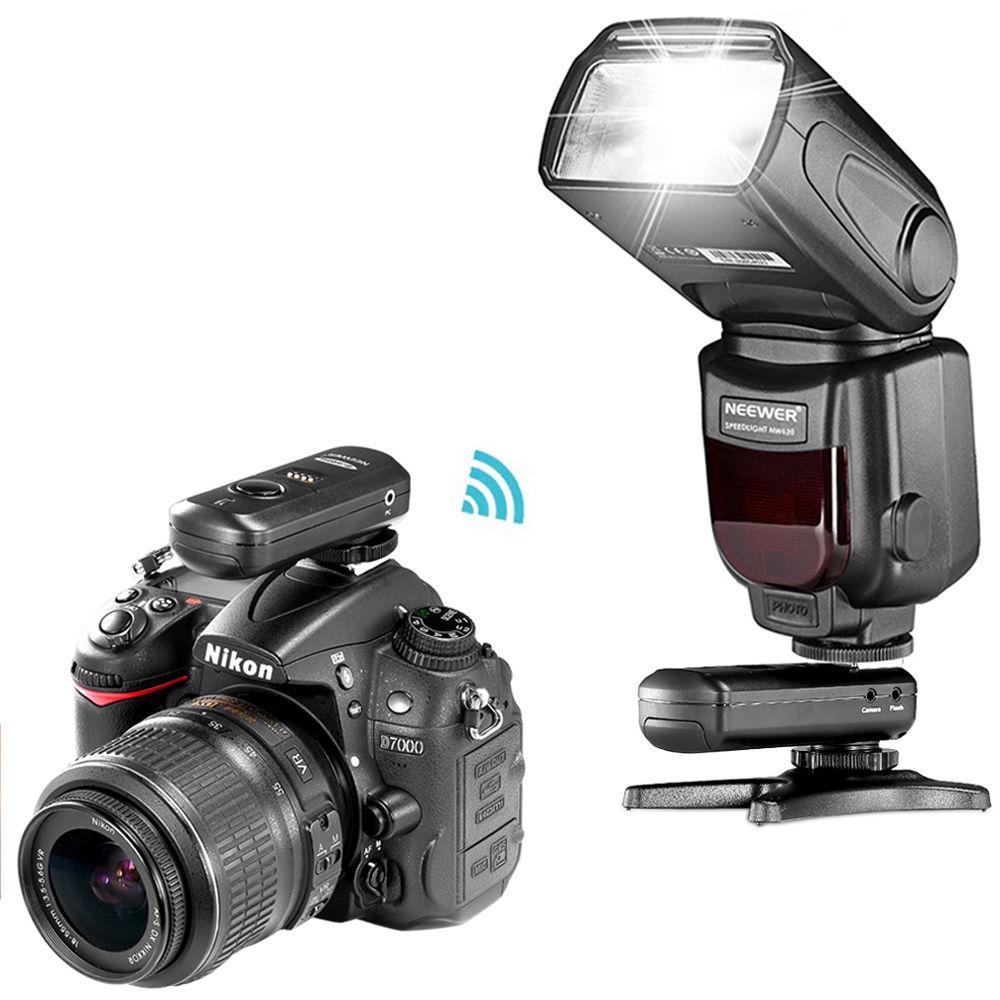

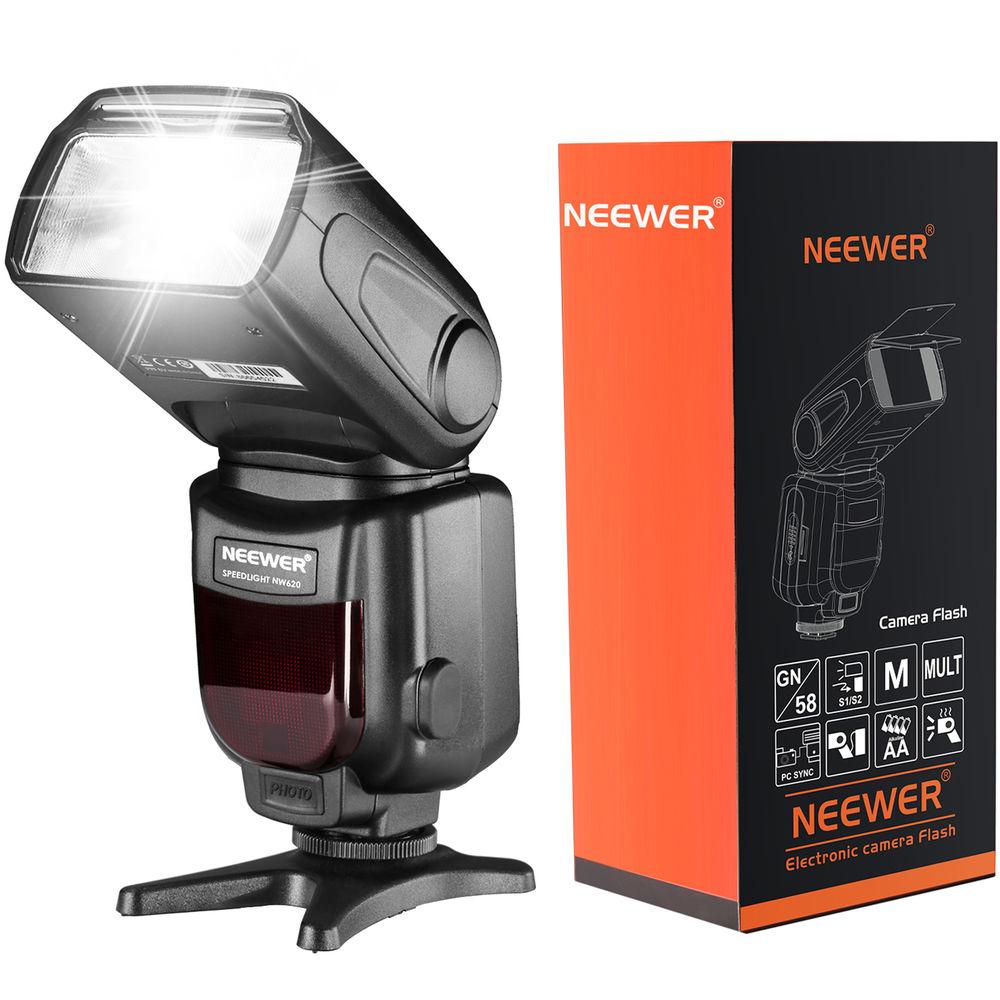

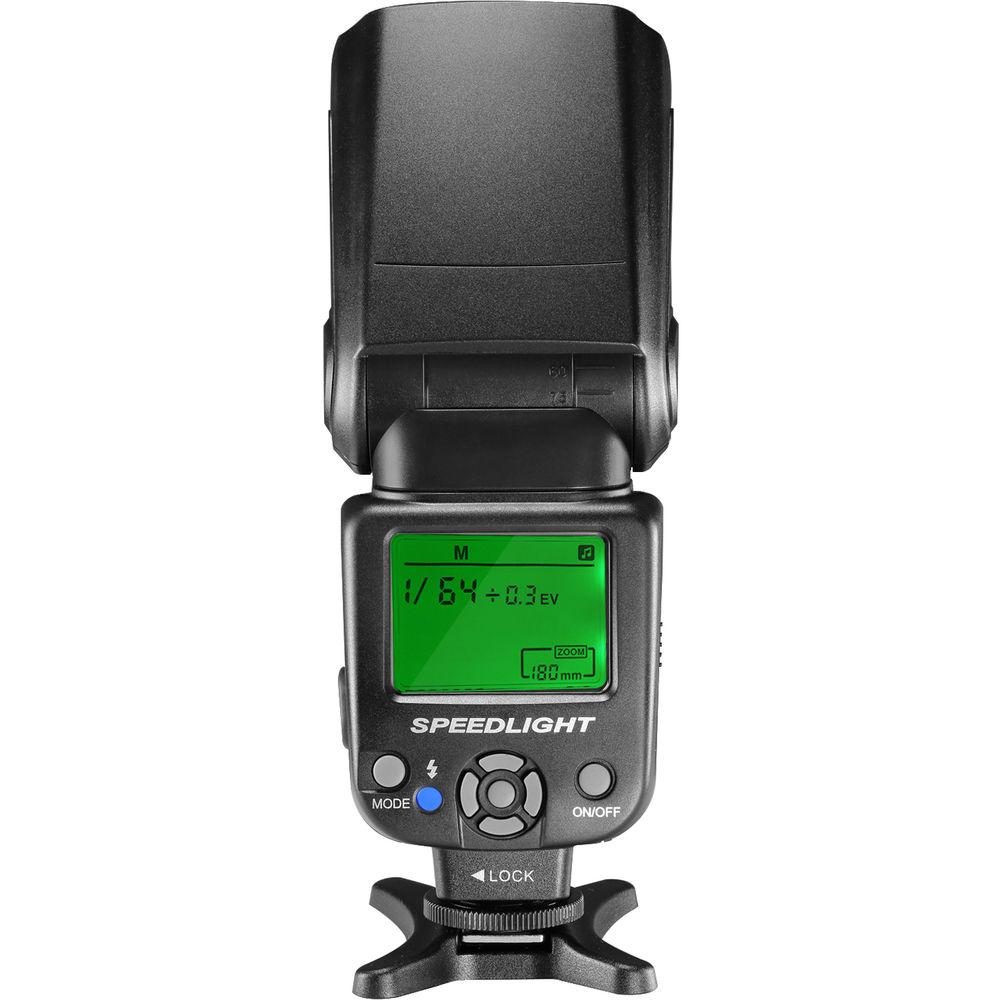

Product description A Guide to On-Camera Flash Read More Get all the essentials you need to start lighting your own photo shoots with this NW620 Flash with FC-16 Trigger and Accessories Kit from Neewer. This kit is primarily composed of the NW620 flash with manual exposure control and the FC-16 2.4 GHz wireless trigger set, which allows you to remotely control and trigger cameras or other flashes. Complementing them are C1, C3, N1, and N3 cables for connecting to a compatible Nikon or Canon camera, a hard flash diffuser to soften your light, a mini stand, and a microfiber cleaning cloth. The speedlight is powered by four AA batteries and the transmitter and receiver both run on two AAA batteries each, all of which are not included and must be supplied by the user. The NW620 flash offers a powerful guide number of 190' at ISO 100 when set to its longest position and reaches recycle times of approximately 2.9 seconds, enabling quick and efficient shooting. Output control ranges from 1/1 to 1/128 and can also be adjusted in 0.3 EV steps, allowing you to fine-tune your exposure to achieve optimal results. Its head can zoom to cover from 18 to 180mm, tilts from -7 to 90°, and rotates a full 180° for a wide range of positions available. Finally, a multi mode is available for stroboscopic flash firing, and the unit can work as an optical slave with instant sync and skip pre-flash modes. - NW620 Flash
-
- Insulated Gate Bipolar Transistor (IGBT) design enables flash durations from 1/200 to 1/20,000

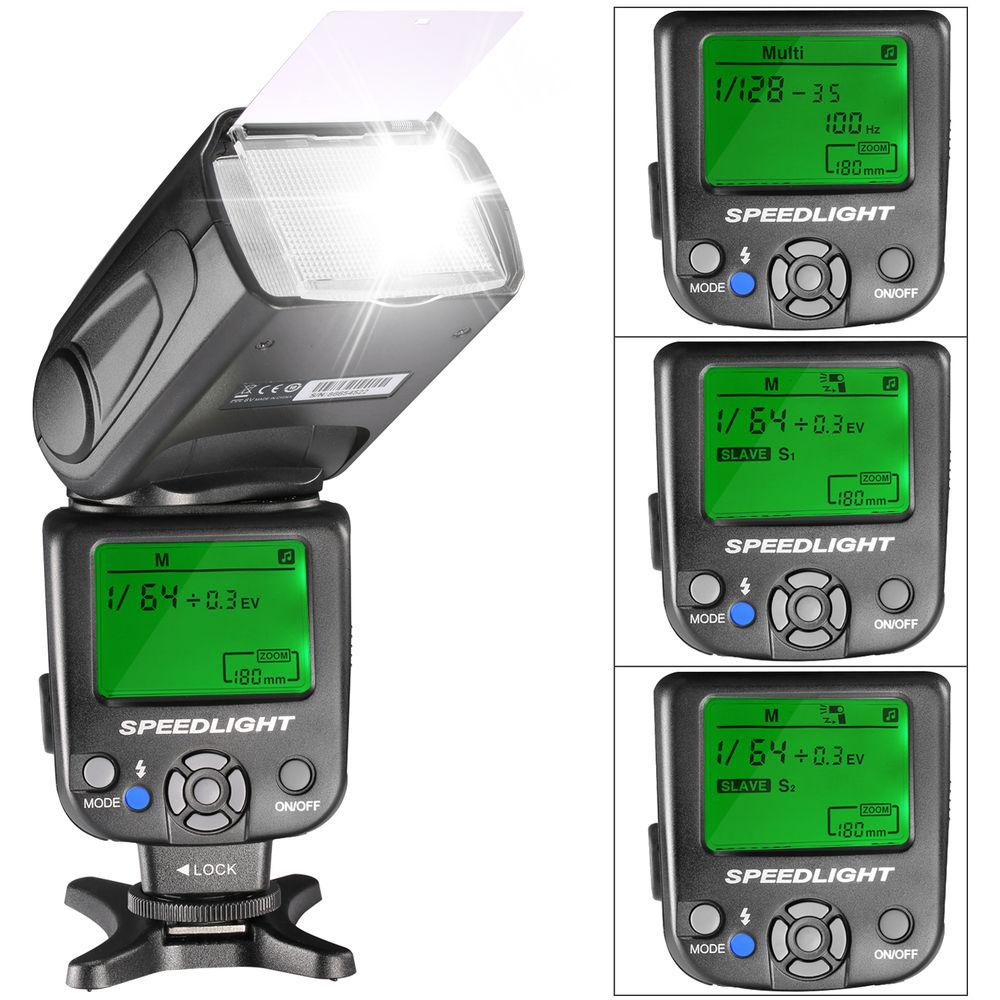

- Optical slave triggering with S1 and S2 modes, works at up to 98.4' indoors

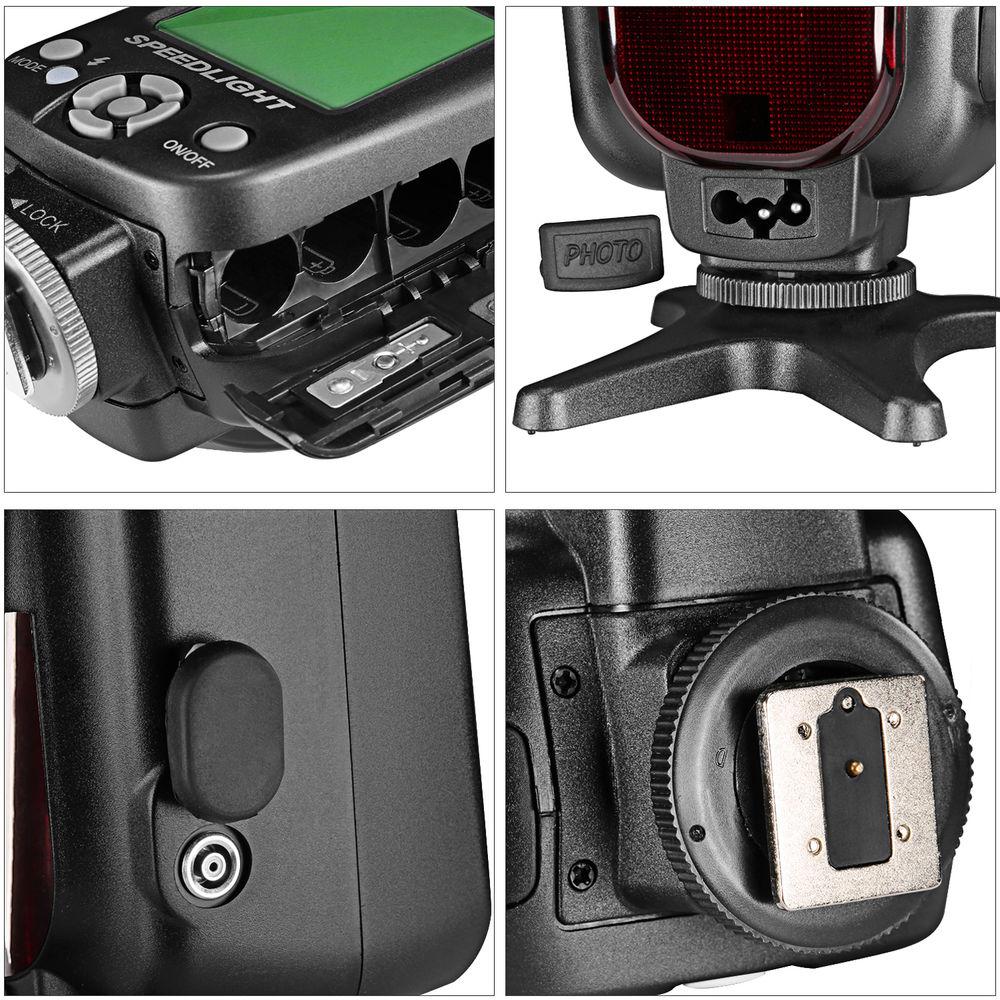

- PC sync slot for wired connection and synchronization
- Color temperature of 5500K, can be mixed with daylight sources without creating a strong color cast
- Power saving mode available to help preserve your batteries during longer shoots
- Over temperature protection system protects the unit when continuously firing the flash
- FC-16 Trigger Set
-

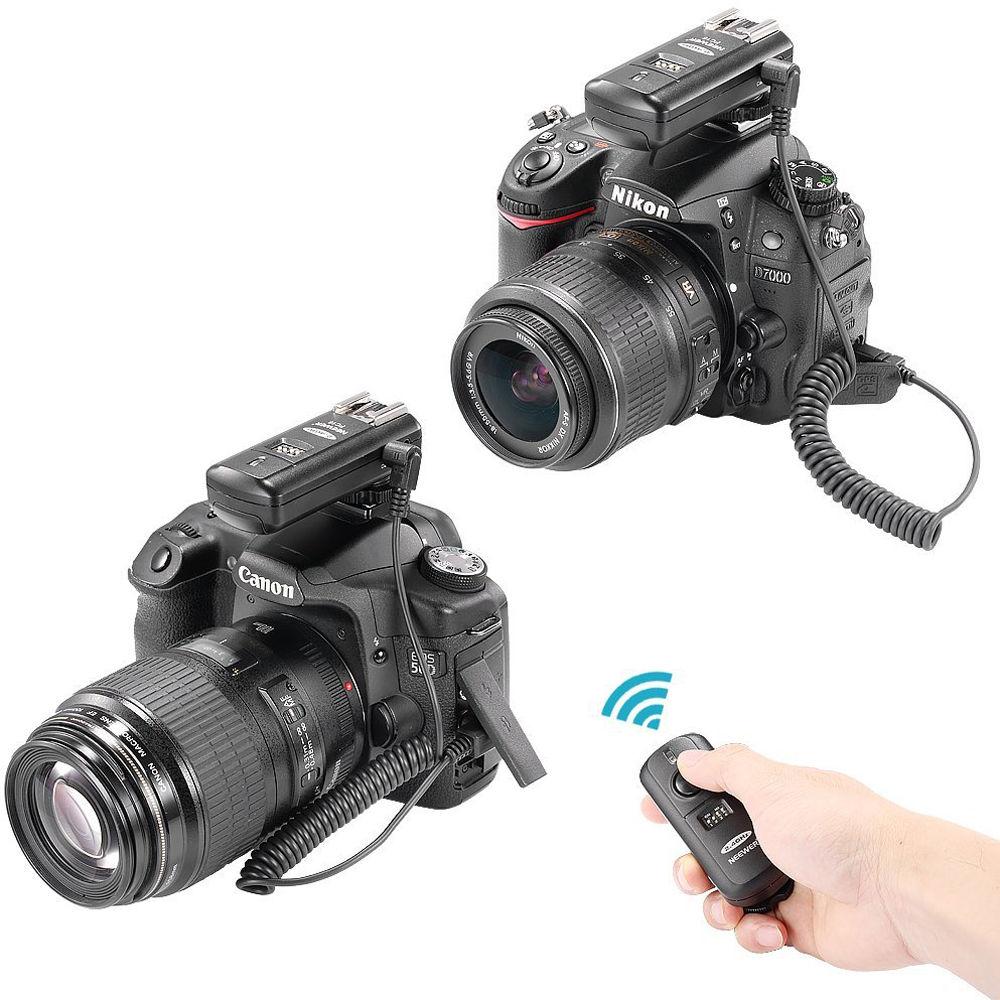

- 2.4 GHz wireless trigger system for use with compatible units
- Both trigger and receiver can be attached to camera hot shoe
- Operating distance of up to 328'
- 16 channels selectable
- Works with sync speeds up to 1/250 second
- C1, C3, N1, and N3 cables included for connecting to Nikon or Canon cameras
- Accessories
-
- Hard diffuser helps soften harsh shadows while keeping a directional beam
- Mini stand for deploying the speedlight separately from the camera
- Microfiber cleaning cloth for cleaning lens or camera, avoids scratching fragile surfaces

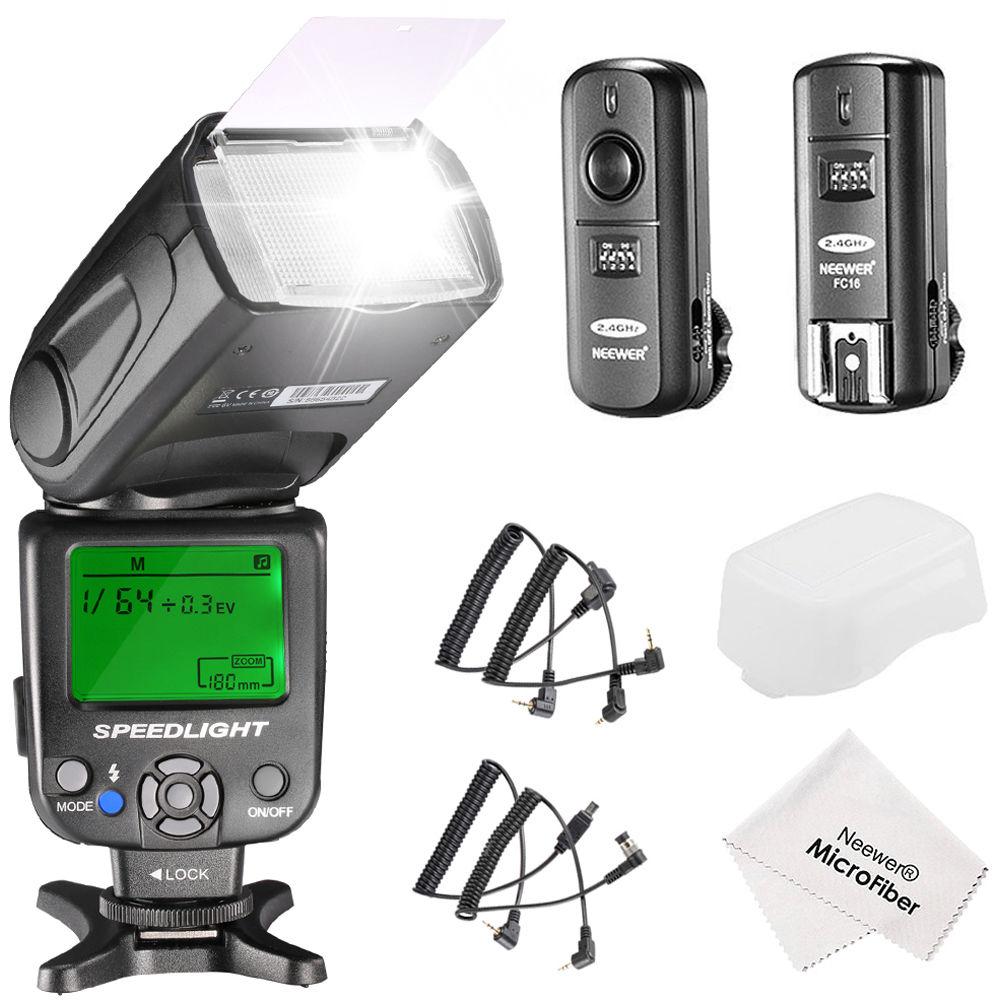

UPC: 191073004795 In the Box Neewer NW620 Flash with FC-16 Trigger and Accessories Kit for Nikon and Canon Cameras FC-16 Transmitter FC-16 Receiver C1 Cable C3 Cable N1 Cable N3 Cable Mini Stand Hard Diffuser Microfiber Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neewer NW620 Flash with FC-16 Trigger and Accessories Kit for Nikon and Canon Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeewer NW620 Specs | Mount | Shoe | | Guide No. | 190.29' / 58 m ISO 100 at 180 mm Position | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | Yes, -7 to 90° | | Swivel Head | Yes, 180° | | Coverage | 18 - 180 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 2.9 Seconds | | Flash Duration | 1/200 to 1/20,000 sec | | Compensation | -3 EV to +3 EV (in .3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: Optical Pulse
Distance: Up to 98.43' / 30 m | | Power Source | 4 x AA Batteries | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.5 x 9.5 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
