User Manual for Neewer NW620 Manual Flash Click to enlarge the picture
Contents of the user manual for the Neewer NW620 Manual Flash
- Product category: On Camera Flashes Neewer
- Brand: Neewer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neewer On Camera Flashes
 |
User manual for the Neewer NW620 Manual Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neewer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neewer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neewer product will considerably shorten its lifespan!
|

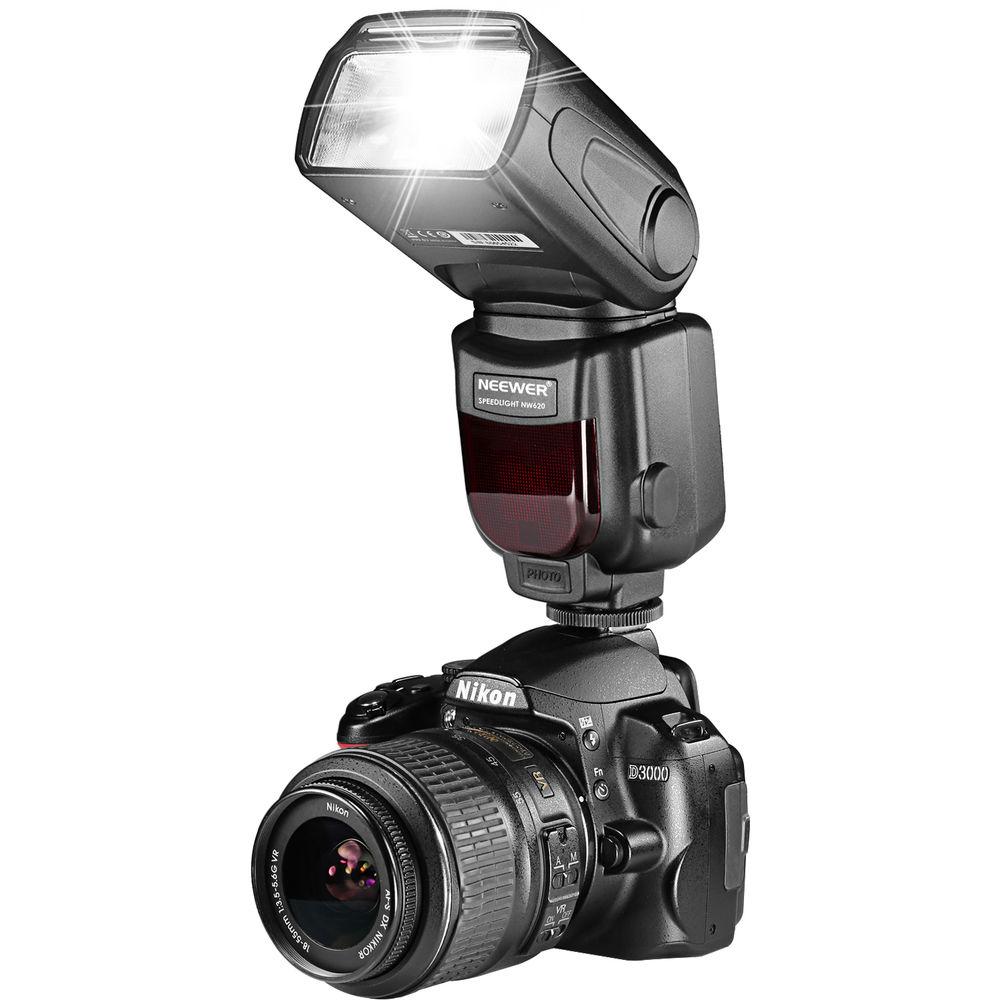

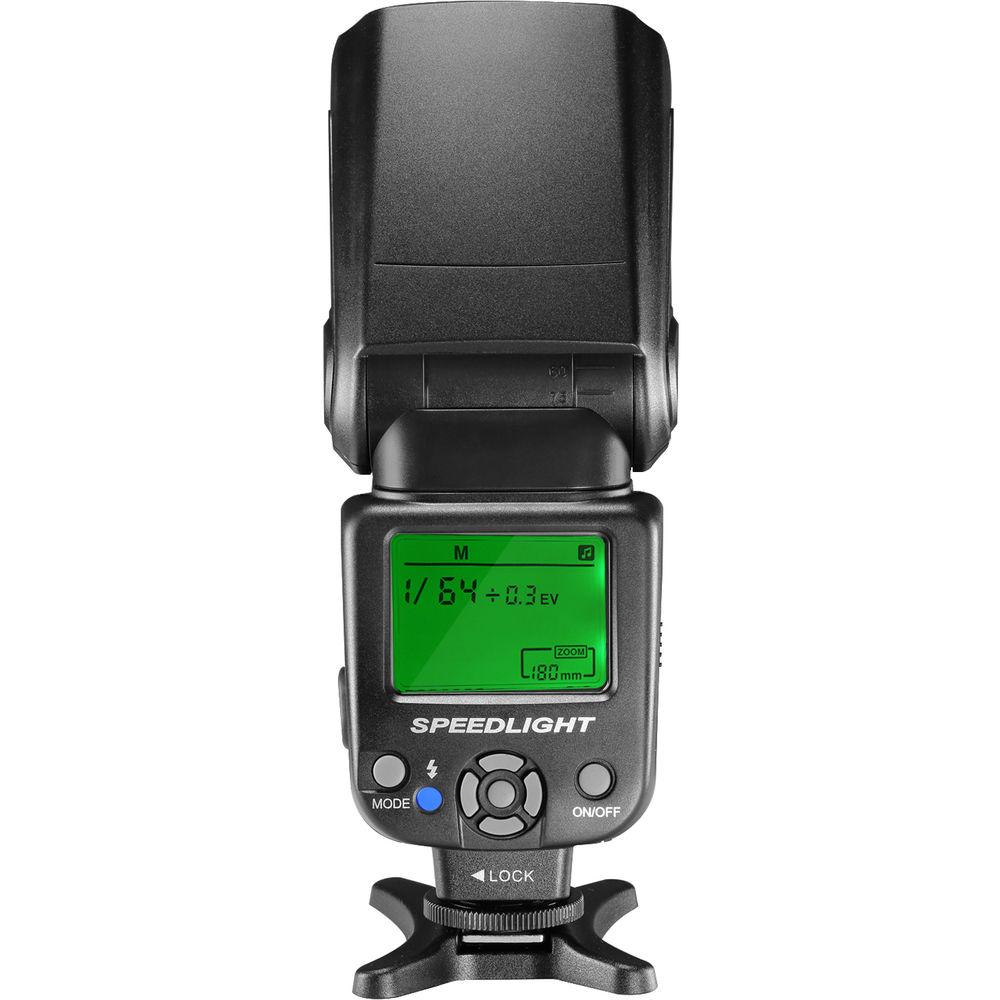

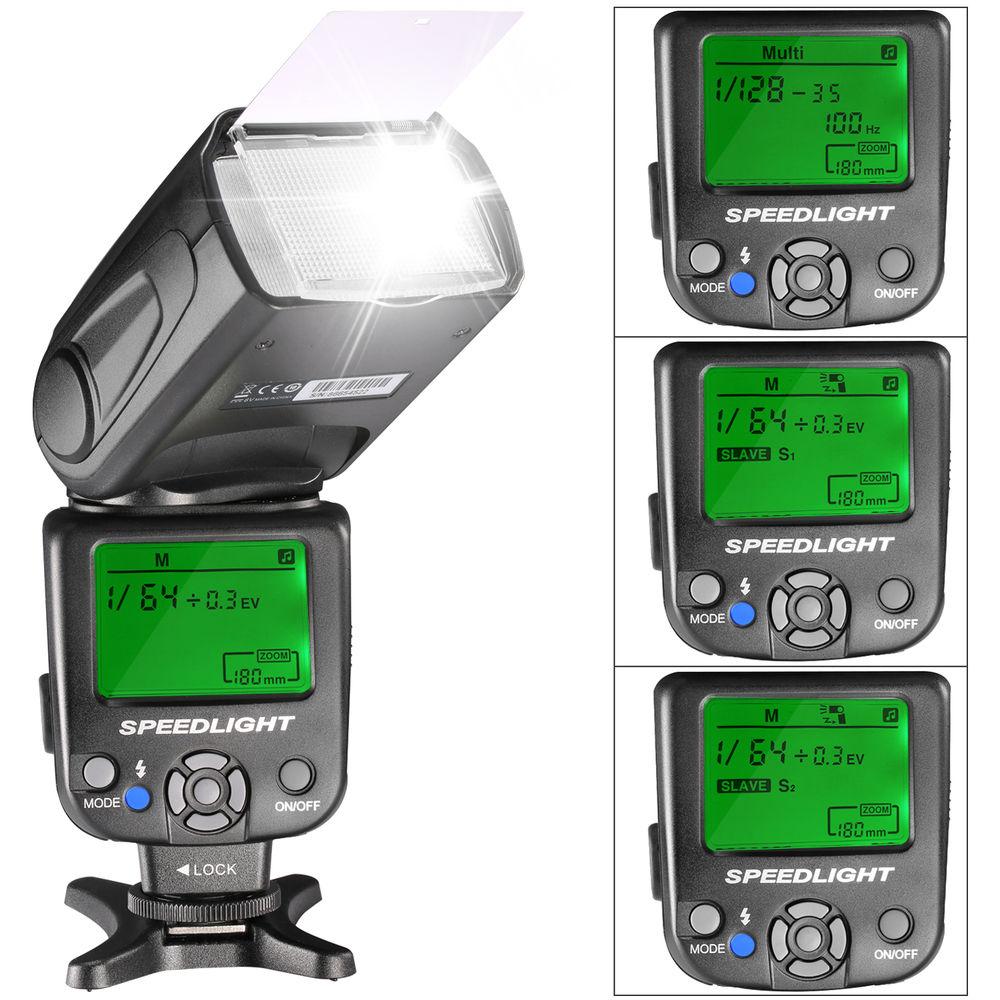

Product description A Guide to On-Camera Flash Read More With manual exposure control, the NW620 Flash from Neewer is a simple yet efficient shoe-mount speedlight. It offers a powerful guide number of 190' at ISO 100 when set to its longest position and reaches recycle times of approximately 2.9 seconds, enabling quick and efficient shooting whether you are in the studio or on the field. Output control ranges from 1/1 to 1/128 and can also be adjusted in 0.3 EV steps, allowing you to fine-tune your exposure to achieve the best results. The NW620 offers you several ways to control the direction of your light, starting with a notable zoom head that gives you 18-180mm coverage for both wide and telephoto lenses. You can also tilt the flash head from -7 to 90° and rotate it a full 180° to bounce light from nearly any direction. All key settings can be seen on the green LCD display and controlled with the D-Pad and buttons right below it, including changing between manual, multi, and both slave timing modes. The NW620 runs on four user-supplied AA batteries and lasts between 100 to 1500 flashes, depending on your power settings. -
- Insulated Gate Bipolar Transistor (IGBT) design enables flash durations from 1/200 to 1/20,000
- Optical slave triggering with instant sync and skip pre-flash timing modes, works at up to 98.4' indoors
- PC sync slot for wired connection and synchronization
- Color temperature of 5500K, can be mixed with daylight sources without creating a strong color cast
- Power saving mode available to help preserve your batteries during longer shoots
- Over temperature protection system protects the unit when continuously firing the flash
- Hard diffuser included, goes on a front slot in the flash head and can help soften the light
- Comes with mini stand for deploying the speedlight separately from the camera
UPC: 191073002982 In the Box Neewer NW620 Manual Flash Mini Stand Hard Diffuser Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neewer NW620 Manual Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeewer NW620 Specs | Mount | Shoe | | Guide No. | 190.29' / 58 m ISO 100 at 180 mm Position | | Exposure Control | Manual | | Vari-Power | Manual: 1/1 to 1/128 | | Bounce Head | Yes, -7 to 90° | | Swivel Head | Yes, 180° | | Coverage | 18 - 180 mm | | Off-Camera Terminal | PC | | Recycle Time | Approximately 2.9 Seconds | | Flash Duration | 1/200 to 1/20,000 sec | | Compensation | -3 EV to +3 EV (in .3 EV steps) | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: Optical Pulse
Distance: Up to 98.43' / 30 m | | Power Source | 4 x AA Batteries | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.25 x 4.0 x 3.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
