Neewer NW630 TTL Flash for Sony

Search your instruction manual in PDF to download

User Manual for Neewer NW630 TTL Flash for Sony Cameras

Click to enlarge the picture
Neewer NW630 TTL Flash for Sony Cameras Contents of the user manual for the Neewer NW630 TTL Flash for Sony
  • Product category: On Camera Flashes Neewer
  • Brand: Neewer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Neewer On Camera Flashes

Neewer NW630 TTL Flash for Sony Cameras Neewer NW630 TTL Flash for Sony Cameras Neewer NW630 TTL Flash for Sony Cameras Neewer NW630 TTL Flash for Sony Cameras Neewer NW630 TTL Flash for Sony Cameras Neewer NW630 TTL Flash for Sony Cameras Neewer NW630 TTL Flash for Sony Cameras
User manual for the Neewer NW630 TTL Flash for Sony contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Neewer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Neewer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Neewer product will considerably shorten its lifespan!



Product description

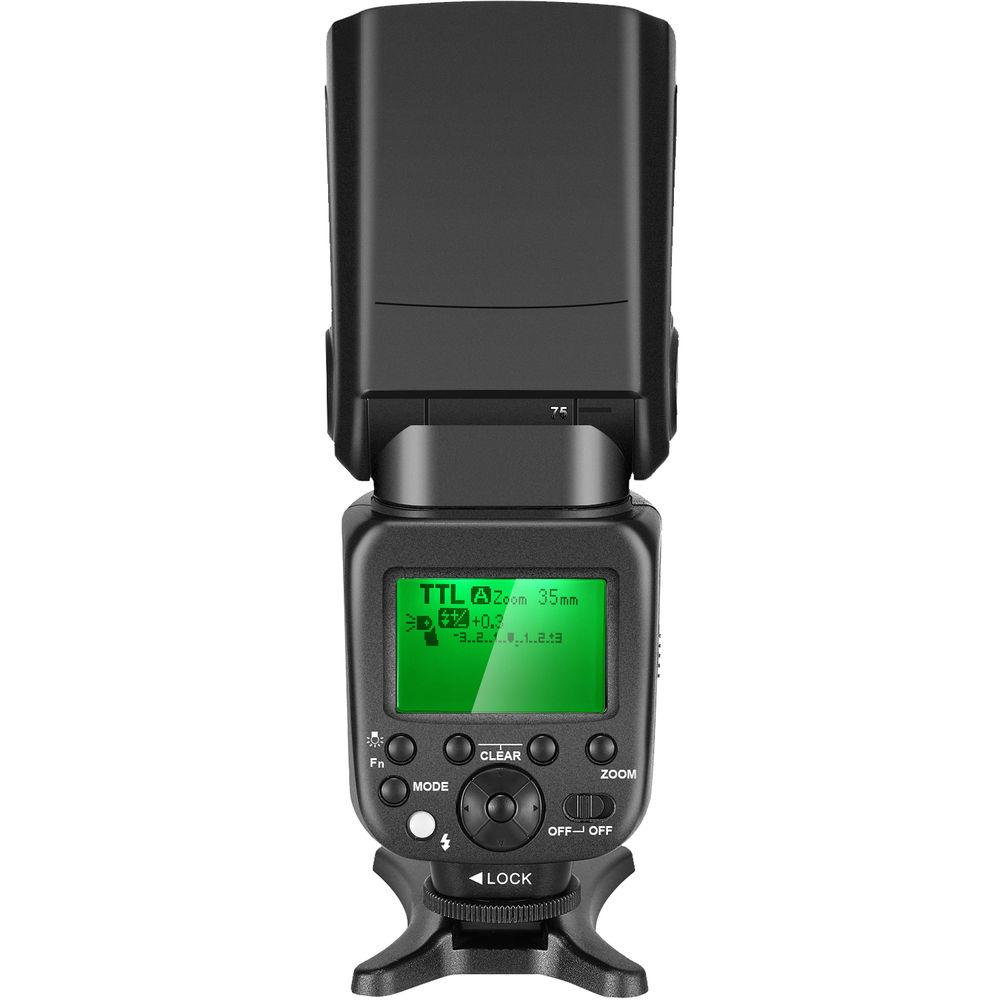

A Guide to On-Camera Flash Read More Offering TTL metering for Sony cameras, this NW630 Flash from Neewer is a powerful speedlight with a guide number of 190' at ISO 100 when set to its longest position. Integrated into its design is a 2.4 GHz wireless system, allowing the unit to work as a master or slave at distances of up to 98.4' and communicate with other optional flashes and transceivers such as the G1 remote control. Another notable feature is a high-speed sync mode for using shutter speeds as fast as 1/8000 second, complementing the classic first-curtain and second-curtain sync options. The NW630 gives you several ways to control the direction of your light, starting with a zoom head with an extensive coverage range from 18 to 180mm. You can also tilt the flash head from -7 to 90° and rotate it 270° to one side so you can bounce light from nearly any direction, as well as use the included hard diffuser to soften your light. All key settings are displayed on a dot-matrix LCD display and can be easily changed with the D-Pad and buttons below it. The flash runs on two user-supplied AA batteries, boasting recycle times of 2.3 seconds and offering up to 210 full-power flashes.

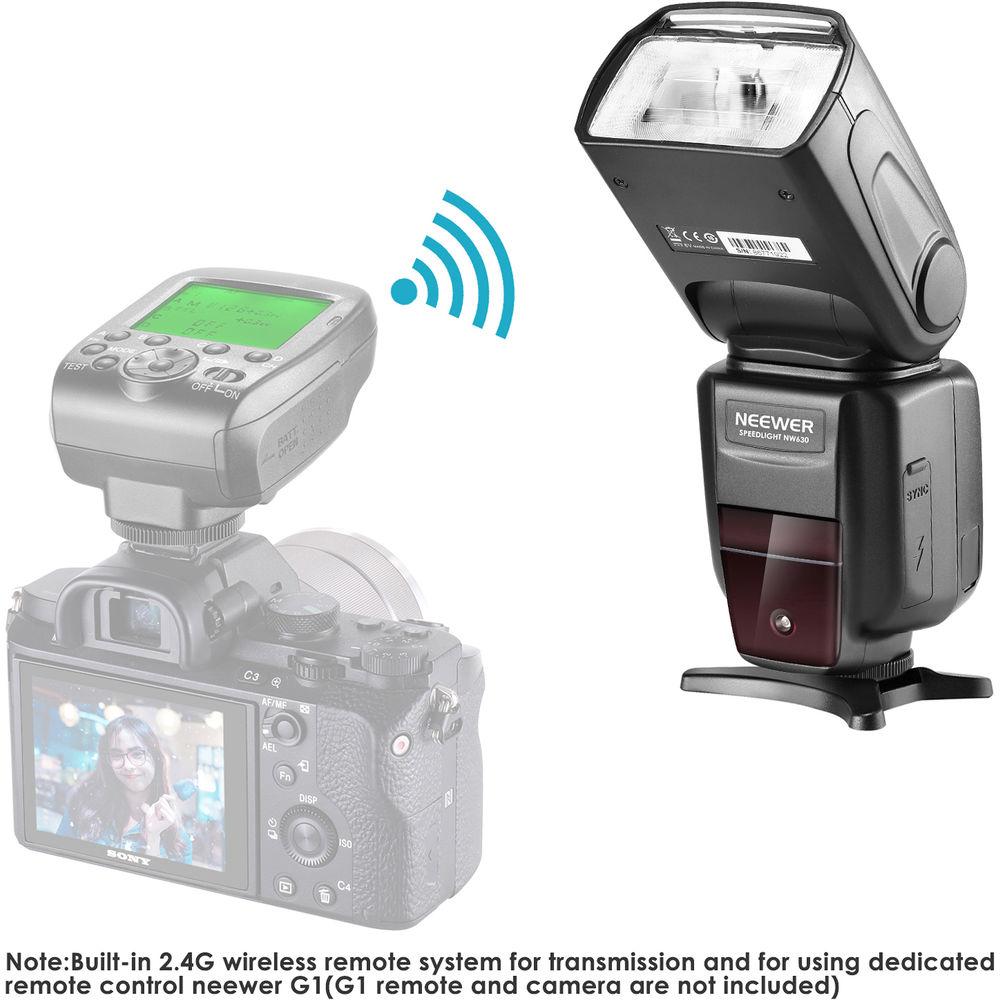

    • Built-in wireless RF triggering system with 3 groups and 16 channels available
    • Can function as an optical slave with instant sync and skip pre-flash modes
    • AF assist beam can help you focus quickly when under dim lighting conditions
    • Exposure compensation can be dialed in manually in 1/3 stop increments, with a total range of plusmn;3 stops
    • Multi mode for stroboscopic flash firing, up to 90 consecutive pops
    • When set to power saving mode, flash powers off automatically when idle to help preserve batteries
    • Overheating protection system acts as a safeguard when continuously firing the flash at a high output

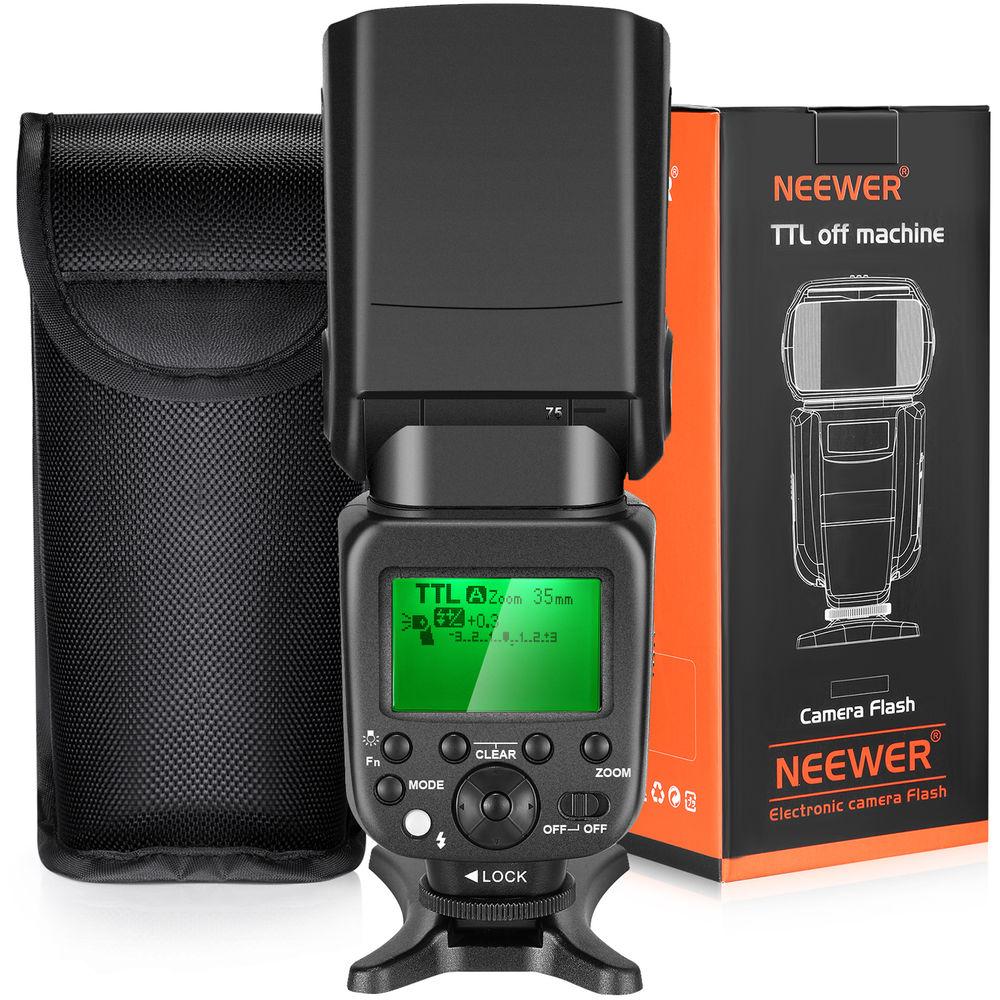

UPC: 191073024083 In the Box Neewer NW630 TTL Flash for Sony Cameras
  • Hard Diffuser
  • Protective Pouch
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Neewer NW630 TTL Flash for Sony Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Neewer NW630 Specs

    Mount Shoe
    Guide No. 190.29' / 58 m ISO 100 at 180 mm Position
    Exposure Control ADI / P-TTL, Manual
    Vari-Power 1/1 to 1/128

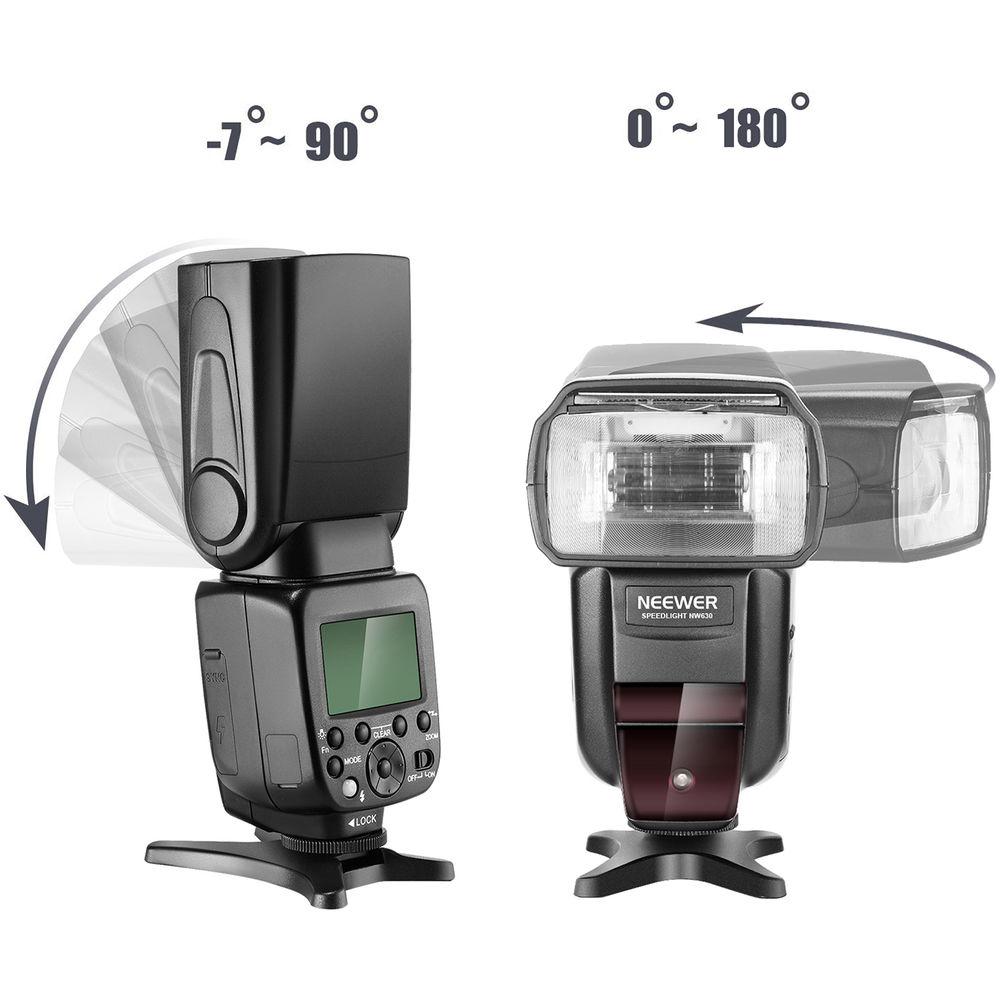

    Bounce Head Yes, -7 to 90°
    Swivel Head Yes, 270°
    Coverage 18 - 180 mm
    Distance Range 1.97 to 13.12' (0.6 to 4 m)
    Off-Camera Terminal None
    Recycle Time Approximately 0 to 2.3 Seconds
    Flash-Ready Indicator Yes
    Compensation -3 EV to +3 EV (in 1/3 EV steps)
    Slave Timing Modes Instant Sync
    Skip Preflash
    Wireless Operation Method: RF
    Distance: Up to 98.43' / 30 m
    Mode: Master, Slave
    Wireless Communication Channels 16 Channels
    Wireless Groups 3 Groups
    Power Source 2 x AA Alkaline Batteries
    Package Weight 1.25 lb
    Box Dimensions (LxWxH) 9.0 x 4.0 x 3.0"

    Rating

    60% users recommend this product to others. And what about you?
    Rating: 3 of 5

    This product has already been rated by 19 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Neewer NW630 TTL Flash for Sony Cameras

    Subject: NW630
    Date: 06.05.2021 20:19:59Name: José Manuel Alfaro García
    Hola Koldo: Tienes el manual?, no lo encuentro por ningún sitio

    Gracias
    Post reply

    Subject: manual flash NEEWER NW635
    Date: 27.04.2021 13:04:30Name: Koldo
    ¿dónde puedo conseguir el manual de este flahs?, lo he adquirido en Amazon recientemente y no tengo un manual de uso decente.
    Así mismo he adquirido un mando a distancia (para poder trabajar con mi cámara SONY alfa ILCE 5000) y no funciona correctamente. El modelo es NEEWER CT-16.
    En espera de sus respuestas
    Post reply
