User Manual for Neewer VK750 II Pro i-TTL Flash for Nikon Cameras with FC-16 Trigger and Accessories Kit Click to enlarge the picture
Contents of the user manual for the Neewer VK750 II Pro i-TTL Flash
- Product category: On Camera Flashes Neewer
- Brand: Neewer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neewer On Camera Flashes
 |
User manual for the Neewer VK750 II Pro i-TTL Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neewer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neewer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neewer product will considerably shorten its lifespan!
|

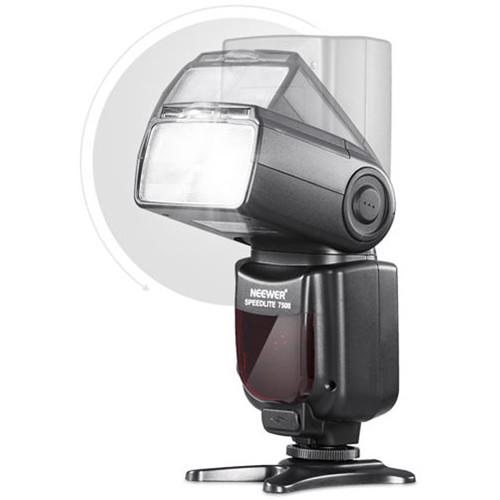

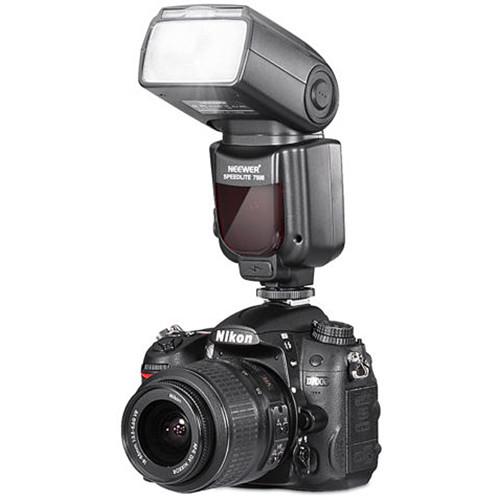

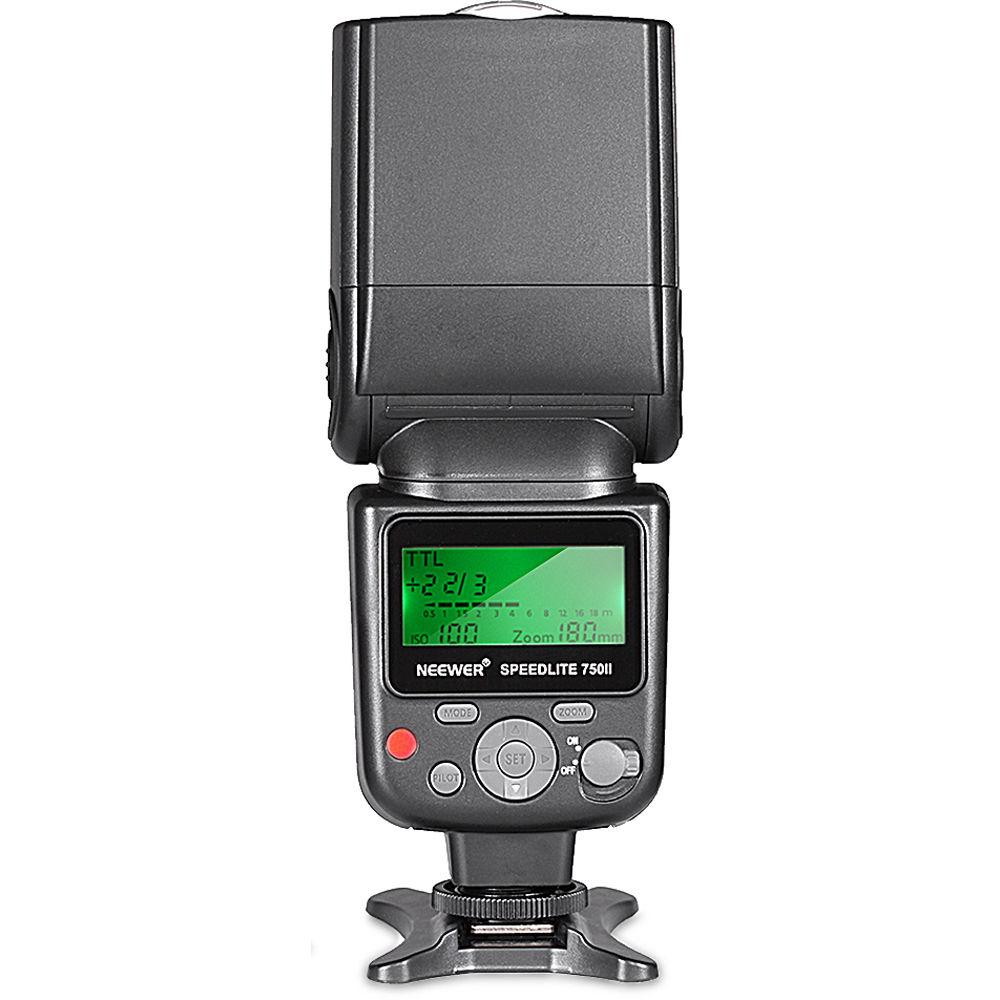

Product description A Guide to On-Camera Flash Read More Get all the essentials you need to start lighting your own photo shoots with this VK750 II Pro i-TTL Flash with FC-16 Trigger and Accessories Kit from Neewer. This kit is primarily composed of the VK750 II flash, capable of i-TTL metering with Nikon cameras, as well as an FC-16 2.4 GHz wireless trigger set that allows you to remotely control and release other flashes and cameras. Complementing them are N1 and N3 cables for wired syncing, a soft and a snap-on dome flash diffuser that go over the flash head, and a lens cap leash. The speedlight is powered by four AA batteries and the transmitter and receiver both run on two AAA batteries each, all of which are not included and must be supplied by the user.The VK750 II TTL flash offers a notable guide number of 190' at ISO 100 and 105mm, with eight levels of output control from 1/1 to 1/128 for adjusting your exposure. Its head zooms from 18 to 180mm, tilts upwards 90°, and rotates 270° to one side for a wide range of movement. Additionally, two built-in panels on the head can help soften or bounce light for even more control over your composition. Other features include a recycling time of approximately three seconds, an optical slave function with S1 and S2 modes, and a PC sync slot for a wired connection. - VK750 II Pro i-TTL Flash
-
- Multi mode for stroboscopic flash firing
- Optical slave triggering distance of 82' indoors, 49.2' outdoors
- Color temperature of 5600K, can match other daylight sources without a noticeable color shift
- Lasts between 100 to 1500 flashes depending on your batteries and power settings
- Flash duration times from 1/200 to 1/20,000 second
- Automatic temperature detection system helps protect unit from overheating
- Runs on four AA batteries

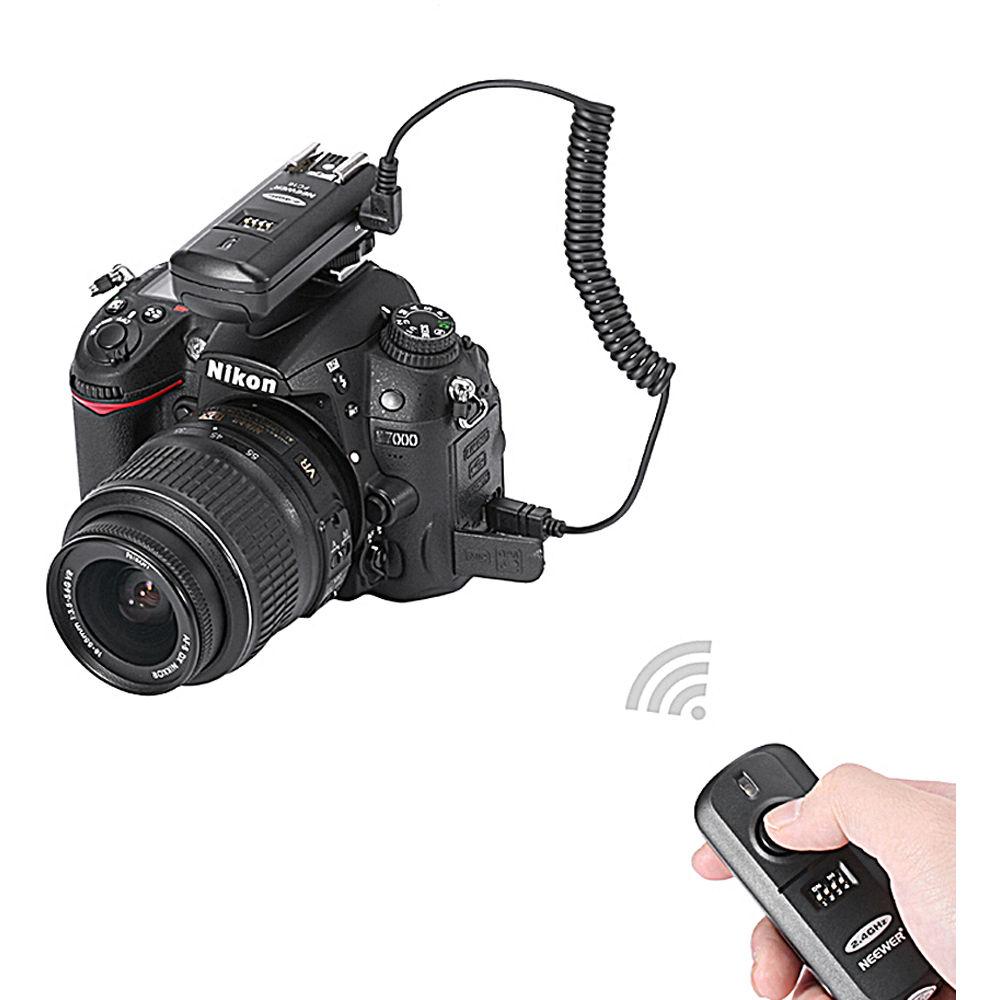

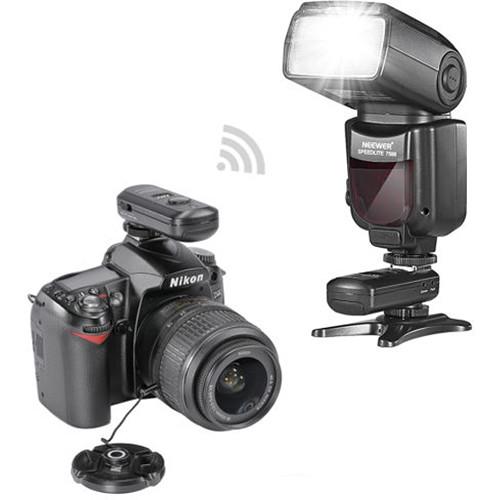

- FC-16 Trigger Set
-
- 2.4 GHz wireless trigger system for compatible units
- Both trigger and receiver can be attached to camera hot shoe
- 1/4"-20 threaded slot at the bottom of transmitter, for attaching to a stand or tripod
- Operating distance of up to 328'
- 16 channels selectable
- Works with sync speeds up to 1/250 second
- N1 and N3 connection cables included
- Each unit powered by two AAA batteries
- Accessories
-
- Soft flash diffuser acts as a dome to spread light around and bounce it off the ceiling or walls
- Snap-on dome flash diffuser helps soften harsh shadows while keeping a directional beam
- Lens cap leash fits tightly around your lens and features a small button that sticks to the front of your lens cap
UPC: 804808457192 In the Box Neewer VK750 II Pro i-TTL Flash for Nikon Cameras with FC-16 Trigger and Accessories Kit FC-16 Transmitter FC-16 Receiver N1 Camera Cable N3 Camera Cable Soft Flash Diffuser Snap-On Dome Flash Diffuser Flash Carrying Bag Mini Stand Lens Cap Leash Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neewer VK750 II Pro i-TTL Flash for Nikon Cameras with FC-16 Trigger and Accessories Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeewer VK750II Specs | Mount | Shoe | | Guide No. | 190.29' / 58 m ISO 100 at 105 mm Position | | Exposure Control | Manual, i-TTL | | Vari-Power | 1/1 to 1/128 | | Bounce Head | 0 to 90° | | Swivel Head | 270° | | Coverage | 18 - 180 mm (APS-C Format) | | Off-Camera Terminal | PC | | Recycle Time | Approximately 3 Seconds | | Flash Duration | 1/200 to 1/20,000 sec | | Flash-Ready Indicator | Yes | | Slave Timing Modes | Instant Sync
Skip Preflash | | Wireless Operation | Method: Optical Pulse
Distance: Up to 82.02' / 25 m
Mode: Slave | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.0 x 8.5 x 3.0" |
