User Manual for Nektar Technology Panorama P1 - MIDI Controller Click to enlarge the picture
Contents of the user manual for the Nektar Technology Panorama P1 - MIDI
- Product category: Control Surfaces Nektar Technology
- Brand: Nektar Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nektar Technology Control Surfaces
 |
User manual for the Nektar Technology Panorama P1 - MIDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nektar Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nektar Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nektar Technology product will considerably shorten its lifespan!
|

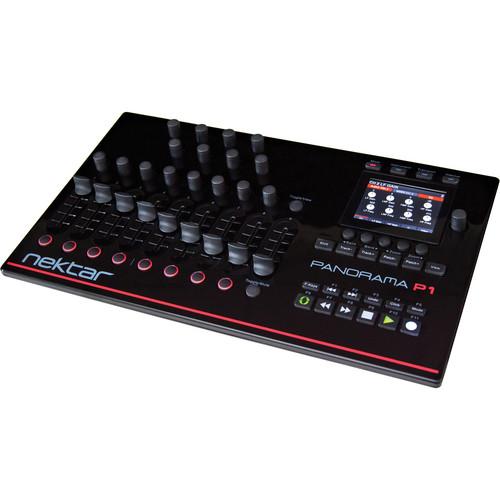

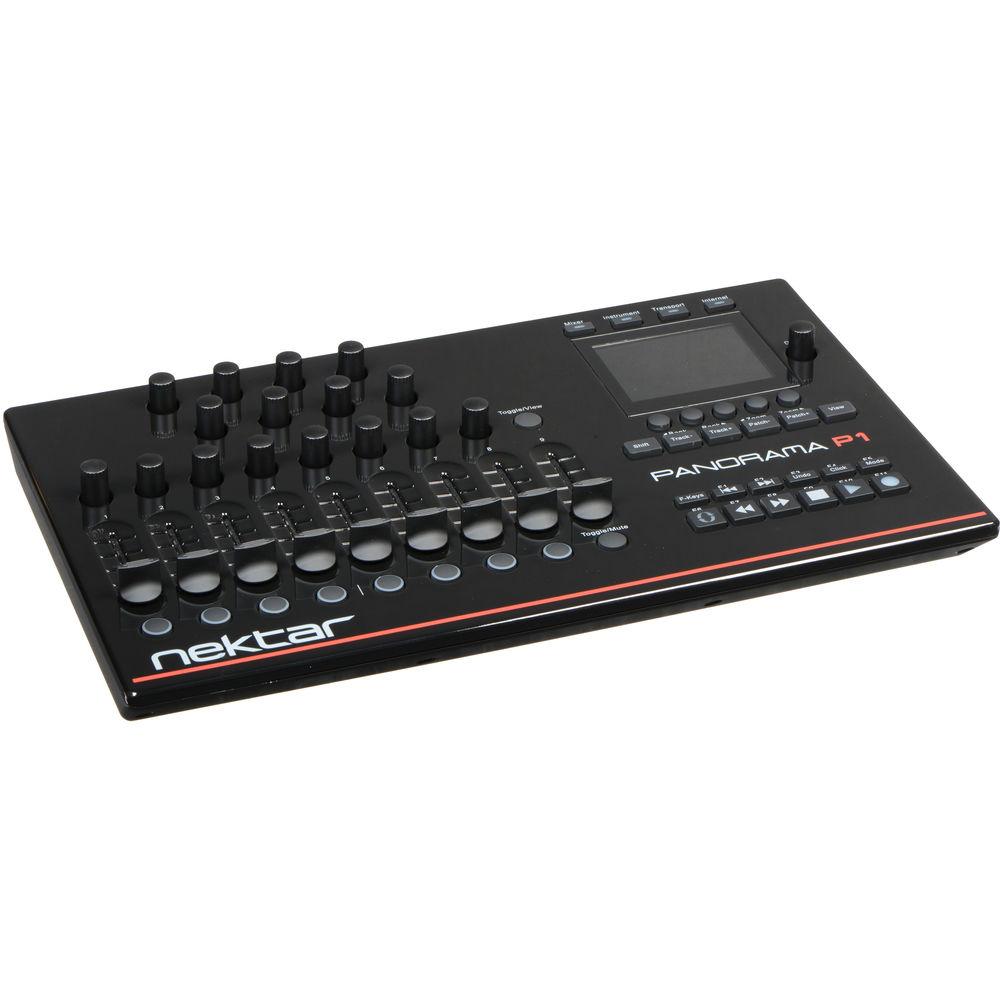

Product description The Panorama P1 from Nektar Technology is a MIDI controller housed in a desktop enclosure that provides deep Reason, Cubase and Nuendo integration, along with comprehensive MIDI programming options. Multiple encoders, faders, buttons and a foot switch jack provide immediate control of up to sixty-one parameters at any one time. Settings can be stored in twenty presets, with individually save and loadable function-key maps that yield more than 1,200 combinations. However, the controller will happily function with virtually any other DAW.
A 3.5" color TFT display delivers the information needed for each mode or menu, while providing detailed information that makes workflow fluent and fast. Setting up presets or function-key maps is easy. The Control Edit menu allows for selecting a control, and in real-time, assigning the MIDI command required. For each control, values can be scaled, reverse and assigned specific or global MIDI channels. Additionally, the controller features an extended eleven-button transport bar. Using the shift button, these also double as function buttons each assignable to MIDI commands or QWERTY macros.
QWERTY macros allow for assigning a string of up to eight commands to speed up workflow. For example, enter edit mode, zoom in and selecting a tool with just a single button press. Or create an instrument or effects track and locate a folder containing all the presets and select them from the controller, all with one button press and without looking at the computer.
For Cubase, Nuendo, and Reason users, the dedicated communication protocol ties the unit and the software tightly together. It is only necessary to select the mode and menu required, and the controller does the rest. Three modes provide a single button press to switch between controlling the mixer, instruments and transport, with the 4th mode, internal, still providing access to traditional MIDI control. Color coding clearly informs which environment is being controlled to alleviate any confusion when switching back and forth. - DAW Control
- Deep Integration without the need for mapping of the following software:
Apple Main Stage 3
Cocos Reaper
Bitwig Studio
Cubase
Logic Pro
Reason - Controls
- Encoders, faders, buttons and a foot switch jack provide control of up to sixty-one parameters at any one time
- Settings
- Settings can be stored in twenty presets with individually save and loadable function-key maps for more than 1,200 combinations
- Modes
- Four modes switch between mixer, instrument, transport and internal when used with Cubase, Nuendo or Reason
- Transport
- Extended eleven-button transport bar
- Assignable Macros
- ASCII/QWERTY macros assignable to buttons and pads
- Display
- 3.5" high-resolution TFT display provides navigation and controller status
- Bus Powered
- USB bus powered
UPC: 859383002176 In the Box Nektar Technology Panorama P1 - MIDI Controller USB Cable Limited One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nektar Technology Panorama P1 - MIDI Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNektar Technology PANORAMA P1 Specs | Controls | 16 x Encoders
9 x 45 mm Faders
10 x Assignable LED buttons
11 x Dedicated transport buttons
20 x Preset locations store all settings
6 x Dedicated assignable navigation buttons | | Function Keys | 11 x Assignable function keys (accessible using shift and transport keys)
Load or Save to any of 10 function-key maps

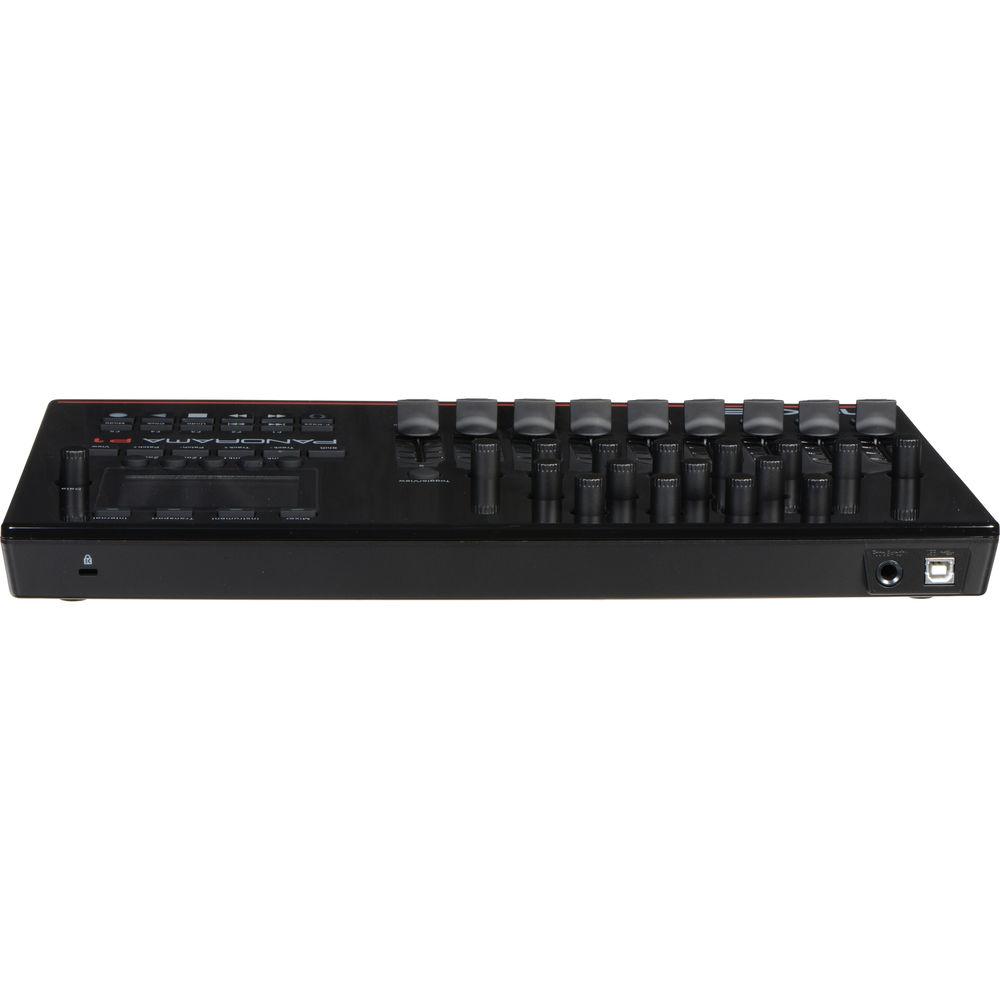

Function keys assignable in 3 Reason modes | | Connectors | 1 x 1/4" TS Footswitch (pedal not included)
1 x USB Type B | | System Requirements | Mac OS X 10.6 or higher
Windows Vista, 7 and 8 compatible (Windows XP is not supported at this time) | | Support | Reason 5, 6, 6.5 and 7 supported
Cubase 6, 6.5 and 7 supported (earlier versions not tested)
Nuendo 5, 6 supported (earlier versions not tested) | | Dimensions (WxDxH) | 15.25 x 9.25 x 1.75" (387 x 235 x 45 mm) | | Weight | 2.8 lb (1.3 kg) | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 18.3 x 12.1 x 4.6" |
