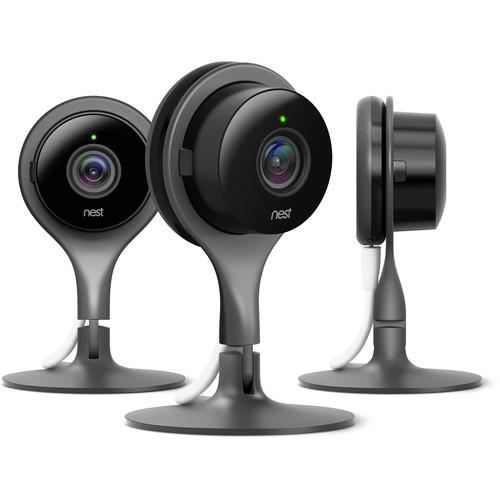

User Manual for Nest Cam Indoor Security Camera Click to enlarge the picture
Contents of the user manual for the Nest Cam Indoor Security Camera
- Product category: Wireless Cameras Nest
- Brand: Nest
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nest Wireless Cameras
|
User manual for the Nest Cam Indoor Security Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nest product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nest user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nest product will considerably shorten its lifespan!
|
Product description Sleek and compact, these three Nest Cam Indoor Security Cameras can be positioned in your office or home for consistent video footage in 1080p HD resolution. Watch, listen, and speak to whomever is in the room using the cameras' 130° wide-angle field of view and built-in speaker and microphone. Utilizing 8 IR LEDs, the cameras transition from day to night settings allowing you to keep an eye on the area regardless of the lighting levels. The cameras feature customizable options, including scheduled recording times and motion and audio detection alerts sent to your mobile device. Monitor the cameras' footage using the Nest application for constant live streaming to your phone or mobile device. For video playback and time-lapse recording, subscribe to the Nest Aware software which offers storage space, as well as additional features like advanced motion detection with facial recognition, and customized activity zones for monitoring movement in a specific area. Powered by micro-USB cords, the cameras are designed for easy installation and can be moved between rooms. Packaged with a magnetic mounting plate, the cameras can be mounted to a desk or wall, or stuck to a refrigerator. With three included cameras, this package allows you to monitor numerous rooms at once, while still using a single mobile device. - Video streams in 1080p HD
- 130° wide angle view for capturing entire room with 8x digital zoom
- Motion and audio detectors trigger alerts to be sent to your mobile device
- Built-in microphone and speaker for 2-way communication with RGB LEDs for status indication
- Schedule recordings for specific times
- 8 IR LEDs allow for night vision
- Arrange activity zones and store video history, clips, and time-lapse recordings using Nest Aware software
- Live stream to mobile device or laptop using Nest application
- Transfer footage and information using Wi-Fi or Bluetooth connection
UPC: 854448003983 In the Box Nest Cam Indoor Security Camera (Pack of 3) Magnet Stand Wall Mounting Plate Mounting Screws Window Decal USB Cable (10') Power Adapter Limited 2-Year Warranty Guides & Manuals duxvrwaxvqtxsqcesbwytfcqzrwwffddueuce More info from Nest Table of Contents
|
Upload User Manual
Have you got an user manual for the Nest Cam Indoor Security Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Nest Cam Indoor Security Camera can be downloaded in PDF format at the link stated below.
Technical parametersNest Nest Cam Specs | Image Sensor | 1/3" CCD, 1.3 MP | | Resolution (HxV pixels) | 1080p, (1920 x 1080) | | Frame Rate | 30 fps | | Compression | H.264 | | Digital Zoom | 8x | | Field of View | 130° diagonal | | IR LED | 8 x 850 nm | | Audio | 2-way | | Indicator Lights | RGB LED | | Motion Detection | Yes | | Audio Detection | Yes | | System Requirements | For Camera: Wi-Fi connection 802.11 b/g/n @ 2.4 GHz, 5 GHz, Bluetooth Low Energy
For Remote Monitoring: Mobile device with iOS or later, Android 4 or later | | Wireless Bandwidth | @ 720p: 200 to 500 kb/s per camera
@ 1080p: 450 to 1200 kb/s per camera | | Storage Capacity | Built-in: None
With Nest Aware subscription: 720p video requires 60 GB of upload bandwidth per month, 1080p video requires 140 GB upload bandwidth per month | | Power | 5 VDC, 1 A | | AC Power Adapter | Input: 100 to 240 VAC, 0.2 A
Output: 5 VDC, 2 A | | Languages for Software and User Manual | English, French, Dutch, Spanish | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (HxWxD) | 4.5 x 2.8 x 2.8" / 11.4 x 7.1 x 7.1 cm | | Weight | 7.2 oz / 203.0 g | | | | Package Weight | 5.1 lb | | Box Dimensions (LxWxH) | 11.45 x 6.55 x 4.05" |
