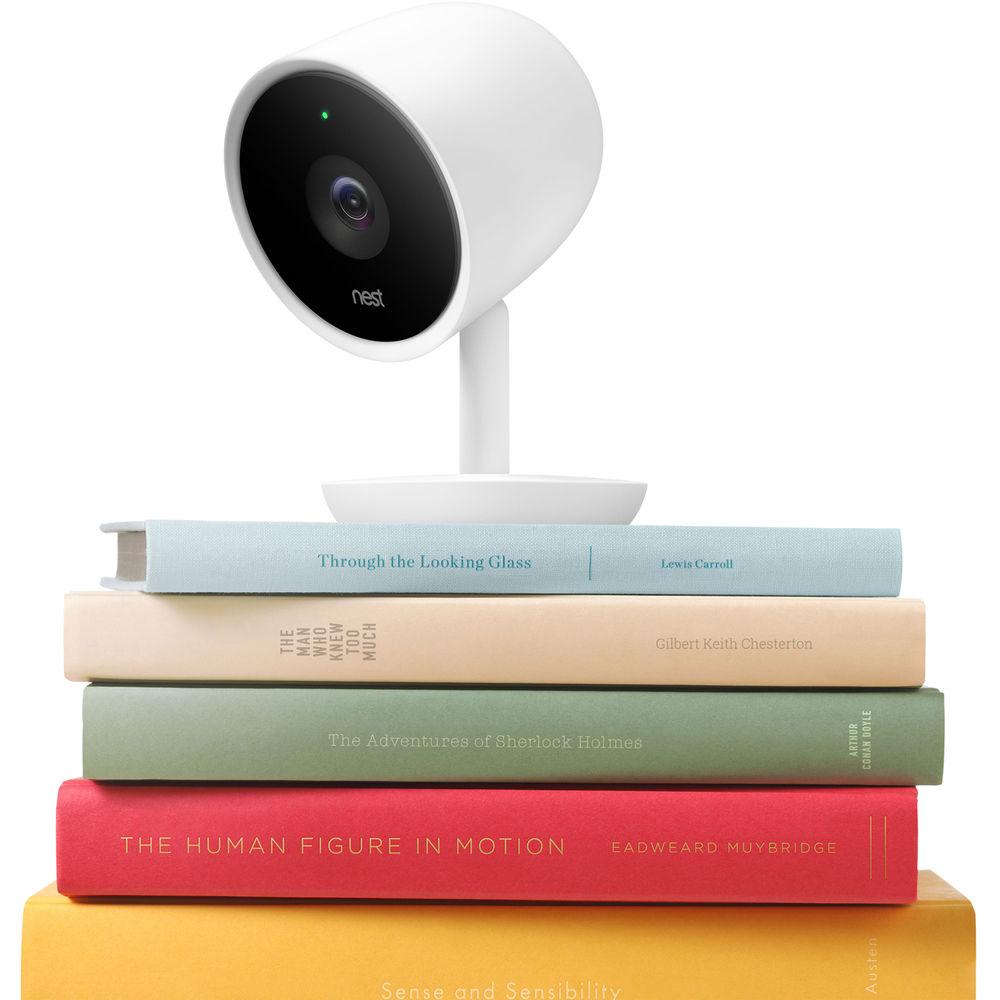

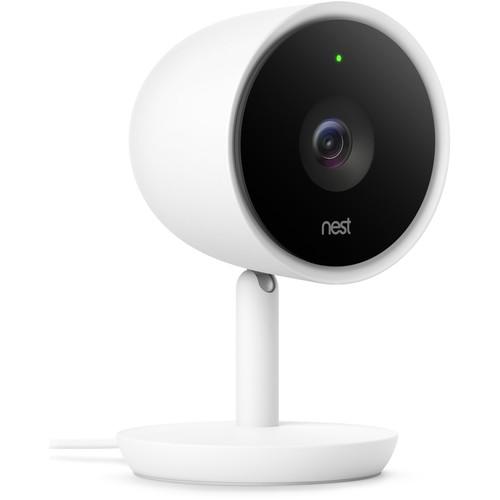

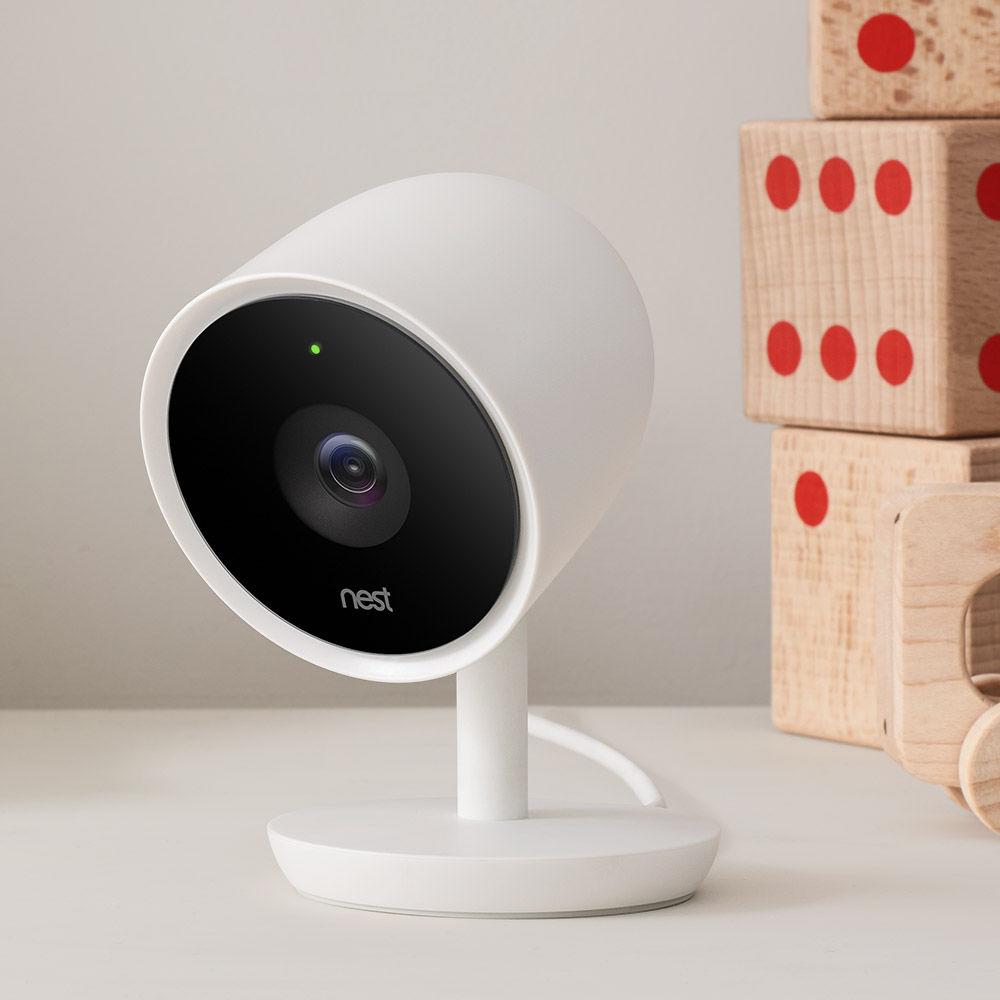

User Manual for Nest Cam IQ Indoor Security Camera Click to enlarge the picture
Contents of the user manual for the Nest Cam IQ Indoor Security Camera
- Product category: Wireless Cameras Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Wireless Cameras
 |
User manual for the Nest Cam IQ Indoor Security Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

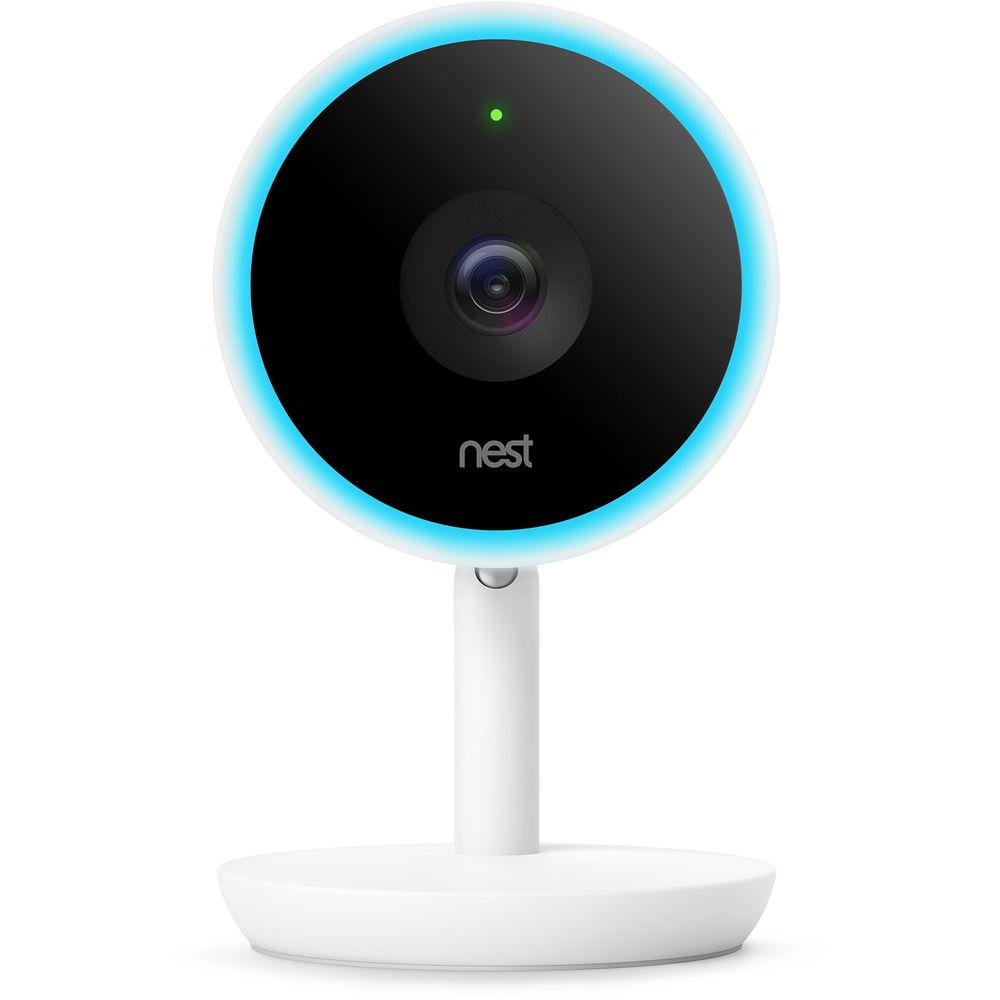

Product description Nest Unveils the Nest Cam IQ Read More Monitor the inside of your home with the Nest Cam IQ Indoor Security Camera from Nest. The camera features an 8MP 1/2.5" sensor to capture 1080p video at up to 30 fps. Able to produce clear images at night thanks to an IR cut filter and eight 940nm IR LEDs, this camera connects to your home network via 2.4 or 5 GHz Wi-Fi to transmit footage. Use the free Nest app for iOS and Android devices or log in from a computer to view live video. Talk and listen to visitors right from the app with the camera's 3-microphone array and built-in speaker. The microphones feature noise and echo suppression to help deliver clear sound when speaking to visitors.
The camera's wide-angle 130° diagonal field of view allows you to monitor large outdoor areas and H.264 compression helps to ensure high-quality recording and playback. HDR provides added clarity to enhance and generate more accurate images. The included power adapter is designed to provide constant, 24/7 monitoring without having to worry about charging or replacing batteries.
Note: A Nest Aware service plan is required to save recorded video and is available separately through Nest. - 8MP 1/2.5" sensor captures 1920 x 1080 resolution video at up to 30 fps
- Eight IR LEDs allow the camera to produce clear images at night
- 130° diagonal field of view and 12x digital zoom and enhanced close-up tracking view

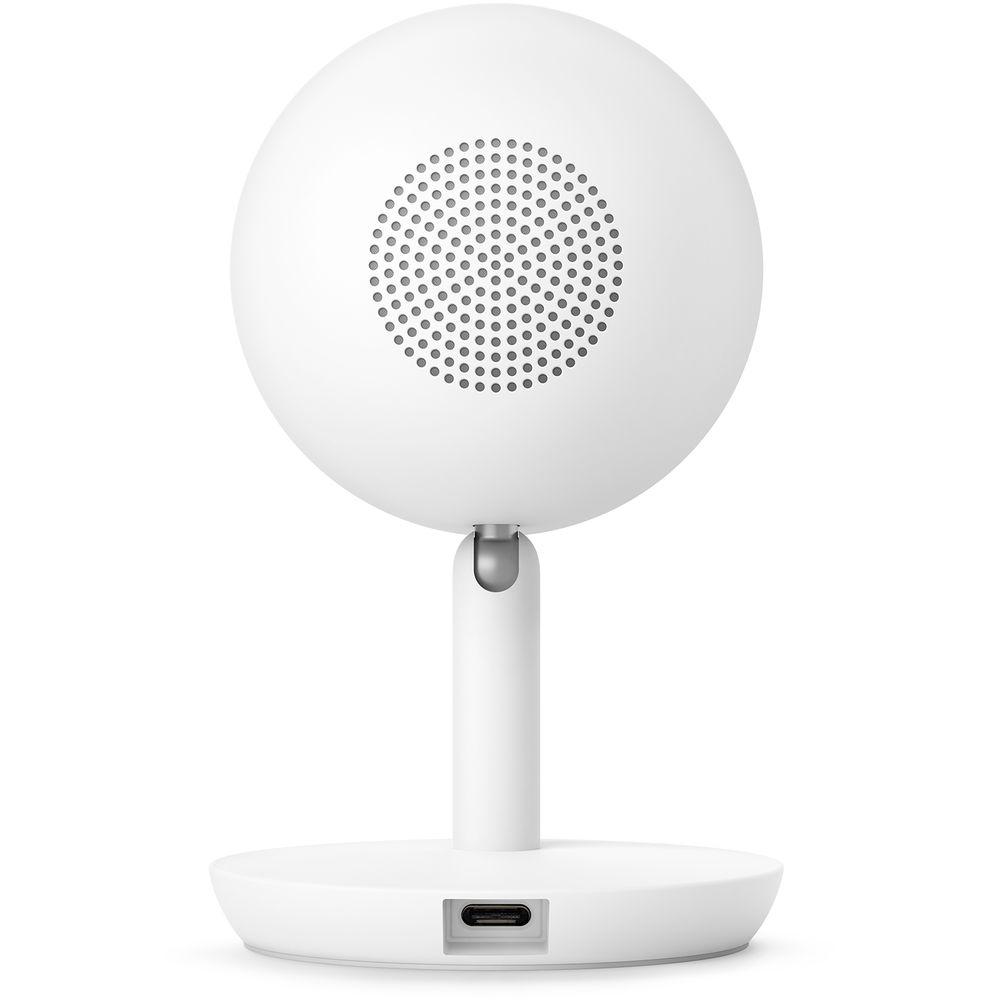

- 3-microphone array and built-in speaker for two-way communication
- Supersight technology for clearer images

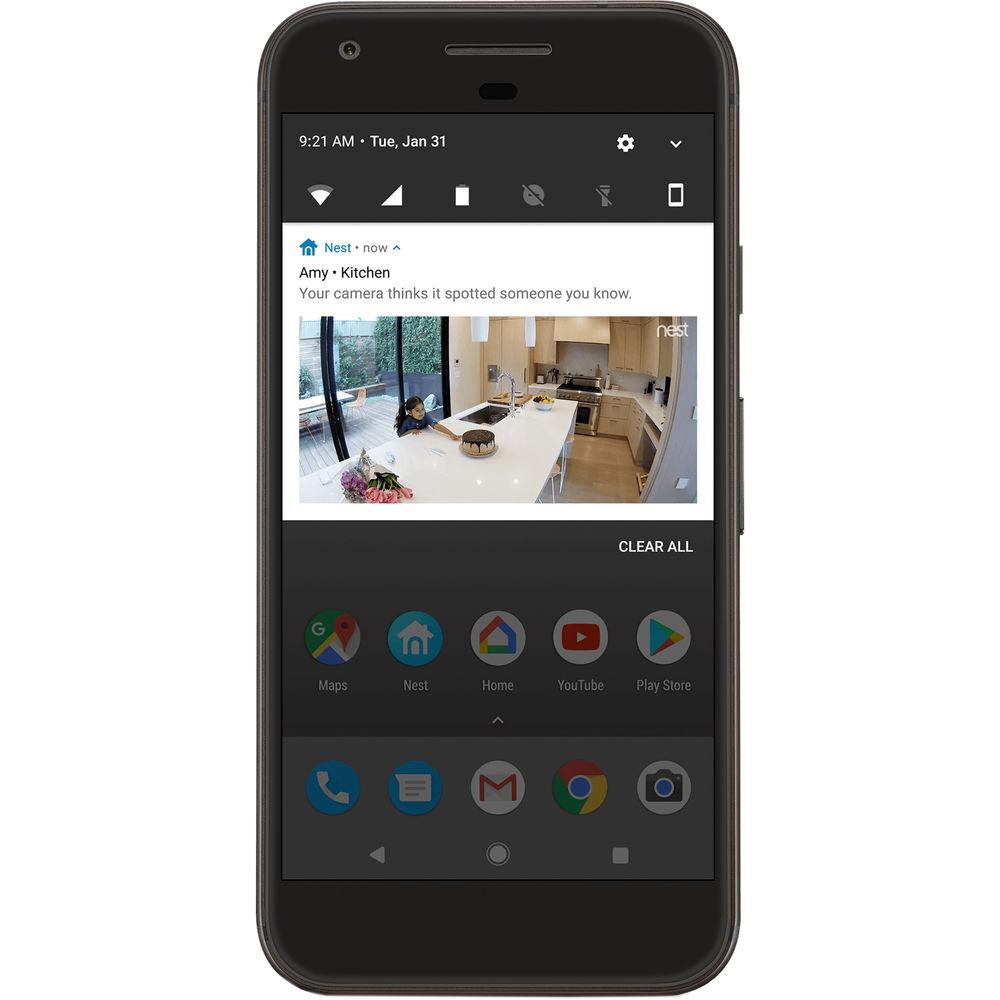

- Familiar face alerts and person alerts with Nest Aware (service plan required)
- Noise and echo suppression
- LED light ring and status light
- Connects via Wi-Fi for a cleaner setup

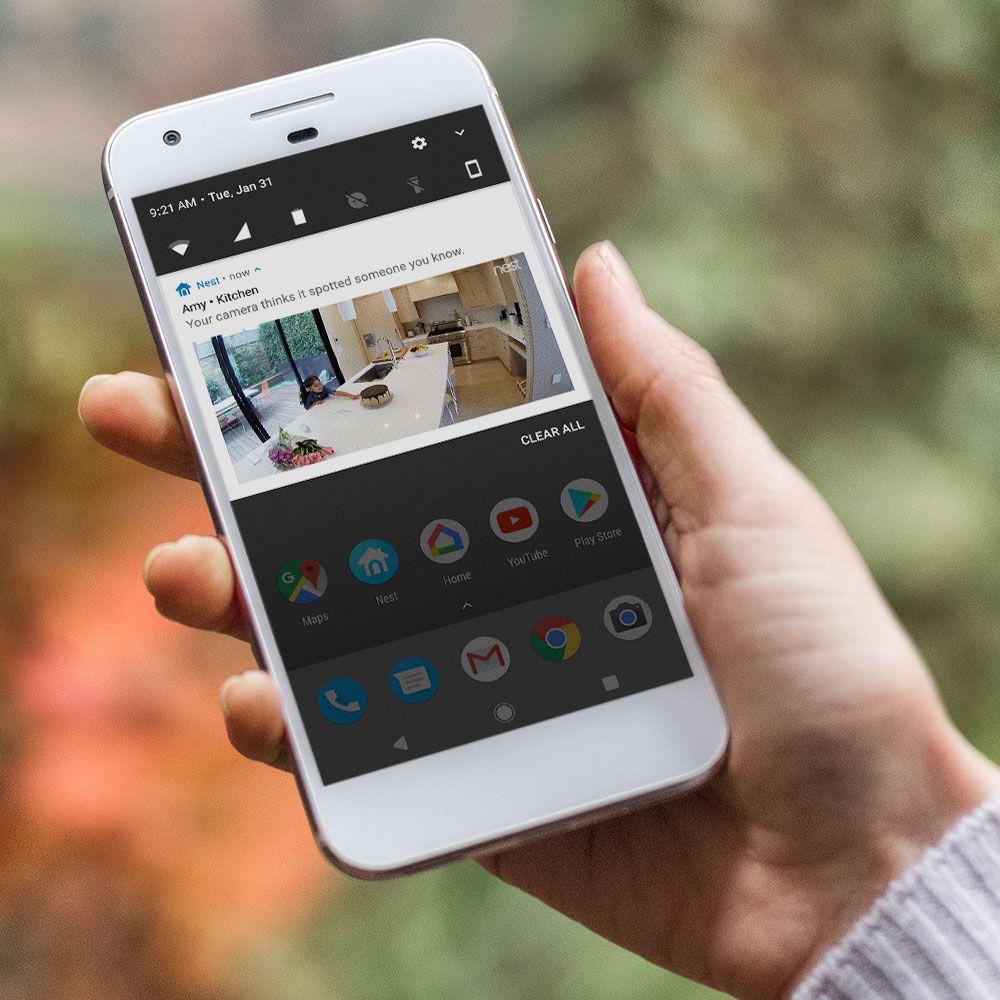

- Free Nest app for mobile viewing and control from iOS and Android devices with Nest Aware (available separately)
UPC: 813917020432 In the Box Nest Cam IQ Indoor Security Camera Power Adapter Power Cable Limited 2-Year Warranty More info from Nest Table of Contents
|
Upload User Manual
Have you got an user manual for the Nest Cam IQ Indoor Security Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNest Nest Cam IQ Specs | Processor | 6-core processor | | Image Sensor | 8 MP 1/2.5" color sensor | | Resolution | 1920 x 1080 at up to 30 fps | | Compression | H.264 | | Field of View | Diagonal: 130° | | Digital Zoom | 12x | | Night Vision | IR cut filter | | Number of IR LEDs | 8 x IR LEDs | | IR Wavelength | 940 nm | | Audio | Two-way audio
3-microphone array
Built-in speaker | | LED | Light ring and status light | | Wireless Protocols | Wi-Fi 802.11a/b/g/n/ac, 2.4 or 5 GHz (WEP, WPA, WPA2 encryption supported)
Bluetooth Low Energy (BLE)
802.15.4 at 2.4 GHz | | Security | 128-bit AES with TLS/SSL | | Connectivity | Requirements:
Wi-Fi connection
Working broadband internet connection with at least 2 Mbps upload speed (DSL may not qualify).
Free Nest app and a compatible smartphone or tablet and Bluetooth 4.0. | | Bandwidth | Requirements:
800 to 2000 kbps of upload bandwidth while streaming 1080p video.
Cameras will use more bandwidth to stream video when there is more motion in the scene.
If you subscribe to Nest Aware, your camera streams all video to the cloud for secure offsite storage. At 1080p, each camera could use 150 to 300 GB of upload bandwidth per month. | | Languages | English, French, Spanish (Latin America), Dutch, German, Italian, Spanish (Spain) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power | AC Adapter Input: 100-240 VAC, 50/60 Hz, 0.65 A
AC Adapter Output: 15 VDC, 1.87 A
Camera Input: 15 VDC, 1.0 A | | Power Cable Length | 10' (3 m) | | Dimensions | 4.9 x 2.9 x 2.9" (12.4 x 7.4 x 7.4 cm) | | Weight | 12.6 oz (357 g) | | | | Package Weight | 2.175 lb | | Box Dimensions (LxWxH) | 8.35 x 4.55 x 4.45" |
