Product description

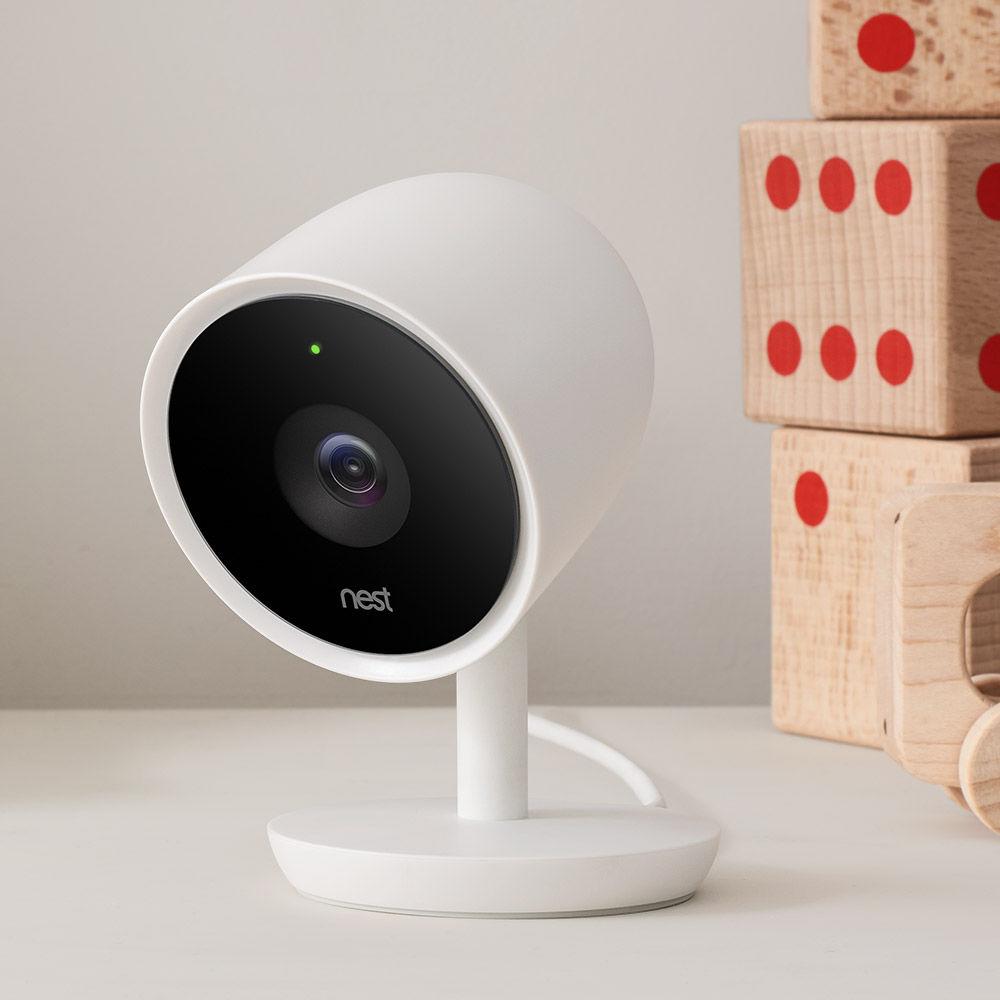

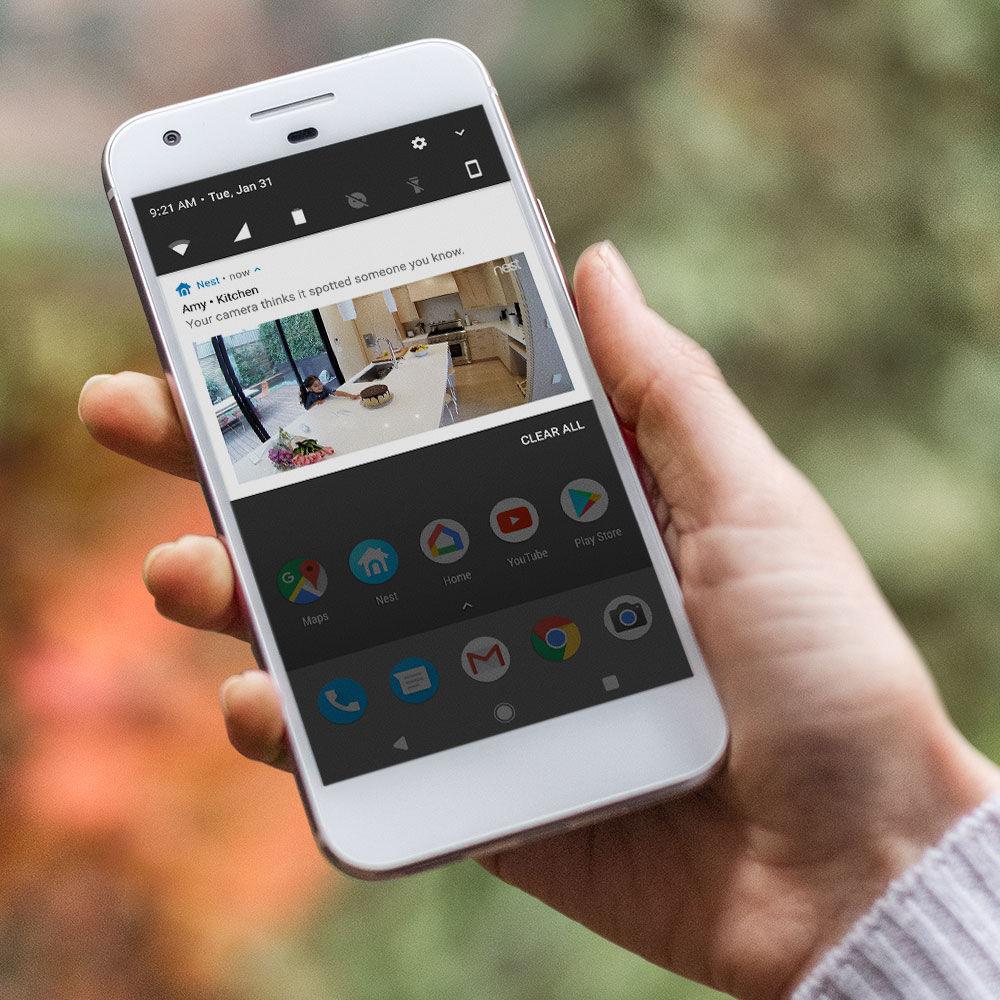

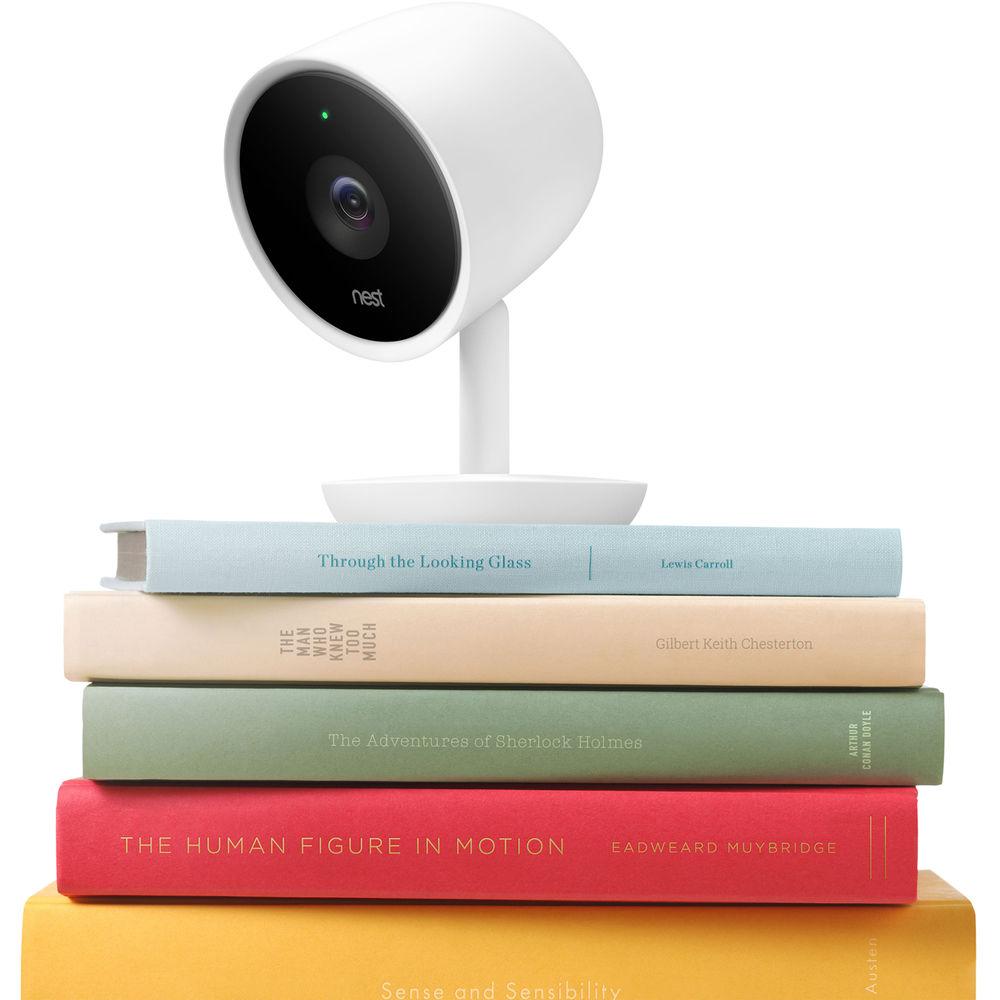

• Nest Cam IQ Indoor Security Camera Monitor the inside of your home with the Nest Cam IQ Indoor Security Camera from Nest. The camera features an 8MP 1/2.5" sensor to capture 1080p video at up to 30 fps. Able to produce clear images at night thanks to an IR cut filter and eight 940nm IR LEDs, this camera connects to your home network via 2.4 or 5 GHz Wi-Fi to transmit footage. Use the free Nest app for iOS and Android devices or log in from a computer to view live video. Talk and listen to visitors right from the app with the camera's 3-microphone array and built-in speaker. The microphones feature noise and echo suppression to help deliver clear sound when speaking to visitors.

  The camera's wide-angle 130° diagonal field of view allows you to monitor large outdoor areas and H.264 compression helps to ensure high-quality recording and playback. HDR provides added clarity to enhance and generate more accurate images. The included power adapter is designed to provide constant, 24/7 monitoring without having to worry about charging or replacing batteries.

  Note: A Nest Aware service plan is required to save recorded video and is available separately through Nest.
  • 8MP 1/2.5" sensor captures 1920 x 1080 resolution video at up to 30 fps
  • Eight IR LEDs allow the camera to produce clear images at night
  • 130° diagonal field of view and 12x digital zoom and enhanced close-up tracking view
  • 3-microphone array and built-in speaker for two-way communication
  • Supersight technology for clearer images

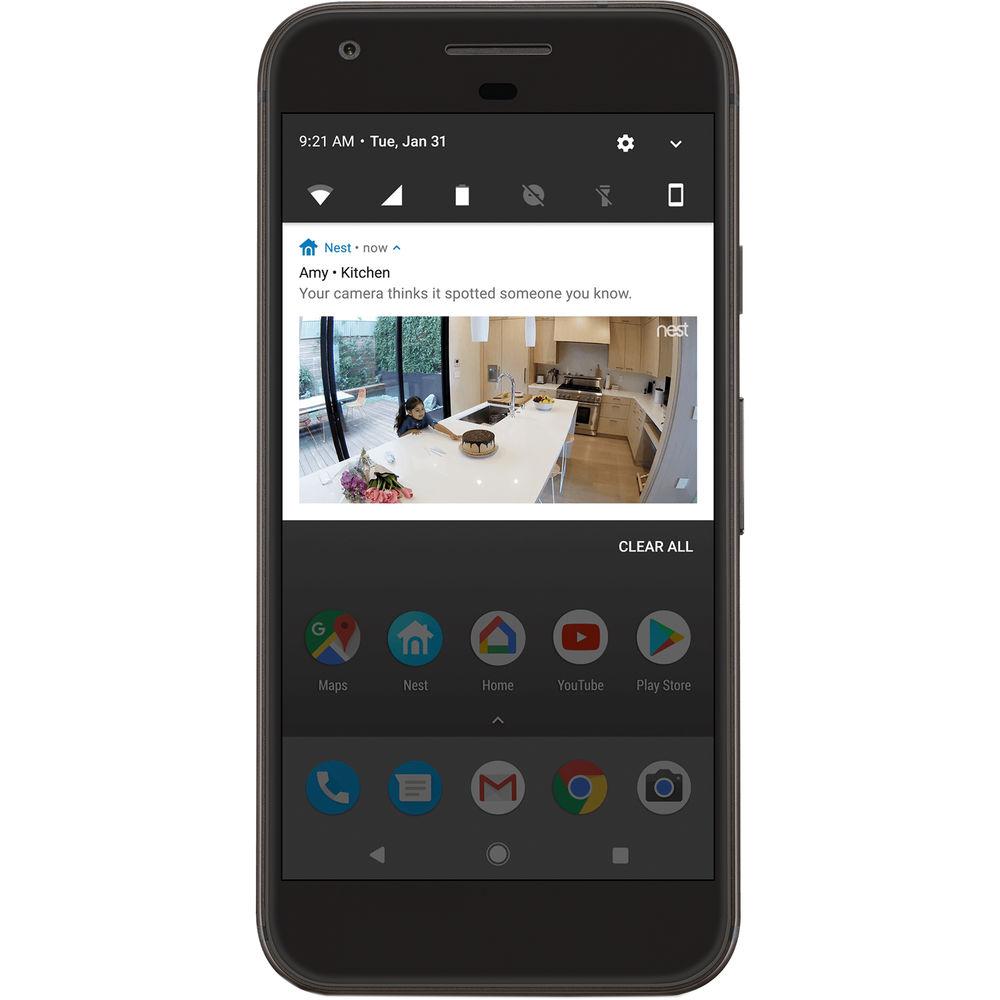

  • Familiar face alerts and person alerts with Nest Aware (service plan required)
  • Noise and echo suppression

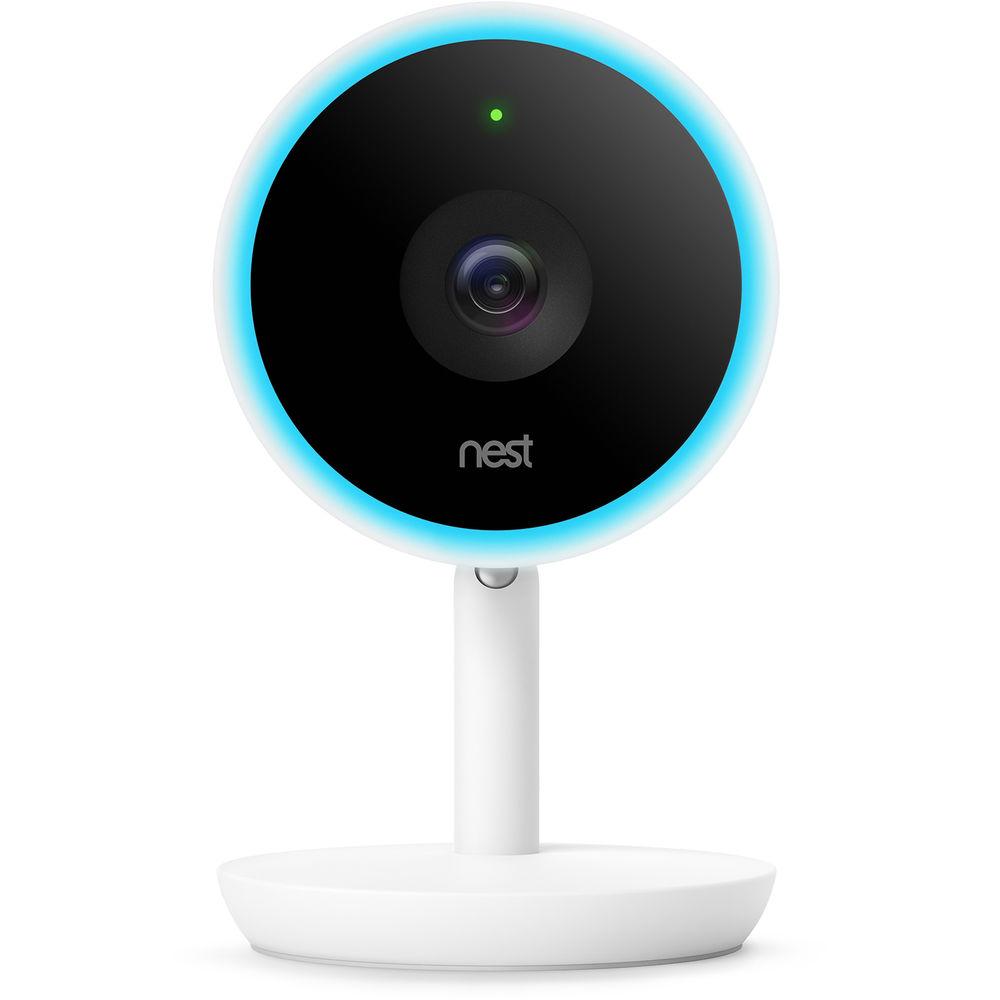

  • LED light ring and status light
  • Connects via Wi-Fi for a cleaner setup

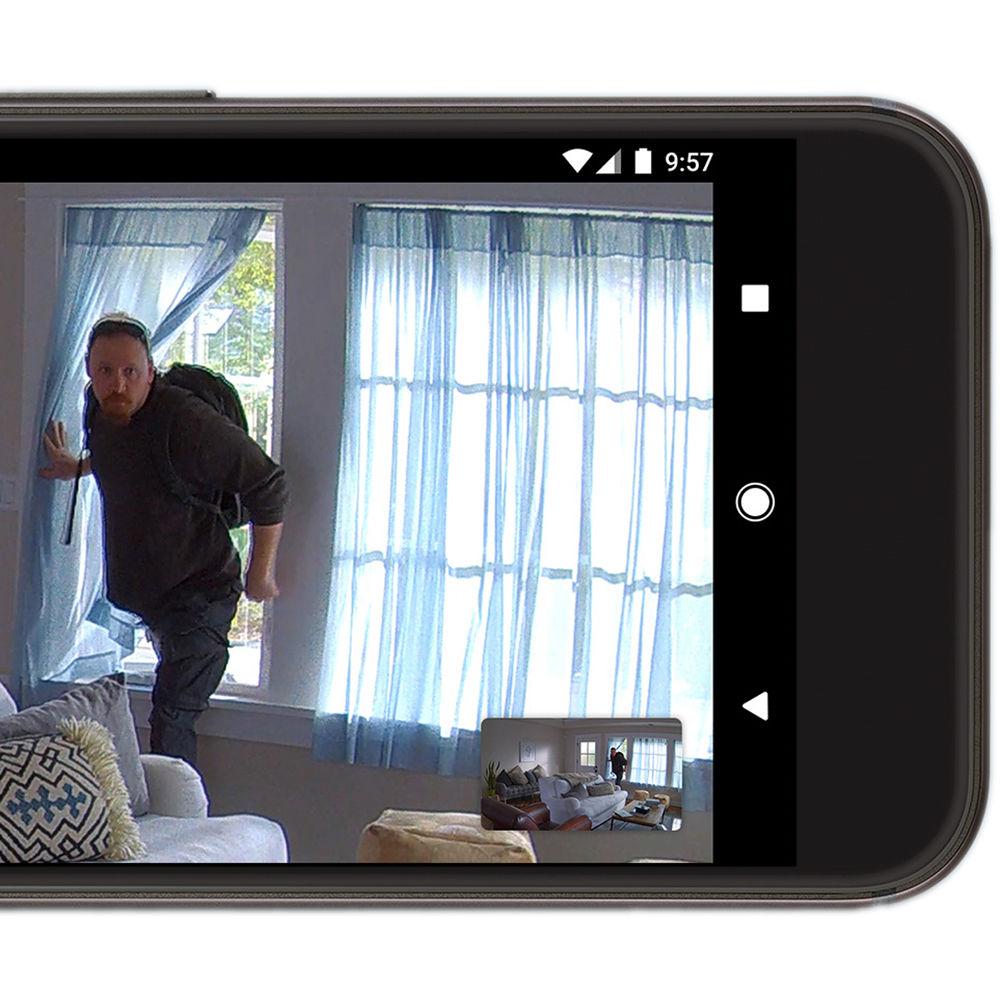

  • Free Nest app for mobile viewing and control from iOS and Android devices with Nest Aware (available separately)
  UPC: 813917020432

• Power Adapter

• Power Cable

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nest Cam IQ Indoor Security Camera

  Processor	6-core processor
  Image Sensor	8 MP 1/2.5" color sensor
  Resolution	1920 x 1080 at up to 30 fps
  Compression	H.264
  Field of View	Diagonal: 130°
  Digital Zoom	12x
  Night Vision	IR cut filter
  Number of IR LEDs	8 x IR LEDs
  IR Wavelength	940 nm
  Audio	Two-way audio 3-microphone array Built-in speaker
  LED	Light ring and status light
  Wireless Protocols	Wi-Fi 802.11a/b/g/n/ac, 2.4 or 5 GHz (WEP, WPA, WPA2 encryption supported) Bluetooth Low Energy (BLE) 802.15.4 at 2.4 GHz
  Security	128-bit AES with TLS/SSL
  Connectivity	Requirements: Wi-Fi connection Working broadband internet connection with at least 2 Mbps upload speed (DSL may not qualify). Free Nest app and a compatible smartphone or tablet and Bluetooth 4.0.
  Bandwidth	Requirements: 800 to 2000 kbps of upload bandwidth while streaming 1080p video. Cameras will use more bandwidth to stream video when there is more motion in the scene. If you subscribe to Nest Aware, your camera streams all video to the cloud for secure offsite storage. At 1080p, each camera could use 150 to 300 GB of upload bandwidth per month.
  Languages	English, French, Spanish (Latin America), Dutch, German, Italian, Spanish (Spain)
  Operating Temperature	32 to 104°F (0 to 40°C)
  Power	AC Adapter Input: 100-240 VAC, 50/60 Hz, 0.65 A AC Adapter Output: 15 VDC, 1.87 A Camera Input: 15 VDC, 1.0 A
  Power Cable Length	10' (3 m)
  Dimensions	4.9 x 2.9 x 2.9" (12.4 x 7.4 x 7.4 cm)
  Weight	12.6 oz (357 g)

  Box Dimensions (LxWxH)	8.35 x 4.55 x 4.45"
