User Manual for Nest Cam Outdoor Security Camera Click to enlarge the picture
Contents of the user manual for the Nest Cam Outdoor Security Camera
- Product category: Wireless Cameras Nest
- Brand: Nest
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nest Wireless Cameras
 |
User manual for the Nest Cam Outdoor Security Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nest product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nest user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nest product will considerably shorten its lifespan!
|

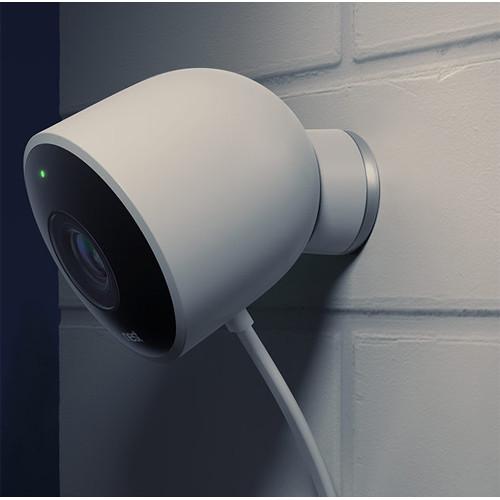

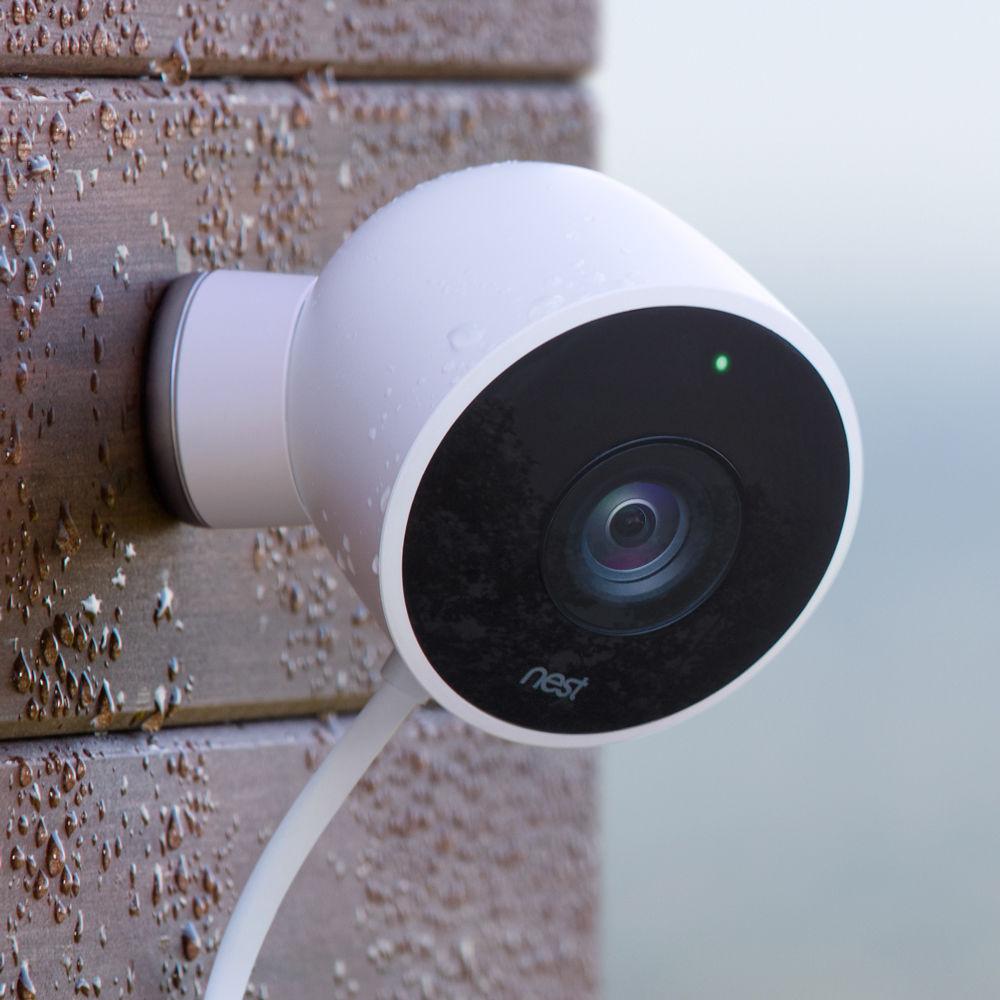

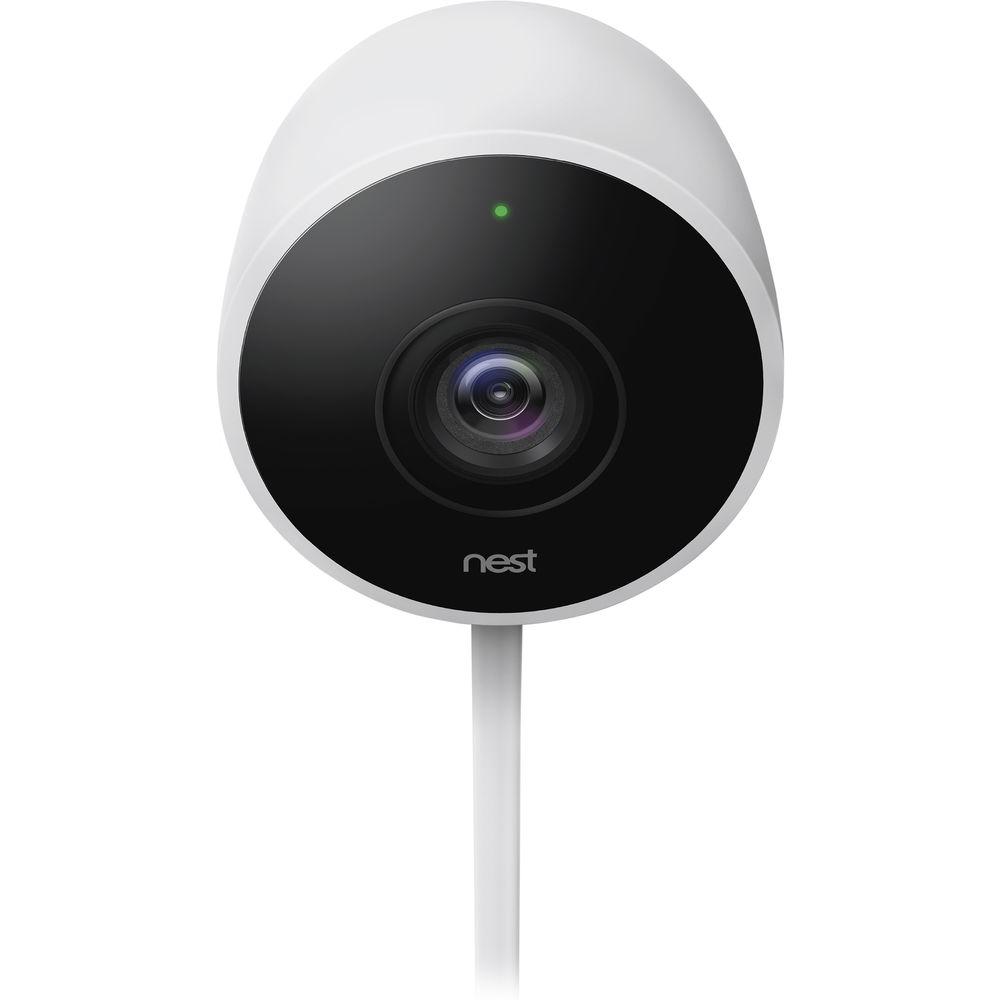

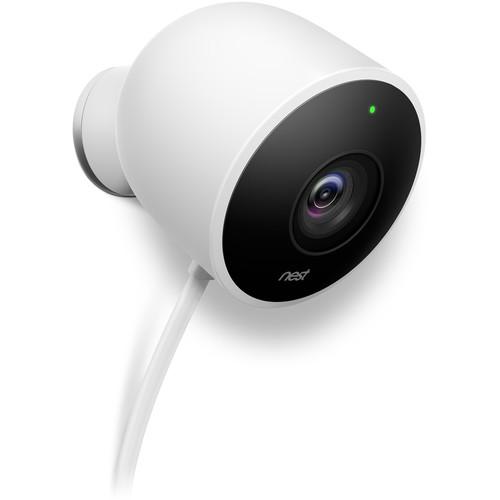

Product description Monitor the outside of your home with the Nest Cam Outdoor Security Camera. This IP65-rated camera features a 3MP 1/3" sensor to capture 1080p video at up to 30 fps. Able to produce clear images at night thanks to eight IR LEDs, this camera connects to your home network via Wi-Fi to transmit footage. Use the free Nest app for iOS and Android devices or log in from a computer to view live video. Receive alerts when activity or sound is detected, and talk and listen to visitors right from the app with the camera's built-in speaker and microphone.
The camera's wide-angle 130° diagonal field of view allows you to monitor large outdoor areas and H.264 compression helps to ensure high-quality recording and playback. The included power adapter is designed to provide constant, 24/7 monitoring without having to worry about charging or replacing batteries. The included magnetic mount ensures the camera is ideally positioned to fit your surveillance needs.
Note: 30-day free trial of Nest Aware included. Service plan is required to save recorded video and is available separately through Nest. - 3MP 1/3" sensor captures 1920 x 1080 resolution video at up to 30 fps
- Eight IR LEDs allows the camera to produce clear images at night
- 130° diagonal field of view and 8x digital zoom for monitoring large outdoor areas
- Connects via Wi-Fi for a cleaner setup

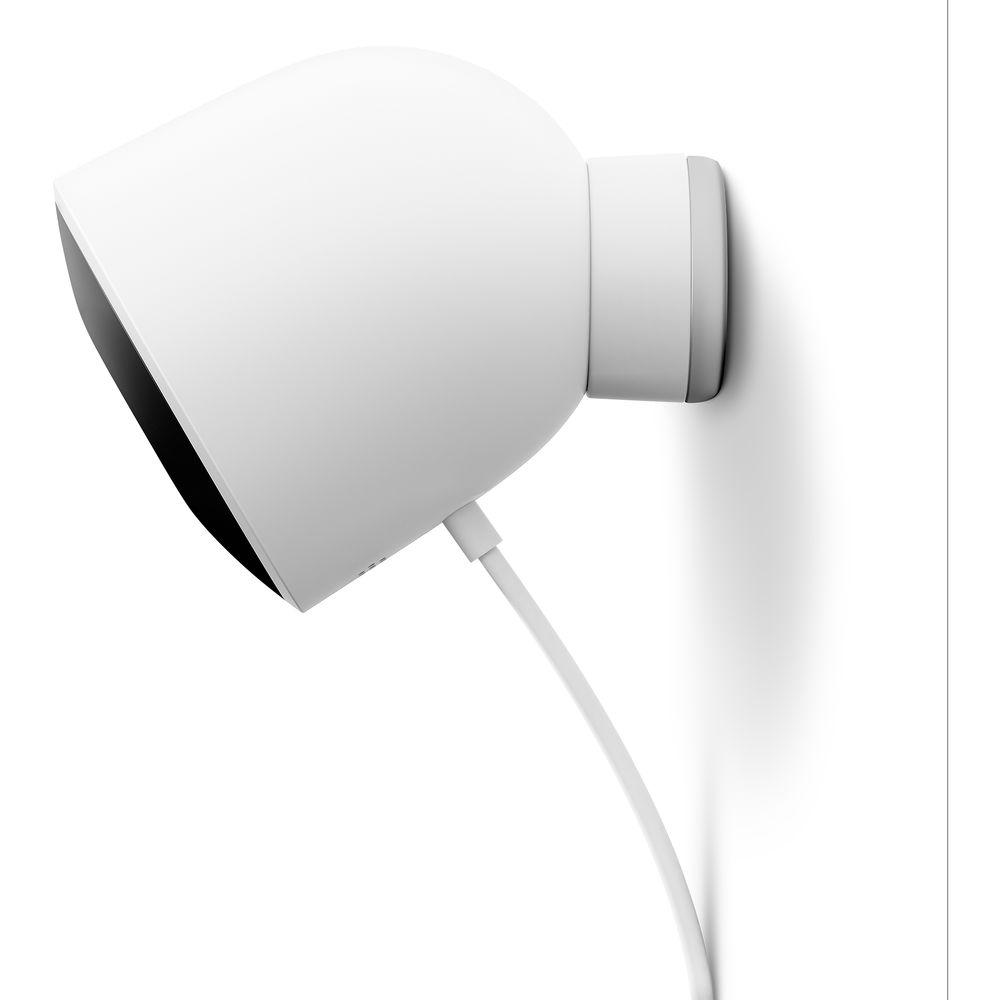

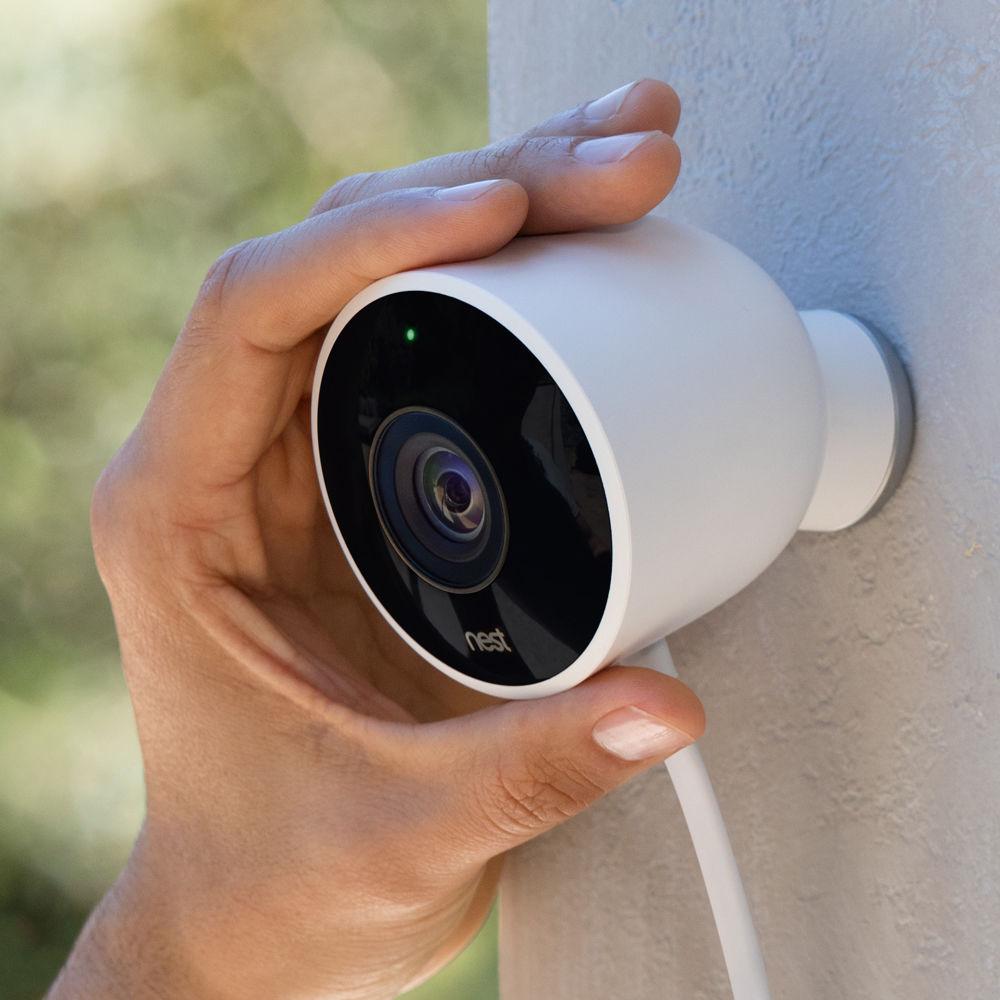

- Easy installation with the adjustable magnetic mount

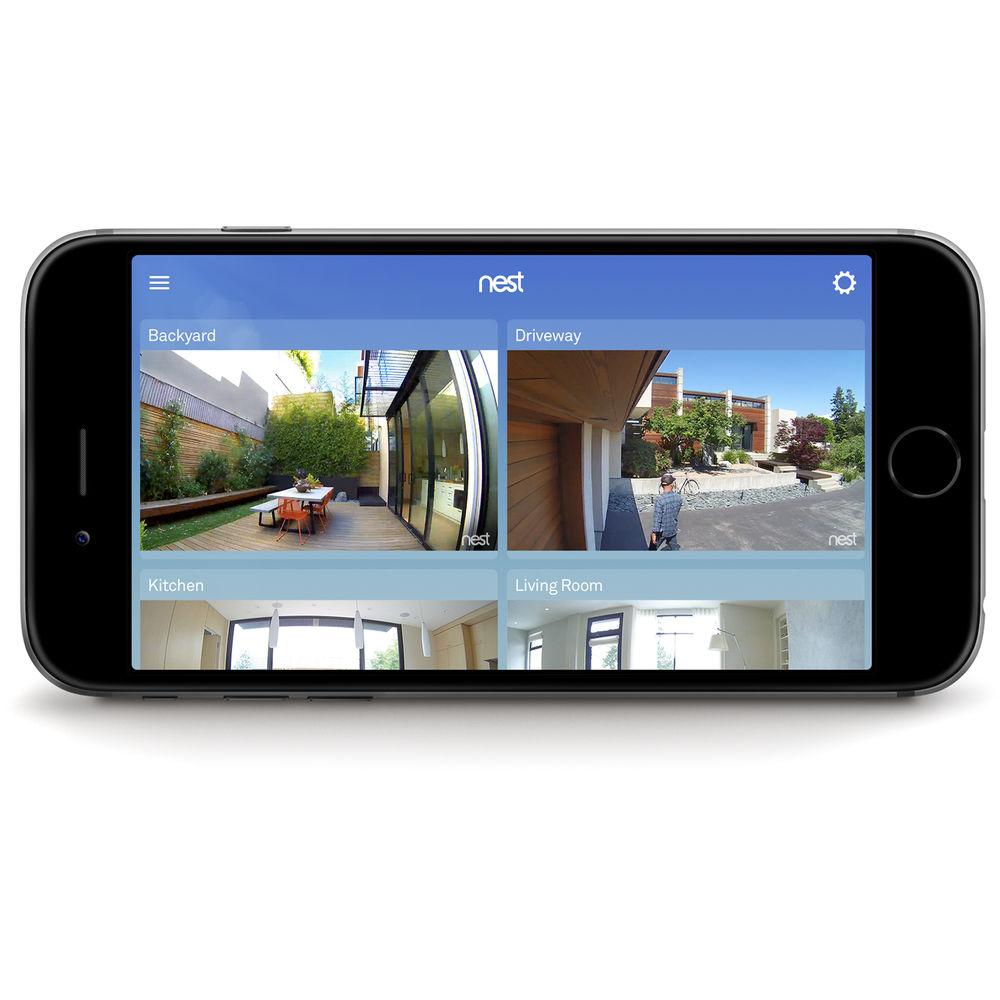

- Free Nest app for mobile viewing and control from iOS and Android devices

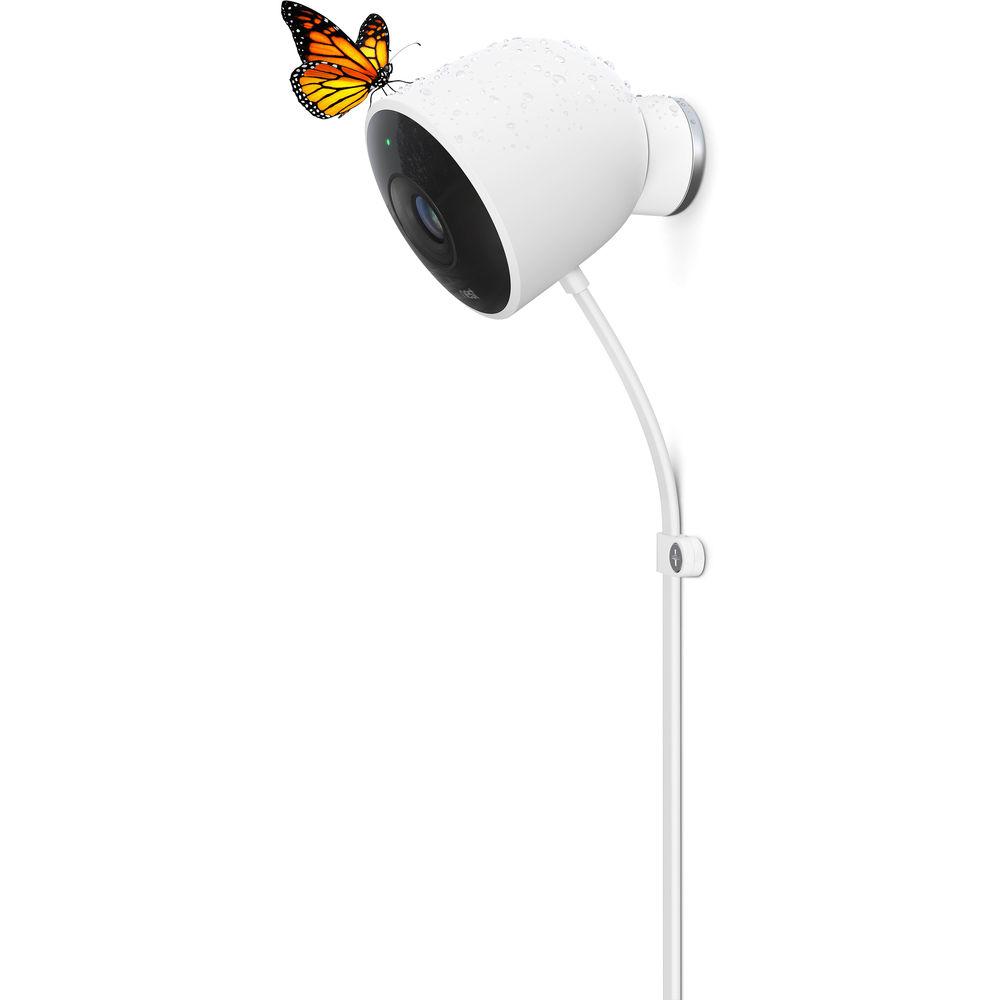

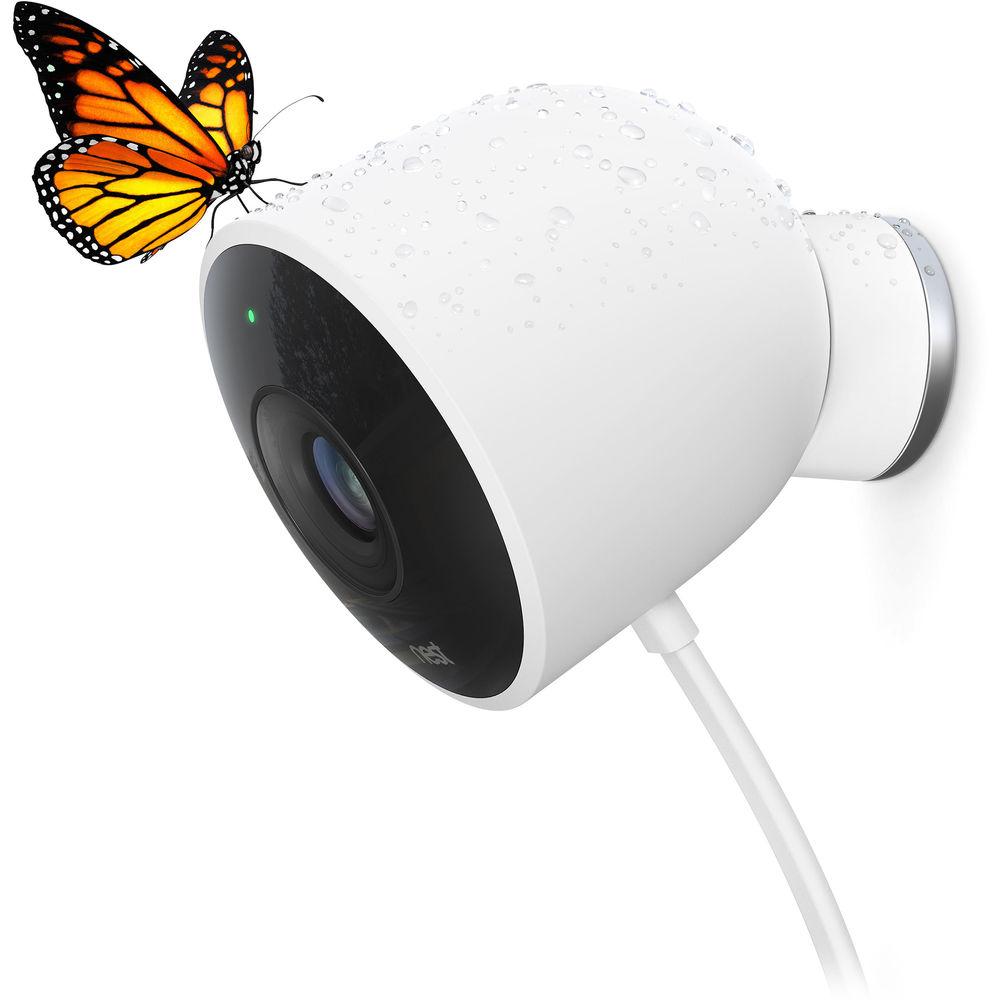

- IP65-rated for outdoor use
UPC: 813917020142 In the Box Nest Cam Outdoor Security Camera Power Adapter Camera Wall Plate Adapter Wall Plate Magnetic Mount Nest Screws Wall Anchors Cable Clips Window Decal Limited 2-Year Warranty More info from Nest Table of Contents
|
Upload User Manual
Have you got an user manual for the Nest Cam Outdoor Security Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNest Cam Outdoor Specs | Image Sensor | 3 MP 1/3" sensor | | Resolution | 1920 x 1080 at up to 30 fps | | Compression | H.264 | | Field of View | Diagonal: 130° | | Digital Zoom | 8x | | Number of IR LEDs | 8 x IR LEDs | | Night Vision | IR cut filter | | IR Wavelength | 850 nm | | Audio | Two-way audio with built-in microphone and speaker | | Lights | RGB LED | | Wireless Protocols | Wi-Fi 802.11a/b/g/n, 2.4 or 5 GHz (WEP, WPA, WPA2 encryption supported)
Bluetooth Low Energy (BLE) | | Security | 128-bit AES with TLS/SSL | | Connectivity | Requirements:
Wi-Fi connection
Working broadband internet connection with at least 2 Mbps upload speed (DSL may not qualify).
Free Nest app and a compatible smartphone or tablet with iOS 8 or later or Android 4 or later and Bluetooth 4.0. Or set it up from your computer using USB and a web browser. | | Bandwidth | Requirements:
At 720p, each camera requires 200 to 500 kbps of upload bandwidth while streaming video.
At 1080p, each camera requires 450 to 1200 kbps of upload bandwidth while streaming video.
Cameras will use more bandwidth to stream video when there is more motion in the scene.
If you subscribe to Nest Aware, your camera streams all video to the cloud for secure offsite storage. At 720p, each camera could use 60 to 160 GB of upload bandwidth per month. At 1080p, each camera could use 140 to 380 GB of upload bandwidth per month. | | Languages | English, French, Dutch, Spanish | | Operating Temperature | -4 to 104°F (-20 to 40°C) | | IP Rating | IP65 | | Power | AC Adapter Input: 100-240 VAC, 50/60 Hz, 0.2 A
AC Adapter Output: 5 VDC, 1.4 A
Camera Input: 5 VDC, 1.0 A | | Power Cable Length | 25' (7.5 m) | | Dimensions | 2.8 x 2.8 x 3.5" (7.2 x 7.2 x 8.9 cm) | | Weight | 11 oz (313 g) | | | | Package Weight | 2.675 lb | | Box Dimensions (LxWxH) | 6.65 x 6.6 x 4.95" |
