Nest Cam Outdoor Security Camera

Search your instruction manual in PDF to download

User Manual for Nest Cam Outdoor Security Camera

Click to enlarge the picture
Nest Cam Outdoor Security Camera Contents of the user manual for the Nest Cam Outdoor Security Camera
  • Product category: Wireless Cameras Nest
  • Brand: Nest
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nest Wireless Cameras

Nest Cam Outdoor Security Camera Nest Cam Outdoor Security Camera Nest Cam Outdoor Security Camera Nest Cam Outdoor Security Camera Nest Cam Outdoor Security Camera Nest Cam Outdoor Security Camera
User manual for the Nest Cam Outdoor Security Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nest product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nest user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nest product will considerably shorten its lifespan!



Product description

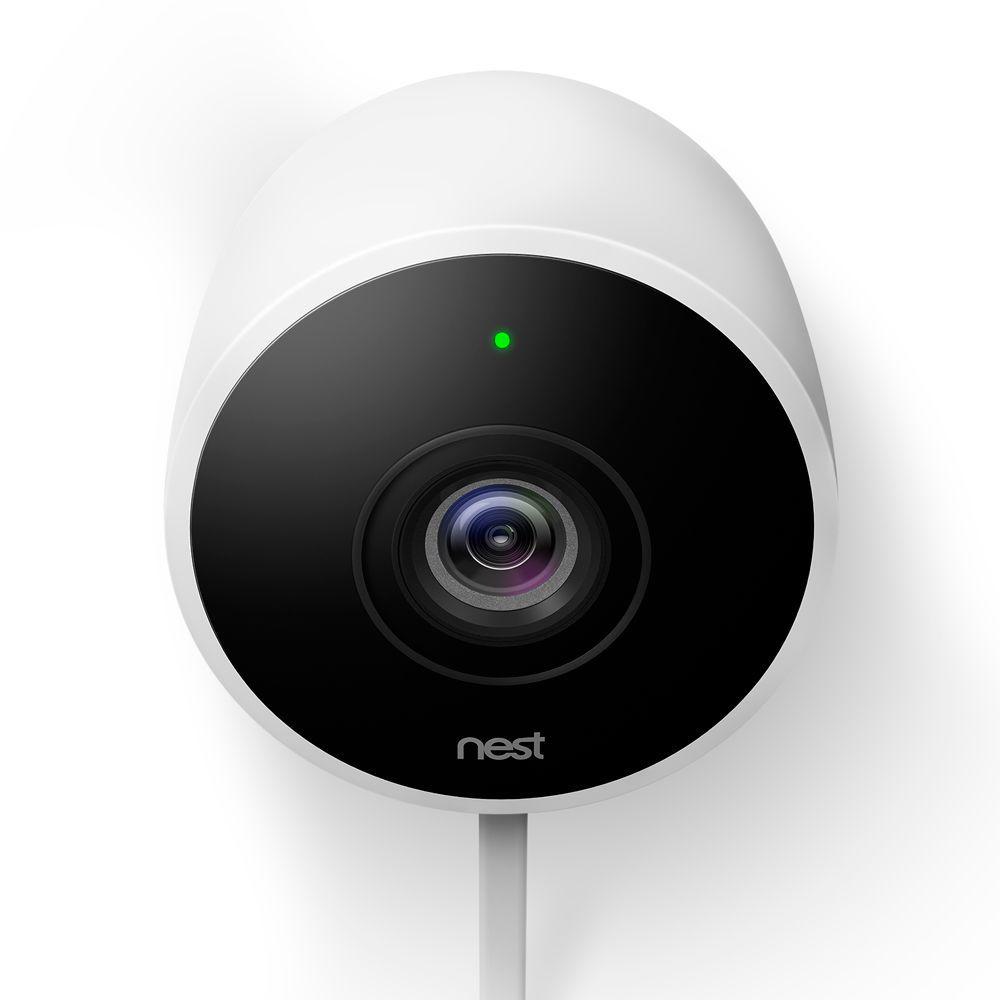

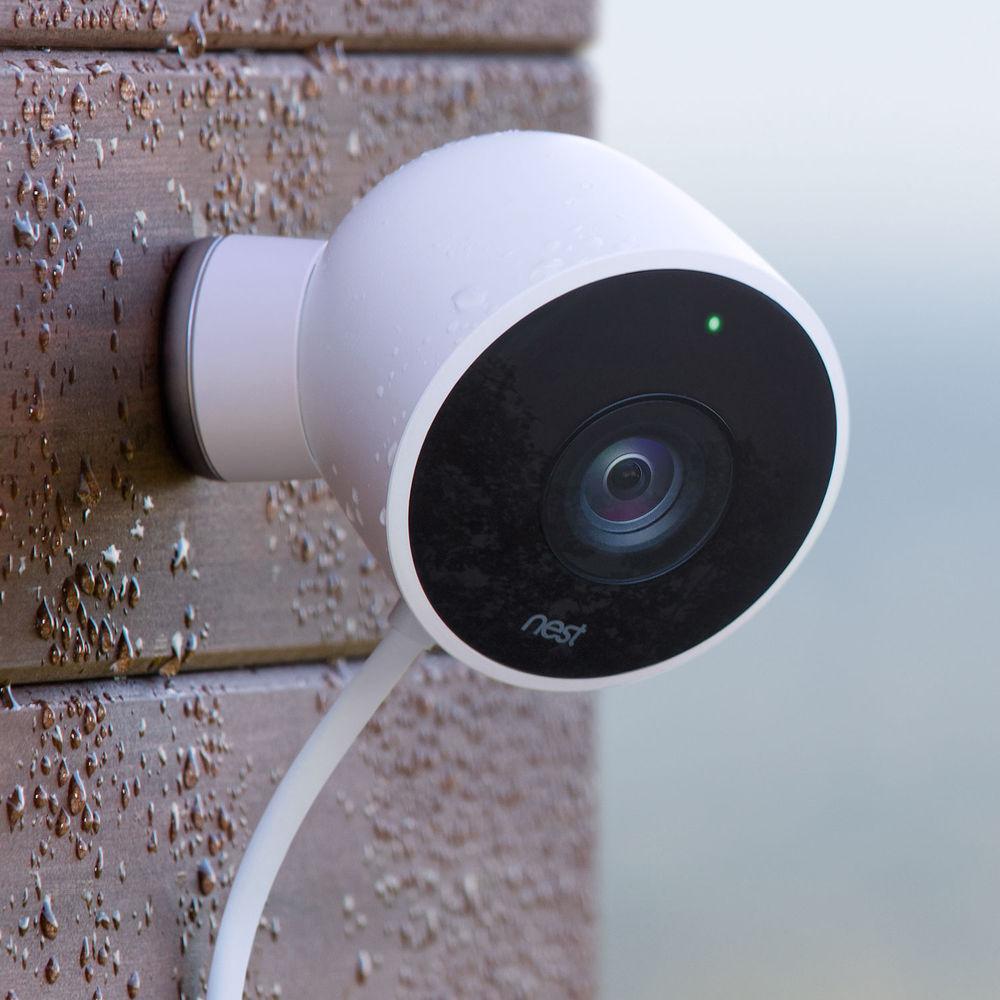

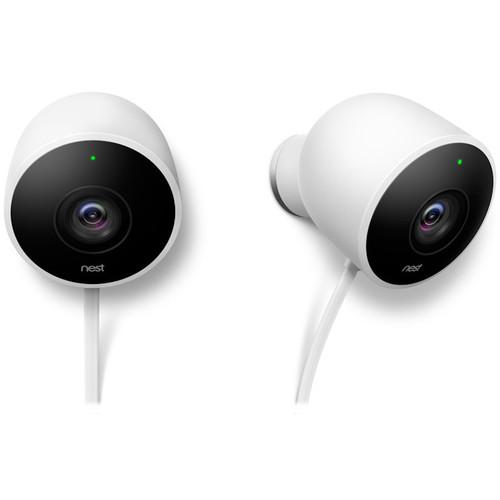

Monitor the outside of your home with this 2-pack of Nest Cam Outdoor Security Cameras from Nest. These IP65-rated cameras feature 3MP 1/3" sensors to capture 1080p video at up to 30 fps. Able to produce clear images at night thanks to eight IR LEDs, these cameras connect to your home network via Wi-Fi to transmit footage. Use the free Nest app for iOS and Android devices or log in from a computer to view live video. Receive alerts when activity or sound is detected, and talk and listen to visitors right from the app through the built-in speakers and microphones.

Each camera has a wide-angle 130° diagonal field of view that allows you to monitor large outdoor areas, while H.264 compression helps to ensure high-quality recording and playback. The included power adapters are designed to provide constant, 24/7 monitoring without having to worry about charging or replacing batteries. The included magnetic mounts ensure the cameras are ideally positioned to fit your surveillance needs.

Note: 30-day free trial of Nest Aware included. Service plan is required to save recorded video and is available separately through Nest.
  • 3MP 1/3" sensor captures 1920 x 1080 resolution video at up to 30 fps
  • Eight IR LEDs allows the camera to produce clear images at night
  • 130° diagonal field of view and 8x digital zoom for monitoring large outdoor areas
  • Connects via Wi-Fi for a cleaner setup

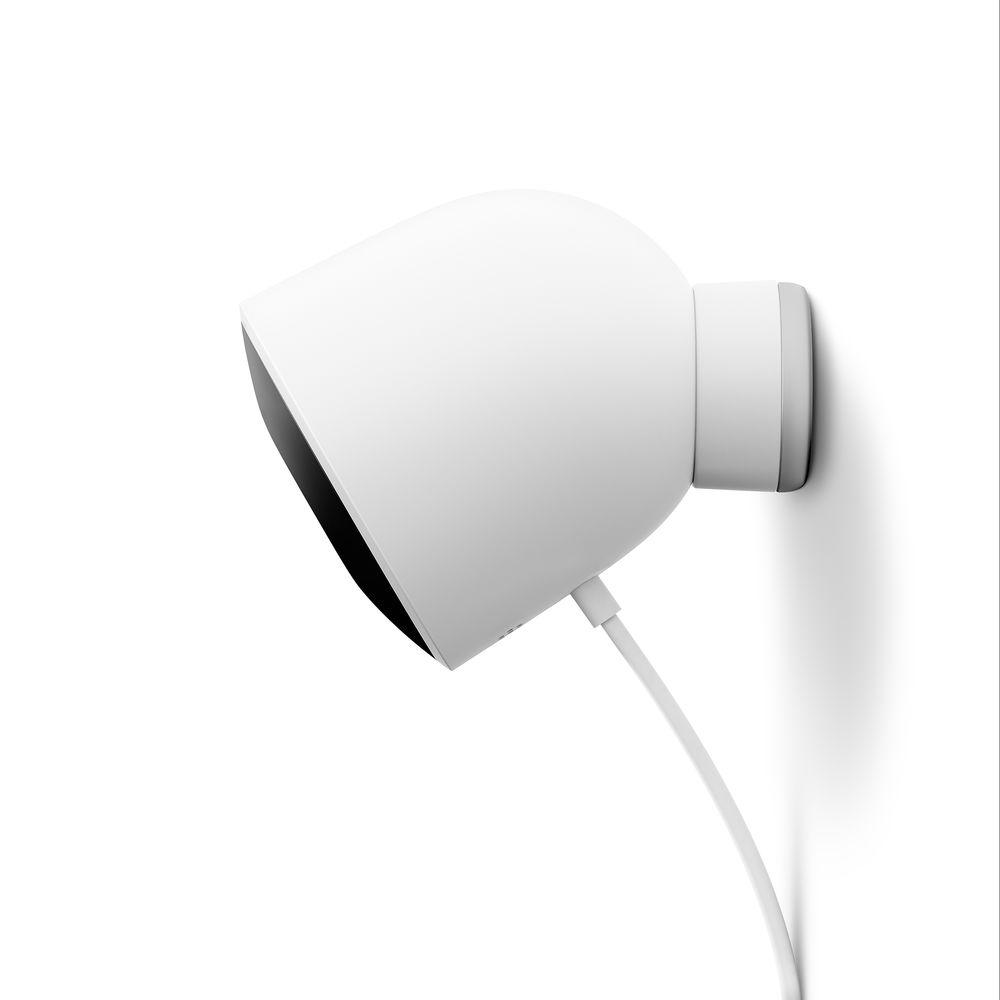

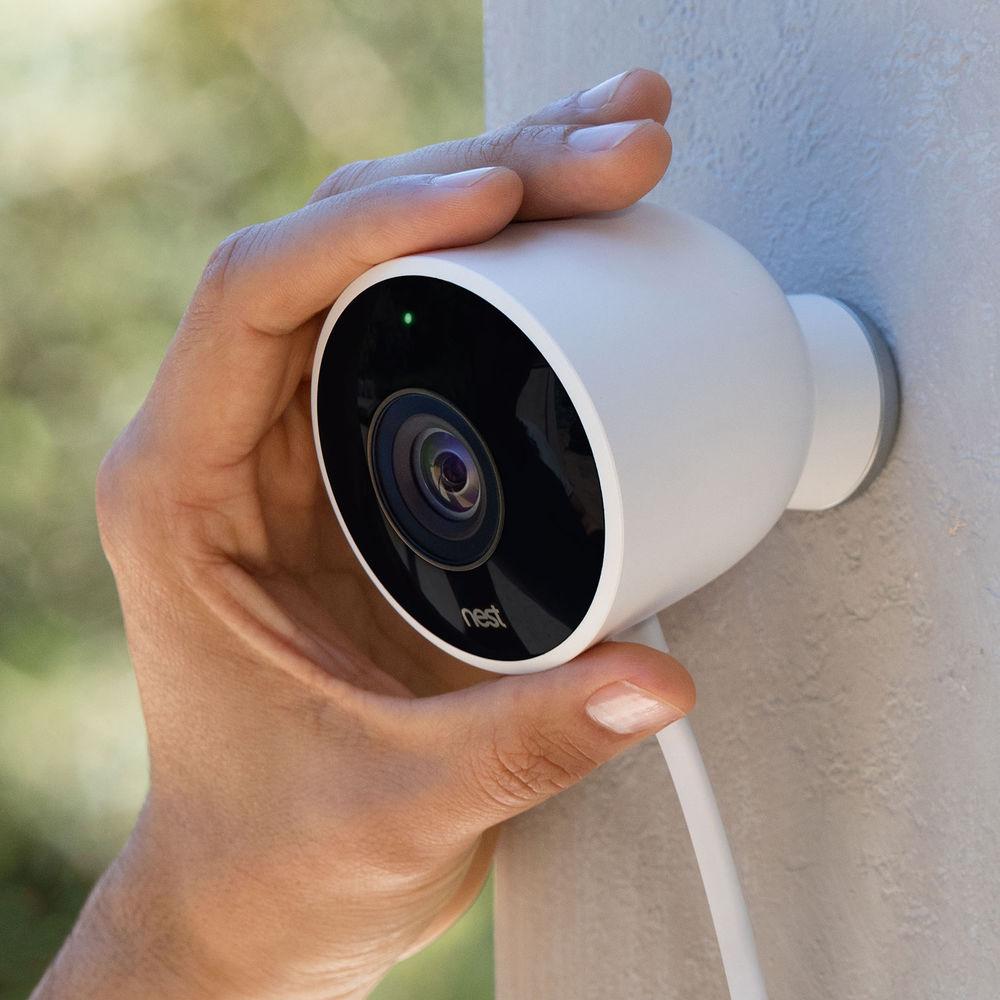

  • Easy installation with the adjustable magnetic mount

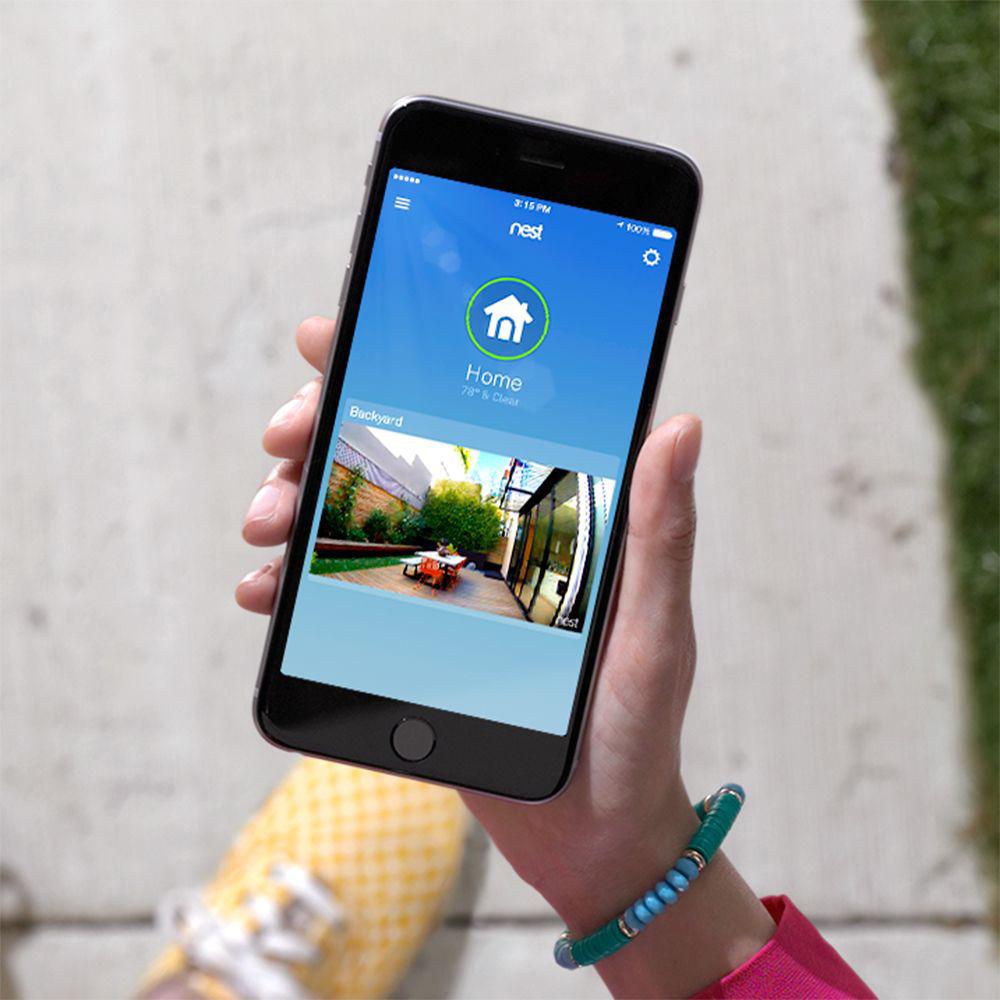

  • Free Nest app for mobile viewing and control from iOS and Android devices
  • IP65-rated for outdoor use

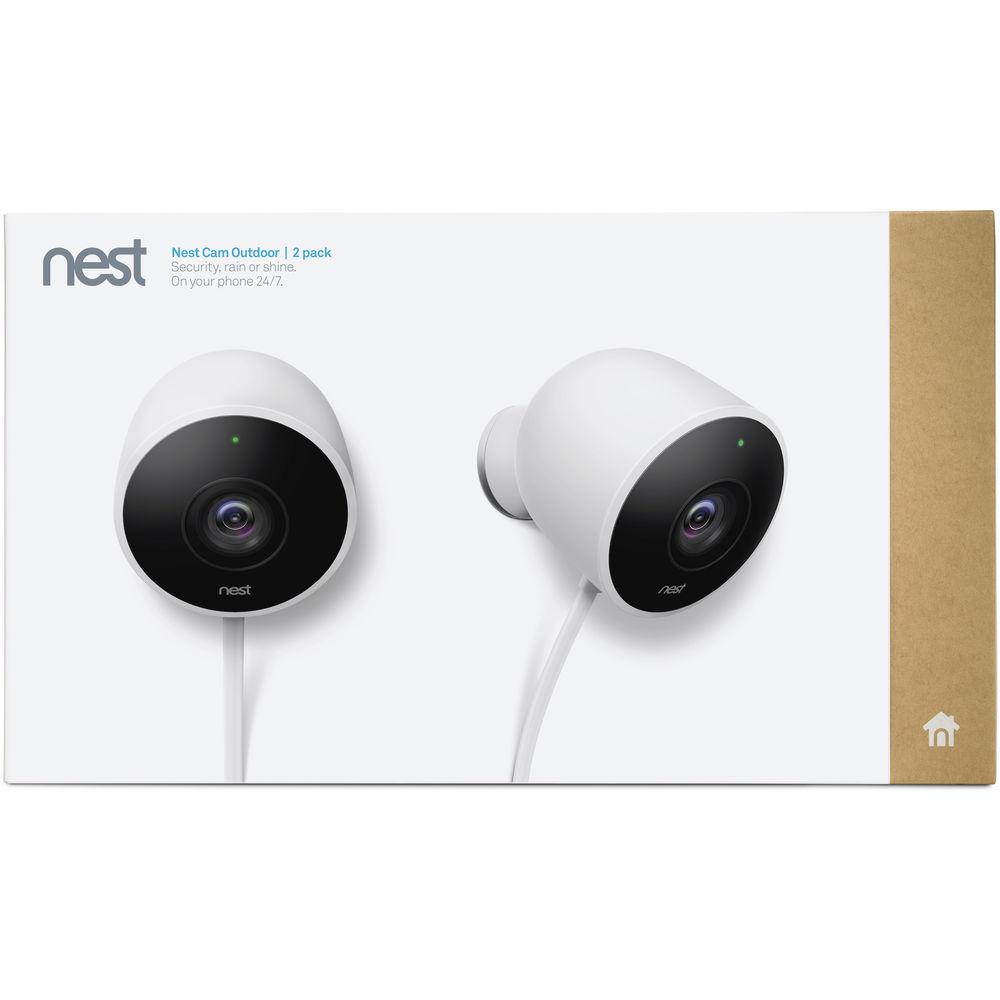

UPC: 813917020180 In the Box Nest Cam Outdoor Security Camera (2-Pack)
  • 2 x Cam Outdoor Security Camera
  • More info from Nest Table of Contents




    Upload User Manual

    Have you got an user manual for the Nest Cam Outdoor Security Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Nest Nest Cam Outdoor Specs

    Image Sensor 3 MP 1/3" sensor
    Resolution 1920 x 1080 at up to 30 fps
    Compression H.264
    Field of View Diagonal: 130°
    Digital Zoom 8x
    Number of IR LEDs 8 x IR LEDs
    Night Vision IR cut filter
    IR Wavelength 850 nm
    Audio Two-way audio with built-in microphone and speaker
    Lights RGB LED
    Wireless Protocols Wi-Fi 802.11a/b/g/n, 2.4 or 5 GHz (WEP, WPA, WPA2 encryption supported)
    Bluetooth Low Energy (BLE)
    Security 128-bit AES with TLS/SSL
    Connectivity Requirements:
    Wi-Fi connection
    Working broadband internet connection with at least 2 Mb/s upload speed (DSL may not qualify).
    Free Nest app and a compatible smartphone or tablet with iOS 8 or later or Android 4 or later and Bluetooth 4.0. Or set it up from your computer using USB and a web browser.
    Bandwidth Requirements:
    At 720p, each camera requires 200 to 500 kb/s of upload bandwidth while streaming video.
    At 1080p, each camera requires 450 to 1200 kb/s of upload bandwidth while streaming video.
    Cameras will use more bandwidth to stream video when there is more motion in the scene.
    If you subscribe to Nest Aware, your camera streams all video to the cloud for secure offsite storage. At 720p, each camera could use 60 to 160 GB of upload bandwidth per month. At 1080p, each camera could use 140 to 380 GB of upload bandwidth per month.
    Languages English, French, Dutch, Spanish
    Operating Temperature -4 to 104°F / -20 to 40°C
    IP Rating IP65
    Power AC Adapter Input: 100-240 VAC, 50/60 Hz, 0.2 A
    AC Adapter Output: 5 VDC, 1.4 A
    Camera Input: 5 VDC, 1.0 A
    Power Cable Length 25' / 7.5 m
    Dimensions 2.8 x 2.8 x 3.5" / 7.2 x 7.2 x 8.9 cm
    Weight 11 oz / 313 g
    Package Weight 6.56 lb
    Box Dimensions (LxWxH) 11.55 x 6.65 x 5.0"
