User Manual for Nest Detect Click to enlarge the picture
Contents of the user manual for the Nest Detect
- Product category: Sensors Nest
- Brand: Nest
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nest Sensors
 |
User manual for the Nest Detect contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nest product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nest user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nest product will considerably shorten its lifespan!
|

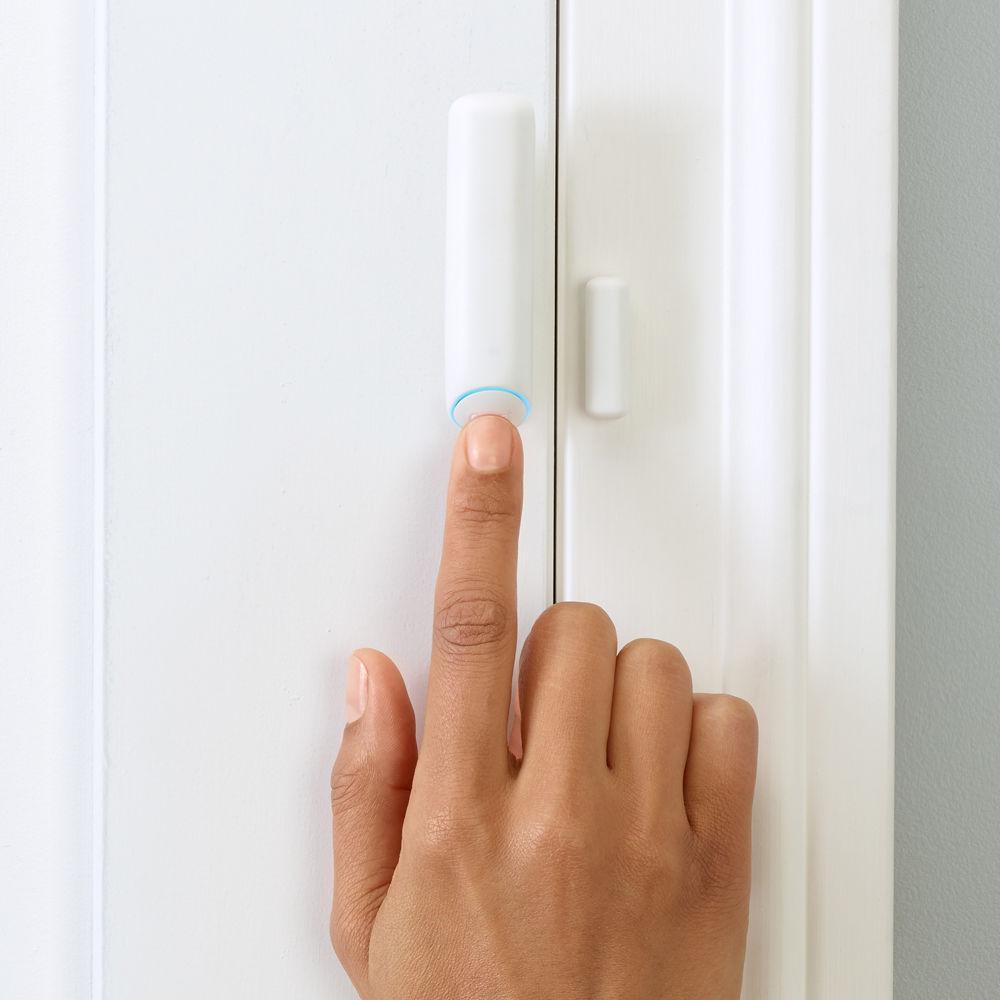

Product description Secure you home with the Nest Detect from Nest by placing it on a wall, window, or door. This diminutive device is capable of detecting motion up to 15' away when it's placed on a wall, or when a door or window opens and closes if it's placed there. When placed on a door, it will detect both motion, and when it opens and closes. Quiet Open enables you to open a door while your home alarm is set without triggering the alarm. In addition, the Pathlight feature will briefly illuminate the area when you walk past the Detect, and will turn off once you've walked away from it. This device works at altitudes up to 10,000'. A CR123 lithium battery is included.Note: Nest Detect requires a Nest Secure alarm system starter pack, available for purchase separately. - Works with free Nest app for iOS & Android mobile devices
- Expandable with support for up to 30 Detect devices
- Motion sensing with a 54° field of view up to 15' away
UPC: 813917020517 In the Box Nest Detect CR123 Battery Open/Close Magnet Flat Mounting Bracket Corner Mounting Bracket Adhesive Strips Mounting Screws Limited 2-Year Warranty More info from Nest wexxqdbqzbcvwretxdfeuv Table of Contents
|
Upload User Manual
Have you got an user manual for the Nest Detect in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNest H1100WES Specs | Sensors | Motion sensing (54° field of view up to 15' (4.6 m) away)
Magnet sensor
Tamper detection | | Lights | LED ring
LED for Pathlight
| | Battery | CR123 3 V lithium battery (included) | | Product Requirements | Requires a compatible phone or tablet (iOS or Android) with the free Nest app and Bluetooth 4.0.
Nest Detect requires Nest Guard.
Up to 30 Nest Detects supported per home. | | Operation | Temperature: 32 to 104°F (0 to 40°C)
Indoor use only
Relative Humidity: Up to 80% (unpackaged)
Pressure: Up to 10,000' (3048 m) altitude
| | Storage | Ambient Temperature: -4 to 113°F (-20 to 45°C)
Relative Humidity: Up to 80% (unpackaged)
Pressure: Up to 15,000' (4572 m) altitude | | Certifications | UL 639, intrusion-detection units
UL 634, connectors and switches for use with burglar-alarm systems
| | Green Compliance | RoHS, REACH, EU persistent organic materials (EU POP), recyclable packaging | | Dimensions (H x W x D) | Detect: 3.2 x 0.8 x 0.9" (80.5 x 20.4 x 22.2 mm)
Open/Close Magnet: 1.3 x 0.4 x 0.4" (33.8 x 10.3 x 11 mm)
| | Weight | Detect: 1.26 oz (36 g)
Open/Close Magnet: 0.35 oz (10 g)
| | | | Package Weight | 0.225 lb | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 1.2" |
