User manual

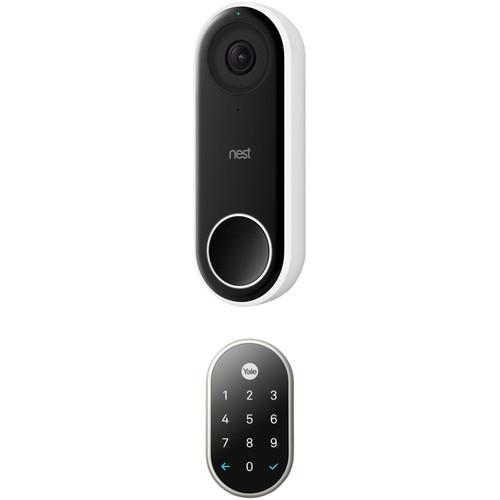

Nest Hello Video Doorbell with Nest

User Manual for Nest Hello Video Doorbell with Nest x Yale Lock Kit

• Product category: Intercoms Nest
• Brand: Nest
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nest Intercoms

Product description

• Nest Hello Video Doorbell Monitor your front door with the Hello Video Doorbell from Nest. Access video on your iOS or Android mobile device from anywhere with an internet connection and Wi-Fi via the free Nest app.

  When attached to your existing hardwired doorbell, this dual-band Wi-Fi device captures 1600 x 1200 resolution video at up to 30 fps. It features night vision functionality and a 160° diagonal field of view. Additionally, the 4:3 aspect ratio enables you to see people at your front door from head to toe. Two-way audio communication allows you to interact with visitors, while noise and echo cancellation ensure that communication is clear. H.264 video compression manages file sizes while maintaining quality. This video doorbell is IPX4-rated for water resistance.

  Note: A wired doorbell, chime, and a 10 VA transformer are required to use this device. Professional installation is recommended.
  • 24/7 streaming and continuous video recording
  • HDR video
  • 4:3 aspect ratio shows visitors at your door from head to toe
  • Optional Nest Aware subscription with cloud storage available
  • Familiar face alerts with Nest Aware subscription
  • Person, motion, and sound alerts to detect visitors
  • 8x digital zoom
  • Prerecorded messages
  • 128-bit encryption and two-step verification
  • Installation requires doorbell wiring, a chime, and a 10 VA transformer
  • IPX4-rated for water resistance
  UPC: 813917020951
• Nest x Yale Lock (Satin Nickel) with Nest Connect The satin nickel Nest x Yale Lock with Nest Connect offers a secure alternative to the standard deadbolt lock. With this tamper-proof keyless deadbolt, you won't have to worry about lost keys or picked locks. Thanks to unique passcodes, you'll be able to assign entry access to family, friends, and guests. Additionally, you can set schedules to let them in. One-touch locking allows you to tap the device to lock it on your way out, and auto-lock automatically locks it when Nest knows you're away. The included Nest Connect range extender enables you to use the Nest app for remote access to lock and unlock your door.

  The device is compatible with the Nest Secure alarm system to automatically disarm and unlock your door. It comes with 4 AA batteries.
  • Secure and tamper-proof keyless deadbolt enables you to gain entry with unique passcodes
  • Free Nest app for iOS and Android devices
  • You can create up to 20 passcodes for access by keypad
  • Can be installed on a standard door in minutes with just a screwdriver
  • Bundled with the Nest Connect range extender
  • Compatible with Nest Guard (available separately) for remote access with Nest app
  • Receive alerts when someone locks & unlocks the door, and for low battery
  • Nest Secure alarm system enables you to unlock the door
  • Included 4 AA batteries deliver up to 1 year of battery life
  UPC: 081023007177

• Hello Video Doorbell zvebwdqefuufuz
• Chime Connector
• 15° Wedge
• Release Tool
• Masonry Drill Bit
• Window Decal
• Wall Plate
• Extension Wires
• Wall Anchors
• Screws
• Limited 2-Year Warranty

• x Yale Lock (Satin Nickel) with Nest Connect

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Nest Hello Video Doorbell

  Image Sensor	1/3" 3 MP (2K) color sensor
  Digital Zoom	8x
  Video Resolution	1600 x 1200 (UXGA)
  Frames Per Second (FPS)	Up to 30 fps
  Video Compression	H.264
  HDR	Yes
  Diagonal Field of View (FOV)	160°
  Two-Way Audio	Yes
  LED Indicator	RGB light ring and status light
  Night Vision	850 nm infrared LEDs
  Security	128-bit AES with TLS/SSL
  Wireless	Wi-Fi 802.11a/b/g/n/ac, 2.4 or 5 GHz (WEP, WPA, WPA2 encryption supported) Bluetooth Low Energy (BLE) 802.15.4 at 2.4 GHz
  Product Requirements	Requires doorbell wiring and chime
  Connectivity Requirements	Wi-Fi 802.11a/b/g/n/ac, 2.4 or 5 GHz (WEP, WPA, WPA2 encryption supported) Working broadband internet connection with at least 2 Mb/s upload speed (DSL may not qualify) Requires a compatible phone or tablet (iOS or Android) with the free Nest app and Bluetooth 4.0
  Bandwidth	Requirements: At 1600 x 1200, Nest Hello requires 800 to 2000 kb/s of upload bandwidth while streaming video. Nest Hello will use more bandwidth to stream video when there is more motion in the scene. If you subscribe to Nest Aware, your Nest Hello streams all video to the cloud for secure offsite storage. At 1600 x 1200, each Nest Hello could use 150 GB to 600 GB of upload bandwidth per month depending on the video quality setting.
  Languages	English (US, UK), French (Canada, France), Spanish (Americas, Spain)
  Green Compliance	RoHS, REACH, Title 20 battery charger compliant, recyclable packaging
  Operating Temperature	-4 to 104°F / -20 to 40°C
  IP Rating	IPX4
  Power Requirements	16-24 VAC Requires a 10 VA transformer and doorbell wiring
  Dimensions	1.7 x 4.6 x 1.0" / 4.3 x 11.7 x 2.6 cm
  Weight	4.28 oz / 121.6 g

  Box Dimensions (LxWxH)	6.6 x 5.0 x 2.8"

• Nest x Yale Lock (Satin Nickel) with Nest Connect

  Compatibility	Nest Secure alarm system
  Color	Satin nickel
  Operating Requirements	To control the Nest x Yale Lock from your phone, you need Nest Connect or Nest Guard Wi-Fi 802.11b/g/n, 2.4 GHz, WEP, WPA, WPA2 encryption supported Compatible phone or tablet with the free Nest app and Bluetooth 4.0. Nest Connect requires an indoor outlet Remote access using the Nest app requires creation of a Nest Account Remote control and mobile notifications require a working internet connection Requires 4 AA batteries (included). If batteries become depleted, you can unlock the door using a 9 V battery for power
  Battery Life	1 year
  Operating Temperature	Nest Connect: 32 to 104°F / 0 to 40°C
  Power Input	Nest Connect: 100-240 V / 0.12 A / 60-50 Hz
  Dimensions	Front: 2.59 x 4.59 x 0.80" / 6.85 x 11.66 x 1.79 cm Rear: 2.78 x 7.03 x 2.02" / 7.05 x 17.88 x 5.12 cm
  Weight	Front: 4.5 lb / 2 kg Rear: 4.5 lb / 2 kg

  Box Dimensions (LxWxH)	11.65 x 6.0 x 5.85"
