User Manual for Nest Protect Battery-Powered Smoke and Carbon Monoxide Alarm Click to enlarge the picture
Contents of the user manual for the Nest Protect Battery-Powered Smoke and Carbon
- Product category: Sensors Nest
- Brand: Nest
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nest Sensors
|
User manual for the Nest Protect Battery-Powered Smoke and Carbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nest product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nest user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nest product will considerably shorten its lifespan!
|

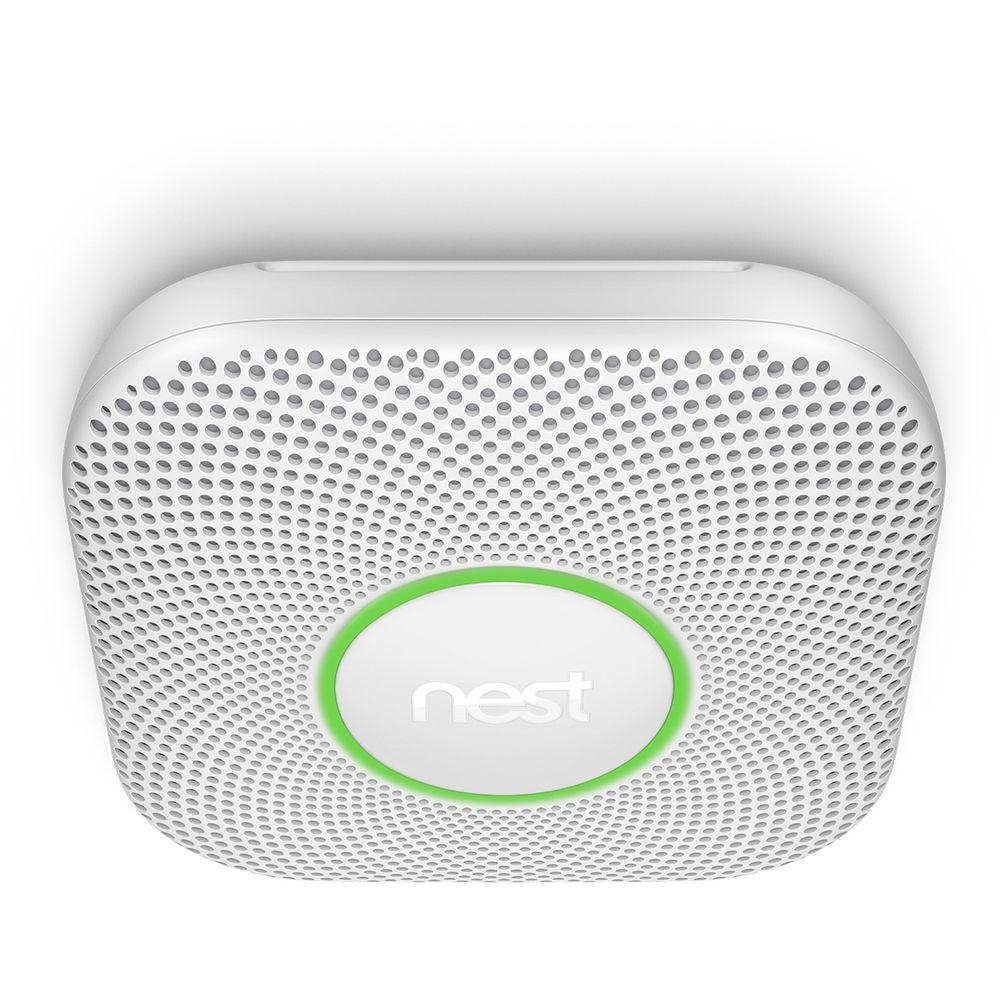

Product description Help safeguard your home with the white Protect Battery-Powered Smoke and Carbon Monoxide Alarm from Nest. This alarm is powered by six included AA batteries and it wirelessly interacts with your Android and iOS smart devices using the free Nest app. Wireless communication is achieved thanks to its built-in Wi-Fi and Bluetooth connectivity. The Nest Protect is designed to detect fast-burning fires, smoldering fires, and carbon monoxide. It produces an audible alert when action is required, and it can be conveniently silenced from your smart devices. - Smart Device Alerts
- The Nest Protect sends a message when there's a problem or when the batteries are running low
- Split-Spectrum Sensor
- The Split-Spectrum sensor looks for both fast and slow-burning fires
- Hush From the Nest App
- Silence false alarms with your smartphone or tablet
- Tells You What and Where
- The Nest Protect speaks up if there's smoke or CO and tells you where it is, so you'll know what to do next

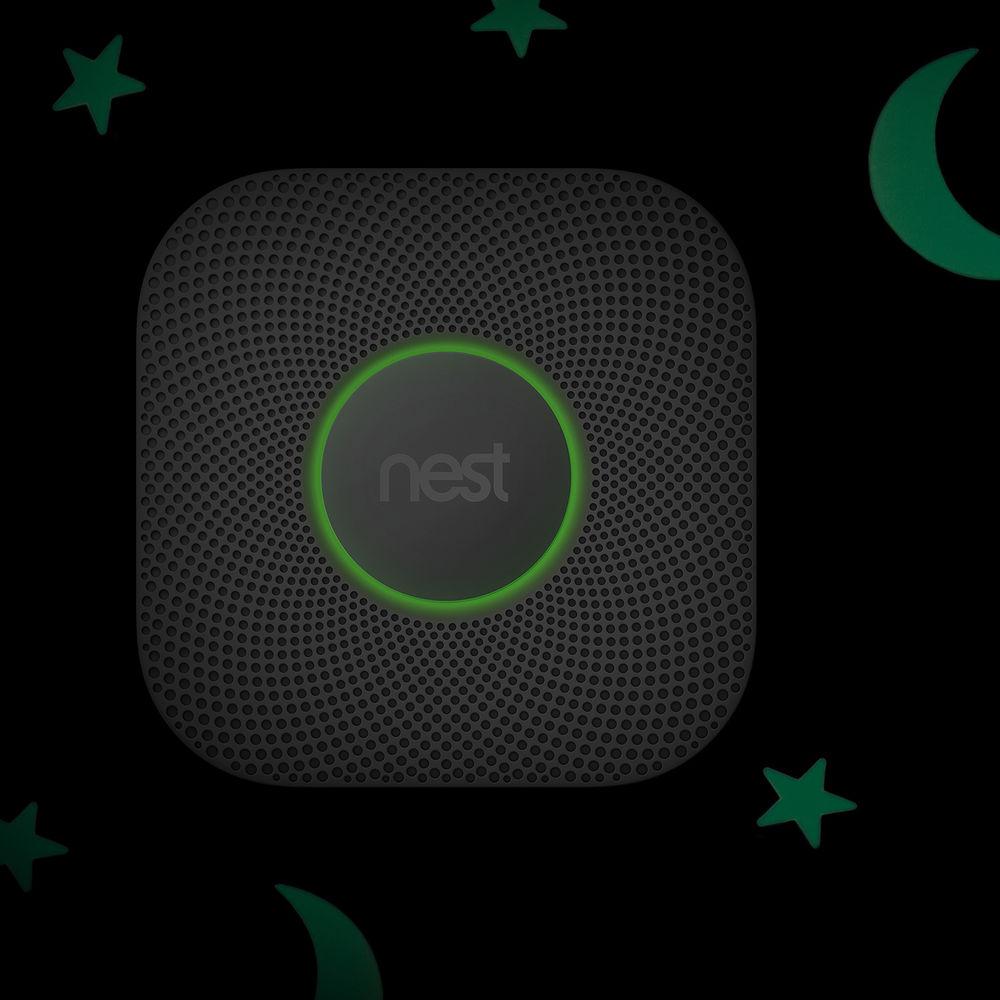

- Nightly Promise
- Nightly Promise is a quick green glow from the Nest Protect when you turn out the lights, informing you that everything's working well.
- Pathway Light
- Usually the Nest Protect has its light turned off, but when you walk underneath it, Pathlight can lighten darkened areas
- 10-Year Life Span
- The sensor in the Nest Protect is designed to last approximately 10 years
- Additional Features
-
- Voice alarms with custom location
- Phone alerts (low-battery, smoke, carbon monoxide, sensor failure)
- Safety checkup
- Heads-up alerts
- Sound check
- Self test
- Steam check
- Wireless interconnect
- Safety history
- Home report
- Emergency shutoff with the optional Nest Learning Thermostat
- Emergency clip record with the optional Nest Cam

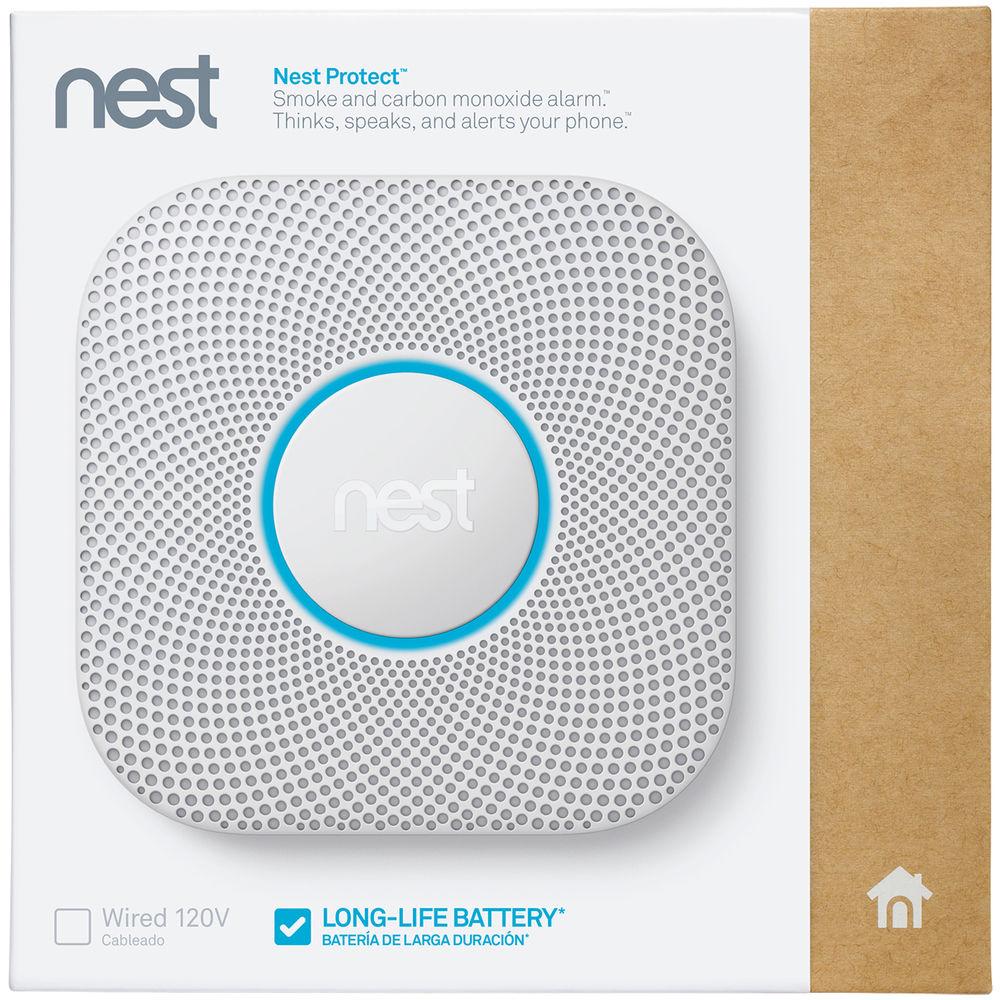

UPC: 854448003679 In the Box Nest Protect Battery-Powered Smoke and Carbon Monoxide Alarm (White, 2nd Generation) 6 x L91 AA Energizer Ultimate Lithium Batteries Backplate 4 x Screws Limited 2-Year Warranty More info from Nest txcttrtsacetbfeqcdbxwwyxbbdu Table of Contents
|
Upload User Manual
Have you got an user manual for the Nest Protect Battery-Powered Smoke and Carbon Monoxide Alarm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNest S3000BWES Specs Wireless | Working Wi-Fi connection: 802.11 b/g/n at 2.4 GHz Wireless Interconnect: 802.15.4 b/g/n at 2.4 GHz Bluetooth Low Energy (BLE) | Sensors | Split-Spectrum Sensor, 450 nm and 880 nm wavelength 10 year electrochemical carbon monoxide sensor Heat sensor, ± 1.8°F (± 1°C) Humidity sensor, ± 3% RH Occupancy sensor, 120° field of view to 20' Ambient light sensor, 1-100k Lux Dynamic Range Omnidirectional microphone, 70 dBA SNR | Audible Indicator | Speaker: 2 W, 80 dB at 3' (1 m) at 1 kHz Horn: 85 dB SPL at 10' (3 m) RGB color ring with 6 LEDs | Languages | United States: English, Spanish Downloadable: English, French, Spanish, Dutch | Requirements | Wi-Fi connection Phone or tablet with iOS 8 or later, or Android 4 or later Free Nest account | Certification and Compliance | Underwriters Laboratories Inc. California State Fire Marshal UL 2034 - Single and multi station carbon monoxide alarms UL 217 - Single and multi station smoke alarms NFPA-72 - National fire alarm and signaling code | Environmental | Installed Environment Temperature Range: 40 to 100°F (4 to 38°C) Relative Humidity Range: 20 to 80% (non condensing) | Dimensions (HxWxD) | 5.3 x 5.3 x 1.5" / 13.5 x 13.5 x 3.9 cm | Weight | 13.4 oz / 379.0 g | | Package Weight | 1.655 lb | Box Dimensions (LxWxH) | 6.35 x 6.3 x 2.8" |
