User manual
Nest Protect Battery-Powered Smoke and Carbon

User Manual for Nest Protect Battery-Powered Smoke and Carbon Monoxide Alarm

• Product category: Sensors Nest
• Brand: Nest
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Nest Sensors

Product description

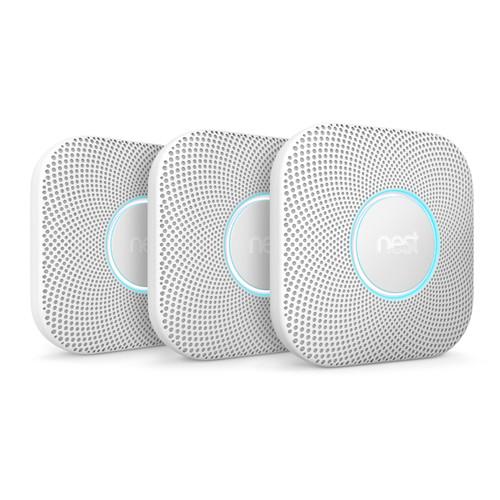

• Protect Battery-Powered Smoke and Carbon Monoxide Alarm (White, 2nd Generation) Help safeguard your home with the white Protect Battery-Powered Smoke and Carbon Monoxide Alarm from Nest. This alarm is powered by six included AA batteries and it wirelessly interacts with your Android and iOS smart devices using the free Nest app. Wireless communication is achieved thanks to its built-in Wi-Fi and Bluetooth connectivity. The Nest Protect is designed to detect fast-burning fires, smoldering fires, and carbon monoxide. It produces an audible alert when action is required, and it can be conveniently silenced from your smart devices.
  Smart Device Alerts
  • The Nest Protect sends a message when there's a problem or when the batteries are running low
  Split-Spectrum Sensor
  • The Split-Spectrum sensor looks for both fast and slow-burning fires
  Hush From the Nest App
  • Silence false alarms with your smartphone or tablet
  Tells You What and Where
  • The Nest Protect speaks up if there's smoke or CO and tells you where it is, so you'll know what to do next
  Nightly Promise
  • Nightly Promise is a quick green glow from the Nest Protect when you turn out the lights, informing you that everything's working well.
  Pathway Light
  • Usually the Nest Protect has its light turned off, but when you walk underneath it, Pathlight can lighten darkened areas
  10-Year Life Span
  • The sensor in the Nest Protect is designed to last approximately 10 years
  Additional Features
  • • Voice alarms with custom location
    • Phone alerts (low-battery, smoke, carbon monoxide, sensor failure)
    • Safety checkup
    • Heads-up alerts
    • Sound check
    • Self test
    • Steam check
    • Wireless interconnect
    • Safety history
    • Home report
    • Emergency shutoff with the optional Nest Learning Thermostat
    • Emergency clip record with the optional Nest Cam
  UPC: 854448003679

• 6 x L91 AA Energizer Ultimate Lithium Batteries

• Backplate

• 4 x Screws

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Protect Battery-Powered Smoke and Carbon Monoxide Alarm (White, 2nd Generation)

  Wireless	Working Wi-Fi connection: 802.11 b/g/n at 2.4 GHz Wireless Interconnect: 802.15.4 b/g/n at 2.4 GHz Bluetooth Low Energy (BLE)
  Sensors	Split-Spectrum Sensor, 450 nm and 880 nm wavelength 10 year electrochemical carbon monoxide sensor Heat sensor, ± 1.8°F (± 1°C) Humidity sensor, ± 3% RH Occupancy sensor, 120° field of view to 20' Ambient light sensor, 1-100k Lux Dynamic Range Omnidirectional microphone, 70 dBA SNR
  Audible Indicator	Speaker: 2 W, 80 dB at 3' (1 m) at 1 kHz Horn: 85 dB SPL at 10' (3 m) RGB color ring with 6 LEDs
  Languages	United States: English, Spanish Downloadable: English, French, Spanish, Dutch
  Requirements	Wi-Fi connection Phone or tablet with iOS 8 or later, or Android 4 or later Free Nest account
  Certification and Compliance	Underwriters Laboratories Inc. California State Fire Marshal UL 2034 - Single and multi station carbon monoxide alarms UL 217 - Single and multi station smoke alarms NFPA-72 - National fire alarm and signaling code
  Environmental	Installed Environment Temperature Range: 40 to 100°F (4 to 38°C) Relative Humidity Range: 20 to 80% (non condensing)
  Dimensions (HxWxD)	5.3 x 5.3 x 1.5" / 13.5 x 13.5 x 3.9 cm
  Weight	13.4 oz / 379.0 g

  Box Dimensions (LxWxH)	6.35 x 6.3 x 2.8"
