Nest Secure Alarm System Starter Pack

Search your instruction manual in PDF to download

User Manual for Nest Secure Alarm System Starter Pack

Click to enlarge the picture
Nest Secure Alarm System Starter Pack Contents of the user manual for the Nest Secure Alarm System Starter Pack
  • Product category: Wireless Alarm Kits Nest
  • Brand: Nest
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nest Wireless Alarm Kits

Nest Secure Alarm System Starter Pack Nest Secure Alarm System Starter Pack Nest Secure Alarm System Starter Pack Nest Secure Alarm System Starter Pack Nest Secure Alarm System Starter Pack
User manual for the Nest Secure Alarm System Starter Pack contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nest product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nest user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nest product will considerably shorten its lifespan!



Product description

Keep your home safe with the Secure Alarm System Starter Pack from Nest. This system features the Nest Secure Guard, which serves as the security base station. It is equipped with an 85 dB SPL siren to deter intruders. The Guard's built-in keypad is ideal for those who prefer to arm and disarm their system with a passcode. In addition, you could also arm and disarm your system with one of the included Nest Secure Tag devices, or via the free Nest app available for iOS and Android devices. The system supports up to 10 Tag devices, making it possible to give them to children, family members, and other loved ones. Also included in the system are two Nest Secure Detect devices that are designed to be placed on a wall, window, or door. This device can detect motion up to 15' away, and when a door or window opens and closes. When placed on a door it will detect both motion and when it opens or closes. Quiet Open technology enables you to open a door while your home alarm is set without triggering it. In addition, the Pathlight feature will briefly illuminate the area when you walk past the Detect, and will turn off once you've walked away from it. This system is capable of Wi-Fi connectivity on both 2.4 and 5 GHz bands. Additionally, it is also Bluetooth Low Energy (BLE) compatible. Note: For added security, an optional cellular backup subscription plan is available in the event of Wi-Fi going down. Please visit the manufacturer's site for pricing information.
  • 3 security levels include alarm off, home and guarding, and away and guarding
  • Security alerts let you know what triggered an alarm, giving you the option to call the police or an emergency contact
  • No Rush feature enables you to arm and disarm the alarm at your own pace, with a friendly voice alerting you to how much time you have left
  • Remind Me alerts enable you to arm your system directly from your smartphone
  • Tamper detection
  • Detects include two replaceable coin batteries
  • Dog pass ensures that your dog doesn't set off the motion sensors and alarm
  • Support for up to 30 Detect devices
  • Tags are suitable for children, family members, dog walkers, babysitters, or anyone who requires access to your secured home
  • Tags can be disabled if they get lost or stolen
  • Support for up to 10 Tag devices
  • Tags are IP57-rated water- and drop-resistant
  • Optional Nest Pro installation is available for those who don't want to install the system themselves

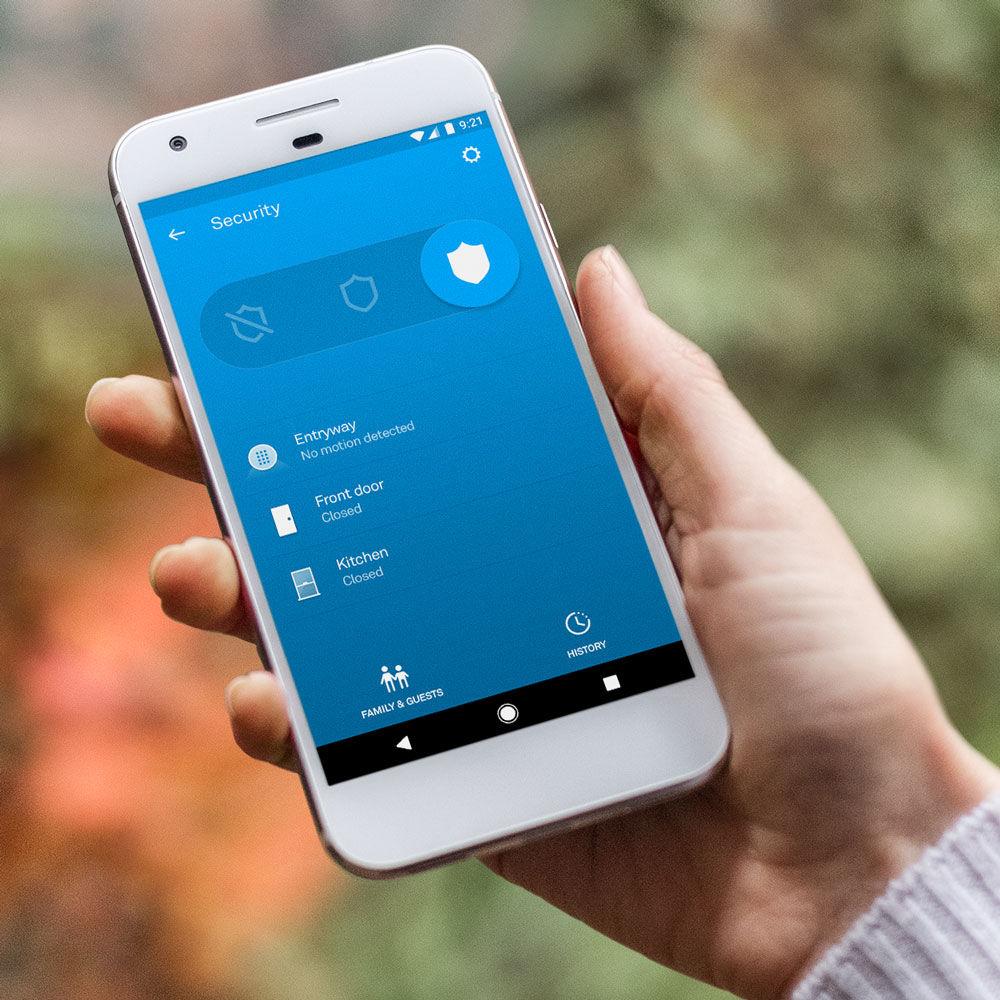

  • Free Nest app for mobile viewing and control from iOS and Android devices, with Nest Aware available separately via subscription
UPC: 813917020500 In the Box Nest Secure Alarm System Starter Pack

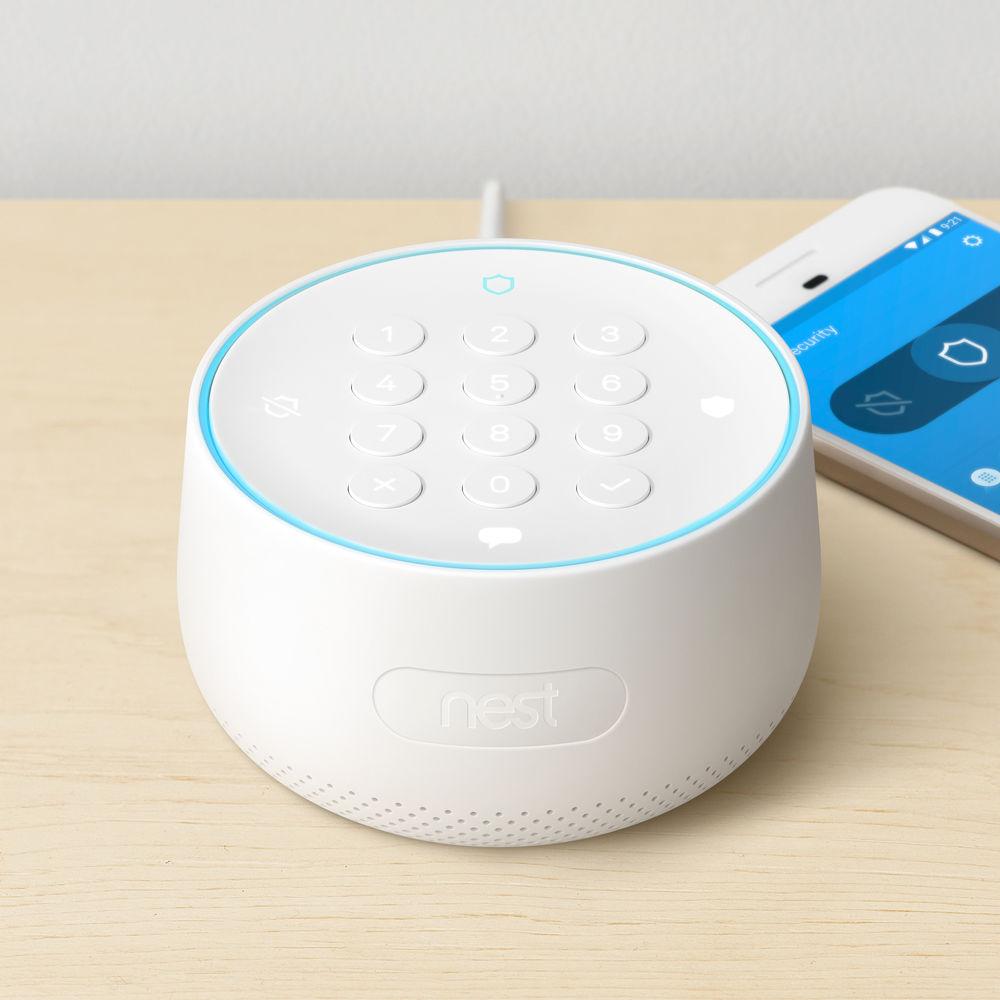

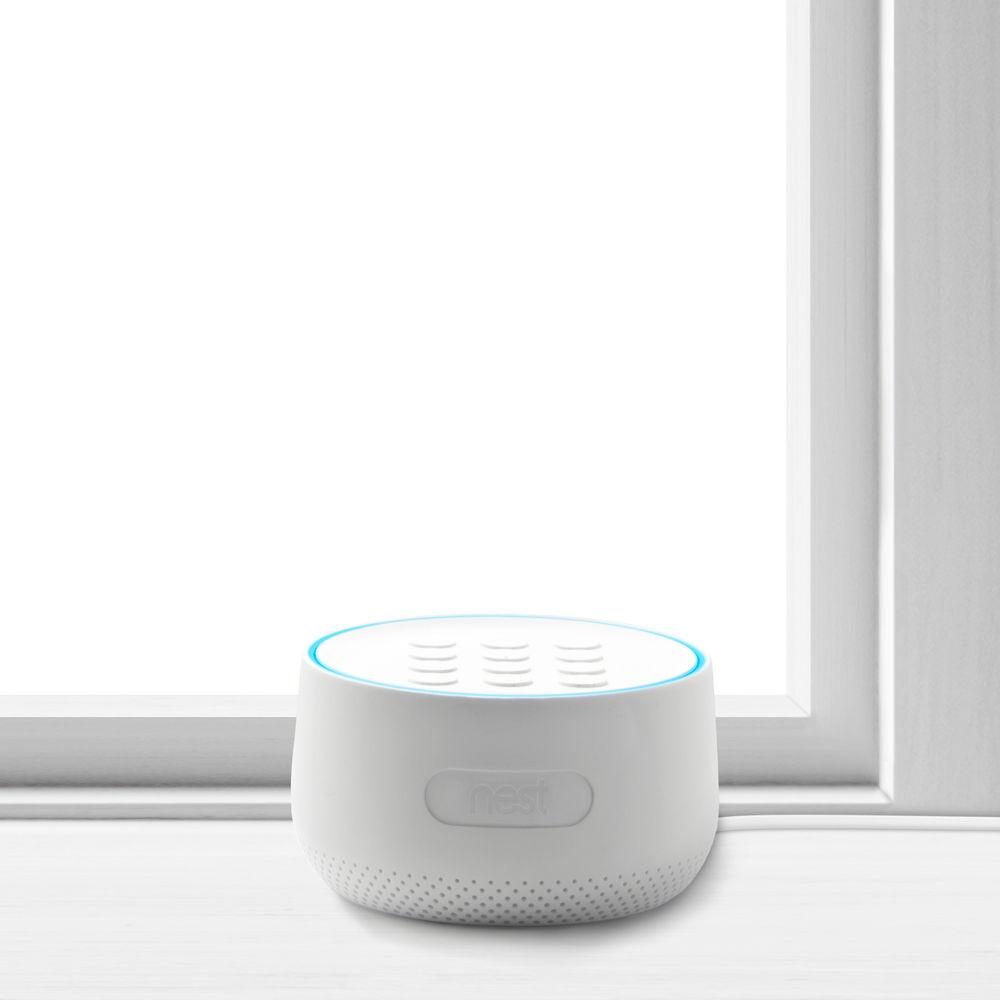

  • Nest Secure Guard

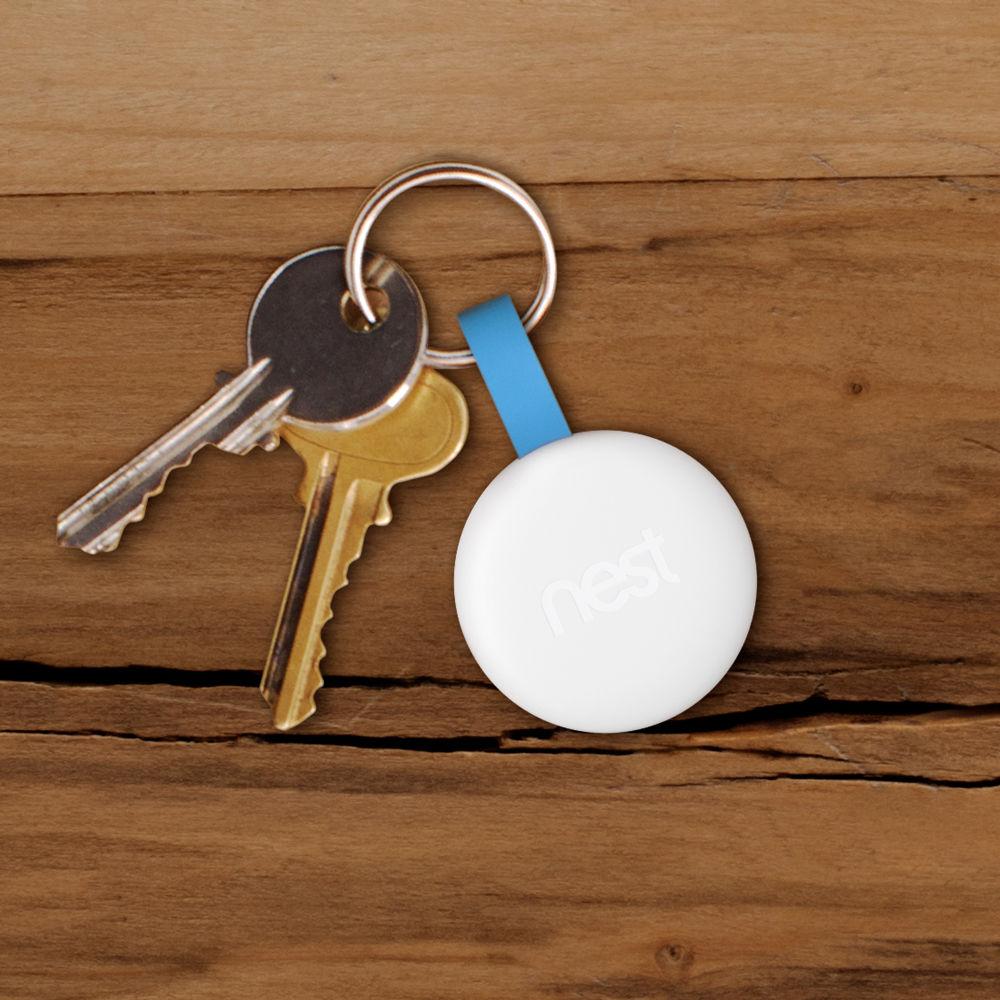

  • 2 x Tag

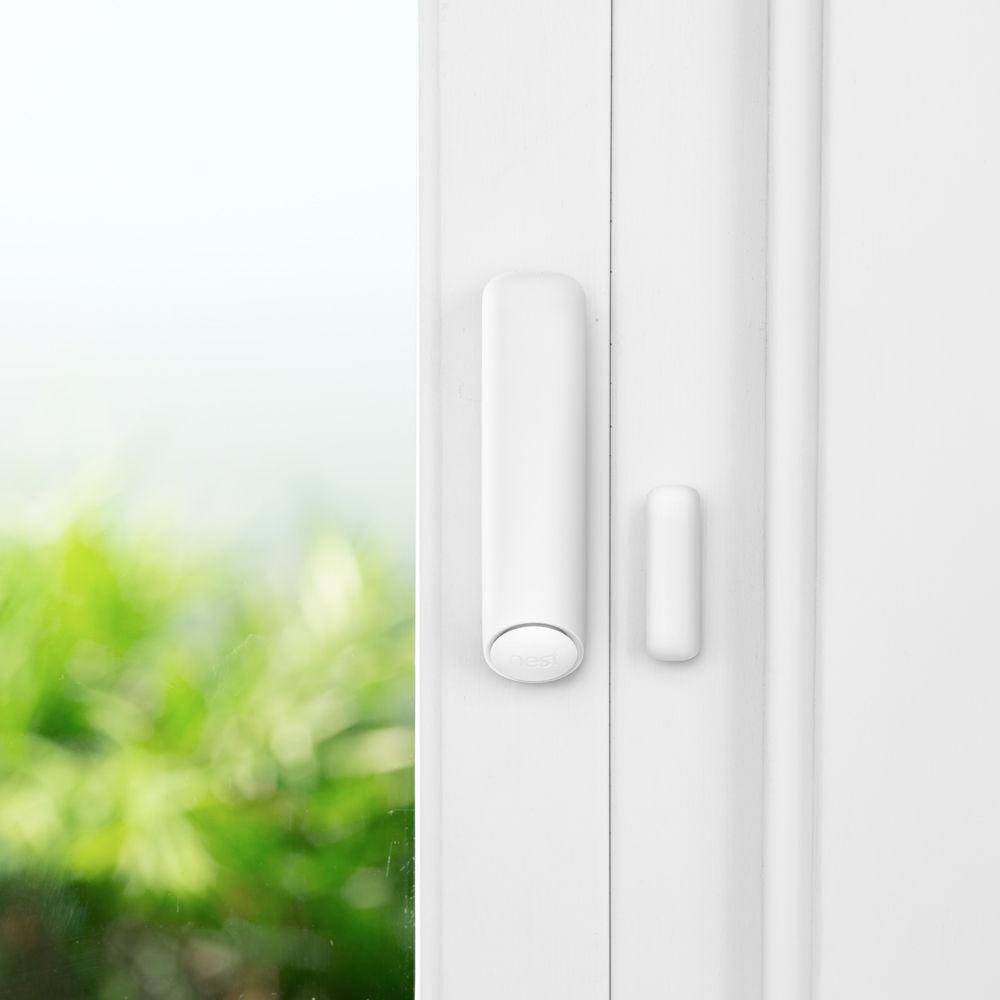

  • 2 x Detect
  • 2 x Open/Close Magnets
  • 2 x Flat Mounting Brackets
  • 2 x Corner Mounting Brackets
  • Adhesive Strips
  • Mounting Screws
  • 6' (2m) Power Cable
  • Power Adapter
  • Power Adapter Bracket and Screw
  • Limited 2-Year Warranty
  • More info from Nest Table of Contents




    Upload User Manual

    Have you got an user manual for the Nest Secure Alarm System Starter Pack in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Nest H1500ES Specs

    Buttons 3 security levels (alarm off, home and guarding, away and guarding)
    Info button
    Keypad for passcode entry
    Panic
    Sensors Motion sensing (90° field of view to 10' (3 m))
    Proximity sensing (wake on approach)
    Tamper detection (movement, jamming)
    Lights LED ring
    Audio Siren: 85 dB SPL
    Speaker
    Product Requirements Requires a compatible phone or tablet (iOS or Android) with the free Nest app and Bluetooth 4.0.
    Nest Guard requires an indoor outlet and Wi-Fi connection with internet access.
    Limit one Nest Guard per home.
    Wireless Protocols 802.11a/b/g/n at 2.4 or 5 GHz (WPA-PSK, WPA2-PSK, WEP encryption supported)
    802.15.4 at 2.4 GHz
    Bluetooth Low Energy (BLE)
    Operation Temperature: 32 to 104°F (0 to 40°C)
    Indoor use only
    Relative Humidity: Up to 80% (unpackaged)
    Pressure: Up to 10,000' (3048 m) altitude
    Storage Temperature: -4 to 113°F (-20 to 45°C)
    Relative Humidity: Up to 80% (in packaging)
    Pressure: Up to 15,000' (4572 m) altitude
    Battery Built-in rechargeable lithium-ion battery
    12-hour battery backup
    Languages English (US)
    Certifications UL 1023, household burglar alarm system units
    UL 639, intrusion-detection units
    Green Compliance RoHS, REACH, EU persistent organic materials (EU POP), recyclable packaging, Title 20 battery charger compliant
    Services Cellular backup (sold separately, not available in all areas)
    Color White
    Power Power Adapter Input: 100-240 VAC, 50/60 Hz, 0.35 A
    Power Adapter Output: 5 VDC, 2.5 A
    Nest Guard Input: 5 VDC, 2.5 A
    Dimensions (Diam. x H) 3.7 x 2.1" (9.5 x 5.3 cm)
    Weight 9 oz (256 g) (without cable)
    Product Requirements Requires a compatible phone or tablet (iOS or Android) with the free Nest app and Bluetooth 4.0.
    Nest Tag requires Nest Guard.
    Up to 10 Nest Tags supported per home.
    IP Rating IP57
    Operation Temperature: 32 to 104°F (0 to 40°C)
    Relative Humidity: Up to 80% (unpackaged)
    Pressure: Up to 10,000' (3048 m) altitude
    Storage Temperature: -4 to 113°F (-20 to 45°C)
    Relative Humidity: Up to 80% (unpackaged)
    Pressure: Up to 15,000' (4572 m) altitude
    Green Compliance RoHS, REACH, EU persistent organic materials (EU POP), recyclable packaging
    Dimensions (Diam. x Thickness) 1.46 x 0.28" (37 x 7 mm)
    Weight 0.17 oz (5 g)
    Sensors Motion sensing (54° field of view up to 15' (4.6 m) away)
    Magnet sensor
    Tamper detection
    Lights LED ring
    LED for Pathlight
    Battery CR123 3 V lithium battery (included)
    Product Requirements Requires a compatible phone or tablet (iOS or Android) with the free Nest app and Bluetooth 4.0.
    Nest Detect requires Nest Guard.
    Up to 30 Nest Detects supported per home.
    Operation Temperature: 32 to 104°F (0 to 40°C)
    Indoor use only
    Relative Humidity: Up to 80% (unpackaged)
    Pressure: Up to 10,000' (3048 m) altitude
    Storage Temperature: -4 to 113°F (-20 to 45°C)
    Relative Humidity: Up to 80% (unpackaged)
    Pressure: Up to 15,000' (4572 m) altitude
    Certifications UL 639, intrusion-detection units
    UL 634, connectors and switches for use with burglar-alarm systems
    Green Compliance RoHS, REACH, EU persistent organic materials (EU POP), recyclable packaging
    Dimensions (H x W x D) Detect: 3.2 x 0.8 x 0.9" (80.5 x 20.4 x 22.2 mm)
    Open/Close Magnet: 1.3 x 0.4 x 0.4" (33.8 x 10.3 x 11 mm)
    Weight Detect: 1.26 oz (36 g)
    Open/Close Magnet: 0.35 oz (10 g)
    Package Weight 2.105 lb
    Box Dimensions (LxWxH) 6.45 x 6.45 x 5.05"
