Nest Thermostat E

Search your instruction manual in PDF to download

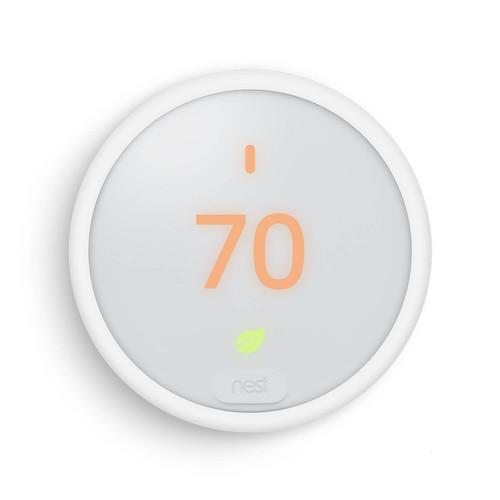

User Manual for Nest Thermostat E

Click to enlarge the picture
Nest Thermostat E Contents of the user manual for the Nest Thermostat E
  • Product category: Thermostats Nest
  • Brand: Nest
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nest Thermostats

Nest Thermostat E Nest Thermostat E Nest Thermostat E Nest Thermostat E Nest Thermostat E
User manual for the Nest Thermostat E contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nest product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nest user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nest product will considerably shorten its lifespan!



Product description

The Nest Thermostat E is a smart device designed to learn your heating and cooling preferences and make adjustments according to them, generally within about week from installation. The Thermostat E has a 6-wire configuration that works with about 85% of available heating and cooling systems, and it comes in white with a frosted display to better blend into most homes.

How does the Thermostat E adapt to you? Initially, you set your preferences, and when you make manual adjustments to them, the Thermostat E picks up on the changes and adapts to them. For example, if you initially set that you want the temperature to be at 70° at 7 in the morning, but then a few times in the next several days you manually turn the heat up to 75° at 7AM, the Thermostat E will officially change the 7AM temperature to 75°. The same approach will be applied to all your other settings according to your preferences and habits. It also automatically adapts to seasonal changes.

Furthermore, when the Thermostat E detects that everyone has left the premises, it will turn the temperature off completely (or adjust it to a set minimum if you assign one), and as soon as someone is back home, the Thermostat E will turn everything back on according to what it knows you prefer at that particular time of day (or to a max setting if you assign one).

The Thermostat E is also capable of integrating with other Nest products and with Google Home. It can receive communication from the Nest Protect smoke alarm system to turn the furnace or fan off if Nest Protect detects dangerous carbon monoxide gas or smoke. It can inform the Nest Cam to turn on automatically when it knows you're away. And you can control the Thermostat E by telling Google Home what to do, such as "OK Google, change the temperature to 72°."

When the Thermostat E senses your presence and turns everything back on, it also lights up and displays the temperature. Energy costs are among the biggest in the home, and the Thermostat E helps you save substantially on them with this automatic Home/Away Assist feature. Nest is the first brand to have received ENERGY STAR certification for a thermostat, and retains that certification with the Thermostat E.

There are other energy-efficiency features as well. Energy History lets you check/monitor (via the Nest app) how much energy you use and why. Nest Leaf guides you in the right savings direction by showing you a leaf when you choose a temperature that saves energy.

To assign your preferences or otherwise control the Thermostat E, you can use the control ring on the device or the downloadable Nest mobile app on your iOS/Android phone or tablet via a Wi-Fi connection even when you're not home.

The Thermostat E is designed to be an affordable, energy-saving, and easy-to-use solution for your home. It runs on a built-in rechargeable battery and has a wall-mount design. If you need help installing it, Nest offers a professional installer finder tool on their website. Search for Nest Pro Finder and receive an estimate within 48 hours.
    Key Features
    • Energy-saving smart thermostat for your home
    • Learns your heating and cooling preferences and adapts to them
    • 6-wire configuration compatible with most 24V heating and cooling systems (about 85% of available heating and cooling systems)
    • Comes in white to better blend into most homes
    • Turns the heat/cooling off (or to a set minimum) when detecting that no one is home
    • Capable of communicating with the optional Nest Protect smoke alarm to turn off the heat or the fan in case of gas leaks or smoke
    • Energy History review/monitoring tool
    • Nest Leaf energy saving guidance tool

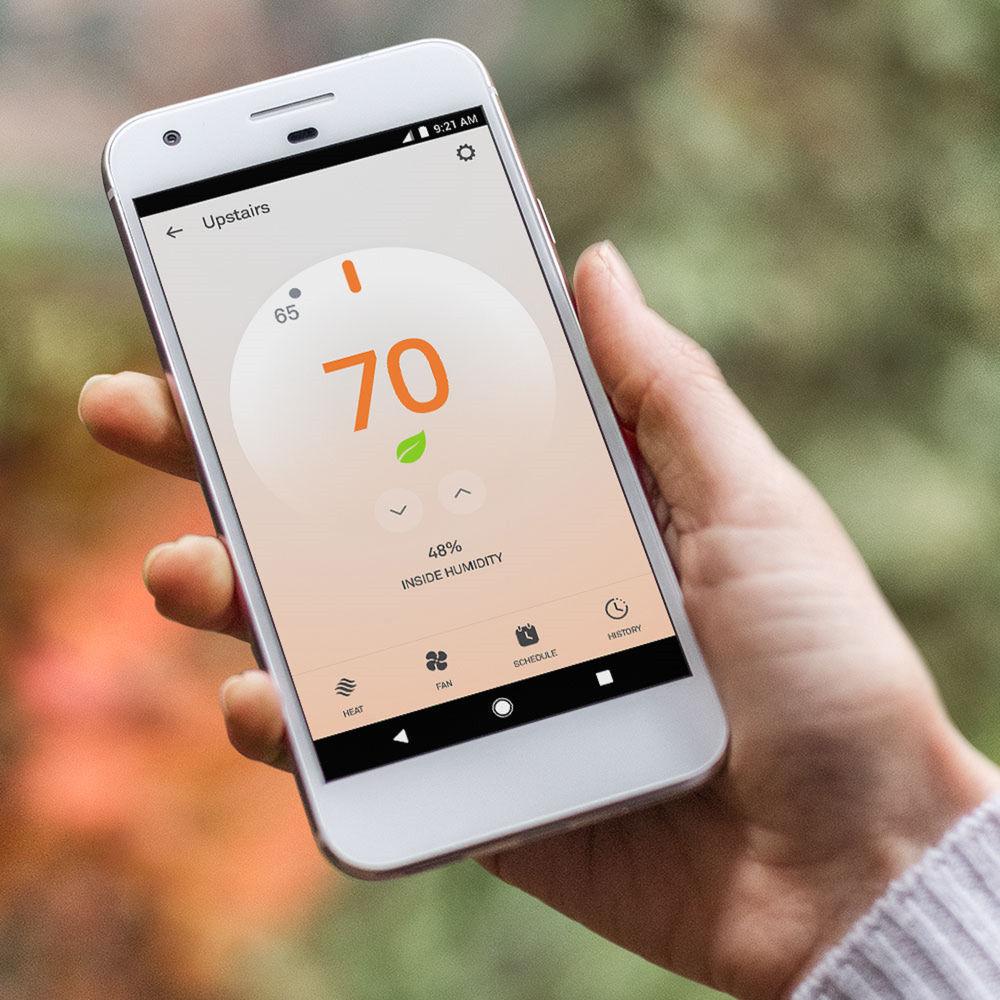

    • Controllable via front panel or an included Nest iOS/Android mobile app
    • Built-in rechargeable battery

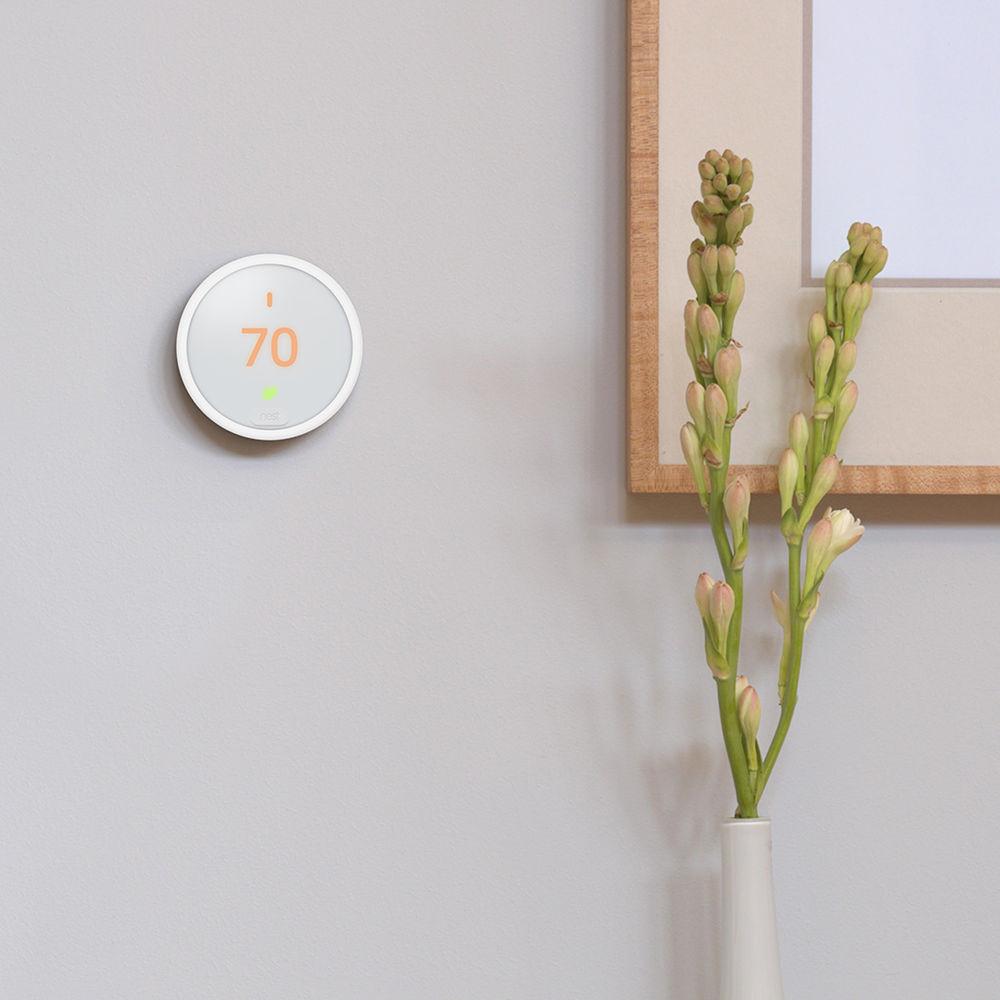

    • Wall-mount design
    • Sensors: Temperature, Humidity, Proximity/Occupancy, Ambient light
    Compatibility
    • The Nest Thermostat E works with most 24V heating and cooling systems, including gas, electric, forced air, heat pump, radiant, oil, hot water, solar, and geothermal
    • Heating and Cooling: 1 stage of heating (W1) and cooling (Y1), and a second stage of either heating (W2) or cooling (Y2)
    • Heat Pump: with auxiliary and emergency heat (O/B, AUX)
    • Fan (G)
    • Power (C, Rh, or Rc)
    • The Thermostat E is designed to work even if your home doesn't have a common (C) wire, but installing a new (C) wire may be required
    • If you have a dual fuel system, professional installation is highly recommended
    Professional Installation
    • If you need help installing your Thermostat E, Nest offers a professional installer finder tool on their website — search for Nest Pro Finder and receive an estimate within 48 hours
UPC: 813917020593 In the Box Nest Thermostat E
  • Base
  • Optional Trim Plate
  • Set of Mounting Screws
  • Set of Labels
  • Pro Installation Card
  • Limited 1-Year Warranty
  • More info from Nest awtbduvfxzyqrwcaswvvutbvyzfxvqcwbe Table of Contents




    Upload User Manual

    Have you got an user manual for the Nest Thermostat E in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Download User Manual

    The user manual for the Nest Thermostat E can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Nest Thermostat EDownload PDF User Manual - https://www.search-manual.com/ upload/ nest-thermostat-e-256735-user-manual.pdf
    (PDF file, 0.66 MB)


    Technical parameters

    Nest Thermostat E Specs

    Display 24-bit color LCD
    320 x 320 resolution at 182 ppi
    1.8" (4.5 cm) diameter
    Battery Built-in rechargeable lithium-ion battery
    Connectivity Requirements Wi-Fi internet connection
    Smartphone or tablet running iOS or Android
    Nest app (free download)
    Wireless Connectivity 802.11b/g/n 2.4 GHz, 802.11a/n 5 GHz
    802.15.4 at 2.4 GHz
    Bluetooth low energy
    Certification UL 60730-1, UL 60730-2-9, ENERGY STAR
    Power Consumption Less than 1 kWh/month
    Languages English, Dutch, French, Italian, Spanish
    Dimensions Height x Diameter: 1.1 x 3.2" (3 x 8 cm)
    Weight 0.3 lb (139 g)
    Package Weight 0.815 lb
    Box Dimensions (LxWxH) 6.4 x 4.8 x 2.2"

    Rating

    98% users recommend this product to others. And what about you?
    Rating: 4.9 of 5

    This product has already been rated by 35 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Nest Thermostat E

    Subject: query
    Date: 30.10.2021 21:36:54Name: J. Maselli
    Please e-mail me a pdf of the owner's manual for the Nest E thermostat. Thank you
    Post reply

    Subject: User manual for Nest e thermonstat
    Date: 21.10.2021 18:14:18Name: Larry Bench
    Please email me a owners operating manual for my NEST E. thank you
    Post reply

    Subject: Nest E
    Date: 19.10.2021 21:32:59Name: kent hatfield
    Please email me a owners operating manual for my NEST E. thank you
    Post reply

    Subject: Owners Operating Manual for Nest E Thermostat
    Date: 27.08.2021 16:38:00Name: Marcel Moisan
    Please send me an Operating. Manual for a nest E Thermostat
    Post reply

    Subject: Operating Manaual Request
    Date: 18.07.2021 23:01:33Name: Ed Bacon
    Please email me an owner's operating manual for a Nest E thermostat. We just purchased a home with a Nest thermostat already installed, but the previous owners didn't leave the manual.
    Post reply

    Subject: Email me an owners operating manual for my Nest E thermostat.
    Date: 11.06.2021 19:37:30Name: Liz Williams
    Please email me an owners operating manual for my Nest E thermostat. Just purchased a home with this thermostat here in FLorida and it is getting warm and we don't know how to turn on our air conditioner.
    Post reply

    Subject: How To Clear Memory
    Date: 07.06.2021 19:29:27Name: John de Bry
    How does one clear the memory on a Nest thermostat?

    JOHN
    Post reply

    Subject: Help
    Date: 01.06.2021 22:27:34Name: Rita Germer
    I need a PDF of the Nest thermostat. It is getting warm and we don't know how to turn on our air conditioner. Can you email it to me?
    Post reply

    Subject: Operating Manual for the NEST E
    Date: 01.04.2021 20:43:01Name: Al Heidstra
    Please email me a owners operating manual for my NEST E. thank you
    Post reply

    Subject: user manual
    Date: 19.02.2021 21:53:06Name: janis jones
    I need a user manual so that I can learn more about my new nest thermostat e because my installer did not leave one for me. Thank you
    Post reply
