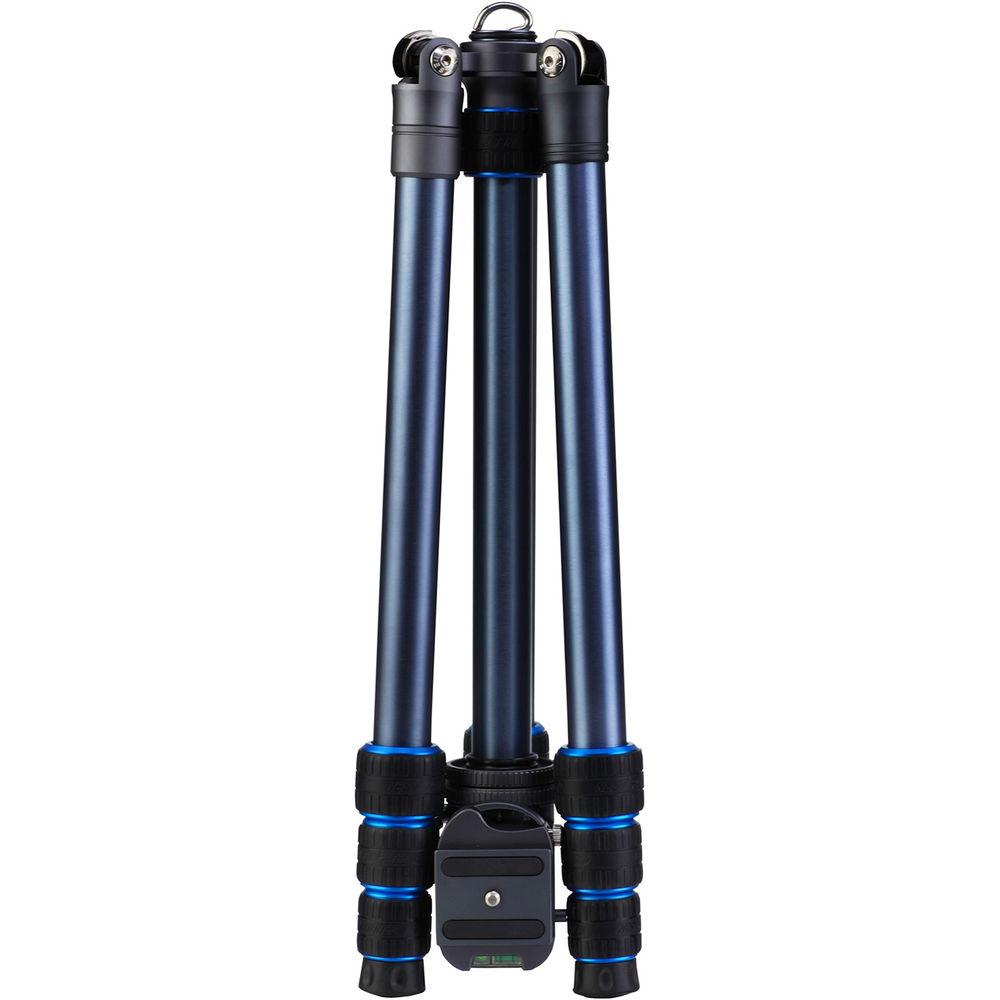

User Manual for Nest Tripods NT-TL59-AL Traveler Series 59" Aluminum Tripod Monopod with Quick Release Ball Head

Click to enlarge the picture
Nest Tripods NT-TL59-AL Traveler Series 59" Aluminum Tripod Monopod with Quick Release Ball Head Contents of the user manual for the Nest Tripods NT-TL59-AL Traveler Series 59"
  • Product category: Tripods with Heads Nest Tripods
  • Brand: Nest Tripods
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nest Tripods Tripods with Heads

Nest Tripods NT-TL59-AL Traveler Series 59" Aluminum Tripod Monopod with Quick Release Ball Head Nest Tripods NT-TL59-AL Traveler Series 59" Aluminum Tripod Monopod with Quick Release Ball Head Nest Tripods NT-TL59-AL Traveler Series 59" Aluminum Tripod Monopod with Quick Release Ball Head Nest Tripods NT-TL59-AL Traveler Series 59" Aluminum Tripod Monopod with Quick Release Ball Head
User manual for the Nest Tripods NT-TL59-AL Traveler Series 59" contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nest Tripods product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nest Tripods user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nest Tripods product will considerably shorten its lifespan!



Product description

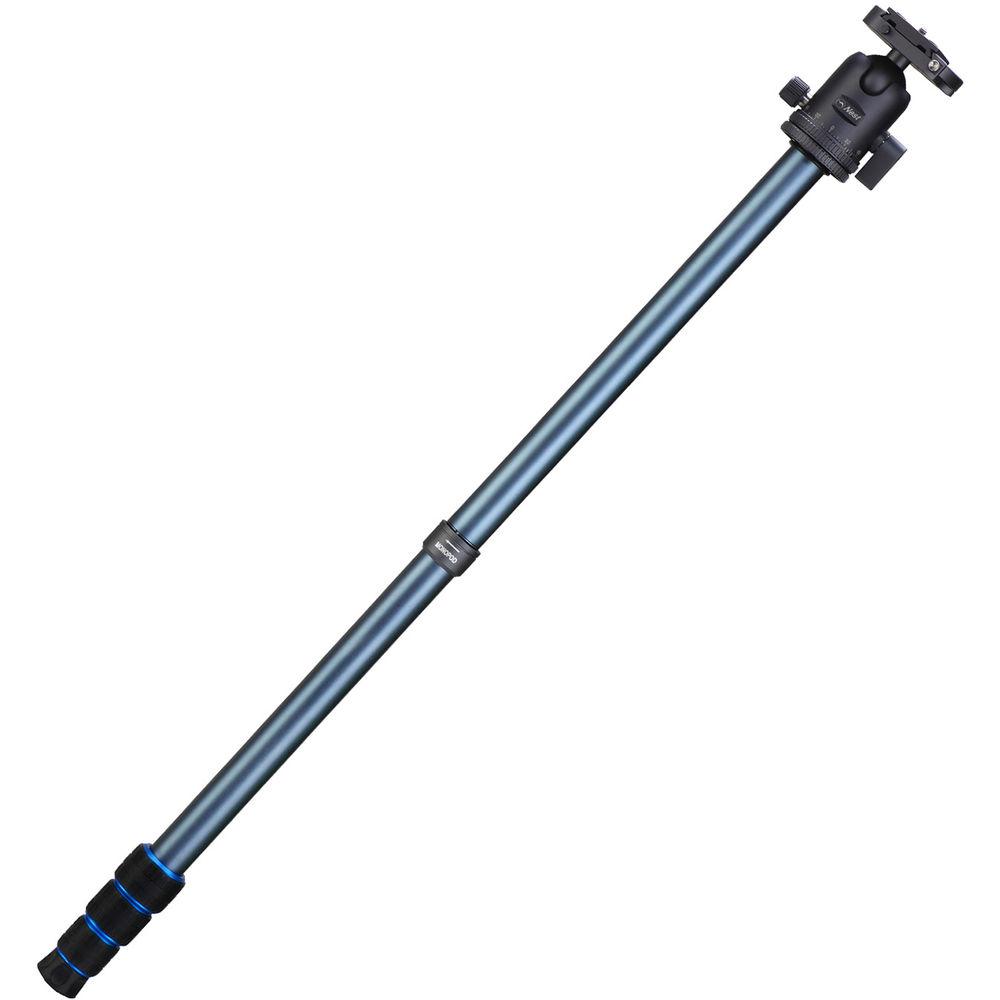

Time-Lapse Tips and Tools Read More This Nest NT-TL59-AL Traveler Series Aluminum Tripod/Monopod is a support system that features a tripod with a detachable leg and removable center column, which can be combined to form a monopod with a 30.3" to 61.8" adjustable height. Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the included quick release plate, which is secured to the tripod/monopod's ball head using a quick release clamp. The ball head is removable, provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement.

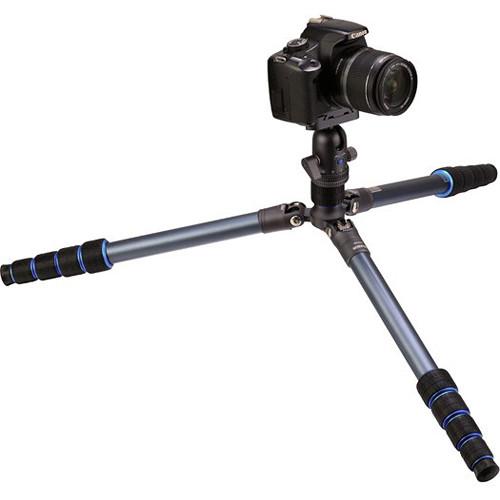

When configured as a tripod, it supports up to 22.0 lb and measures 16.3" when folded. Each of its 4-section legs features an independent spread, a 2-position angle lock, and twist locks for rapid deployment. As a tripod, it can be set at a minimum height of 16.2", or 6.5" without its removable, push-and-pull, rapid center column. Together, the three legs can be extended to obtain a maximum height of 48.5", or 59.0" when used with the center column fully raised. To further enhance stability on a wide variety of surfaces, each of the aluminum-alloy legs includes a rubber foot.

For added versatility, the center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. A nylon carry bag with a zippered closure, side pocket, and detachable shoulder strap is included for storage and transport.
    Use and Handling
    • Support system with removable ball head that features a tripod with a detachable leg and removable center column, which can be combined to form a monopod with a 30.3" to 61.8" adjustable height
    • As a tripod, supports up to 22.0 lb
    • Push-and-pull, rapid center column with ballast hook for rapid camera, lens, or sport optic positioning
    • Can be set for a minimum height of 16.2", or 6.5" without the center column
    • All three legs can be extended in the tripod configuration to obtain a maximum height of 48.5", or 59.0" when used with the center column fully raised
    • Center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
    • Legs each feature 4 sections, twist locks for fast deployment, and can be independently spread
    • Legs can be locked at 22° or 75° angles
    • Rubber feet help to enhance stability on a wide variety of surfaces
    • Weighs 3.9 lb and measures 16.3" when all three legs are reversed 180° and folded
    • Ball head provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement
    • Push-and-pull clamp lever on ball head to secure quick release plate
    • Knob to adjust force applied by clamp lever while it is closed
    • Clamp includes an integrated retaining peg with push-button release to prevent the quick release plate from accidentally sliding off when the clamp is opened
    • Thumbwheel on ball head applies and adjusts tension on both its 360° rotational movement and its ball-and-socket movement
    • Hex key to adjust tension on leg hinges
    • Hex key to adjust miscellaneous component screws
    Construction Details
    • Aluminum-alloy legs
    • Removable, aluminum-alloy ball head with quick release clamp and built-in bubble level
    • Quick release plate with 1/4"-20 mount and rubberized, anti-slip surface
    • Rubberized center column platform for ball head with 3/8"-16 mount
    • Included nylon carry bag features a zippered closure, side pocket, and shoulder strap for storage and transport of the tripod with ball head

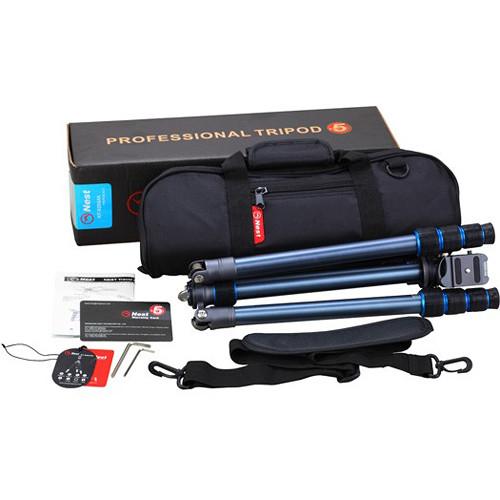

In the Box Nest Tripods NT-TL59-AL Traveler Series 59" Aluminum Tripod/Monopod with Quick Release Ball Head
  • Ball Head
  • Hex Key for Leg Hinge Screws
  • Hex Key for Miscellaneous Component Screws
  • Tripod Bag
  • Luggage Tag
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Nest Tripods NT-TL59-AL Traveler Series 59" Aluminum Tripod Monopod with Quick Release Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Nest Tripods Traveler Specs

    Head Type Ball Head
    Base Mount 3/8"-16 Thread
    Camera Mounting Screw 1/4"-20 Male
    Load Capacity 22 lb / 10 kg
    Maximum Working Height 59" / 149.9 cm
    Minimum Working Height 6.5" / 16.5 cm
    Folded Length 16.3" / 41.4 cm
    Materials Aluminum Alloy
    Weight 3.9 lb / 1.8 kg
    Leg Lock Type Twist Lock
    Leg Positions 2 Positions
    Independent Leg Spread Yes
    Leg Sections 4
    Center Column Features Ballast Hook
    Center Column Sections 1
    Center Column Extension Type Rapid
    Lateral / 90-Degree Center Column No
    Package Weight 5.55 lb
    Box Dimensions (LxWxH) 18.8 x 5.9 x 5.5"
