Product description Time-Lapse Tips and Tools Read More This Nest NT-TL65-AL Traveler Series Aluminum Tripod/Monopod is a support system that features a tripod with a detachable leg and removable center column, which can be combined to form a monopod with a 33.3 to 68.9" adjustable height. Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the included quick release plate, which is secured to the tripod/monopod's ball head using a quick release clamp. The ball head is removable, provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement.
When configured as a tripod, it supports up to 33.0 lb and measures 17.7" when folded. Each of its 4-section legs features an independent spread, a 2-position angle lock, and twist locks for rapid deployment. As a tripod, it can be set at a minimum height of 18.0", or 7.0" without its removable, push-and-pull, rapid center column. Together, the three legs can be extended to obtain a maximum height of 54.0", or 65.4" when used with the center column fully raised. To further enhance stability on a wide variety of surfaces, each of the aluminum-alloy legs includes a rubber foot.
For added versatility, the center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. A nylon carry bag with a zippered closure, side pocket, and detachable shoulder strap is included for storage and transport. - Use and Handling
-

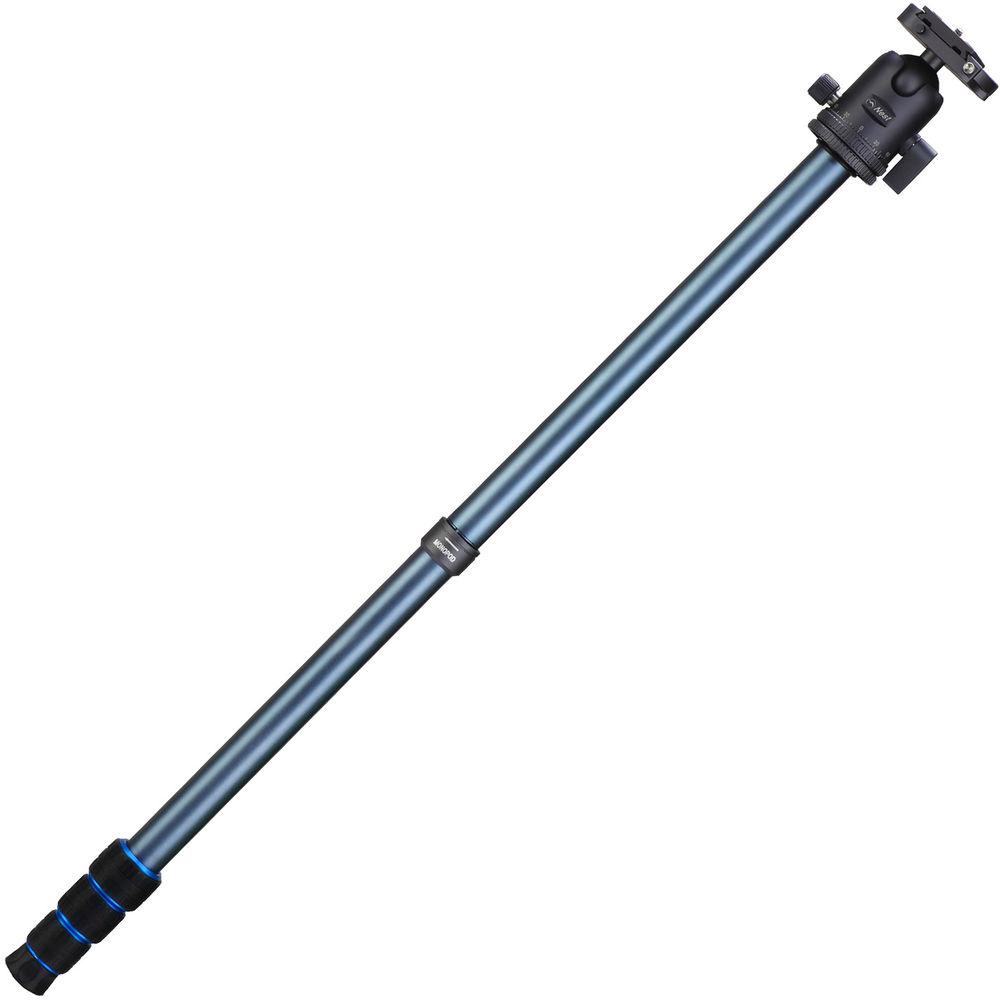

- Support system with removable ball head that features a tripod with a detachable leg and removable center column, which can be combined to form a monopod with a 33.3 to 68.9" adjustable height
- As a tripod, supports up to 33.0 lb
- Push-and-pull, rapid center column with ballast hook for rapid camera, lens, or sport optic positioning
- Can be set for a minimum height of 18.0", or 7.0" without the center column
- All three legs can be extended in the tripod configuration to obtain a maximum height of 54.0", or 65.4" when used with the center column fully raised
- Center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
- Legs each feature 4 sections, twist locks for fast deployment, and can be independently spread
- Legs can be locked at 22° or 75° angles
- Rubber feet help to enhance stability on a wide variety of surfaces

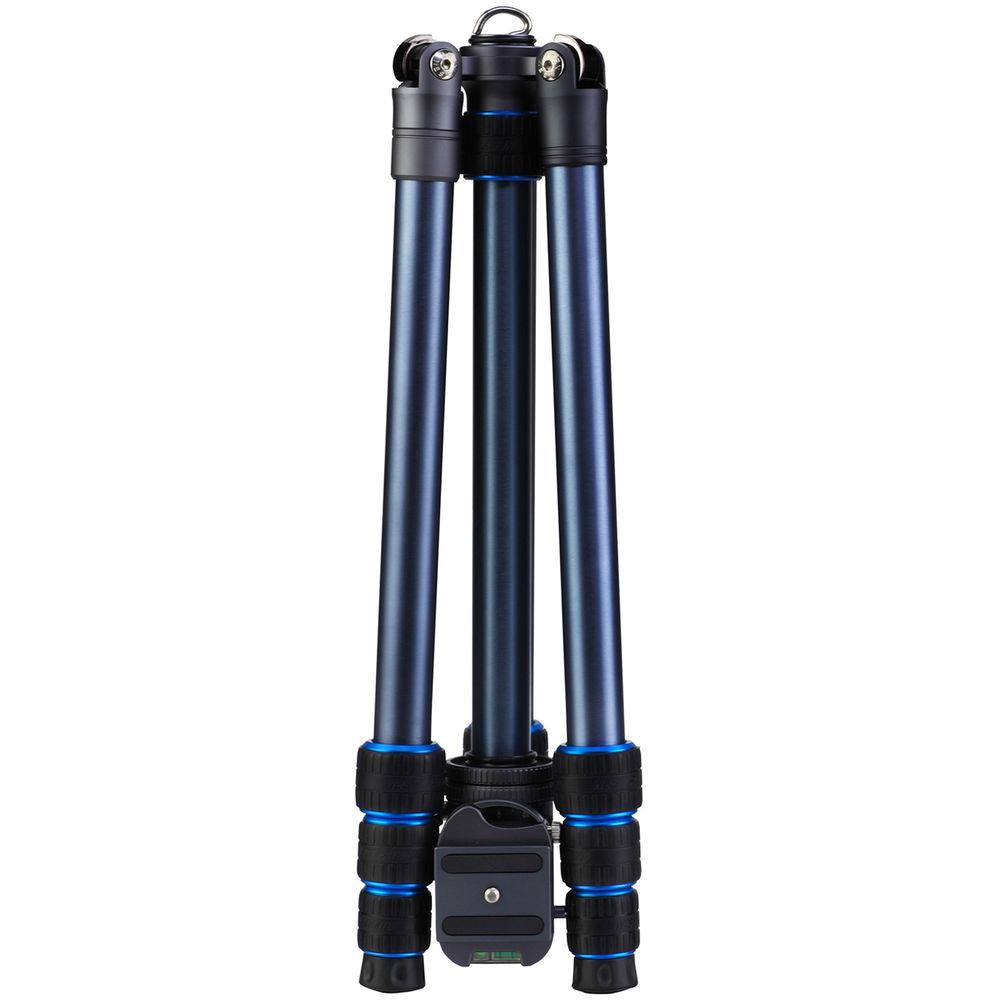

- Weighs 4.8 lb and measures 17.7" when all three legs are reversed 180° and folded
- Ball head provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement
- Push-and-pull clamp lever on ball head to secure quick release plate
- Knob to adjust force applied by clamp lever while it is closed
- Clamp includes an integrated retaining peg with push-button release to prevent the quick release plate from accidentally sliding off when the clamp is opened
- Thumbwheel on ball head applies and adjusts tension on both its 360° rotational movement and its ball-and-socket movement
- Hex key to adjust tension on leg hinges
- Hex key to adjust miscellaneous component screws
- Construction Details
-
- Aluminum-alloy legs
- Removable, aluminum-alloy ball head with quick release clamp and built-in bubble level
- Quick release plate with 1/4"-20 mount and rubberized, anti-slip surface
- Rubberized center column platform for ball head with 3/8"-16 mount
- Included nylon carry bag features a zippered closure, side pocket, and shoulder strap for storage and transport of the tripod with ball head
In the Box Nest Tripods NT-TL65-AL Traveler Series 65.4" Aluminum Tripod/Monopod with Quick Release Ball Head Ball Head Hex Key for Leg Hinge Screws Hex Key for Miscellaneous Component Screws Tripod Bag Luggage Tag Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nest Tripods NT-TL65-AL Traveler Series 65.4" Aluminum Tripod Monopod with Quick Release Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNest Tripods Traveler Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 33 lb / 15 kg | | Maximum Working Height | 65.4" / 166.1 cm | | Minimum Working Height | 7" / 17.8 cm | | Folded Length | 17.7" / 45 cm | | Materials | Aluminum Alloy | | Weight | 4.8 lb / 2.2 kg | | | | Leg Lock Type | Twist Lock | | Leg Positions | 2 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | | | Center Column Features | Ballast Hook | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 19.3 x 6.0 x 5.9" |
