User Manual for Netgear GS108PP 8-Port Gigabit Ethernet PoE Unmanaged Switch Click to enlarge the picture
Contents of the user manual for the Netgear GS108PP 8-Port Gigabit Ethernet PoE
- Product category: Network Switches, Bridges & Hubs Netgear
- Brand: Netgear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Netgear Network Switches, Bridges & Hubs
 |
User manual for the Netgear GS108PP 8-Port Gigabit Ethernet PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Netgear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Netgear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Netgear product will considerably shorten its lifespan!
|

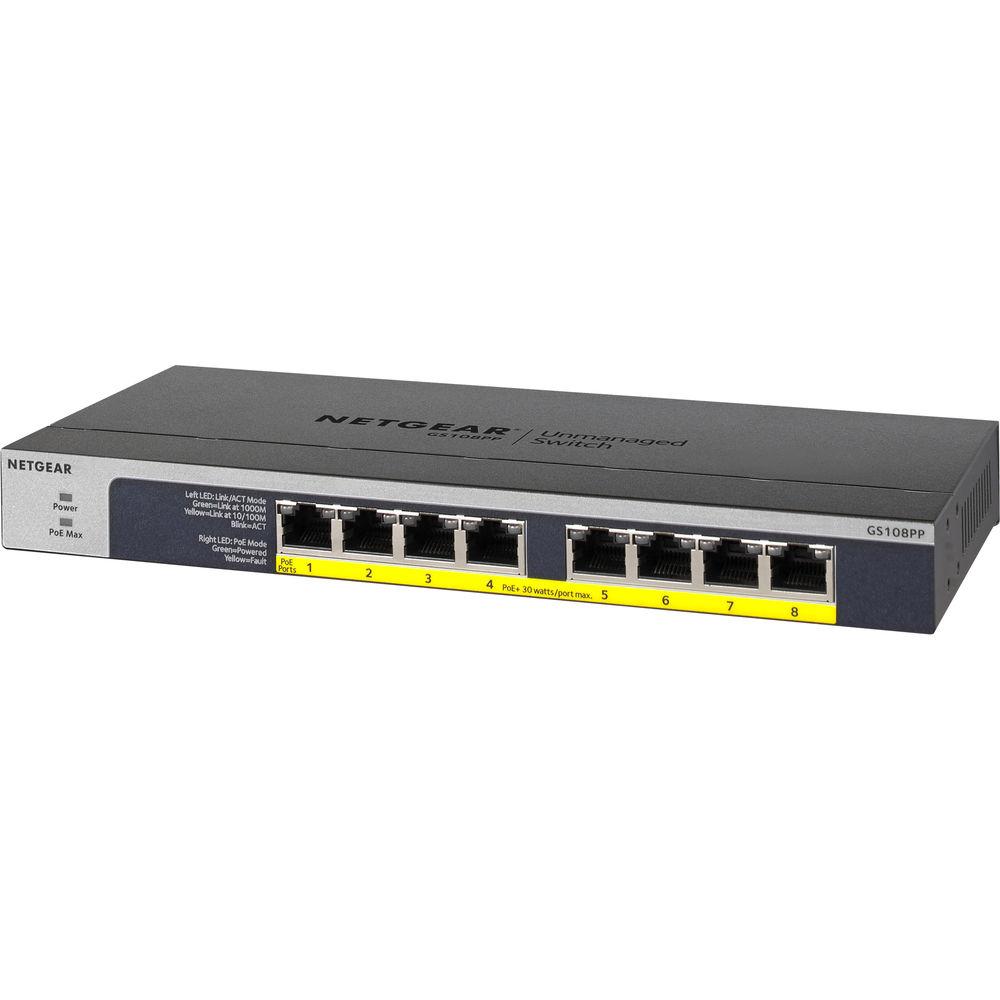

Product description With plug-and-play setup simply plug in the GS108PP 8-Port Gigabit Ethernet PoE+ Unmanaged Switch from NETGEAR and begin sharing you network with up to eight Ethernet-enabled devices.
This unmanaged switch comes equipped with eight Gigabit Ethernet PoE+ ports offering high-speed network connectivity along with PoE power with a total PoE power budget of 123W. Once configured, this NETGEAR switch supports 802.1p and DSCP-based QoS functionality to ensure bandwidth-intensive applications receive the necessary network resources to function smoothly. The GS108PP also supports 802.3az Energy Efficient Ethernet which adjusts energy power according to network traffic and cable length. - Plug-and-Play
- The standards-based Gigabit switches sense and adjust for network speed and cabling type automatically. Easily integrate into your existing Ethernet network - no matter if it is running at 10/100 Mb/s or Gigabit speed
Simple set up with no software or configuration needed

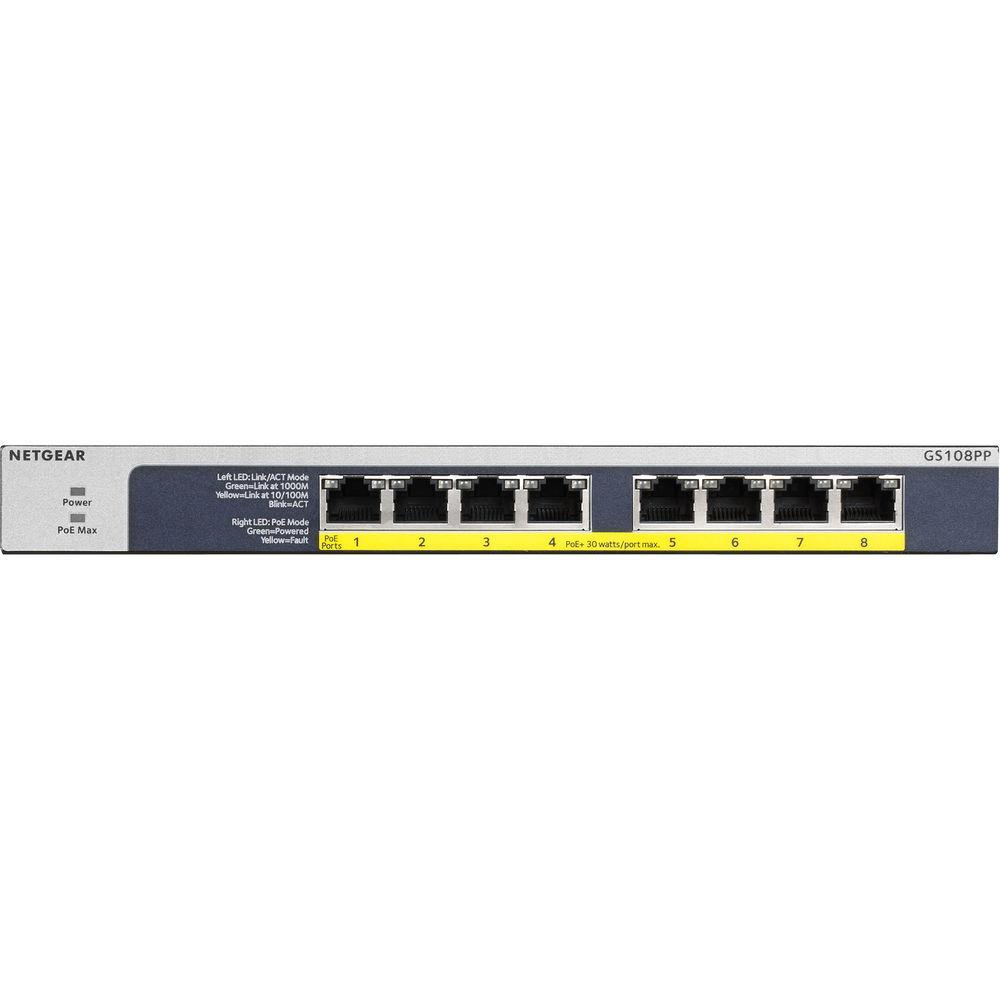

Front panel LEDs keep you informed of power status, link speed and link activities - Traffic Prioritization
- Prioritize mission-critical applications such as voice and video Support IEEE 802.1 p and DSCP-based QoS for delivering data based on priority and type
- High Quality and Reliable Performance
- Superior network performance at non-blocking rate delivers true Gigabit speed with no compromise
Durable metal case and long product life (shown by MTBF numbers) - Energy Efficient
- This NETGEAR switch supports the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable (<100m) is used. Energy savings lead directly to cost savings in operation.
- PoE / PoE+ Support
- The GS108PP is a PoE/PoE+ switch that supports PoE 802.3af and PoE+ 802.3at on all 8 ports. The total max PoE budget for the GS108PP switch is 123W.
UPC: 606449130010 In the Box Netgear GS108PP 8-Port Gigabit Ethernet PoE+ Unmanaged Switch Power Adapter Wall-Mount Kit and Rubber Feet Rackmount Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Netgear GS108PP 8-Port Gigabit Ethernet PoE Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNetgear GS108PP-100NAS Specs | Ethernet Ports | 8 x Gigabit ports | | MAC Address Table Size | 4K | | Buffer Size | 192 KB | | Energy Efficient Ethernet (EEE) | Yes (802.3az compliant) | | PoE Support | 802.3af PoE Ports
Ports 1-8
802.3at PoE Ports
Ports 1-8
PoE Max Power Per Port
Up to 15.4 W for 802.3af and 30 W for 802.3at
Total PoE Power Budget
123 W | | Performance Specifications | Forwarding Modes
Store-and-forward
Bandwidth
16 Gbps
Jumbo Frame Support
Up to 9K packet size
Acoustic Noise (ANSI-S10.12)
0
Mean Time Between Failures (MTBF)
2,752,476 hours | | Quality of Service (QoS) | DSCP
Yes
IEEE 802.1p COS
Yes
Queue WRR Ratio
1:3:5:7:8:10:12:15
Weighted Fair Queue (WFQ) | | IEEE Network Protocols | IEEE 802.3 Ethernet
IEEE 802.1p Class of Service
IEEE 802.3ab 1000BASE-T
IEEE 802.3x full-duplex flow control | | LED Indicators | Per Port
Speed, Link, Activity, PoE
Per Device
Power Status, PoE Max | | Power Consumption | Worst Case, All Ports Used, Line-Rate Traffic, Max PoE
128.6 W | | Environmental Specifications | Operating Temperature
32 to 104°F / 0 to 50°C
Operating Humidity
90% maximum RH (non-condensing)
Operating Altitude
10,000' / 3,000 m (maximum)
Storage Temperature
-4 to 158°F / -20 to 70°C
Storage Humidity
95% maximum RH (non-condensing)
Storage Altitude
10,000' / 3,000 m
Electromagnetic Emissions and Immunity
Certification Class
A (CE mark, FCC Part 15, ICES-003, VCCI, RCM, BSMI, KC)
Safety Certifications
CB, CE LVD, BSMI, EAC, RCM and KC
EN 60950-1 | | Dimensions | 9.29 x 4.02 x 1.06" / 236 x 102 x 27 mm | | Weight | 1.30 lb / 0.59 kg | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 11.2 x 9.5 x 3.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Netgear GS108PP 8-Port Gigabit Ethernet PoE Unmanaged Switch
| Subject: Question about the PoE+ | | Date: 06.08.2021 02:57:58 | Name: Ron Hartlieb | | The "MAX" light is not on. Does that mean that the PoE+ is not active and only has PoE. The reason I ask is that our PTZ330N camera no longer powered by the network cable. It did work that the camera was powered network cable. | | Post reply |
