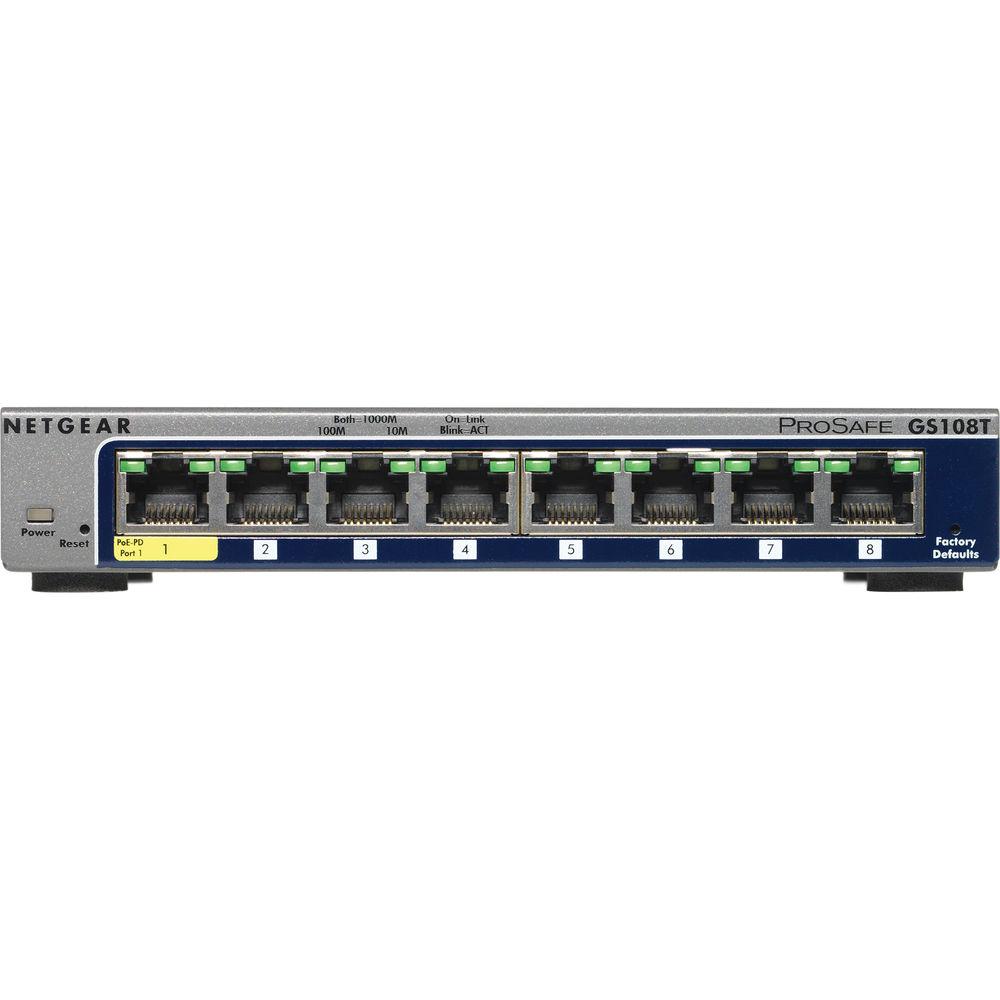

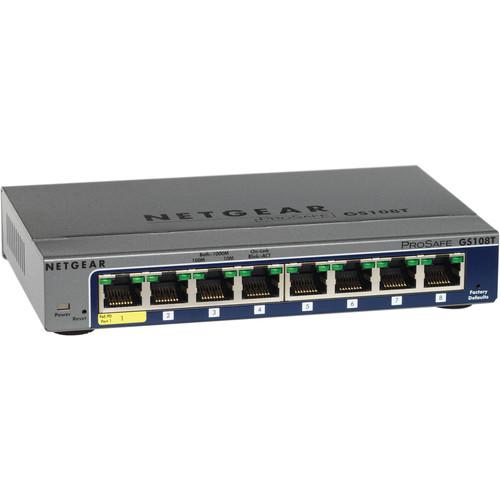

User Manual for Netgear GS108T-200NAS ProSafe 8-Port Gigabit Smart Switch Click to enlarge the picture
Contents of the user manual for the Netgear GS108T-200NAS ProSafe 8-Port Gigabit Smart
- Product category: Network Switches, Bridges & Hubs Netgear
- Brand: Netgear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Netgear Network Switches, Bridges & Hubs
 |
User manual for the Netgear GS108T-200NAS ProSafe 8-Port Gigabit Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Netgear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Netgear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Netgear product will considerably shorten its lifespan!
|
Product description With eight 10/100/1000 Mbps ports, each capable of powering 2000Mbps of data throughput in full-duplex mode per port, the GS108T-200NAS ProSafe 8-Port Gigabit Smart Switch from Netgear is an ideal solution for extending network connections into conference room, labs, lobbies and department workgroups. In addition, the GS108T supports IEEE 802.3af standard for Power over Ethernet (PoE). It can obtain its power from either a PoE source or from an external AC power adapter. This gives an SMB flexibility when installing the switch in places where a power outlet is not present. The unit is ideal for adding basic management to your unmanaged networks or extending your managed networks. - Performance Specifications
- Forwarding modes: Store-and-forward
Bandwidth: 16Gbps full duplex
Network latency: Less than 15 μs for 64-byte frames in store-and-forward mode for 1000Mbps to 1000Mbps transmission
Buffer memory: 128Kbytes embedded memory per unit
Address database size: 4k media access control (MAC) addresses per system
Mean time between failure (MTBF): 278,553 hours (~32 years)
Acoustic noise: 0 dB - Administrative Switch Management
- IEEE 802.1Q Static VLAN (64 groups, Static)
Protected ports
IEEE 802.1p Class of Service (CoS)
Port-based QoS
DSCP-based QoS
DiffServ
IEEE802.3ad Link Aggregation (manual or LACP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Trees Protocol (MSTP)
IEEE 802.1ab Link Layer Discovery Protocol (LLDP)
LLDP-MED
SNMP v1, v2c, v3
RFC 1213 MIB II
RFC 1643 Ethernet Interface MIB
RFC 1493 Bridge MIB
RMON group 1, 2, 3, 9
Auto voice VLAN
DHCP Filtering
Auto denial-of-service (DoS) protection
HTTP and HTTPS
Ping and traceroute
Green features: Power saving by cable length (<10m)
Power saving when link down
RFC 2131 DHCP client
IEEE 802.1x with Guest VLAN
Jumbo frame support
Port-based security by locked MAC addresses
MAC and IP-based ACL
Storm control for broadcast, multicast and unknown unicast packets
IGMP Snooping v1/v2
Port-based egress rate limiting
SNTP
Port Mirroring Support (Many to one)
Web-based configuration
Configuration Backup/Restore
Password Access Control
TACACS+ and RADIUS Support
Syslog
Firmware upgradeable - Intelligent
- The GS108T provides cost-efficient solutions that enable SMB customers to better manage their network. Included are performance monitoring, port configuration, VLAN for traffic control, link aggregation for increased bandwidth, IGMP snooping for facilitating multicast applications, and Class of Service (CoS) for traffic prioritization
- Advanced Quality of Service
- Priority queuing ensures that high-priority traffic gets delivered efficiently, even during congestion from high-traffic bursts. Companies implementing network telephony or video conferencing, for example, need to be able to prioritize such voice and video traffic and other real-time applications over less latency-sensitive traffic to ensure reliability and quality. The ability to prioritize traffic ensures quality of latency-sensitive services and applications despite increasing traffic loads. The ProSafe Gigabit Smart Switch provides an extensive set of QoS features:
802.1p-based prioritization
Layer 3-based prioritization
Rate limiting - Enhanced Security
- These Gigabit Smart Switches have advanced features that provide more robust security to SMBs. These include:
802.1x for authentication
ACL filtering to permit or deny traffic based on MAC or IP addresses - Netgear Green
- Up to 60% lower power consumption
Auto power-down mode conserves energy when a port is not connected
Less transmit power when the cable is under 32.8' (10 m)
Packaging manufactured with at least 80% recycled material UPC: 606449069990 In the Box Netgear GS108T-200NAS ProSafe 8-Port Gigabit Smart Switch AC Adapter Rubber Footpads Wallmount Kit Resource CD Installation Guide 24/7 Basic Technical Support Free for 90-Days Table of Contents
|
Upload User Manual
Have you got an user manual for the Netgear GS108T-200NAS ProSafe 8-Port Gigabit Smart Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNetgear GS108T-200NAS Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported IEEE Standards | 802.3ab, 802.3i, 802.3u, 802.3x, 802.3z | | | | Power Draw | 6.0 W (Active) | | DC Input Power | 12 VDC at 1 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 90% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 9,842' / 3,000 m | | Storage Altitude | 10,000' / 3,000 m | | | | Indicator Lights | Link/Activity, Power, Speed | | Dimensions | 6.2 x 4.1 x 1.1" / 15.8 x 10.3 x 2.7 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.96 lb | | Box Dimensions (LxWxH) | 10.2 x 9.1 x 2.7" |
