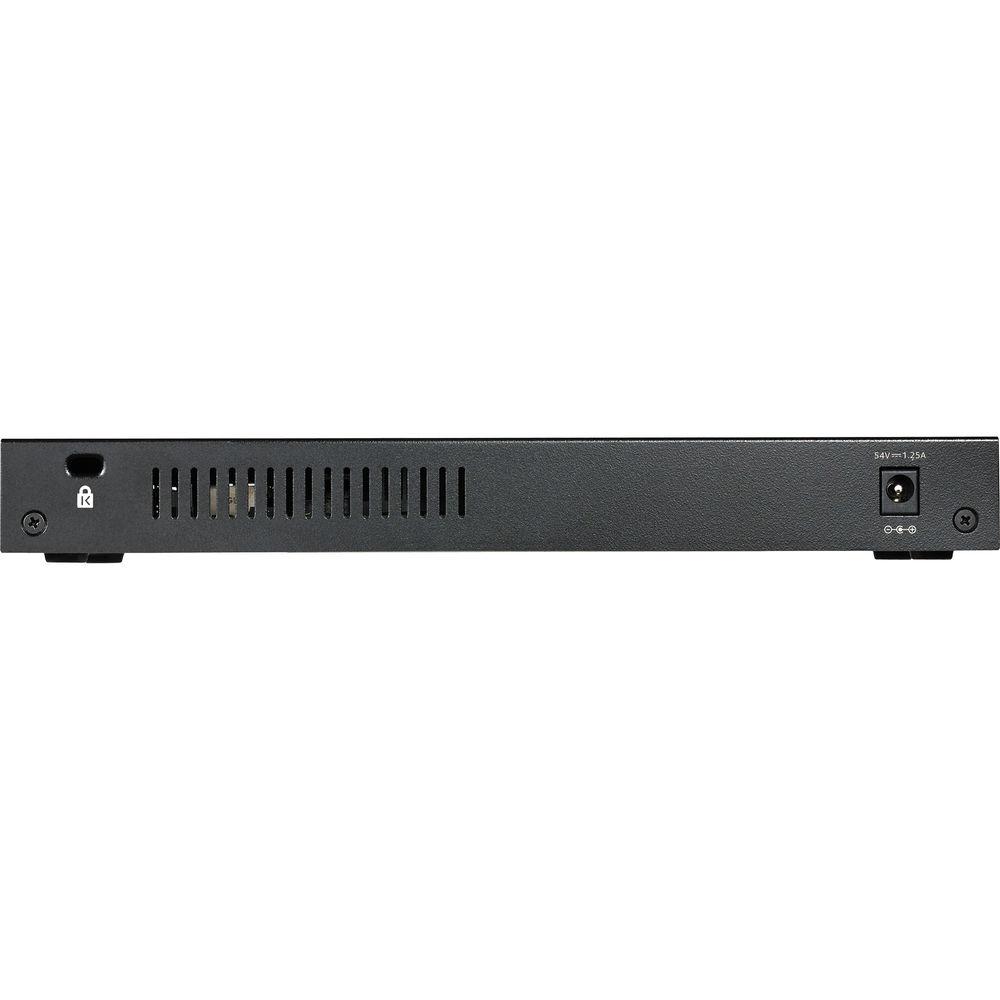

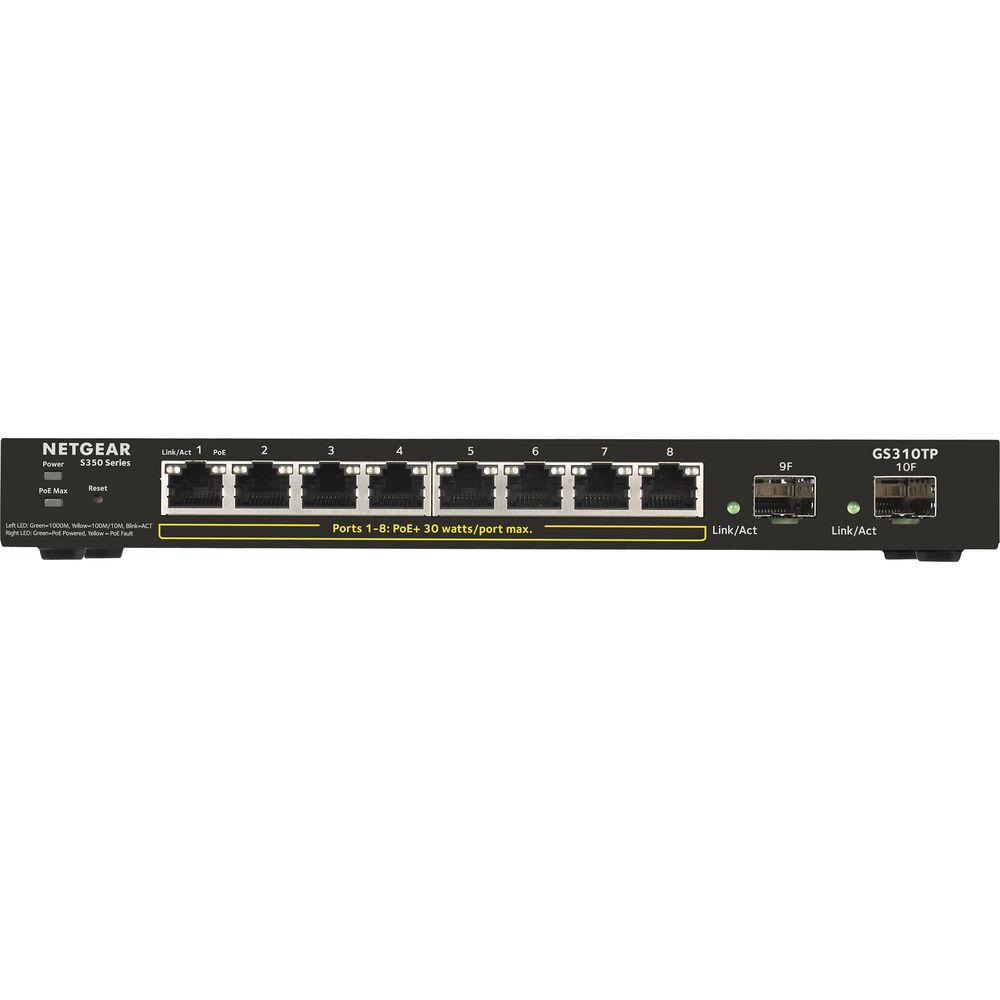

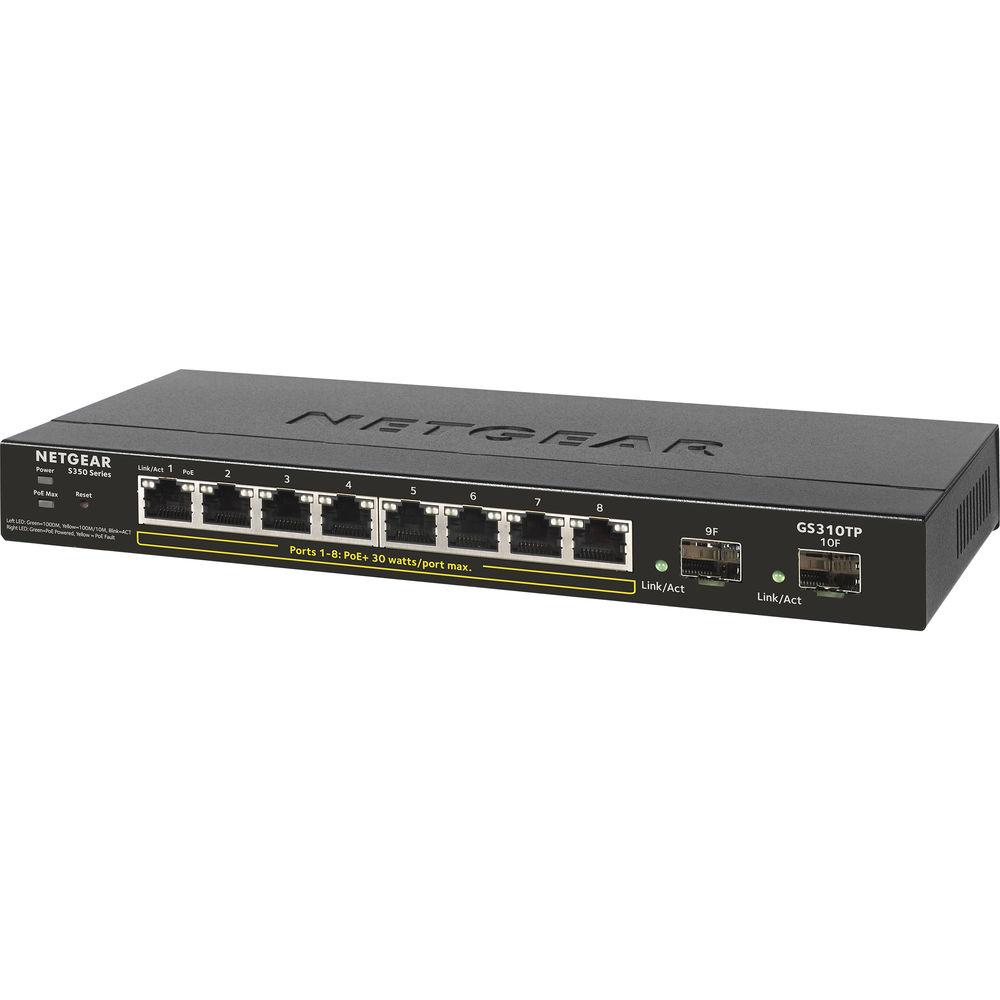

User Manual for Netgear GS310TP S350 Series 8-Port Gigabit PoE Smart Managed Switch Click to enlarge the picture
Contents of the user manual for the Netgear GS310TP S350 Series 8-Port Gigabit
- Product category: Network Switches, Bridges & Hubs Netgear
- Brand: Netgear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Netgear Network Switches, Bridges & Hubs
 |
User manual for the Netgear GS310TP S350 Series 8-Port Gigabit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Netgear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Netgear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Netgear product will considerably shorten its lifespan!
|
Product description Boost your business's network switching capacity with the GS310TP S350 Series 8-Port Gigabit PoE Smart Managed Switch from Netgear. Boasting a switching bandwidth up to 20 Gb/s and a packet forwarding rate up to 14.8 Mpps, the GS310TP comes equipped with eight Gigabit Ethernet ports and two Gigabit SFP ports. The eight Gigabit Ethernet ports support PoE+ (Power over Ethernet), ideal for transmitting data and power over a single cable, with a total PoE budget of 55W. 802.1x support helps to ensure secure access for authorized users, while 802.1p-based prioritization helps to optimize network performance by prioritizing business-critical traffic. A web-based UI allows for remote management, while the switch's fanless design helps to ensure quiet operation. General Features - Connectivity and Security Features
-
- Advanced VLAN support for better network segmentation.
- L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication.
- QoS (Quality of Service) for traffic prioritization including port-based, 802.1p, and L2/L3/L4 DSCP-based.
- Auto "denial-of-service" (DoS) prevention.
- IGMP snooping and querier for multicast optimization.
- Rate limiting and priority queuing for better bandwidth allocation.
- Port mirroring for network monitoring.
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.
- Cable test to troubleshoot connection issues.
- Easy-to-use web browser-based management GUI available in English, German and Japanese.
- SNMP v1, v2c, v3 and RMON remote monitoring.
- Management Features
-
- Easy to manage via web-based management GUI or Smart Control Center (Windows PC required) for multi-switch deployment.
- Smart Control Center, a tool for multi-switch discovery, deployment, monitoring, and firmware upgrades.
- Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through a single interface.
- Dual firmware images, improving reliability and uptime to your network.
- Design
- Mounting options include wall mounting, desktop mounting, and under-table installation. The fanless 8-port model is designed for quiet operation, ideal for noise-sensitive environments.
Hardware Features - Dedicated SFP Fiber Uplinks
- Provides fiber uplinks without sacrificing any downlink Gigabit ports. The 2 SFP ports provide not only redundant uplinks, but also build dual redundancy via a trunked uplink with link aggregation and failover.
- Energy Efficient Ethernet (IEEE 802.3az)
- Provides optimal power reduction for ongoing operation cost savings.
Layer 2 Software Features - Advanced per Port PoE controls
- Remote power management of PoE-connected devices including operation scheduling (e.g. wireless APs, IP security cameras, secure access door locks, and IoT devices).
- ACL Filtering
- Provides granular network access control including L2/L3/L4 access control lists (ACLs).
- Advanced Security Features
- RADIUS 802.1x port authentication (EAP), port-based security by locked MAC, and DHCP snooping help to prevent external attacks and block malware, while allowing secure access for authorized users.
- QoS Features
- Port-based or 802.1p-based prioritization, Layer 3-based (DSCP) prioritization, and port-based ingress and egress rate limiting help to optimize network performance and offer better delivery of mission-critical traffic such as voice and video.
- Auto-VoIP, Auto-Voice VLAN, and Auto-Video VLAN
- Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on protocols (SIP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address, prioritizing VoIP streams (both data and signaling) over other ordinary traffic, and enabling correct egress queue configuration. Similarly, Auto-Video VLAN enables IGMP snooping to minimize broadcast streams.
- IGMP Snooping
- Facilitates fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
- Protected Ports
- Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows sensitive phone conversations to stay private while helping to ensure surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
- DHCP Snooping
- Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch.
- Dynamic VLAN Assignment (RADIUS)
- IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.
- Dual Firmware Images
- Allows for transparent firmware updates with minimum service interruption.
UPC: 606449135497 In the Box Netgear GS310TP S350 Series 8-Port Gigabit PoE Smart Managed Switch Power Adapter Power Cord Rubber Footpads Limited 5-Year Warranty (Switch) Limited 2-Year Warranty (Power Adapter) Table of Contents
|
Upload User Manual
Have you got an user manual for the Netgear GS310TP S350 Series 8-Port Gigabit PoE Smart Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNetgear GS310TP-100NAS Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
2 x 10/100/1000 Mb/s Gigabit SFP | | | | Layer Services Supported | Layer 2 Support | | Supported Protocols | IGMP Snooping
IPv4
IPv6
Link Aggregation
Port Mirroring
MAC Filtering
SNMPv1
SNMPv2c
SNMPv3 | | Queuing | Weighted Round Robin (WRR) | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 8K | | Multicast Groups | 256 | | VLAN Groups | 64 | | | | Security Features | DoS Attack Prevention
Kensington Lock Support
RADIUS Authentication | | Access Control List | 100 | | SNMP Support | 1, 2c, 3 | | | | Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z | | | | Latency | 3.4 to 4.2
