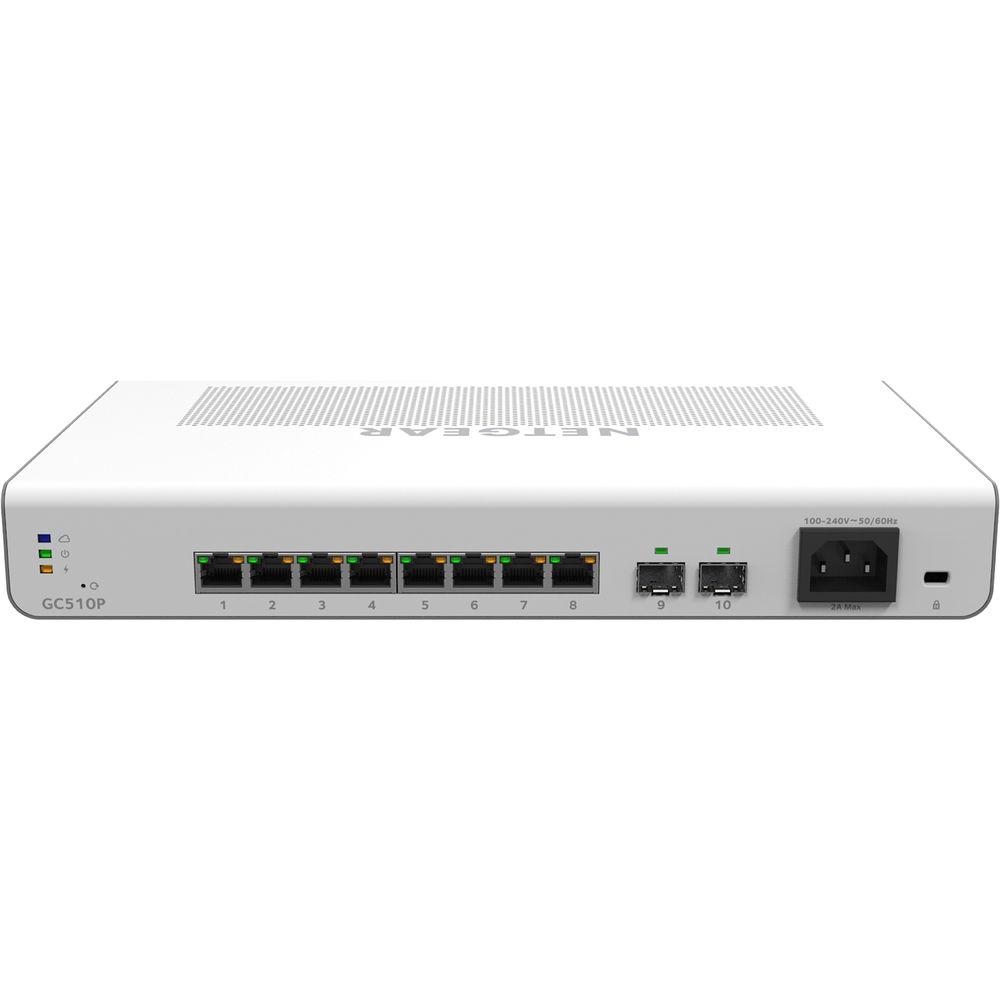

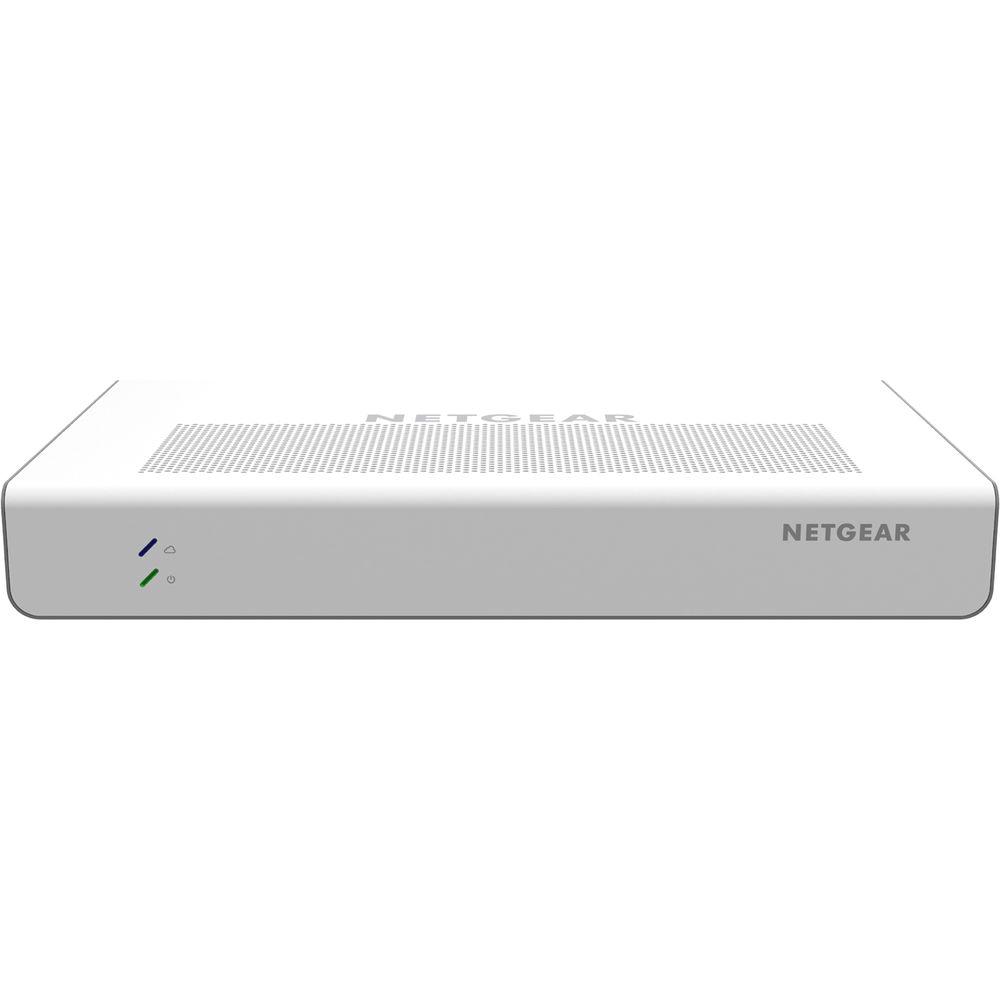

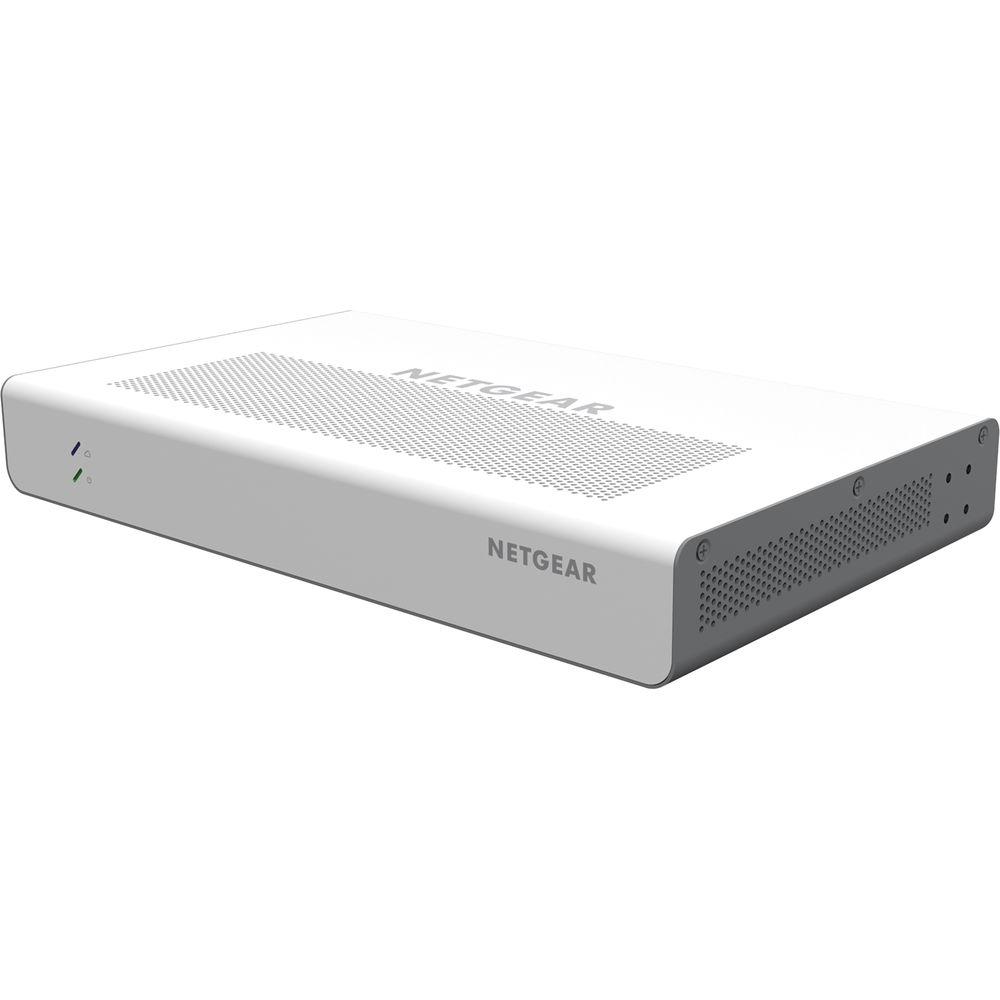

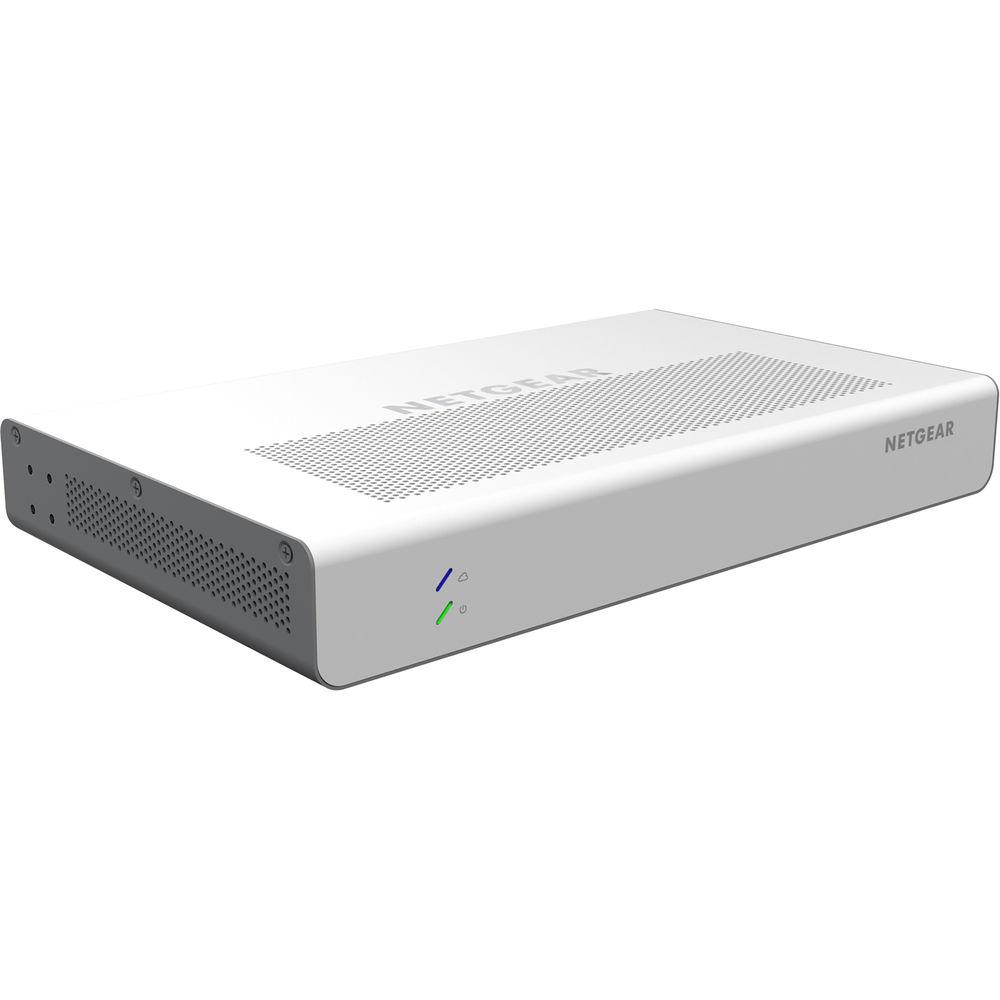

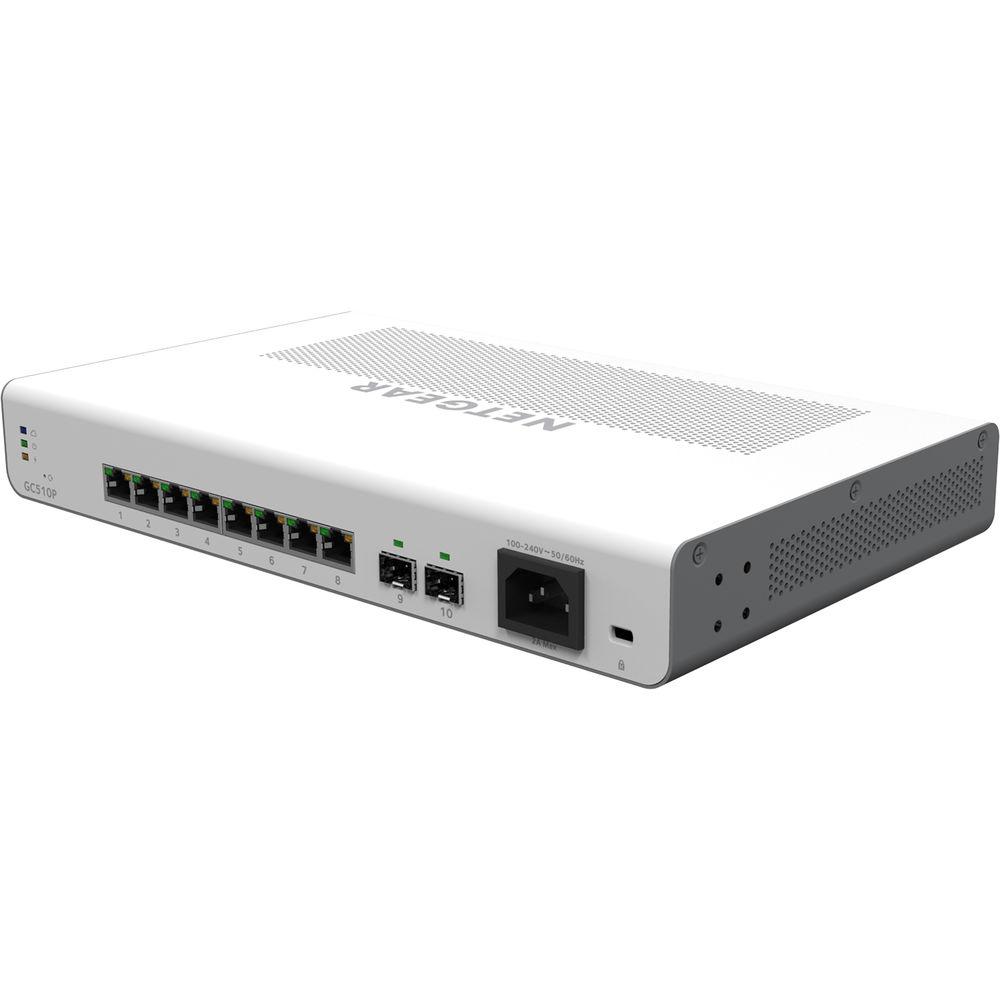

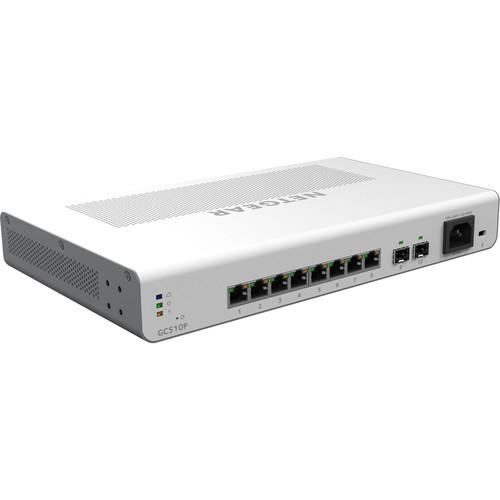

User Manual for Netgear Insight 8-Port 1G Managed PoE Smart Cloud Switch Click to enlarge the picture
Contents of the user manual for the Netgear Insight 8-Port 1G Managed PoE
- Product category: Network Switches, Bridges & Hubs Netgear
- Brand: Netgear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Netgear Network Switches, Bridges & Hubs
 |
User manual for the Netgear Insight 8-Port 1G Managed PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Netgear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Netgear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Netgear product will considerably shorten its lifespan!
|
Product description Configure and manage the Insight 8-Port 1G Managed PoE+ Smart Cloud Switch from NETGEAR virtually anywhere in the world with support for the NETGEAR Insight App.
With this network management app available for both iOS and Android devices, you can take advantage of a variety of features including one-touch setup, one-touch monitoring, and one-touch management. In addition to managing this Smart Cloud Switch, you can also manage multiple wireless access points, switches, and network storage devices both locally and remotely.

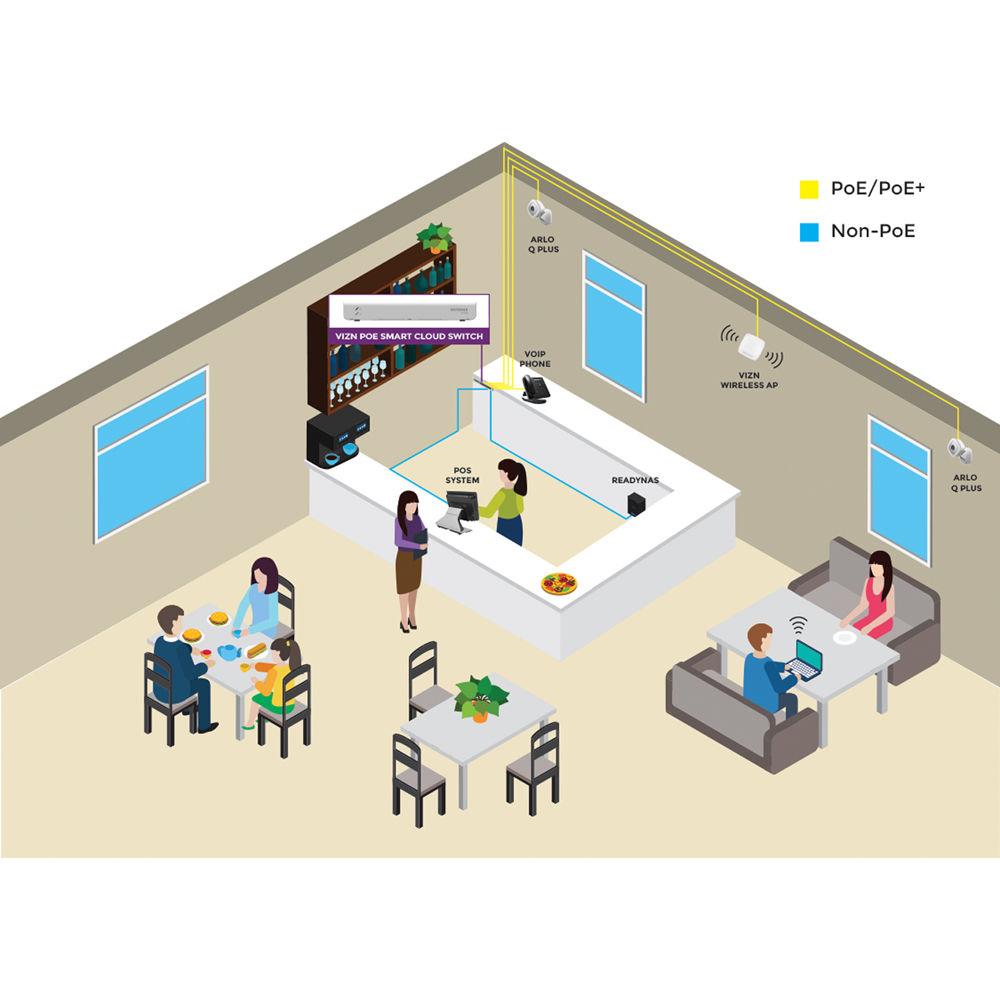

This Insight 8-Port Smart Cloud Switch features a 134W PoE power budget and comes equipped with eight Gigabit copper PoE+ compatible ports and two dedicated SFP ports. The 802.3at PoE-compliant ports make it easy to power a variety PoE-compatible devices such as access points, IP phones, and more. Once installed, the switch features 20 Gbps full-duplex bandwidth, a 1.5 MB buffer size, a 16K MAC address table, and support for up to 256 VLANs. - One-Touch Network Connectivity and Management with the NETGEAR Insight App
-
- Instant in-app discovery & set-up
- Centralized network configuration polices with auto-join and configure (zero-touch provisioning)
- Multi-site/remote network management and monitoring with single pane-of-glass view
- No additional cloud controller, appliance, network manager, or PC/server is necessary
- Traffic Management
-
- Auto Negotiation of speed and duplex modes
- IEEE 802.3x Flow Control
- Dynamic MAC address management
- IEEE 802.1Q-based VLAN
- Auto Voice VLAN
- Auto Video VLAN
- QoS based on WRR, strict priority, or both
- Port-based and IEEE 801.2p-based QoS
- TCP/UDP-based QoS
- DiffServ
- IPv4 and IPv6-based QoS
- DSCP Support
- Rate Limiting (ingress, or egress)
- Link Aggregation and LACP
- Security
-
- MAC lockdown
- MAC lockdown by number of MACs
- IEEE 802.1x port authentication (MD5, EAP, PEAP)
- Dynamic VLAN Assignment
- Guest VLAN
- TACACS+
- Trusted MAC
- IPv4, L4-based Access Control List (ACL)
- IPv6-based ACL
- Multicast Efficiency
-
- IGMP snooping, v1, v2 and v3
- IGMP Snooping querier
- Blocking of unknown multicast traffic
- MLD snooping
- Spanning Tree
-
- IEEE 802.1D, IEEE 802.1w RSTP and MSTP
- Option to enable/disable BPDU flooding when STP is disabled
- Reliability, Performance, and Troubleshooting
-
- Port mirroring both on ingress and egress traffic
- Jumbo frame support
- Broadcast Storm Control
- Cable diagnostics
- Loop Detection & Prevention
- DoS Prevention
- IEEE 802.1ab LLDP
- LLDP-MED
- Option to enable/disable the flooding of EAPOL when 802.1x is disabled
- Protected ports
- DNS client
- DHCP clients
- DHCP snooping
- Ping and traceroute client
- Energy Efficient Ethernet (IEEE 802.3az) compliant
- Insight App (Network-Centric Management)
- Web browser-based management GUI (for very advanced configuration parameters)
- IP Access List
- Configurable Management VLAN
- Network password (through Insight app)
- IPv6 Management
- Firmware upgrade through the Cloud using Insight app
- Firmware upgrade through TFTP/HTTP (using local web browser-based management GUI)
- Memory and Flash log
- Syslog (server)
UPC: 606449120141 In the Box Netgear Insight 8-Port 1G Managed PoE+ Smart Cloud Switch Rubber Footpads for Tabletop Installation Wall-Mount Kit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Netgear Insight 8-Port 1G Managed PoE Smart Cloud Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNetgear GC510P-100NAS Specs | Ports | 8 x Gigabit copper PoE+ ports
2 x Dedicated SFP ports | | PoE | PoE Standard
802.3at
Total PoE Power Budget
134 W | | Bandwidth | 20 Gbps (full-duplex) | | Buffer Size | 1.5 MB (dynamically shared across ports in use) | | MAC Address Table Size | 16K (48-bit MAC addresses) | | VLANs | 256 | | Link Aggregation | LACP (802.3ad Dynamic Link Aggregation)
Manual Static LAG
5 LAGS with max 8 members in each LAG | | Priority Queues | 8 | | Multicast Groups | 512 | | Jumbo Frame Support | Up to 9K packets | | Power | Power Supply
Internal: 100-240 VAC, 50-60 Hz, 2 A max
Max. Power Consumption
10.3 W (no PoE)
146.7 W (with PoE max) | | Fan | Fanless design | | Operating Temperature | 32 to 113°F / 0 to 45°C | | MTBF | 692,457 hours (79 years) @ 77°F / 25°C | | Electromagnetic Compliance | Class A | | Dimensions | 12.4 x 7.4 x 1.7" / 314 x 188 x 44 mm | | Weight | 4.41 lb / 2.00 kg | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 17.7 x 10.1 x 3.4" |
