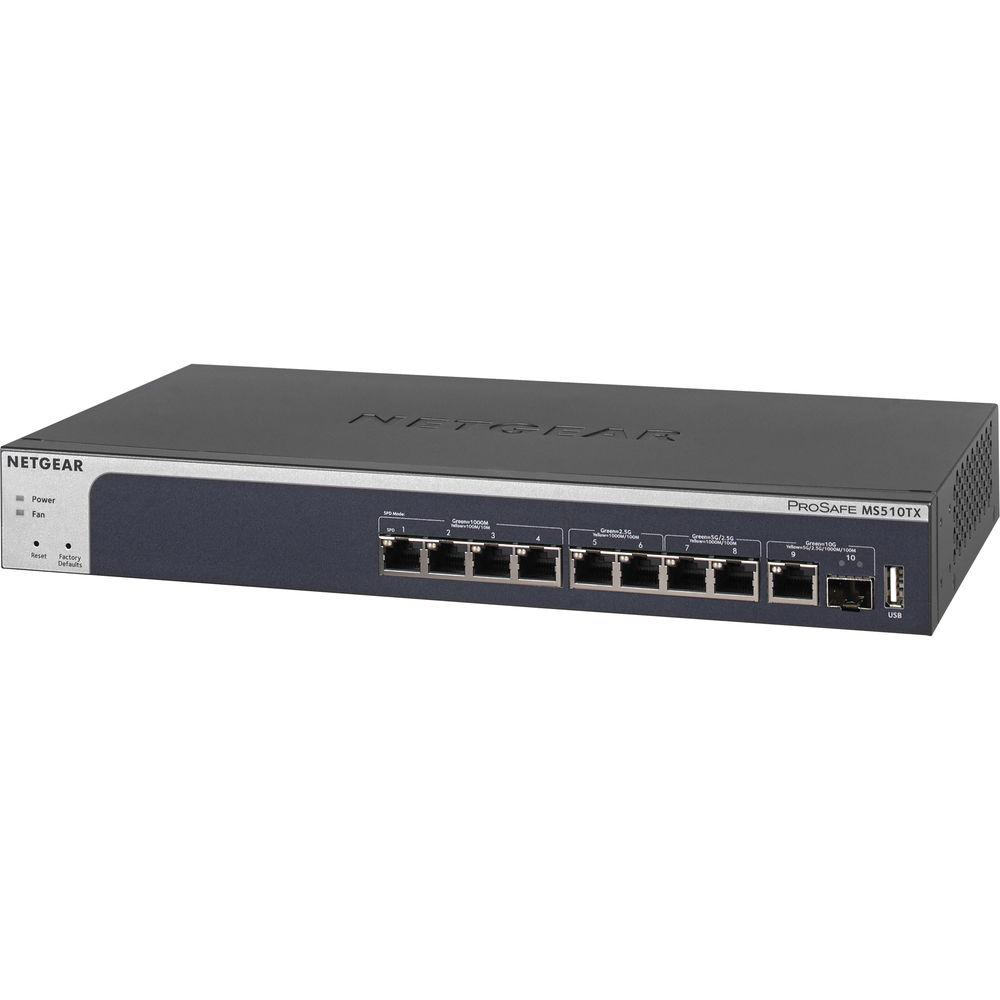

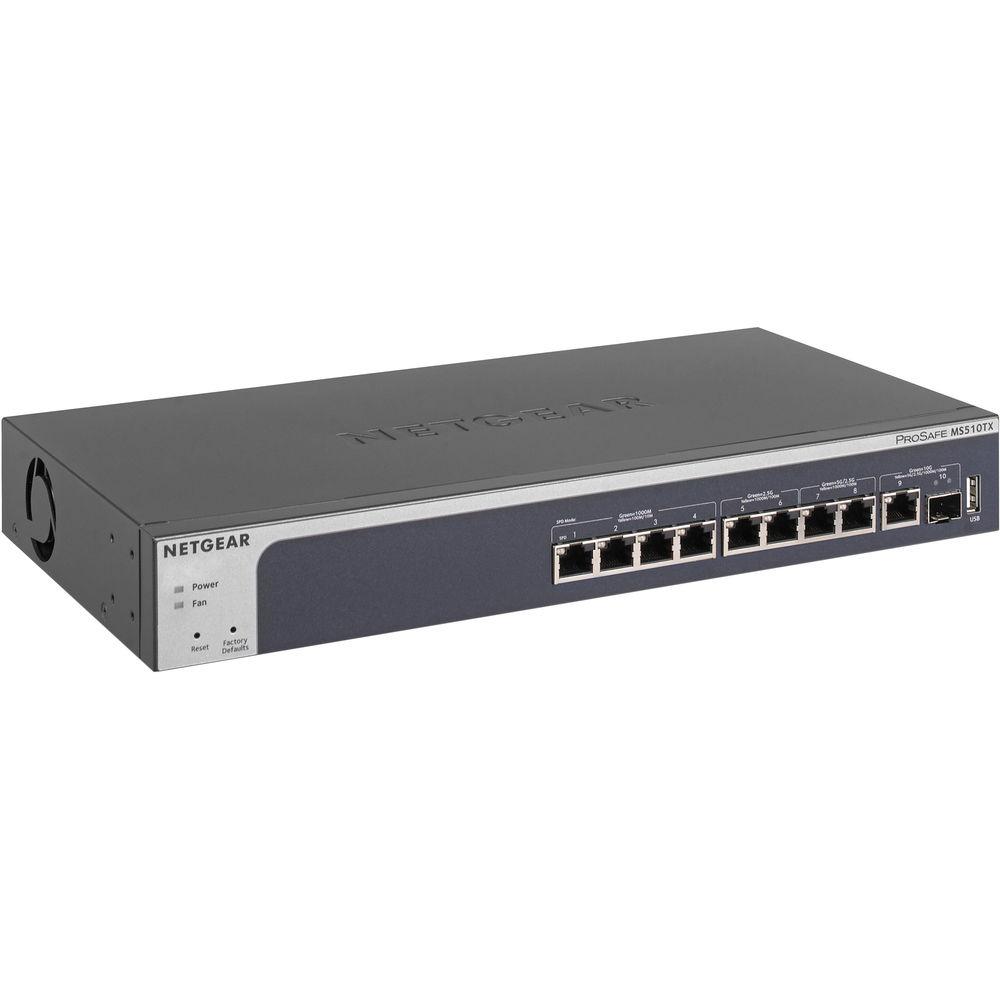

Product description Designed to support data transfer rates greater than 1 Gbps, the MS510TX 8 Port Gigabit Managed Switch from NETGEAR is capable of supporting a variety of multi-speed devices along with servers, workstations, storage devices, and other bandwidth hungry devices.

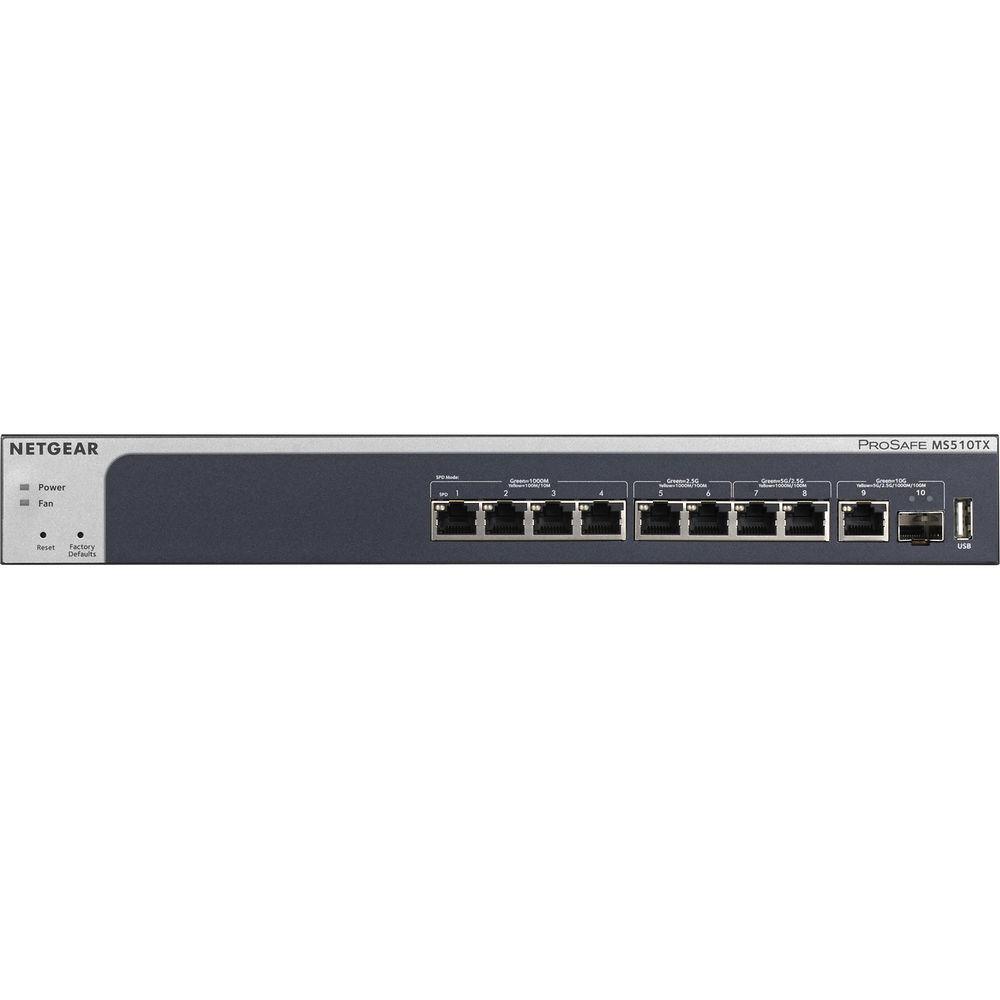

The MS510TX network switch comes equipped with eight 10M/100M/1G RJ-45 copper ports, two 100M/1G/2.5G RJ-45 copper ports, and two 100M/1G/2.5G/5G RJ-45 copper ports for optimal network connectivity. Accompanying the standard network ports are a single dedicated 100M/1G/2.5G/5G/10G RJ-45 copper port and a single dedicated 1G/10G SFP+ (fiber) port to connect specialized networking devices directly to the switch. This NETGEAR switch also comes with a built-in USB port to easily update firmware and upload configuration files.
Once configured, network administrators can take advantage of a variety of networking features including extensive VLAN support as well as L2/L3/L4 access control lists and 802.1x port authentication. Additionally, advanced QoS services allow for port based, 802.1p, and L2/L3/L4 DSCP-based traffic prioritization. Managing your network has also been simplified thanks to the web-based management GUI and support for dual firmware images to help reduce network downtime. -
- Two Multi-Gigabit RJ-45 ports that support 5G, 2.5G, and 1G
- Four 1G RJ-45 ports
- One dedicated 10G RJ-45 port (which also supports 5G, 2.5G and 1G) for uplink or local server / storage
- One dedicated SFP+ fiber uplink port that supports 10G and 1G for uplink or local server / storage
-
- Multi-Gigabit, multi-speed ports to connect any type of device to a single switch
- Quiet desktop operation or rack mounting with 21dB at 77° (25°C) ambient
- Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing
- Non-blocking 78Gbps fabric for 2x5Gbps+2x2.5Gbps+4x1Gbps+2x10Gbps full duplex switching and routing
- Advanced VLAN support for better network segmentation
- L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
-
- Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
- Auto "denial-of-service" (DoS) prevention
- IGMP Snooping and Querier for multicast optimization
- Rate limiting and priority queuing for better bandwidth allocation
- Port mirroring for network monitoring
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
- Cable test to troubleshoot connection issues
- Easy-to-use Web browser-based management GUI
- SNMP v1, v2c, v3 and RMON remote monitoring
UPC: 606449120929 In the Box Netgear MS510TX 8 Port Gigabit Managed Switch Power Cord Rackmount Kit Rubber Footpads for Tabletop Installation Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Netgear MS510TX 8 Port Gigabit Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNetgear MS510TX-100NAS Specs | Ports | 10M/100M/1G RJ-45 Copper Ports
4
100M/1G/2.5G RJ-45 Copper Ports
2
100M/1G/2.5G/5G RJ-45 Copper Ports
2
100M/1G/2.5G/5G/10G RJ-45 Copper Ports
1 (dedicated)
1G/10G SFP+ (Fiber) Ports
1 (dedicated)
USB Port (for config file upload/backup & firmware updates)
Yes | | Performance | Packet Buffer Memory
(Dynamically shared across only used ports)
1.5 MB
Forwarding Modes
Store-and-forward
Bandwidth
78 Gbps
1G Copper Latency (64 byte packet size)
<2.60
