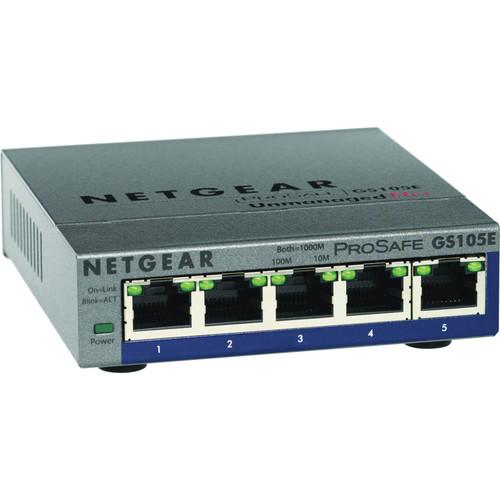

User Manual for Netgear ProSafe Plus 5-Port Gigabit Ethernet Switch Click to enlarge the picture
Contents of the user manual for the Netgear ProSafe Plus 5-Port Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs Netgear
- Brand: Netgear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Netgear Network Switches, Bridges & Hubs
|
User manual for the Netgear ProSafe Plus 5-Port Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Netgear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Netgear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Netgear product will considerably shorten its lifespan!
|
Product description With up to 2 Gbps bandwidth per port, the ProSafe Plus 5-Port Gigabit Ethernet Switch from Netgear is a viable networking solution for data intensive environments. With simple setup procedures and plug-and-play functionality this switch can be easily integrated into existing network configurations to avoid downtime. Once configured, built-in QoS (Quality of Service) management ensures applications receive the necessary bandwidth to perform at optimal efficiency. Additionally, this ProSafe switch supports the 802.3az Energy Efficient Standard providing maximum power savings. - General Features
- Enable network configuration and management at the price point of unmanaged switches
Gigabit connection deliver up to 2000 Mb/s of dedicated, non-blocking bandwidth per port
Provides simple and useful network set-up along with plug-and-play connectivity
Offers VLAN support for traffic segmentation, Quality of Service (QoS) for traffic prioritization, and auto denial-of-service (DoS) prevention
Troubleshoots connection issues via cable test
Loop prevention and broadcast storm controls
IGMP snooping v1, v2 and v3 support for multicast optimization
Offers rate-limiting for suitable bandwidth allocation, port-mirroring for network monitoring, and port-trunking for big uplink bandwidth
Flexible management options via web based GUI or PC-based Utility Tool
Jumbo frame support
Energy Efficient Ethernet (IEEE802.3az)
Support for maximum power-savings
Supports loop detection, DoS prevention, broadcast storm control, EEE (Energy) - Hardware Features
- A suitable upgrade for SMB network that combines management capability with high-speed and performance
With half of the ports capable of supporting PoE, it is cost-efficient Gigabit Ethernet solution for converged network
Flexibile deployment for desktop placement, undertable mount, wall mount as well as rackmount - Software Features
- VLAN: Segments network into small groups for secure and efficient use of network resources
QoS: For optimized network performance and optimal delivery of mission-critical traffic such as voice and video
IGMP Snooping: For improved network efficiency on delivering multicast traffic
Port Trunking: Build up a big bandwidth to support aggregated uplink traffic
Port Mirroring and Cable Test: For better and quick network diagnostics and troubleshooting UPC: 606449101515 In the Box Netgear ProSafe Plus 5-Port Gigabit Ethernet Switch Power Cord or Power Adapter Rack-Mounting Kit Resource CD with PC Utility Software Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Netgear ProSafe Plus 5-Port Gigabit Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNetgear GS105E-200NAS Specs | | | Ports | 5 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Layer Services Supported | Layer 3 Support | | Supported Protocols | IGMP Snooping | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 8K | | Multicast Groups | 128 | | VLAN Groups | 64 | | | | Supported IEEE Standards | 802.1p, 802.1q, 802.3, 802.3ab, 802.3af, 802.3i, 802.3u, 802.3x | | | | Switching Bandwidth | 10 Gb/s | | | | Power Draw | 2.6 W (Active) | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 90% | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 9,842' / 3,000 m | | Storage Altitude | 10,000' / 3,000 m | | Noise Level | 0.0 dB | | | | Mean Time Between Failures (MTBF) | 2,531,294 Hours | | Indicator Lights | Activity, Fan, Link, PoE, Power, Speed | | Dimensions | 4 x 3.7 x 1" / 10.1 x 9.4 x 2.6 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 9.4 x 6.1 x 2.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
