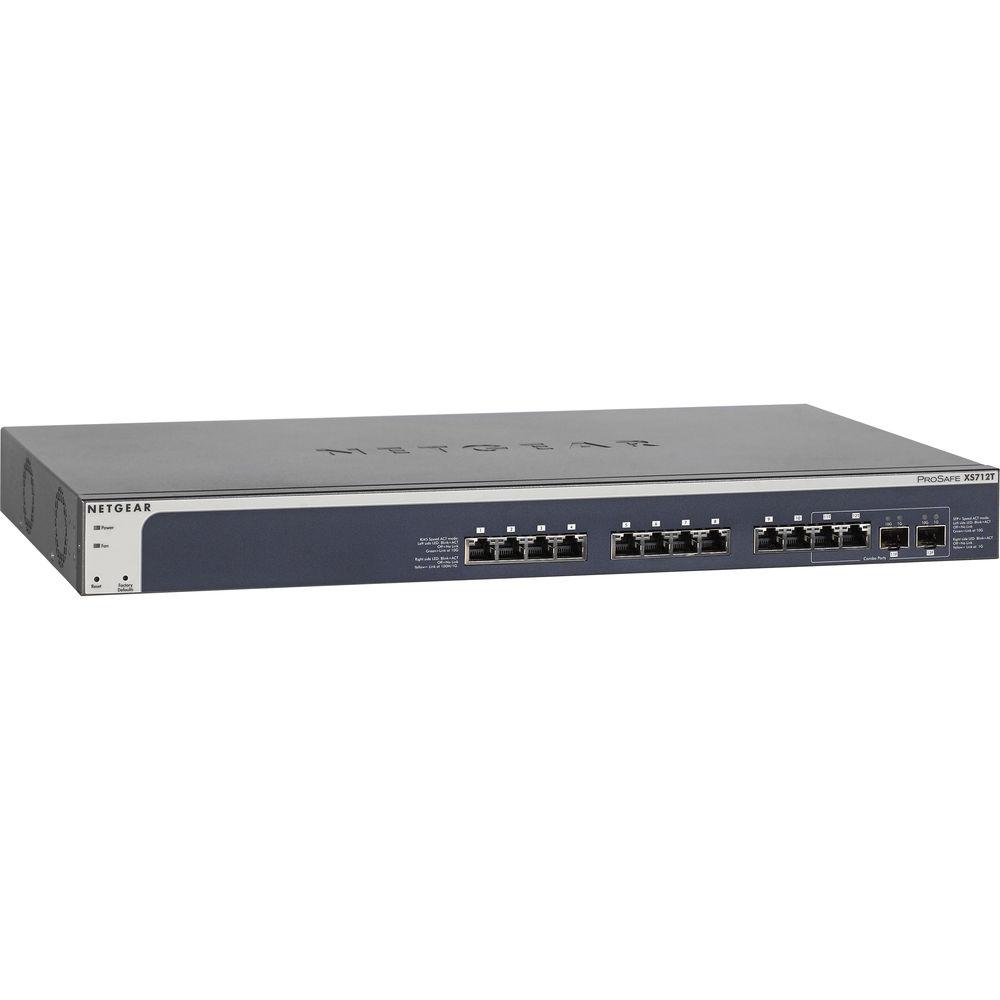

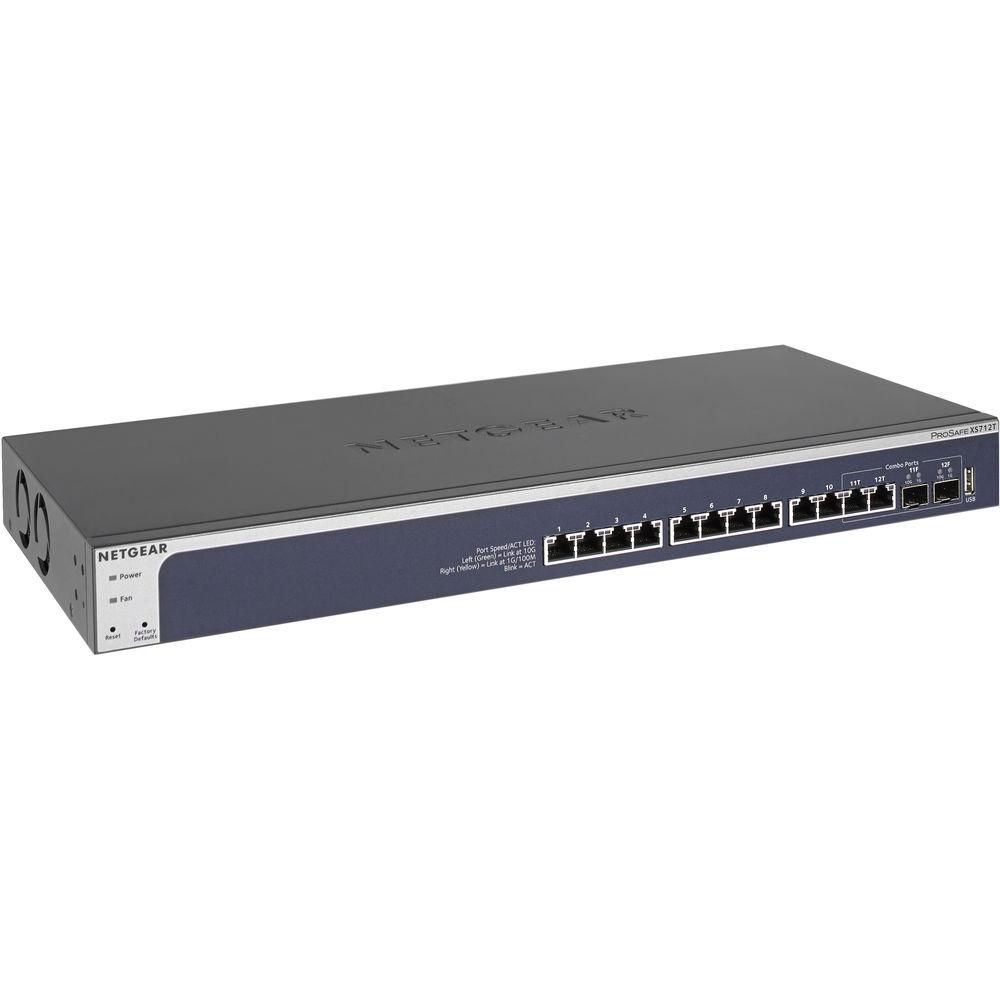

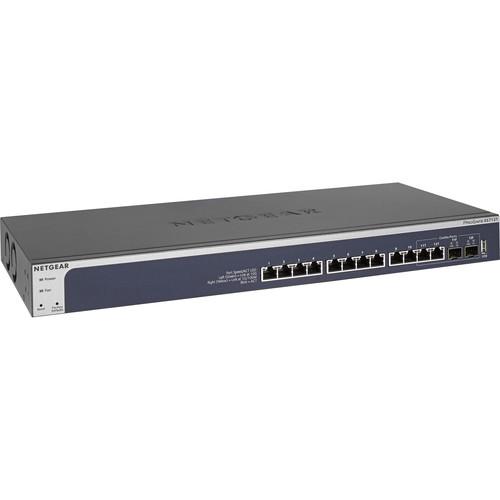

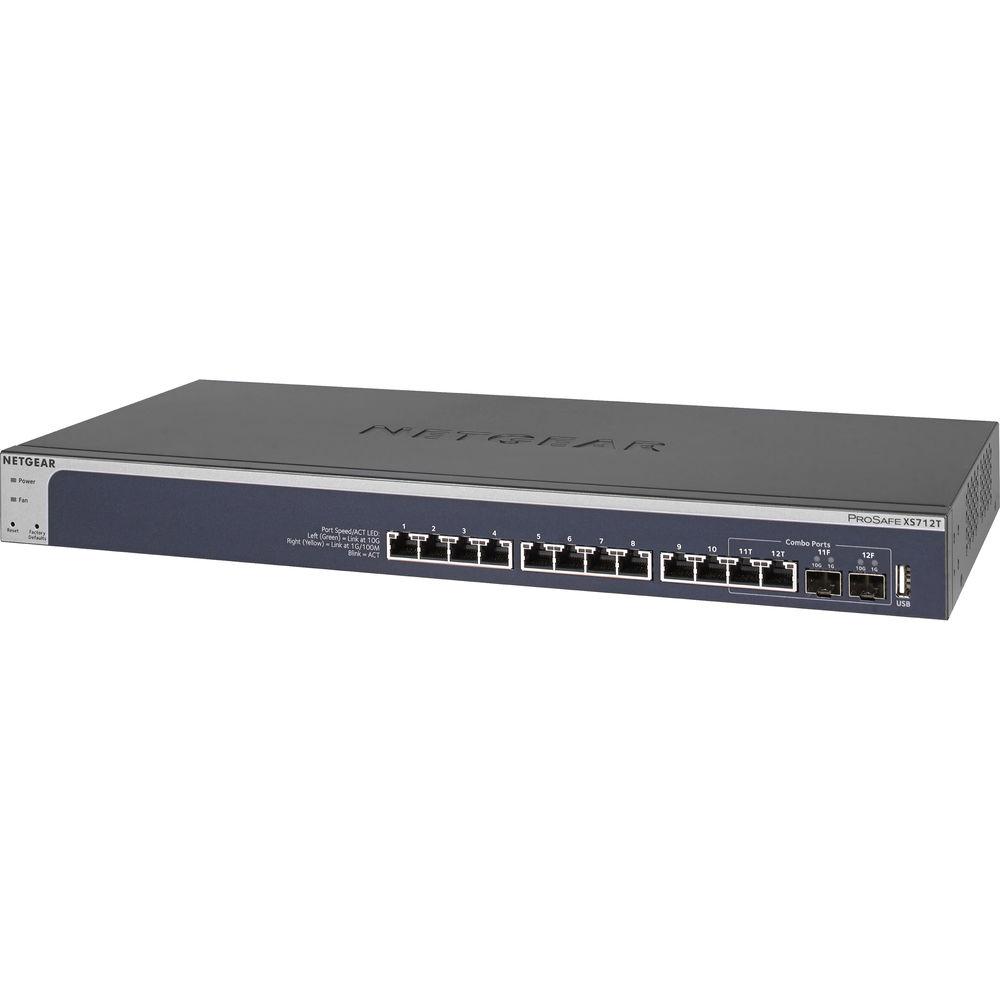

Product description Featuring 12 10GBase-T copper ports and 2 combo SFP+ ports for 10G fiber links, the ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Managed Switch from Netgear is designed for small business environments to provide network performance and cost-effective scalability. The 12 ports feature standard RJ-45 jacks that support Cat5/Cat5E cables for Gigabit speeds, Cat 6 twisted pair cables for 10 Gigabit up to 98.4', and Cat 6A or Cat7 cables for up to 328.1' 10GBase-T connections. These ports can also auto-negotiate between higher and lower speeds, so you can upgrade your network equipment one device at a time. In addition, the XS712T's 2 combo SFP+ 10G Fiber ports allow you to uplink with 10G-capable core or aggregation switches. To power and cool the switch, it comes with an internal power supply and two fans. This 1U rack-mountable switch offers a user-friendly web-based management interface that you can use to access its comprehensive L2 features. These features include Private VLAN, static routing, dynamic VLAN assignment, IGMP and MLD snooping, QoS with L2-L4 awareness and 8 priority queues, ACL binding, and more. Included with the ProSAFE 24-port 10 Gigabit Ethernet Smart Switch are a power cord, rack-mounting kit, and a resource CD. - XS712T Highlights
- The XS712T provides comprehensive L2 features in order to meet your current and future needs on virtualization, converged network and mobility. Some of the main features include:
- Advanced VLAN features such as Protocol based VLAN and MAC-based VLAN
- Advanced QoS (Quality of Service) with L2-L4 awareness and 8 priority queues
- Static routing
- Private VLAN
- Dynamic VLAN assignment
- IGMP and MLD snooping
- Advanced Security
- IPv6 for management, QoS, and ACL
- 10 Gigabit Transition with Base-T
-
- 10GBase-T, like other Base-T technologies, uses the standard RJ45 Ethernet jack
- It is backward compatible, auto-negotiating between higher and lower speeds - thereby not forcing an all-at-once network equipment upgrade
- Cat5/Cat5E cables are supported for Gigabit speeds; Cat6 twisted-pair copper cabling is the minimum requirement for 10 Gigabit up to 98.4'
- Cat6A or newer Cat7 cabling allow for up to 328.1' 10GBase-T connections
- Designed as Core Switch for SMB Network
-
- 10G connection to 10G-capable servers and network storages
- L2+/Layer 3 Lite features make it a cost-effective core switch for SMB and virtualization environment
- Future-proof your network with 10G bandwidth, advanced traffic management and comprehensive IPv6 Support
- Static routing helps to route internal traffic for more efficient use of network resources
- IGMP and MLD snooping, providing advanced multicast filtering
- Act as Aggregation Switch for Medium-sized Network
-
- 10G switch helps to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop
- 10 Gigabit Ethernet provides better scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure
- Up to eight 10 Gigabit Ethernet links can be aggregated into a virtual 80-Gbps connection
- 10 Gigabit Ethernet reduces cabling complexity and uses existing cabling efficiently
- Smart IT
-
- Easy to manage via web-Based Management GUI or Smart Control Center for multi-switch deployment
- Standard-based technology, ensuring interoperability with any standard-based devices in the existing network
- Dual firmware images, improving reliability and uptime to your network
- Hardware Features
- 24 10GBase-T Connections: Support low-latency, line-rate 10G Copper "Base-T" technology with backward compatibility to Fast Ethernet and Gigabit Ethernet. Cost-effectively migrate current network to 10G capacity by utilizing the existing Cat6 RJ45 short connections (up to 300m) and Cat6A / Cat 7 connections up to 100m
4 (dedicated) SFP+ 10G Fiber Ports: Backward compatible to Gigabit fiber. Providing flexibility to uplink to 10G-capable core or aggregation switches that support fiber links
USB Port: Quickly and conveniently upgrade or restore firmware or load configuration settings file
Energy Efficient Ethernet (IEEE 802.3az): Maximum power reduction for ongoing operation cost savings - Software Features
- Dynamic VLAN Assignment: IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network
Static Routing: A simple way to provide segmentation of the network with internal routing through the switch - reserving the router for external traffic routing only, making the entire network more efficient
Comprehensive IPv6 Support for management, ACL, and QoS: Build current network with future in mind. Ensure investment protection and a smooth migration to IPv6-based network without switch replacement
Private VLAN: Help reduce broadcast with added security
IGMP Snooping and MLD Snooping: Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router
Robust security features: Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users- 802.1x authentication
- Port-based security by locked MAC
- ACL filtering to permit or deny traffic based on MAC and IP addresses
Comprehensive QoS features: Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video- Port-based or 802.1p-based prioritization
- Layer 3-based (DSCP) prioritization
- Port-based rate limiting
DHCP Snooping: Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network
Dual firmware Images and configuration files: Dual firmware image and dual configuration file for transparent firmware updates/configuration changes with minimum service interruption
Protected Ports: Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, therefore, improve the security of your converged network where your sensitive phone conversations can stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration
DHCP Snooping: Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch
Dynamic VLAN Assignment (RADIUS): IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network
Private LAN: Private VLANs help reduce broadcast with added security
Dual Firmware Images and Configuration Files: Dual firmware image and dual configuration file for transparent firmware updates/configuration changes with minimum service interruption UPC: 606449129311 In the Box Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Managed Switch Power Cord Rack-Mounting Kit Rubber Footpads for Tabletop Installation Resource CD Limited Lifetime Warranty Limited 1-Year 24x7 Technical Support Table of Contents
|
Upload User Manual
Have you got an user manual for the Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNetgear XS712T Specs | Ports | 12 x 100/1000/10GBase-T RJ-45 copper ports
2 x Combo SFP+ 1000/10GBase-X fiber ports | | Packet Buffer Memory | 2 MB | | Forwarding Mode | Store-and-forward | | Bandwidth | 240 Gbps | | Priority Queues | 8 | | Priority Queuing | Weighted Round Robin (WRR) | | MAC Address Database Size | 32 K | | Addressing | 48-bit MAC address | | Multicast | 1024 groups | | Static Routes | 32 x IPv4 static routes | | Number of Routed VLANs | 256 | | Number of ARP Cache Entries | 1,024 | | DHCP Snooping | 8K DHCP snooping bindings | | Access Control List (ACL) | 100 shared for MAC, IP and IPv6 ACLs | | Packet Forwarding Rate | 238.0 Mfps or Mpps (64-byte packet size) | | Jumbo Frame Support | Up to 9K packet size | | Acoustic Noise Level @25C (dBA) | 49.7 dBA | | MTBF | 211,197 hours | | L2 Services | VLANS
IEEE 802.1Q VLAN Tagging: Yes
IP-based VLANs: Yes
MAC-based VLANs: Yes
Auto-Voice VLAN: Based on phone's OUI bytes (internal database, or user-maintained) or protocols (SIP, H323 and SCCP)
Auto-Video VLAN: Yes
Private VLAN: Yes
Availability
Broadcast Storm Control: Yes
IEEE 802.3ad - LAGs (LACP): Yes
IEEE 802.3x (full duplex and flow control): Yes
IEEE 802.1D Spanning Tree Protocol: Yes
IEEE 802.1w Rapid Spanning Tree Protocol: Yes
IEEE 802.1s Multiple Spanning Tree Protocol: Yes
Multicast Filtering
IGMP Snooping (v1, v2 and v3): Yes
MLD Snooping Support (v1 and v2): Yes
IGMP Snooping Queries: Yes
Block Unknown Multicast: Yes | | L3 Routing | DHCP
DHCP Client: Yes
DHCP Snooping: Yes
Routing
IPv4 Static Routing: 32
VLAN Routing: Yes
Host ARP Table: 1024
Router Discovery (IRDP): Yes
Number of IP Interfaces (port or VLAN): 15 | | Link Aggregation | IEEE 802.3ad - LAGs: Yes
Manual LAG: Yes
# of LAGs / # of members in each LAG: LACP (8 LAGs with max 8 members in each LAG) | | Network Monitoring and Discovery Services | 802.1ab LLDP: Yes
SNMP: v1, v2c, v3
RMON Group: 1,2,3,9 Yes | | Network Security | IEEE 802.1x: Yes
- Guest VLAN: Yes
- RADIUS-Based VLAN Assignment via .1x: Yes
MAC-based .1x: 600
RADIUS Accounting: Yes
Access Control Lists (ACLs): L2 / L3 / L4
- IP-based ACLs (IPv4 and IPv6): Yes
- MAC-based ACLs: Yes
- TCP/UPD-based ACLs: Yes
MAC Lockdown: Yes
MAC Lockdown by the Number of MACs: Yes
IEEE 802.1x RADIUS Port Access Authentication: Yes
Port-Based Security by Locked MAC Addresses: Yes
Network Storm Protection, DoS: Yes
Broadcast, Unicast, Multicast DoS Protection: Yes
DoS Attacks Prevention: Yes | | Quality of Service (QoS) | Access Lists: Yes
L2 MAC, L3 IP and L4 Port ACLs: Yes
Rate Limiting: Ingress and egress (egress only on interface queue page)
Port-Based QoS: Yes
Support for IPv6 Fields: Yes
DiffServ QoS: Yes
IEEE 802.1p COS: Yes
Destination MAC and IP: Yes
IPv4 and v6 DSCP: Yes
IPv4 and IPv6 ToS: Yes
TCP/UDP-Based: Yes
Weighted Round Robin (WRR): Yes
Strict Priority Queue Technology: Yes
Auto-VoIP: Yes, based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address
Auto-Video: Yes | | IEEE Network Protocols | • IEEE 802.3 Ethernet
• IEEE 802.3ab 1000BASE-T
• IEEE 802.1Q VLAN Tagging
• IEEE 802.3x Full-Duplex Flow Control
• IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
• IEEE 802.3an 10GBASE-T 10 Gbit/s Ethernet Over Copper Twisted Pair Cable
• IEEE 802.3ae 10-Gigabit Ethernet Over Fiber (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4)
• IEEE 802.3ad Trunking (LACP)
• IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
• IEEE 802.1p Class of Service
• IEEE 802.1D Spanning Tree (STP)
• IEEE 802.1s Multiple Spanning Tree (MSTP)
• IEEE 802.1w Rapid Spanning Tree (RSTP)
• IEEE 802.1x RADIUS Network Access Control
• IEEE 802.3az Energy Efficient Ethernet (EEE) Compliant | | Management | Password Management: Yes
Configurable Management VLAN: Yes
Admin Access Control via RADIUS and TACACS+: Yes
IPv6 Management: Yes
SNTP Client Over UDP Port 123: Yes
SNMP v1/v2c: Yes
SNMP v3 with Multiple IP Addresses: Yes
RMON group 1,2,3,9: Yes
Port Mirroring: Yes
Many-to-One Port Mirroring: 12
Web-Based Graphical User Interface (GUI): Yes
Smart Control Center (SCC) for Multi-Switch Management: Yes
Dual Software (firmware) Image: Yes
Dual Configuration File: Yes
Cable Test Utility: Yes
SSL/HTTPS Web-Based Access (version): Yes(v3)
TLS Web-Based Access (version): Yes (v1.0)
File Transfers (uploads, downloads): TFTP / HTTP
HTTP Upload/Download (firmware): Yes
Syslog (RFC 3164): Yes | | LEDs | Per Port: Speed, Link, Activity
Per Device: Power and Fan | | Power Consumption | Worst Case All Ports Used, Line-Rate Traffic: 98.2 W
Energy Efficient Ethernet (EEE) IEEE 802.3az Compliant: Yes
Auto-EEE Mode: Yes (deactivated by default)
Power Back-Off: Drops power consumption by 15% to 20% when short copper cables are detected
Fan: 2 | | Environmental Specifications | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 90% max. RH non-condensing
Storage Humidity: 95% max. RH non-condensing
Altitude: 10,000 ft / 3,000 m max. | | Certifications | Electromagnetic Emission and Immunity
CE mark, commercial
FCC Part 15 Class A, VCCI Class A
Class A EN 55022 (CISPR 22) Class A
Class A C-Tick
EN 55024
CCC
Safety
CE mark, commercial
CSA certified (CSA 22.2 #950)
UL listed (UL 1950)/cUL IEC 950/EN 60950
CCC (China Compulsory Certificate) | | Dimensions | 17.3 x 10.1 x 1.7" / 440 x 257 x 43 mm | | Weight | 8.9 lb / 4.04 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 22.6 x 11.6 x 3.6" |
