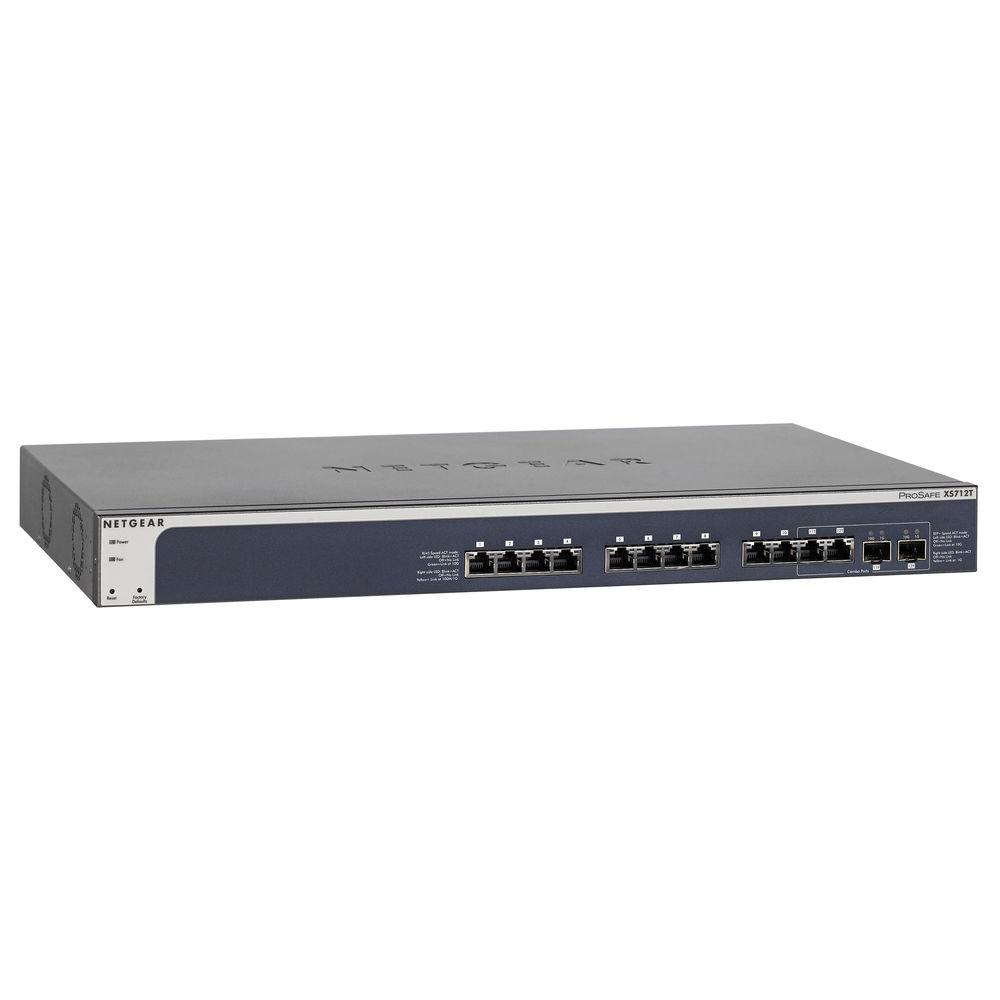

User Manual for Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Switch Click to enlarge the picture
Contents of the user manual for the Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs Netgear
- Brand: Netgear
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Netgear Network Switches, Bridges & Hubs
 |
User manual for the Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Netgear product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Netgear user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Netgear product will considerably shorten its lifespan!
|

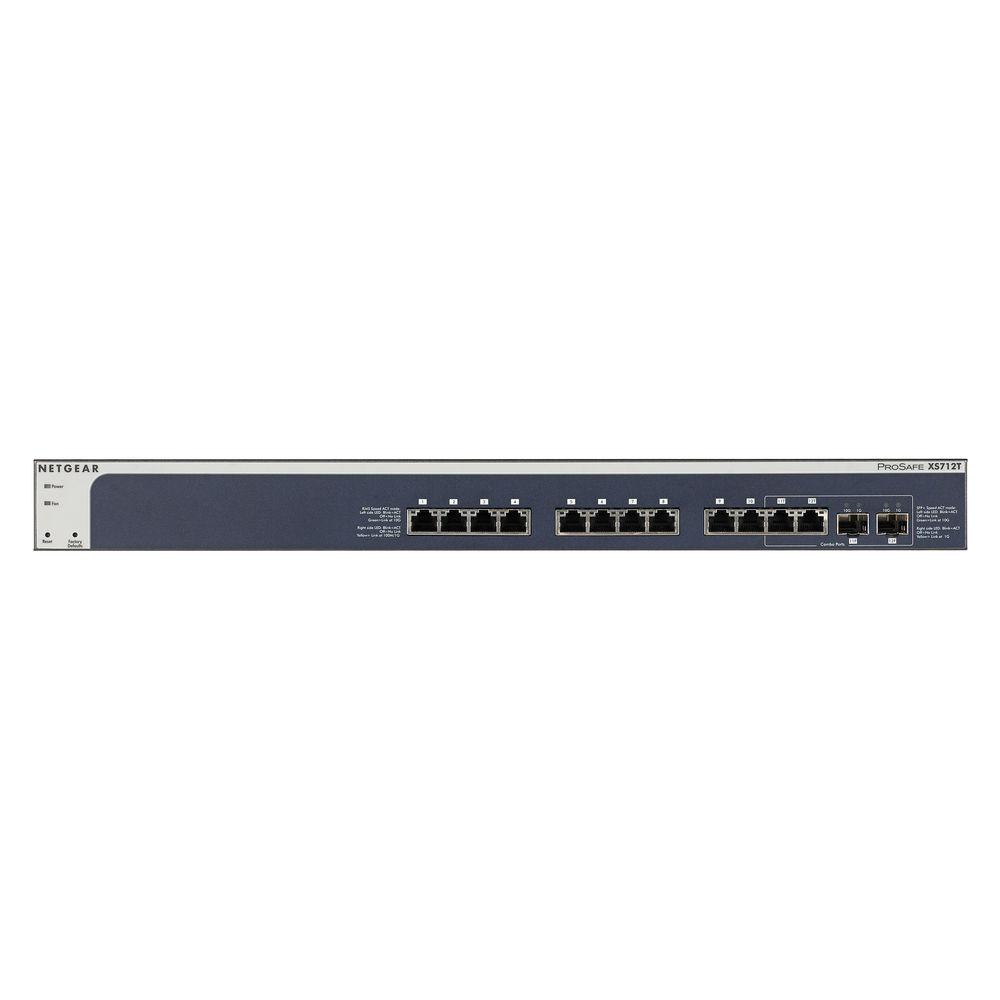

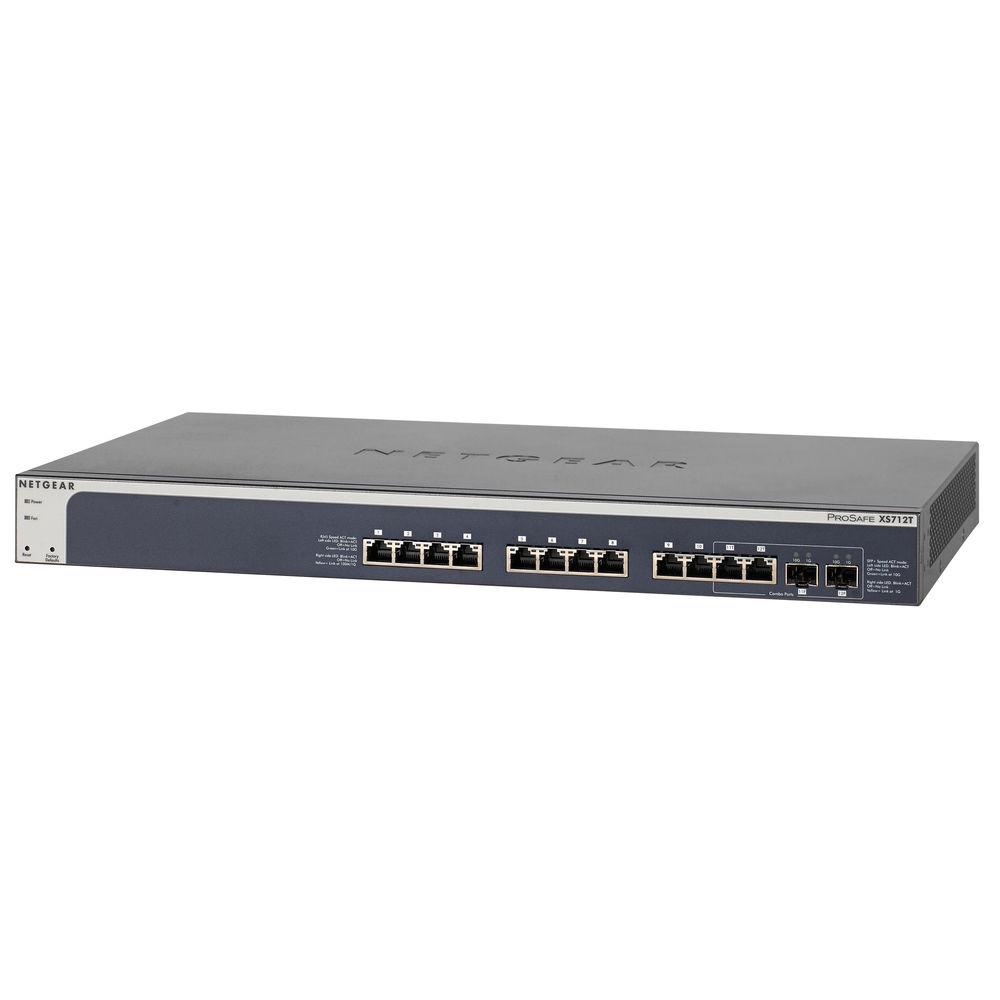

Product description Featuring twelve 10-GBase-T copper ports and two combo SFP+ ports for 10G fiber links, the ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Switch from Netgear is designed for small business environments to provide network performance and cost-effective scalability. The twelve ports feature standard RJ45 jacks that support Cat5/Cat5E cables for Gigabit speeds, Cat 6 twisted pair cables for 10 Gigabit up to 98.4', and Cat 6A or Cat7 cables for up to 328.1' 10GBase-T connections. These ports can also auto-negotiate between higher and lower speeds, so you can upgrade your network equipment one device at a time. In addition, the XS712T's two Combo SFP+ 10G Fiber ports allow you to uplink with 10G-capable core or aggregation switches. To power and cool the switch, it comes with an internal power supply and two fans. This 1U rack-mountable switch offers a user-friendly web-based management interface that you can use to access its comprehensive L2 features. These features include Private VLAN, static routing, dynamic VLAN assignment, IGMP and MLD snooping, QoS with L2-L4 awareness and 8 priority queues, ACL binding, and more. Included with the ProSAFE 12-port 10 Gigabit Ethernet Smart Switch are a power cord, rack-mounting kit, and a resource CD. - XS712T Highlights
- XS712T provides comprehensive L2 features in order to meet your current and future needs on virtualization, converged network and mobility. Some of the main features include:
- Advanced VLAN features such as Protocol based VLAN and MAC-based VLAN
- Advanced QoS (Quality of Service) with L2-L4 awareness and 8 priority queues
- Static routing
- Private VLAN
- Dynamic VLAN assignment
- IGMP and MLD snooping
- Advanced Security
- IPv6 for management, QoS, and ACL
- 10 Gigabit Transition with Base-T
-
- 10GBase-T, like other Base-T technologies, uses the standard RJ45 Ethernet jack
- It is backward compatible, auto-negotiating between higher and lower speeds - thereby not forcing an all-at-once network equipment upgrade
- Cat5/Cat5E cables are supported for Gigabit speeds; Cat6 twisted-pair copper cabling is the minimum requirement for 10 Gigabit up to 98.4'
- Cat6A or newer Cat7 cabling allow for up to 328.1' 10GBase-T connections
- Designed as Core Switch for SMB Network
-
- 10G connection to 10G-capable servers and network storages
- L2/L2+ features made it the most cost-effective core switch for SMB and virtualization environment
- Future-proof your network with 10G bandwidth, advanced traffic management and comprehensive IPv6 Support
- Static routing helps to route internal traffic for more efficient use of network resources
- IGMP and MLD snooping, providing advanced multicast filtering
- Act as Aggregation Switch for Medium-sized Network
-
- 10G switch helps to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop
- 10 Gigabit Ethernet provides better scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure
- Up to eight 10 Gigabit Ethernet links can be aggregated into a virtual 80-Gbps connection
- 10 Gigabit Ethernet reduces cabling complexity and uses existing cabling efficiently
- Smart IT
-
- Easy to manage via web-Based Management GUI or Smart Control Center for multi-switch deployment
- Standard-based technology, ensuring interoperability with any standard-based devices in the existing network
- Dual firmware images, improving reliability and uptime to your network
- Hardware Features
- Twelve 10GBase-T Connections: Support low-latency, line-rate 10G Copper "Base-T" technology with backward compatibility to Fast Ethernet and Gigabit Ethernet. Cost-effectively migrate current network to 10G capacity by utilizing the existing Cat6 RJ45 short connections (up to 300m) and Cat6A / Cat 7 connections up to 100m
2 Combo SFP+ 10G Fiber Ports: Backward compatible to Gigabit fiber. Providing flexibility to uplink to 10G-capable core or aggregation switches that support fiber links - Software Features
- Dynamic VLAN Assignment: IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location in the network
Static Routing: A simple way to provide segmentation of the network with internal routing through the switch - reserving the router for external traffic routing only, making the entire network more efficient
Comprehensive IPv6 Support for management, ACL, and QoS: Build current network with future in mind. Ensure investment protection and a smooth migration to IPv6-based network without switch replacement
Private VLAN: Help reduce broadcast with added security
IGMP Snooping and MLD Snooping: Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router
Robust security features: Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorized users- 802.1x authentication
- Port-based security by locked MAC
- ACL filtering to permit or deny traffic based on MAC and IP addresses
Comprehensive QoS features: Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video- Port-based or 802.1p-based prioritization
- Layer 3-based (DSCP) prioritization
- Port-based rate limiting
DHCP Snooping: Ensure IP address allocation integrity by allowing only clients with specific IP/MAC addresses to have access to the network
Dual firmware Images and configuration files: Dual firmware image and dual configuration file for transparent firmware updates/configuration changes with minimum service interruption
Protected Ports: Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, therefore, improve the security of your converged network where your sensitive phone conversations can stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration UPC: 606449090574 In the Box Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Switch Power Cord Rack-Mounting Kit Resource CD Limited Lifetime Warranty Limited 1-Year 24x7 Technical Support Table of Contents
|
Upload User Manual
Have you got an user manual for the Netgear ProSAFE XS712T 12-Port 10-Gigabit Ethernet Smart Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNetgear XS712T Specs | | | Ports | 12 x 10Gb Ethernet (RJ45)
2 x 10Gb SFP | | | | Layer Services Supported | Layer 2 Support, Layer 3 Support | | Supported Protocols | Auto-VoIP
IPv6
Link Aggregation | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 32K | | Multicast Groups | 1000 | | VLAN Groups | 256 | | | | Security Features | DHCP Snooping
RADIUS Authentication
Storm Control | | IP Interfaces | 15 | | Static Routes | 32 | | | | Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3az, 802.3i, 802.3u, 802.3x, 802.3z | | | | Latency | 3 to 7
