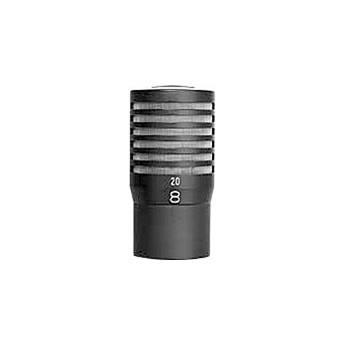

Product description The Neumann AK 20 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 20 features a pressure gradient, single diaphragm transducer with a figure 8 polar pattern. The diaphragm diameter is just 16mm and all sound field components reach the diaphragm directly.The end result is even frequency response and output levels from 0 to 180 degrees in proximity. The figure 8 polar pattern is effective in stereo MS recording (with an AK 40 or other cardioid mic), ambiance capturing or lectures and conferences with 2 speakers at either ends of the microphone. - Figure Eight Pattern
- The pressure gradient element provides a figure eight pattern providing even frequency response and output levels at 0 and 180 degrees.
- Modular Design
- The capsule is developed for use with the KM100 and KM100F modular power supplies.
UPC: 615104084162 In the Box Neumann AK 20 - Bi-Directional Miniature Capsule for KM 100 and KM 100F Power Supplies 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann AK 20 - Bi-Directional Miniature Capsule for KM 100 and KM 100F Power Supplies in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann AK 20 Specs | Transducer | Pressure Gradient Condenser | | Polar Pattern | Bi-Directional (Figure-8) | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range (Typical) | 122.5 dB | | Signal-to-Noise Ratio | 68 dB, Related at 1 Pa at 1 kHz (CCIR dB)
76.5 dB, Related at 1 Pa at 1 kHz (A-Weighted dB) | | Maximum Input Sound Level | 140 dB, Less than 0.5% THD (without Preattenuation)
150 dB, Less than 0.5% THD (with Preattenuation) | | Power Requirements | Phantom +48v (KM 100 Power Supplies) | | Output Impedance | 50 Ohms | | Output Connectors | XLR-3M Type (KM 100 Power Supplies) | | Pad | Yes, -10 dB Preattenuation | | Low Frequency Roll-Off | Use KM 100F | | Dimensions | 4.4 x 0.88" (110 x 22mm) (Length x Diameter) | | Weight | 3.6 oz. (102 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.0 x 3.5 x 2.0" |
