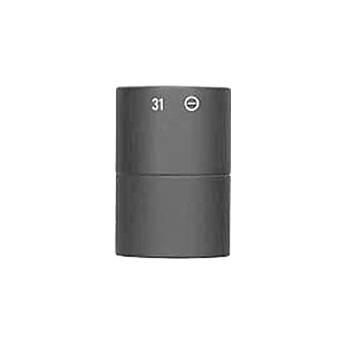

User Manual for Neumann AK 31 - Omnidirectional Miniature Capsule for KM 100 and KM 100F Power Supplies Click to enlarge the picture
Contents of the user manual for the Neumann AK 31 - Omnidirectional Miniature
- Product category: Modular Microphone Components Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Modular Microphone Components
|
User manual for the Neumann AK 31 - Omnidirectional Miniature contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The Neumann AK 31 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 31 features a pressure gradient, single diaphragm transducer with an omni-directional polar pattern.The AK 31 produces a flat frequency response up to 20kHz. In the diffuse field the microphone has a high frequency roll-off above 5kHz. The microphone is best applied as a spot microphone for piano, wind instruments, strings, percussion and drums, room ambiance capturing or stereo recording. - Modular Design
- The capsule is developed for use with the KM100 and KM100F modular power supplies.
- Omnidirectional Pattern
- The pressure gradient element provides an omnidirectional pattern providing even frequency response and output levels.
UPC: 615104070639 In the Box Neumann AK 31 - Omnidirectional Miniature Capsule for KM 100 and KM 100F Power Supplies 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann AK 31 - Omnidirectional Miniature Capsule for KM 100 and KM 100F Power Supplies in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann AK 31 Specs | Transducer | Pressure Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range (Typical) | 124 dB | | Signal-to-Noise Ratio | 69 dB, Related at 1 Pa at 1 kHz (CCIR dB)
78 dB, Related at 1 Pa at 1 kHz (A-Weighted dB) | | Maximum Input Sound Level | 140 dB, Less than 0.5% THD (without Preattenuation)
150 dB, Less than 0.5% THD (with Preattenuation) | | Power Requirements | Phantom +48v (KM 100 Power Supply) | | Output Impedance | 50 Ohms | | Output Connectors | XLR-3 Type (KM 100 Power Supply) | | Pad | Yes, -10 dB Preattenuation | | Low Frequency Roll-Off | Use KM 100F Power Supply | | Dimensions (LxDiameter) | 3.68 x 0.88" (92 x 22mm) | | Weight | 2.82 oz. (80 g) |
