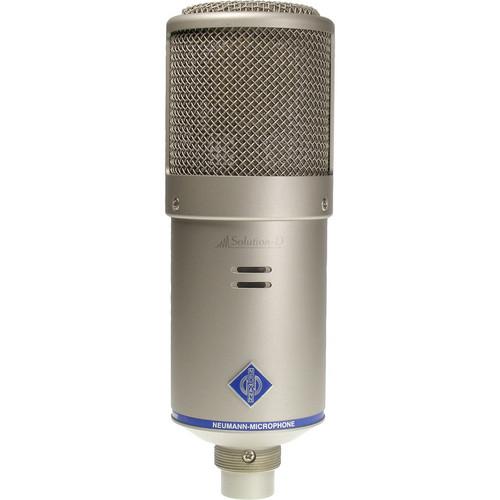

Product description The Neumann D-01 Digital Studio Microphone eliminates the need for external analog pre-amplifiers and analog-to-digital converters. Instead, the analog to digital conversion occurs within the microphone capsule and sends a digital signal to either a digital microphone interface or an AES/EBU connection kit according to the AES42 standard for use with an AES/EBU or S/PDIF audio interface. Multiple Digital Microphone Interfaces and other external equipment can be synchronized via the unit's internal word clock and BNC output. Fifteen different directional characteristics can then be controlled using Neumann's remote control software.
The benefits of digital microphones include a dynamic range of over 130 dB and less errors, nonlinear distortion, and noise voltages within the signal chain. Additionally, having the analog-to-digital conversion at the level of the microphone capsule enables DSP functions such as peak limiting to be integrated into the microphone itself.
The internal Neumann A/D converter is optimized for the signal and impedance parameters of the capsule. This also eliminates the challenges sometimes encountered when matching a Neumann microphone to a pre-amplifier and external A/D converter. The microphone is universally applicable and particularly suitable for applications where maximum resolution and transparency are desired. - Digital Microphone
-
- A/D Converter optimized for direct conversion of the capsule signal
- New capsule design
- Additional DSP functions
- Limiter (including de-esser)
- All parameters and functions are remote controllable
- Digital Microphone Interfaces
-
- AES 42-2001 to AES/EBU conversion
- Reliable synchronization through new PLL process
- 2 or 8 channels
- Phantom powering
- Word clock in and out
- Integrated word clock generator
- Remote Control Software
-
- Control and monitoring of all parameters
- DSP function control
- Peak level meter
- Gain reduction bargraph for limiter
- Save, copy, and recall for complete setups
- Remote Controlled Functions
-
- Polar pattern
- Low-Cut: Flat, 40, 80, 160 Hz
- Pre-Attenuation: 0 , -6, -12, -18 dB
- Gain: 0 to 63 dB in 1 dB steps, clickless
- Test Signal: 1 kHz, pink noise, white noise
- Sampling Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Parametric Compressor/Limiter (including de-esser function)
- Independent peak limiter avoiding any clipping
- Switch Functions: soft muting, phase reverse, signal lights
- Signal lights: Red and blue LEDs
- System functions, firmware download
- Additional Features
-
- Extremely Wide Dynamic Range: More than 130 dB
- Neumann A/D conversion process
- Pre-amps and external A/D converter are no longer necessary
- Wide range of new functions through integrated digital signal processing including limiting, phase, and mute
- Control and monitoring of all microphone parameters and functions through Remote Control Software
- Peak Limiter Function
-
- Reduces transient peaks as the level reaches 0 dBFS
In the Box Neumann D-01 Digital Studio Microphone Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann D-01 Digital Studio Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann D-01 Specs | Transducer | Acoustic: K 07 large double-diaphragm capsule, diameter 1.2" (30.0 mm) with protected internal electrodes | | Characteristics | Directional: 15 remote controllable polar patterns, from omni to cardioid to figure-8 | | Frequency Response | 20 to 20,000 Hz | | Sensitivity | Free-Field: -44 dBFS (at 1 kHz, re 94 dBSPL) | | Equivalent Noise Level | CCIR: 19 dB
A-Weighted: 8 dB-A
(According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS) | | Signal-to-Noise Ratio | CCIR: 75 dB
A-Weighted: 86 dB
(According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS) | | Maximum SPL | At 0 dBFS: 138 dBSPL | | Dynamic Range | A-Weighted: 130 dB (according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS) | | Latency | 44.1/48 kHz: 52 samples
88.2/96 kHz: 61 samples
176.4/192 kHz: 121 samples (AES 3) | | Supply Voltage | +6 to +10.5 V | | Current Consumption | Maximum 220 mA | | Interface | AES42 | | A/D Conversion | Neumann process (patented), 28-bit internal word length | | Digital Signal Processing (DSP) | Fixed-point, variable internal word length 28 to 60 bits | | Synchronization | Asynchronous Operation (free-running, AES42 - Mode 1), Basic Frequency Accuracy: ± 25 ppm
Synchronous Operation (AES42 - Mode 2), Pulling Range: Minimum ± 100 ppm | | Power Supply | Phantom power complying with AES42 | | Output | XLR3M, 24 bits as per AES/EBU (AES3) | | Diameter | 2.5" (63.5 mm) | | Length | 7.3" (185 mm) | | Weight | Approximately 24.7 oz (700 g) |
