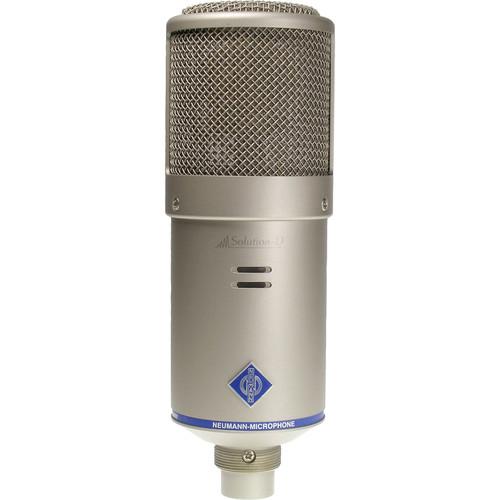

User Manual for Neumann D-01 Digital Studio Microphone Click to enlarge the picture
Contents of the user manual for the Neumann D-01 Digital Studio Microphone
- Product category: Large Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Large Diaphragm Condenser
|
User manual for the Neumann D-01 Digital Studio Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description For capturing audio the D-01 Digital Studio Microphone by Neumann demonstrates what can be achieved with digital microphone technology. It can be used with an AES/EBU or an AES 42 digital interface (sold separately) for diverse applications, including recording studios, broadcast TV, newsrooms, live stage, rehearsals, and more. It features a frequency response of 20 Hz to 20 kHz and has 15 remote controllable polar patterns from omni to cardioid to figure-8. Additional features allow the D-01 to be adapted to almost any recording situation. The D-01 microphone features optimized A/D conversion, synchronization technology, and the ability to control microphone parameters and integrated signal processing functions remotely. The D-01 digital microphone meets the most demanding requirements of professional audio production and permits recordings made with no bottlenecks in the signal chain. In addition a fast peak limiter integrated into the microphone provides constant protection from overloading. In addition, the A/D converter is located in the microphone capsule and eliminates the need for external converters and preamps. This allows the sound to be captured directly on the hard drive and provides more time for other essential duties. Difficult questions concerning the optimal preamp and A/D converter for a Neumann mic are thus a thing of the past. A wood storage box is included. - Extremely wide dynamic range is more than 130 dB
- Pre-amps and external A/D converter is no longer necessary since it is built into the microphone capsule
- Control and monitoring of all microphone parameters and functions through remote control software
- Remote control software allows control and monitoring of all parameters, DSP function, peak level meter, and gain reduction bar graph for limiter
UPC: 615104084827 In the Box Neumann D-01 Digital Studio Microphone Wooden Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann D-01 Digital Studio Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann D-01 SINGLE MIC Specs | | | Interface | AES42 | | Remote Control | Functions:
Polar pattern
Low-Cut: Flat, 40, 80, 160 Hz
Pre-Attenuation: 0 , -6, -12, -18 dB
Gain: 0 to 63 dB in 1 dB steps, clickless
Testsignal: 1 kHz, pink noise, white noise
Sampling Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Parametric compressor/limiter (incl. de-esser function)
Independent peak limiter avoiding any clipping
Switch Functions: Soft muting, phase reverse, signal lights
Signal Lights: Red and blue LEDs
System functions, firmware download | | A/D Conversion | Neumann process (patented), 28-bit internal word length | | Digital Signal Processing (DSP) | Fixed-point, variable internal word length 28 bits to 60 bits | | Synchronization | Asynchronous operation (free-running, AES42 - Mode 1), basic frequency accuracy ± 25 ppm
Synchronous operation (AES42 - Mode 2), pulling range, min. ± 100 ppm | | Power Supply | Phantom power complying with AES42 | | Output | XLR3M, 24 bits as per AES/EBU (AES3) | | | | Transducer Type | Acoustic: K 07 large double-diaphragm capsule | | Directional Characteristic | 15 remote controllable polar patterns, from Omni to cardioid to figure-8 | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | Free-Field: -44 dBFS | | Equivalent Noise Level | A-Weighted: 8 dB-A | | Signal-to-Noise Ratio | CCIR: 75 dB
A-Weighted: 86 dB | | Maximum SPL | At 0 dBFS: 138 dB | | Dynamic Range | A-Weighted: 130 dB | | Latency | 44.1/48 kHz: 52 samples
88.2/96 kHz: 61 samples
176.4/192 kHz: 121 samples (AES 3) | | Supply Voltage | Range: +6 V to +10.5 V | | Current Consumption | Max. 220 mA | | Dimensions (Diam. x L) | 2.5 x 7.3" (63.5 x 185 mm) | | Weight | 25 oz (700 g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
