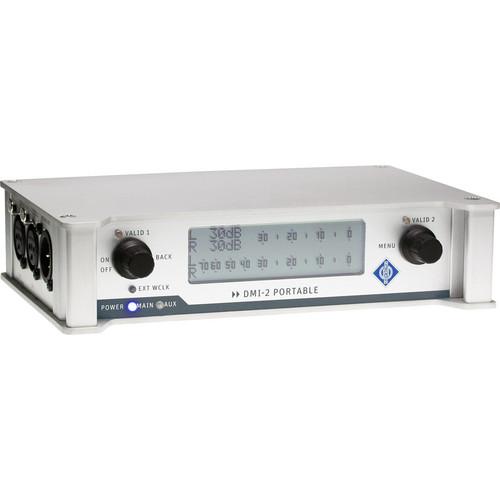

User Manual for Neumann DMI-2 Portable Digital Microphone Interface Click to enlarge the picture
Contents of the user manual for the Neumann DMI-2 Portable Digital Microphone Interface
- Product category: In-Line Mic Accessories Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann In-Line Mic Accessories
|
User manual for the Neumann DMI-2 Portable Digital Microphone Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The Neumann DMI-2 Portable Digital Microphone Interface is an AES42 standard interface and processor for Neumann Solution-D microphones. The DMI-2 converts the AES 42 data format supplied by the microphone into an AES/EBU signal. The unit may be manually or remotely controlled via USB and the supplied RCS remote software. There is support for up to 2 microphones and parameters such as gain, attenuation, and low-cut filter are easily controlled and displayed its monochrome LCD display. UPC: 615104222304 In the Box Neumann DMI-2 Portable Digital Microphone Interface CD with RCS Software & USB Drivers 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann DMI-2 Portable Digital Microphone Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann DMI-2 Specs | Ports | 2x AES42 IN (XLR3F),
1x AES/EBU (AES3) OUT (XLR3M) 2x Word Clock IN/OUT (BNC)
1x Remote Control (USB) | | Indicators | Monochrome display, bar graphs for gain, level and gain reduction, LED's for Power, Battery status, Synchronization and Valid | | Phantom Power | +10 V, max. 250 mA per channel, short-circuit proof | | Remote Control | Pulses (+2 V), superimposed on the phantom power, approx. 750 bits/s or 9,600 bits/s (depending on the microphone) | | Synchronization | AES42 - Mode 2 (synchronous mode) Microphone clock control via PLL
DMI-2 portable Synchronization: Automatically to an external word clock or AES11 signal, if present, otherwise the internal word clock generator is activated | | Digital | Word Clock (or AES11) Input / Output: BNC
Vin: >100 mV at 75 ohms Vout = Vin (external synchronization)
Vout approx. 1.5V at 75 ohms (internal word clock generator) | | Word Clock | 44.1 / 48 / 88.2 / 96 kHz/176.4 / 192 kHz, Accuracy ±25 ppm | | Control | 2x push-switch rotary encoder | | USB | 1x USB port | | Power Supply | DC 10-18 V (Hirose) , NP1 rechargeable battery or AC/DC converter
Power consumption: < 8 VA | | Dimensions (WxHxD) | 7.32 x 1.73 x 4.96" (186 x 44 x 126mm) | | Weight | 22.99 oz (625g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 8.5 x 6.2 x 3.2" |
