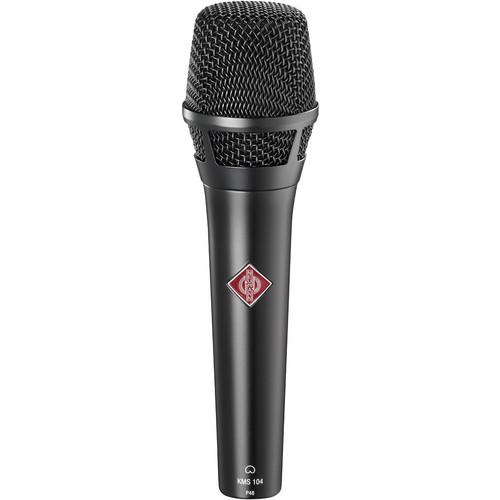

User Manual for Neumann fet100 Series KMS 104 Cardioid Condenser Vocalist Microphone Click to enlarge the picture
Contents of the user manual for the Neumann fet100 Series KMS 104 Cardioid
- Product category: Handheld Performance Microphones Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Handheld Performance Microphones
|
User manual for the Neumann fet100 Series KMS 104 Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The black fet100 Series KMS 104 Cardioid Condenser Vocalist Microphone from Neumann has been designed for close range use by instrumental and vocal soloists, and can also be handheld by singers. It offers high acoustic resolution and smooth frequency response (20 Hz to 20 kHz). This mic is also suitable for use with in-ear monitoring systems thanks to the low self-noise and crosstalk behavior.It has a condenser microphone capsule with a cardioid directional characteristic, which suppresses sound originating from behind the microphone. It has a balanced, transformerless output and offers effective protection against pop-sounds. This cardioid microphone offers true sound transduction that is free of coloration.The mic comes with the SG105 Stand Clamp that is designed for vocal microphones. It can be swiveled and has a 5/8"-27 threads in addition to a thread adapter to connect to 1/2" and 3/8" stands (sold separately). A padded nylon bag is also included. General - Cardioid polar pattern with high level of feedback rejection
- Without off-axis coloration
- Built-in protection from pop-sounds
- Suitable for use for vocal and speech applications on stage, as an announcer's mic for broadcasting/dubbing, in-ear monitoring, etc.
Acoustic - Carefully adjusted acoustic filter ensures high level of feedback protection
- Transformerless, high-loadability impedance converter for handling sound pressure levels up to 150dB
- Distinctive directional characteristic of the capsule is retained all the way down to the bass frequencies
- Sibilants and "S" sounds are transmitted with their natural accentuation
Electrical - Electronic compensation used for the proximity effect
- Built-in high-pass filter with a cutoff frequency of 120 Hz (-3 dB, measured in a free sound field)
- Low self-noise level of 18 dBA permits the microphone to be used at high gain levels without the risk of additional noise
- High signal-to-noise ratio allows the mic to be used even from large distances
- Transformerless output circuit allows microphone signals can be transmitted even through long cables (up to 984' / 300m) without loss of sound
Mechanical - Thick-walled metal housing for effective protection against handling noise
- Microphone headgrille is made of hardened steel 1
Please Note: If required, the headgrille can easily be unscrewed to permit cleaning of the interior acoustic filter close In the Box Neumann fet100 Series KMS 104 Cardioid Condenser Vocalist Microphone (Black) SG105 Stand Clamp Padded Nylon Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann fet100 Series KMS 104 Cardioid Condenser Vocalist Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KMS 104 Specs | Operating Principle | Acoustical: Pressure gradient transducer | | Directional Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Sensitivity | 4.5 mV/Pa at 1 kHz into 1 kΩ rated load impedance
94 dB SPL ≈ 1 Pa = 10 μbar | | Impedance | Rated: 50 Ω
Rated Load: 1 kΩ | | Equivalent Noise Level | CCIR: 28 dB
A-Weighted: 18 dB-A | | Signal-to-Noise Ratio | CCIR (Relative 94 dBSPL): 66 dB
A-Weighted (Relative 94 dBSPL: 76 dB | | Maximum SPL | THD 0.5%: 150 dB Measured as equivalent electrical input signal. | | Maximum Output Voltage | 12 dBu | | Dynamic Range | Mic Amplifier (A-Weighted): 132 dB | | Supply Voltage | P48, IEC 1938: 48 ± 4 V (phantom powered) | | Current Consumption | P48, IEC 1938: 3.5 mA | | Connector | Matching: XLR3F | | Diameter | 1.8" (48.0 mm) | | Length | 7.0" (180.0 mm) | | Weight | Approximately 10.5 oz (300.0 g) | Note: According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS.
