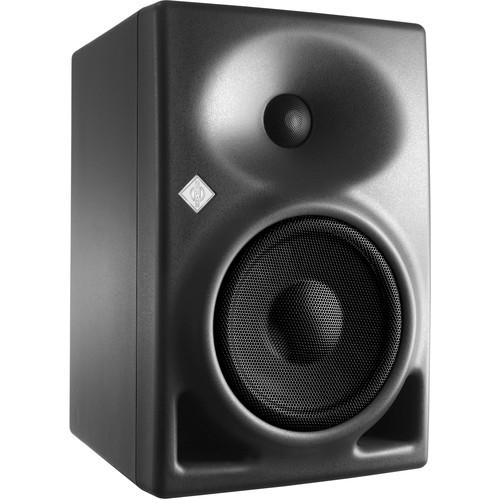

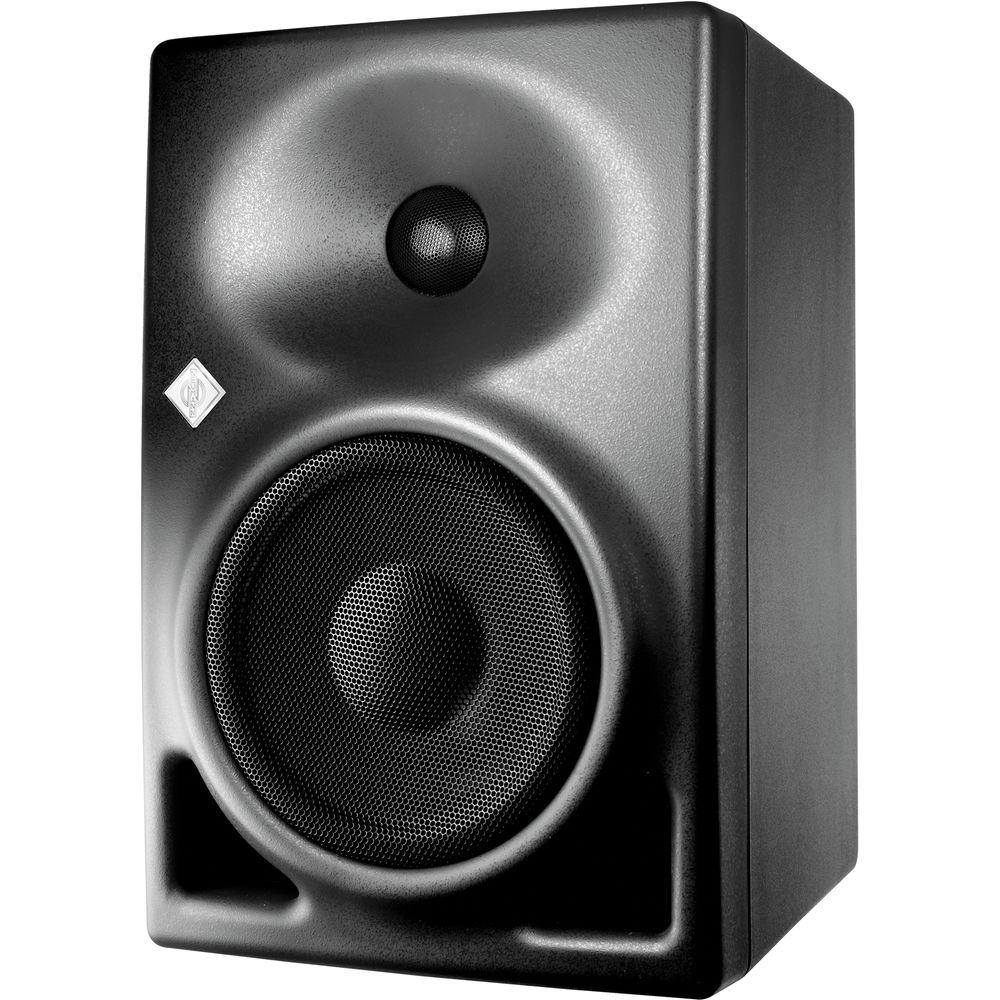

Product description The Neumann KH 120-A Studio Monitor combines a 1" titanium fabric dome tweeter powered by 50 W RMS (80 W peak) of analog amplification with a 5.25" long throw composite sandwich cone bass driver powered by 50 W RMS 80 W peak) analog amplification with dual front panel bass ports. The two speaker drivers are mounted in an elliptical mathematically modeled dispersion waveguide for smoother off-axis response and a more forgiving sound signature in different acoustical environments.
The front panel is made from one piece without discontinuities to reduce diffraction with protective metal grills and the cabinet is made of magnetically shielded aluminum to reduce resonances, improve heat dissipation, and extend the operating lifetime of the unit. The monitor is suitable for professional tracking, mixing, and mastering applications in broadcast, project, and post-production studios.
The system delivers a free field frequency response of 52 to 21,000 Hz with 4-position bass, low-mid, and treble acoustical controls for tailoring the response to different rooms and an input gain control from 0 to -15 dB. The front panel Neumann logo functions as an LED indicator for power and clip/limiting but can also be dimmed for light applications and for use when placed behind screens. A variety of wall, ceiling, truss, subwoofer, stand, and surface mounting options are available through a range of accessories (sold separately). - Titanium Fabric Dome
- Provides low-distortion high-frequency reproduction
- Elliptical Mathematically Modeled Dispersion Waveguide
- Provides smoother off-axis response for more forgiving and diverse acoustic environments
- Composite Sandwich Cone
- Provides Damping of break-up modes
- Long Throw Bass Driver
- Enables low distortion at high sound levels
- Two-Color + Dimmable Neumann Logo
- Displays operation status and activation of the extensive protection system
- Metal Grill
- Protects against mechanical damage
- Large Front Panel Ports
- Reduces bass compression and makes it easier to mount in tight spaces such as OB vans
- Compact Magnetically Shielded Aluminum Cabinet
- Minimizes resonances and provides better heat dissipation for a longer product life
- Wide Horizontal Dispersion
- Provides freedom of movement across the mixing console
- Narrow Vertical Dispersion
- Reduces reflections off the mixing console
- One-Piece Front Panel Without Discontinuities
- Reduces diffraction and smoother frequency response
- Powerful Analog Amplifiers With Ample Headroom
- Improves transient response
- Production Consistency
- Ensures matched pairs

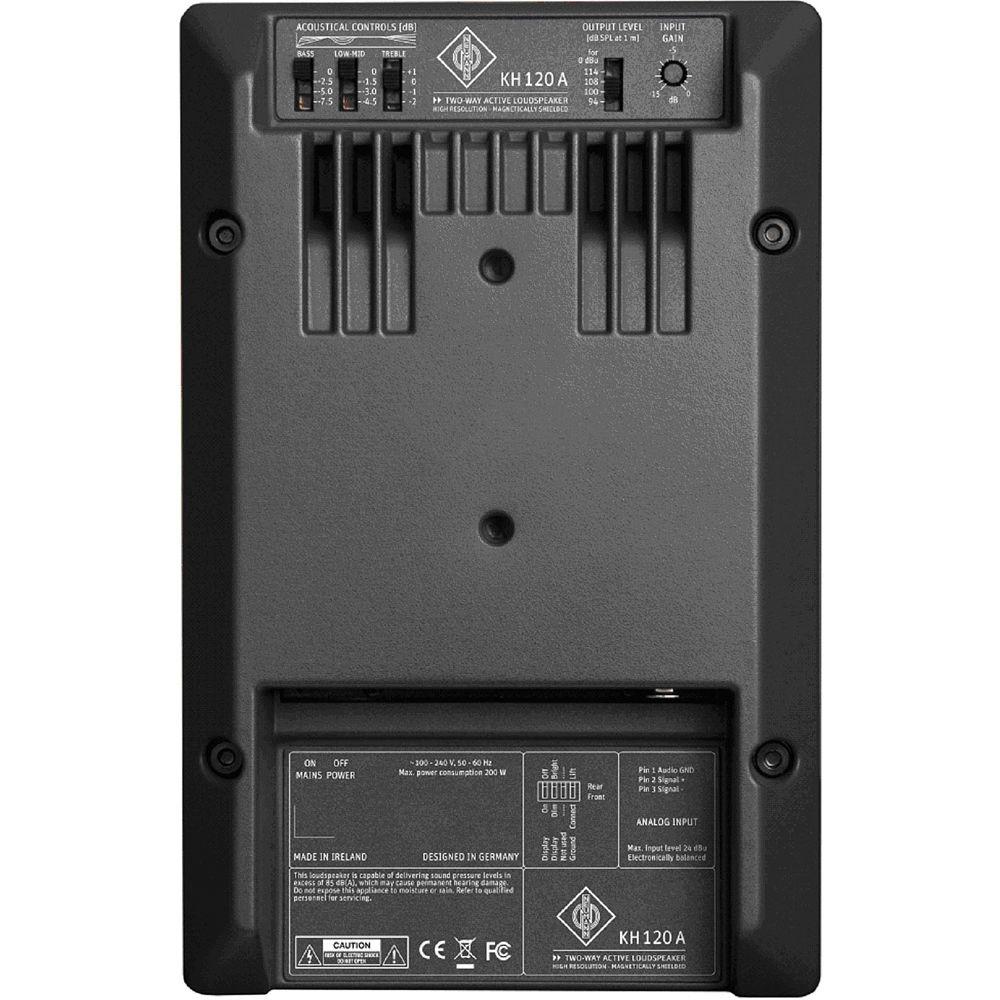

- 4-Position Bass, Low-Mid and Treble Acoustic Controls
- Enables more control in diverse acoustical environments
- Wide Range of Input Gain and Output Level Controls
- Enables easier interfacing with signal sources
- New Mounting Hardware Options
- Offers flexibility in mounting cabinets in more diverse locations
- Display Dimmer
- Allows adjustments for low lighting conditions or behind the screen applications
- Ground Lift
- Reduces noise in electrically noisy environments and over comes ground loops
- Universal Switched-Mode Power Supply (100 to 240 V)
- Allows for one version to work in any country and with poor quality main power supplies
- Separate Woofer and Tweeter Electronic Limiters and Thermal Protection Circuitry
- Ensures long-term reliability
UPC: 615104263741 In the Box Neumann KH 120-A Studio Monitor 2 x Main Cables (European and US Version) 4 x Self-Adhesive Feet Limited 1-Year Warranty Spec sheet PDF 3mbssysuxbzcf Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KH 120-A Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KH 120 A Specs | | | Frequency Response | Free Field: 52 to 21,000 Hz ±3 dB
Pass Band Free Field: 54 to 20,000 Hz ±2 dB | | Self Noise | < 20 dB(A) at 10 cm | | Total Harmonic Distortion (THD) | > 100 Hz (<0.5% at 96 dB SPL at 1 m) | | Max SPL Level | Full Space: 105.1 dB
Half Space at 3% THD at 1 M: 111.1 dB
Short Term SPL with IEC-Weighted Noise: 107 dB(C)
With Music Material at 2.3 m (pair): 97 dB(C) (full range), 104 dB(C) (with subwoofer)
Long Term SPL with Pink Noise at 2.3 M, In Typical Listening Conditions (single/pair): 88/93 dB(C) SPL (full range, 89/94 dB(C) SPL (with subwoofer) | | Bass Capability | 104.8 dB | | | | Amplifier | Woofer: 50 W (80 W peak)
Tweeter: 50 W (80 W peak) | | Controller Design | Analog, active | | Crossover Frequency | 2,000 Hz | | Crossover Slope | 24 dB/octave, 4th order | | Equalization | Bass: 0, -2.5, -5. -7.5 dB
Mid: 0, -1.5, -3, -4.5 dB
High: +1, 0, -1, -2 dB | | Protection Circuits | Limiter, low, high | | Infrasonic filter protection | 30 Hz; 6 dB/octave | | Impedance | 10 k Ohms in position 94/108 dB SPL at 1 m
20 k Ohms in position 100/114 dB SPL at 1 m | | Input Gain Control | 0 to -15 dB | | Output Level Control | 94, 100, 108, 114 dB | | CMRR | >56 dB at 15,000 Hz | | Maximum Input Level | 24 dBu | | Indicators | Power On: Neumann logo "white"
Limit/Clip: Neumann logo "red" | | Power Supply | 100 to 240 V; 50/60 Hz | | Power Consumption | Idle: 20 W
Full Output AC: 200 W | | | | Cabinet | Painted aluminum, anthracite (RAL 7021)
Powder-coated aluminum, white (RAL 9016) | | Operating Conditions | +50 to +104° F (+10 to +40° C)
<90% relative humidity, non-condensing | | Drivers | Magnetically Shielded
Woofer: 5.25" (130 mm)
Tweeter: 1.00" (25.0 mm) | | Mounting | 2x M8 on rear panel | | Volume | Internal: 6.5 liters
External: 9.7 liters | | Dimensions (H x W x D) | 10.875 x 7.125 x 8.625 (277.0 x 182.0 x 220.0 mm) | | Weight | 14.1 lb (6.40 kg) | | | | Package Weight | 18.05 lb | | Box Dimensions (LxWxH) | 16.2 x 14.2 x 11.2" |
