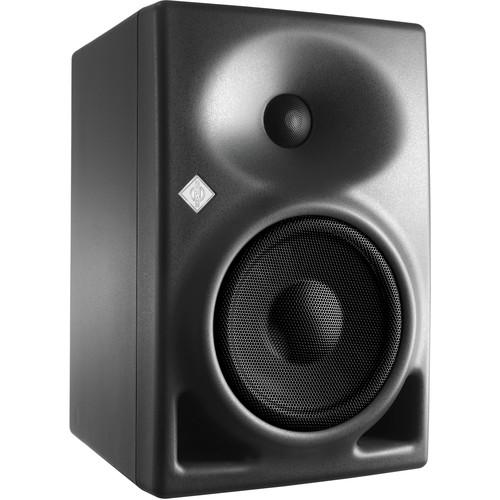

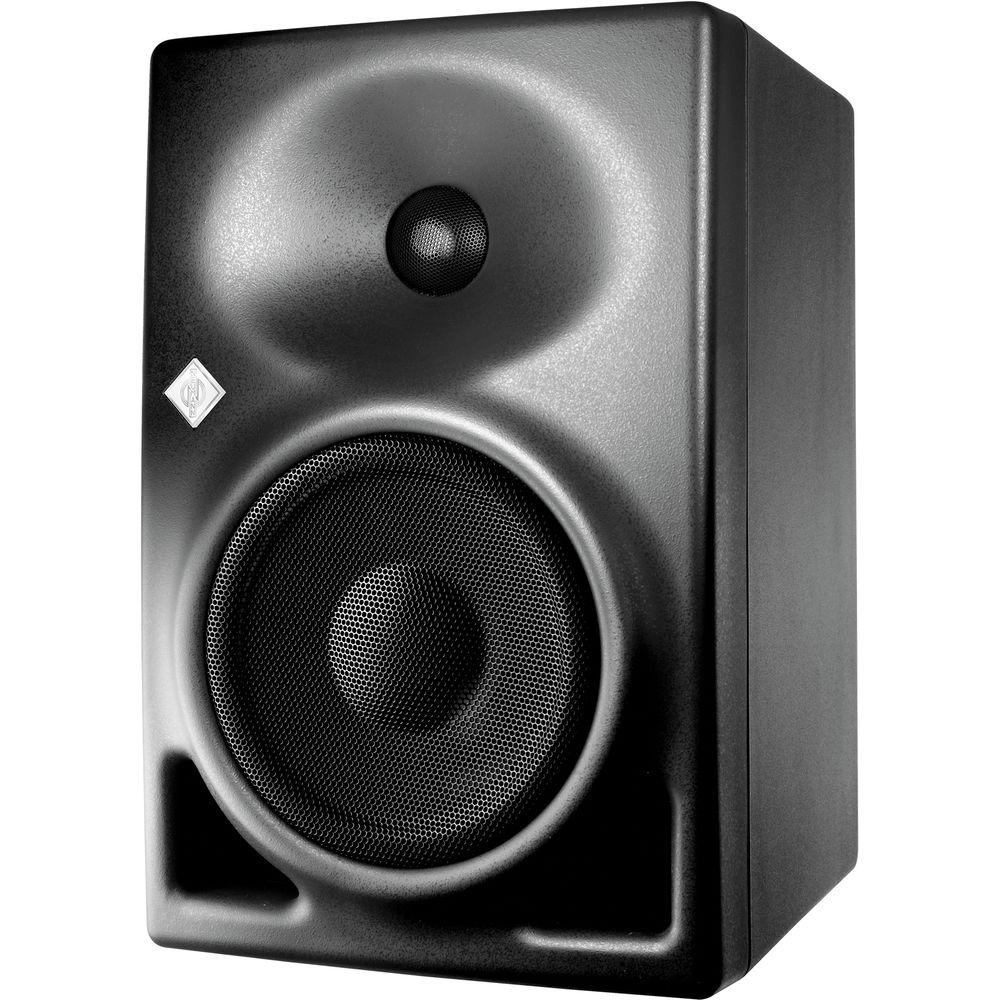

Product description The Neumann KH 120 D Studio Monitor with Digital I/O and Digital Delay combines a 1" titanium fabric dome tweeter powered by 50 W RMS (80 W peak) of analog amplification with a 5.25" long throw composite sandwich cone bass driver powered by 50 W RMS (80 W peak) analog amplification with dual front panel bass ports. The two speaker drivers are mounted in an elliptical mathematically modeled dispersion waveguide for smoother off-axis response and a more forgiving sound signature in different acoustical environments.
This model is designed to be used as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. It features both analog and daisy-chainable digital BNC I/O for flexible digital inter-connectivity (24 bit, 192 kHz, AES3, and S/P-DIF). It also features digital Lipsync delay (from 0 to 10/12 frames) for aligning audio and video signals as well as digital time-of-flight delay (from 0 to 400 ms) to compensate for different listening distances.
The front panel is made from one piece without discontinuities to reduce diffraction with protective metal grills and the cabinet is made of magnetically shielded aluminum to reduce resonances, improve heat dissipation, and extend the operating lifetime of the unit. The monitor is suitable for professional tracking, mixing, and mastering applications in broadcast, project, and post-production studios.
The system delivers a free field frequency response of 52 to 21,000 Hz with 4-position bass, low-mid, and treble acoustical controls for tailoring the response to different rooms and an input gain control from 0 to -15 dB. The front panel Neumann logo functions as an LED indicator for power and clip/limiting but can also be dimmed for light applications and for use when placed behind screens. A variety of wall, ceiling, truss, subwoofer, stand, and surface mounting options are available through a range of accessories (sold separately). - Digital BNC Input and Buffered BNC Output
- Provides flexible and trouble-free digital inter-connectivity, 192 kHz, AES3 and S/P-DIF)
- Lipsync Delay (0 to 10/12 Frames)
- Allows you to align audio and video signals
- Time-Of-Flight Delay (0 to 400 ms)
- Allows system to compensate for listening distance differences
- Titanium Fabric Dome
- Provides low-distortion high-frequency reproduction
- Elliptical Mathematically Modeled Dispersion Waveguide
- Provides smoother off-axis response for more forgiving and diverse acoustic environments
- Composite Sandwich Cone
- Provides Damping of break-up modes
- Long Throw Bass Driver
- Enables low distortion at high sound levels
- Two-Color + Dimmable Neumann Logo
- Displays operation status and activation of the extensive protection system
- Metal Grill
- Protects against mechanical damage
- Large Front Panel Ports
- Reduces bass compression and makes it easier to mount in tight spaces such as OB vans
- Compact Magnetically Shielded Aluminum Cabinet
- Minimizes resonances and provides better heat dissipation for a longer product life
- Wide Horizontal Dispersion
- Provides freedom of movement across the mixing console
- Narrow Vertical Dispersion
- Reduces reflections off the mixing console
- One-Piece Front Panel Without Discontinuities
- Reduces diffraction and smoother frequency response
- Powerful Analog Amplifiers With Ample Headroom
- Improves transient response
- Production Consistency
- Ensures matched pairs
- 4-Position Bass, Low-Mid and Treble Acoustic Controls
- Enables more control in diverse acoustical environments
- Wide Range of Input Gain and Output Level Controls
- Enables easier interfacing with signal sources
- New Mounting Hardware Options
- Offers flexibility in mounting cabinets in more diverse locations
- Display Dimmer
- Allows adjustments for low lighting conditions or behind the screen applications
- Ground Lift
- Reduces noise in electrically noisy environments and over comes ground loops
- Universal Switched-Mode Power Supply (100 to 240 V)
- Allows for one version to work in any country and with poor quality main power supplies
- Separate Woofer and Tweeter Electronic Limiters and Thermal Protection Circuitry
- Ensures long-term reliability
UPC: 615104189317 In the Box Neumann KH 120 D Studio Monitor with Digital I/O and Digital Delay Power Cable (European and US Version) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KH 120 D Studio Monitor with Digital I O and Digital Delay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KH 120 D Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
LF Driver: 1 x 5.25" / 130 mm Woofer | | Amplification | HF Amplifier: Rated at 50 W / 80 W Peak
LF Amplifier: Rated at 50 W / 80 W Peak | | | | Frequency Range | 32 Hz to 35 kHz (at -6 dB) | | Frequency Response | 38 Hz to 20 kHz ± 1.5 dB | | Maximum Sound Pressure Level (SPL) | 111.1 dB | | Dynamic Range | 120 dB | | Total Harmonic Distortion (THD) | 0.5% | | Maximum Input Level | +24 dBu | | Analog Input Sensitivity/Gain | 0 to -15 dBu (Continuously Variable) | | Self-Generated Noise | Less Than 20 dBA (at 3.93" / 10 cm) | | Protections and Limiting | 2-Way Limiter | | CMRR | 56 dB | | | | EQ | 1 x LF Shelf: -7.5 to 0 dB (2.5 dB Increments)
1 x Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Increments)

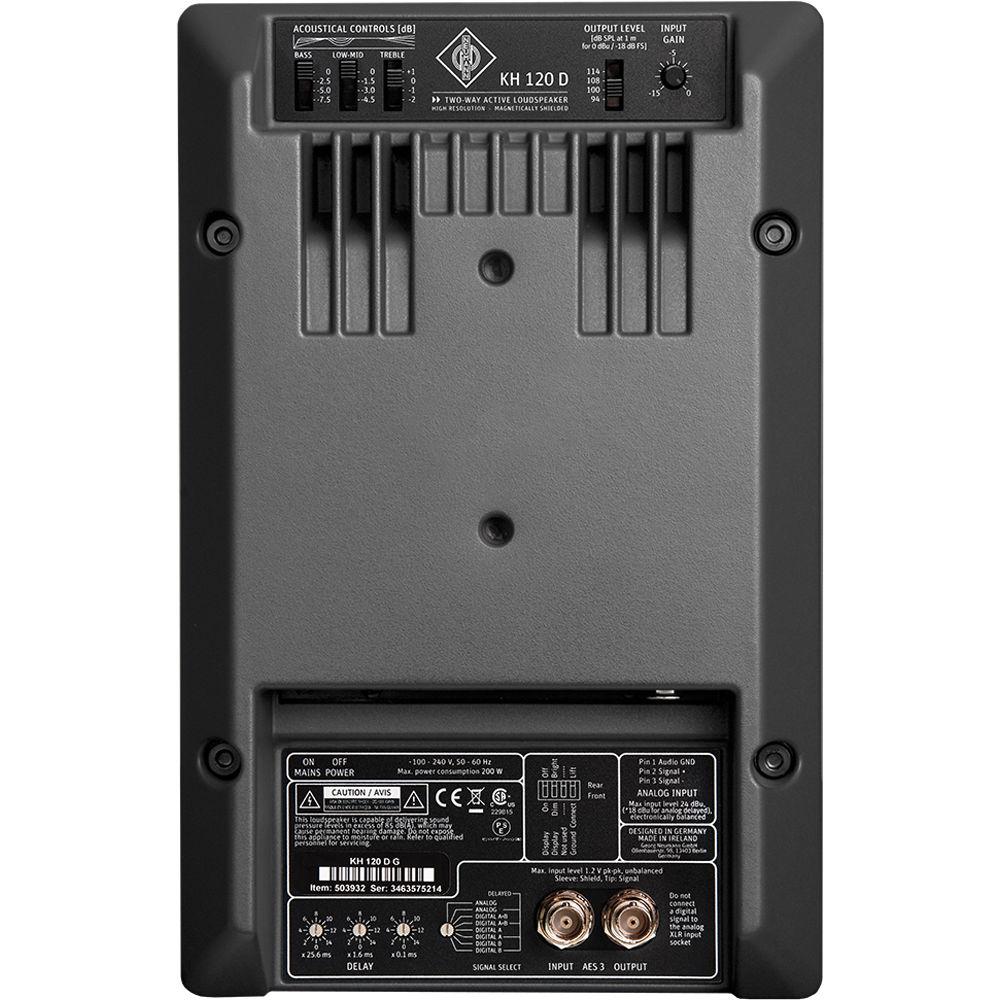

1 x HF Shelf: -2 to +1 dB (1 dB Increments) | | Filters | High-Pass at 30 Hz, 6 dB/Octave Slope | | | | Crossover Frequency | 2 kHz, 24 dB/Octave Slope | | | | I/O | 1 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
1 x BNC AES/EBU Digital Input
1 x BNC AES/EBU Digital Output Digital I/O Supports S/PDIF Protocol via RCA/BNC Adapter (Not Included) | | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 20 W (Idle)
200 W (Maximum) | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 90% | | | | Enclosure Material | Aluminum | | Mounting Points | 2 x M8 (Rear Panel) | | Dimensions (W x H x D) | 7.1 x 10.9 x 8.6" / 182.0 x 277.0 x 220.0 mm | | Weight | 14.3 lb / 6.5 kg | | | | Package Weight | 19.2 lb | | Box Dimensions (LxWxH) | 16.299 x 14.173 x 11.181" |
