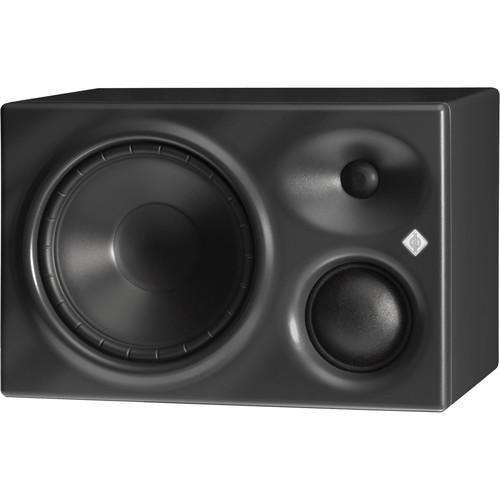

User Manual for Neumann KH 310 D - Active Studio Monitor with Digital Input and Delay Click to enlarge the picture
Contents of the user manual for the Neumann KH 310 D - Active
- Product category: Studio Monitors Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Studio Monitors
|
User manual for the Neumann KH 310 D - Active contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The right sided Neumann KH 310 D - Active Studio Monitor with Digital Input and Delay combines a 1" titanium fabric dome tweeter, a 3" fabric dome midrange with a neodymium magnet, and an 8.25" long throw composite sandwich woofer with an extremely linear force factor and a ribbed surround, all powered by class AB analog amplification.
The drivers were designed using modeling techniques to minimize non-linear (inter-modulation) distortion, and each driver has an independent thermo limiter to protect the voice coils. It can be used as a near-field monitor, as a front loudspeaker in mid-sized multi-channel, or as a rear loudspeaker in a larger multi-channel system for project, music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering.
The speaker features both analog and daisy-chainable digital BNC I/O for flexible digital inter-connectivity (24 bit, 192 kHz, AES3, and S/P-DIF). It also features digital Lipsync delay (from 0 to 10/12 frames) for aligning audio and video signals as well as digital time-of-flight delay (from 0 to 400 ms) to compensate for different listening distances.
The front panel is made from one piece without discontinuities to reduce diffraction with protective metal grills and the cabinet is made of magnetically shielded aluminum to reduce resonances, improve heat dissipation, and extend the operating lifetime of the unit.
The system delivers a free field frequency response of 34 to 21,000 Hz with 4-position bass, low-mid, and treble acoustical controls for tailoring the response to different rooms and an input gain control from 0 to -15 dB. The front panel Neumann logo functions as an LED indicator for power and clip/limiting but can also be dimmed for light applications and for use when placed behind screens. A variety of wall, ceiling, truss, subwoofer, stand, and surface mounting options are available as well as transportation options through a range of accessories (sold separately). - Powerful Alloy Fabric Dome
- Provides low-distortion high frequency sound reproduction
- Elliptical Mathematically Modeled Dispersion Waveguide
- Provides smoother off-axis response for more forgiving and diverse acoustic environments and reduced reflections off the mixing console
- In-House Simulated Drivers
- Uses latest modeling techniques to minimize non-linear (inter-modulation) distortion
- Fabric Dome Neodymium Magnet Midrange Driver
- Uses dedicated midrange driver to reproduce important midrange frequencies, which is especially important for speech and vocals with a faster transient response and less breakup modes than cone designs. The high power magnet reduces harmonic and inter-modulation distortion
- Long Throw Composite Sandwich Cone Bass Driver with Extremely Linear Force Factor & Ribbed Surround
- Provides damping of break-up modes and low distortion at high sound levels. The linear piston motor gives a very low harmonic distortion even at high excursions with reduced radial break-up modes on the ribbed surround
- Two-Color + Dimmable Neumann Logo
- Displays operation status and activation of the extensive protection system
- Compact Sealed Three-Way Cabinet Design (Magnetically Shielded)
- Ensures no standing wave resonances and faster bass transient response with reduced inter-modulation distortion in the midrange
- One-Piece Front Panel Without Discontinuities
- Reduces diffraction and smoother frequency response
- Powerful Analog Class AB Amplifiers With Ample Headroom
- Improves transient response
- Independent Thermo Limiters for Woofer, Midrange Dome, and Tweeter
- Protects voice coils and provides fast acting highly reliable operation and extraction of the maximum performance from the system
- Production Consistency
- Ensures matched pairs
- 4-Position Bass, Low-Mid and Treble Acoustic Controls
- Enables more control in diverse acoustical environments
- Wide Range of Input Gain and Output Level Controls
- Enables easier interfacing with signal sources
- Ground Lift
- Reduces noise in electrically noisy environments and over comes ground loops
- Digital XLR and BNC Inputs With Buffered BNC Output
- Provides flexible and trouble-free digital inter-connectivity (24-bit, 192 kHz, AES3 and S/P-DIF)
- Lipsync Delay (0 to 10/12 Frames)
- Allows you to align audio and video signals
- Time-Of-Flight Delay (0 to 400 ms)
- Allows system to compensate for listening distance differences
- Universal Switched-Mode Power Supply (100 to 240 V)
- Allows for one version to work in any country and with poor quality main power supplies
- Mounting Hardware Options
- Offers flexibility in mounting cabinets in more diverse locations and provides backwards compatibility with previous models
- Optional Metal Grill
- Protects against mechanical damage
- Optional Transportation Accessories
- Offers soft carry bag with space for cables and a robust wooden flight case
- Display Dimmer
- Allows adjustments for low lighting conditions or behind the screen applications
UPC: 615104252974 In the Box Neumann KH 310 D - Active Studio Monitor with Digital Input and Delay (Right) 3 x Power Cable (European, UK, and US Version) 4 x Self-Adhesive Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KH 310 D - Active Studio Monitor with Digital Input and Delay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KH 310 D Specs | | | Monitor Type | Active 3-Way | | Enclosure | Sealed, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
MF Driver: 1 x 3" / 75 mm Cone
LF Driver: 1 x 8.25" / 210 mm Woofer | | Amplification | HF Amplifier: Rated at 70 W / 90 W Peak
MF Amplifier: Rated at 70 W / 90 W Peak
LF Amplifier: Rated at 150 W / 210 W Peak | | | | Frequency Range | 34 Hz to 21 kHz ± 3 dB | | Frequency Response | 36 Hz to 20 kHz ± 2 dB | | Maximum Sound Pressure Level (SPL) | 116.3 dB | | Dynamic Range | 120 dB | | Total Harmonic Distortion (THD) | 0.5% | | Maximum Input Level | +24 dBu
+18 dBu (for Analog Delayed) | | Analog Input Sensitivity/Gain | 0 to -15 dBu (Continuously Variable) | | Self-Generated Noise | Less Than 20 dBA (at 3.93" / 10 cm) | | Protections and Limiting | Excursion Limiter, Soft Limiter, and Thermal Limiting | | CMRR | 56 dB | | | | EQ | 1 x LF Shelf: -7.5 to 0 dB (2.5 dB Increments)
1 x Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Increments)
1 x HF Shelf: -2 to +1 dB (1 dB Increments) | | Filters | High-Pass at 15 Hz, 6 dB/Octave Slope | | | | Crossover Frequency | Low-Pass Frequency: 650 Hz, 24 dB/Octave Slope
High-Pass Frequency: 2 kHz, 24 dB/Octave Slope | | | | I/O | 1 x 3-Pin XLR Balanced Female Analog Input (13 kOhms)
1 x 3-Pin XLR AES/EBU Female Digital Input
1 x BNC AES/EBU Digital Input
1 x BNC AES/EBU Digital Output Digital I/O Supports S/PDIF Protocol via RCA/BNC or RCA/XLR Adapter (Not Included) | | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 30 W (Idle)
300 W (Maximum) | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 90% | | | | Enclosure Material | Aluminum, Metal Grille, Wood | | Mounting Points | 2 x M8 (Side Panels) Rear Panel Screws for Attaching LH 41 Base Plate, Rear Panel Bracket | | Dimensions (W x H x D) | 15.1 x 10.0 x 11.5" / 380.0 x 590.0 x 360.0 cm | | Weight | 14.9 lb / 13.1 kg | | | | Package Weight | 36.95 lb | | Box Dimensions (LxWxH) | 23.1 x 15.1 x 14.6" |
