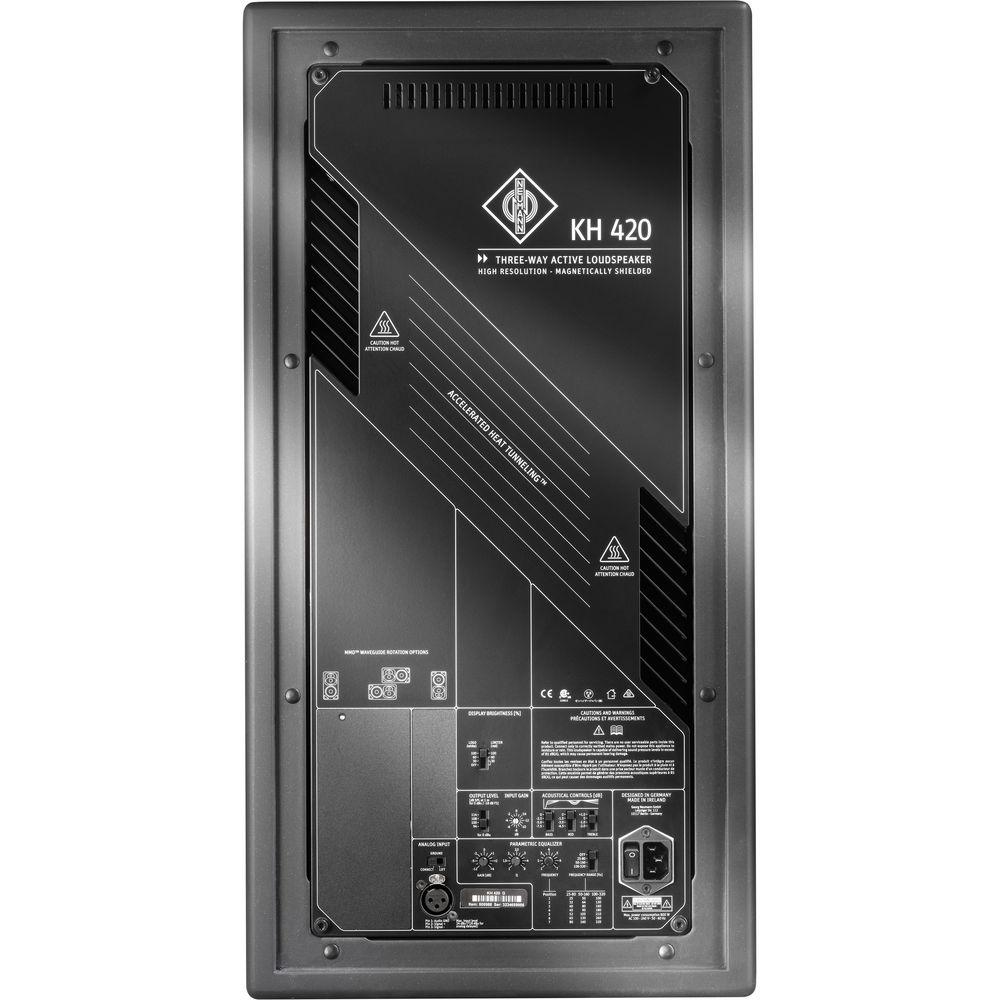

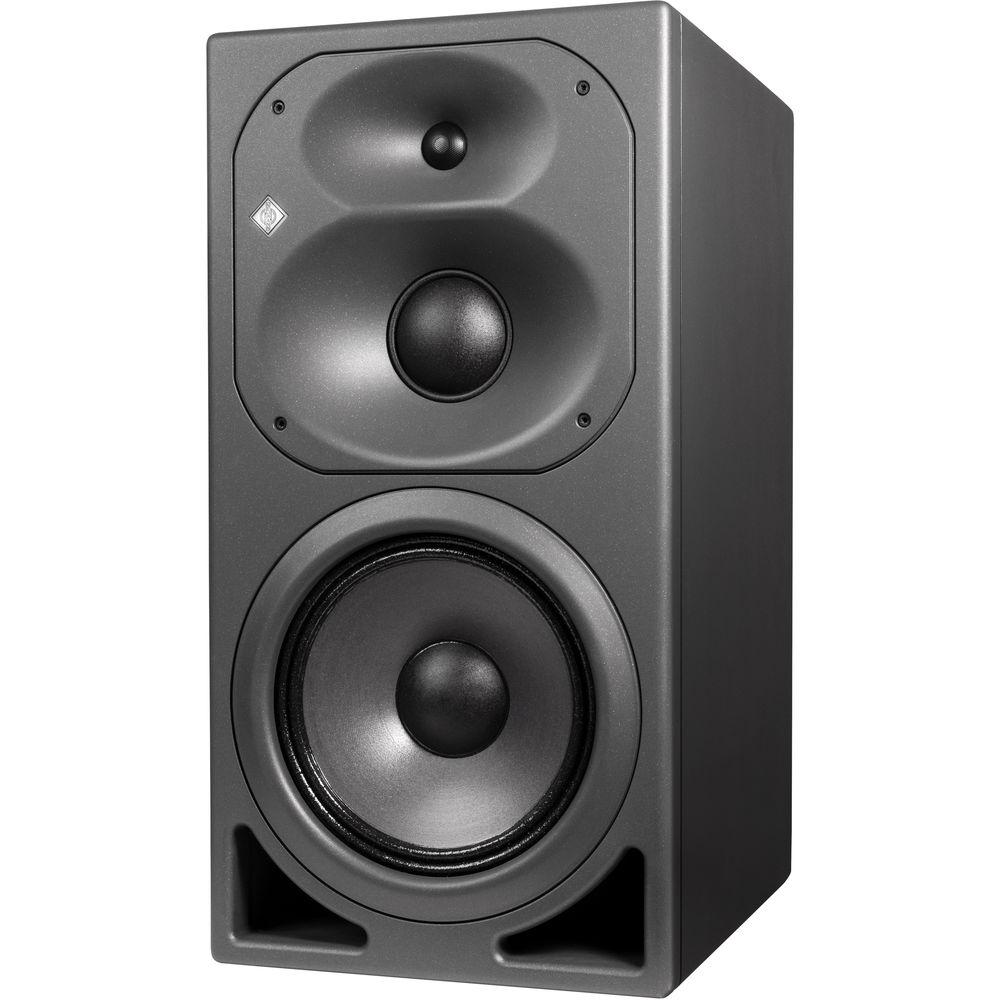

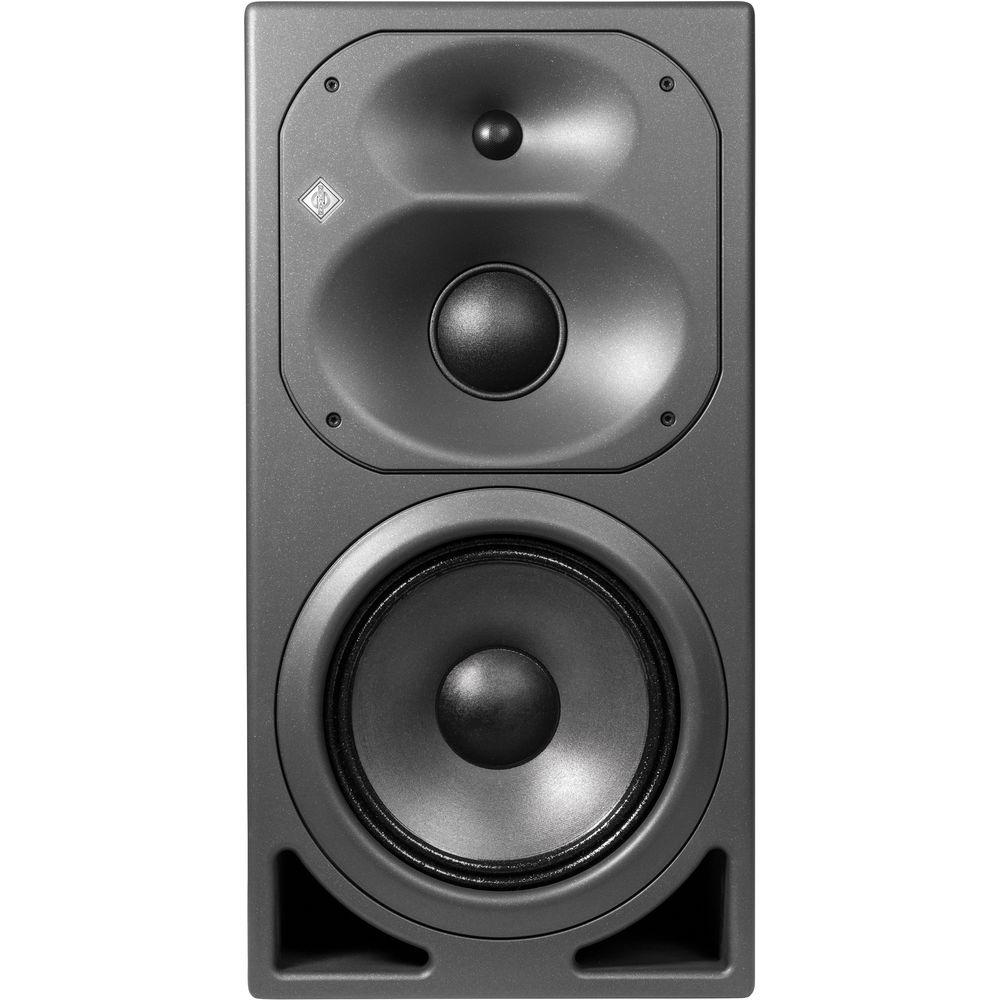

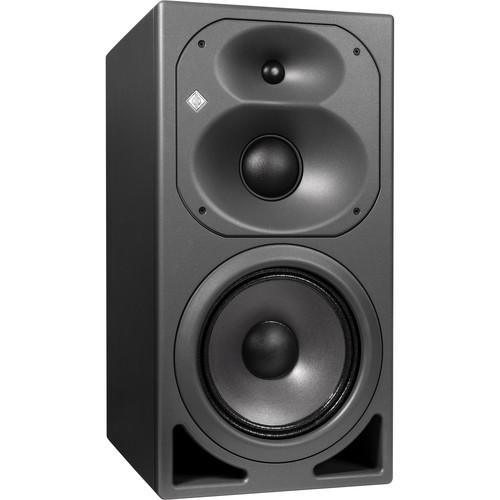

Product description The KH 420 from Neumann is a three-way active monitor designed for use as a mid-field or main monitor, and can be used free-standing or flush mounted into a wall. It is particularly well-suited for use in music, broadcast, and post production studios for tracking, mixing and mastering, and in multi-channel systems can be mixed freely with other loudspeakers in the range.
In-house computer optimized drivers, a waveguide featuring Mathematically Modeled Dispersion (MMD), flexible acoustical controls, various input options and an extensive mounting hardware range allow the KH 420 to be used in diverse acoustical conditions, with any source equipment, and in a wide variety of physical locations. - Computer mechanically modeled three-way cabinet design using Low Resonance Integral Molding (LRIM) materials
- In-house simulated magnetically shielded drivers
- Alloy fabric dome tweeter with built-in grille
- Fabric dome, neodymium magnet, midrange driver
- Long throw bass driver with Extremely Linear Force Factor (ELFF) and flow optimized die cast basket
- High-capacity flow-optimized bass reflex ports with pipe damped
- Elliptical Mathematically Modeled Dispersion (MMD) waveguide, with wide horizontal and narrow vertical dispersion
- Electronics panel with dimensioned integrated Accelerated Heat Tunneling (AHT) heat sink
- Analog class AB amplifiers with large headroom and overheat limiting
- Fast-acting independent thermo limiters for woofer, midrange dome and tweeter to protect the voice coils
- Woofer soft clip and excursion limiters
- Four-position bass, low-mid and treble acoustical controls and easy to use parametric equalizer
- Wide range input gain and output level controls
- Individual hand-alignment in final test
- Fully documented extensive mounting hardware options (hardware sold separately)
UPC: 615104252103 In the Box Neumann KH 420 - 3-Way Active Studio Monitor 3 x AC Power Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KH 420 - 3-Way Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KH 420 Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x 1" / 25 mm Tweeter
MF Driver: 1 x 3" / 76 mm Cone
LF Driver: 1 x 10" / 265 mm Woofer | | Amplification | HF Amplifier: Class-AB Rated at 130 W / 140 W Peak
MF Amplifier: Class-AB Rated at 130 W / 140 W Peak
LF Amplifier: Class-AB Rated at 295 W / 330 W Peak | | | | Frequency Range | 26 Hz to 22 kHz ± 3 dB | | Frequency Response | 28 Hz to 20 kHz ± 2 dB | | Maximum Sound Pressure Level (SPL) | 122.4 dB | | Total Harmonic Distortion (THD) | 0.5% | | Analog Input Sensitivity/Gain | +4 to -12 dB (Continuously Variable) | | Self-Generated Noise | Less Than 20 dBA (at 3.93" / 10 cm) | | Protections and Limiting | Excursion Limiter, Peak Limiter, and Thermal Limiting | | | | EQ | 1 x LF Shelf: -7.5 to 0 dB (2.5 dB Increments)
1 x Mid Notch/Peak: -4.5 to 0 dB (1.5 dB Increments)
1 x HF Shelf: -2 to +1 dB (1 dB Increments) | | Parametric EQ | -12 to +4 dB Between 25Hz and 80Hz, Q: 1 to 8
-12 to +4 dB Between 50Hz and 160Hz, Q: 1 to 8
-12 to +4 dB Between 100Hz and 320Hz, Q: 1 to 8 1 Parametric EQ with Selectable Frequency Ranges | | | | Crossover Frequency | Low-Pass Frequency: 570 Hz, 24 dB/Octave Slope
High-Pass Frequency: 2 kHz, 24 dB/Octave Slope | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 60 W (Standby)
800 W (Maximum) | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 90% | | Storage Temperature | -13 to 158°F / -25 to 70°C | | | | Enclosure Material | Aluminum, Metal Grille, Wood | | Mounting Points | 8 x M5 (Rear Panel) | | Dimensions (W x H x D) | 13.0 x 25.4 x 17.5" / 330.0 x 645.0 x 444.0 mm | | Weight | 77.2 lb / 35.0 kg | | | | Package Weight | 92.4 lb | | Box Dimensions (LxWxH) | 30.2 x 24.25 x 23.4" |
