User Manual for Neumann KH 750 Compact DSP-Controlled Closed-Cabinet Subwoofer Click to enlarge the picture
Contents of the user manual for the Neumann KH 750 Compact DSP-Controlled Closed-Cabinet
- Product category: Studio Monitors Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Studio Monitors
 |
User manual for the Neumann KH 750 Compact DSP-Controlled Closed-Cabinet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|

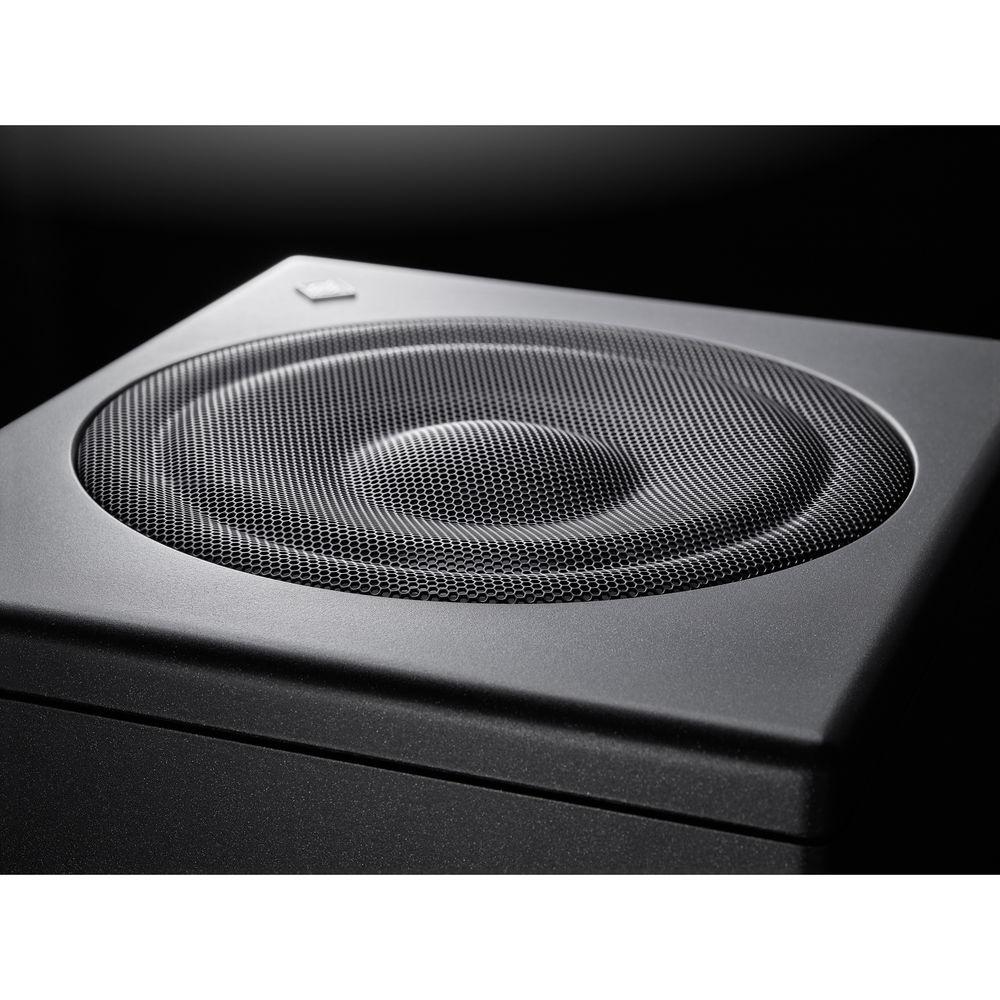

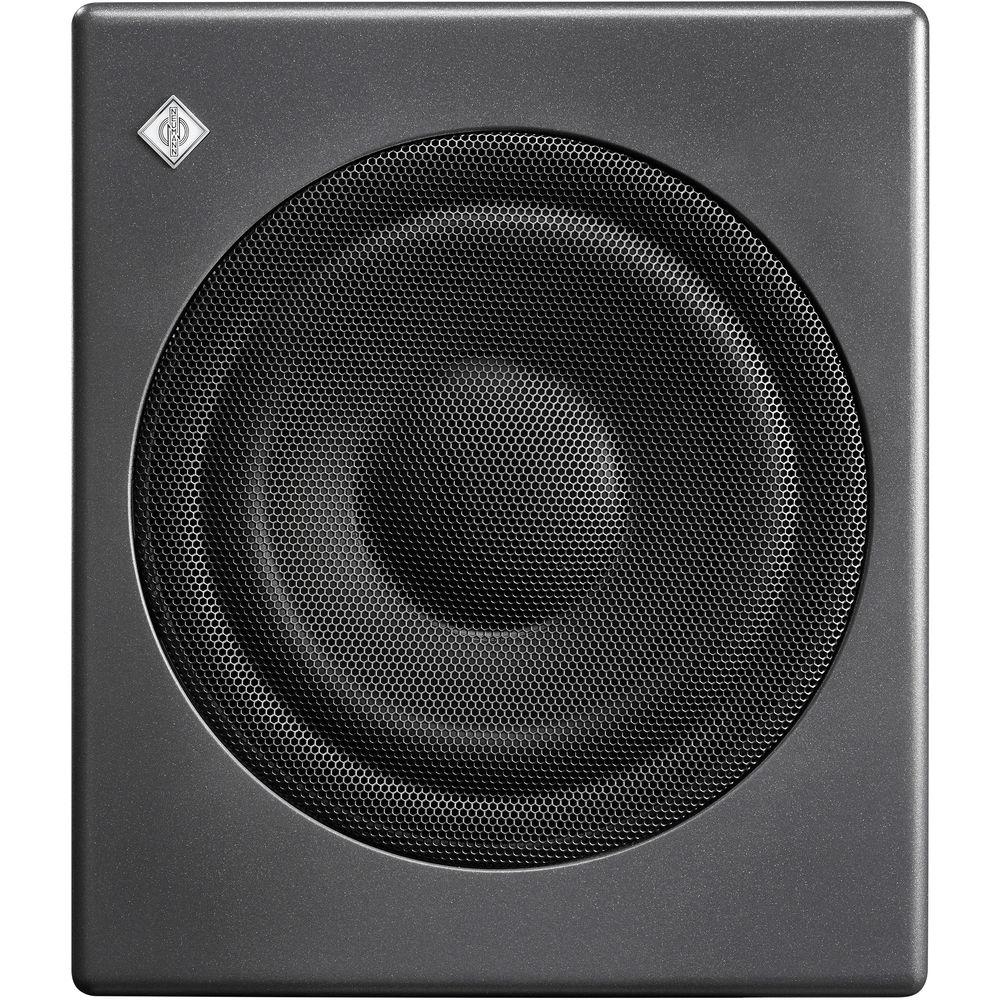

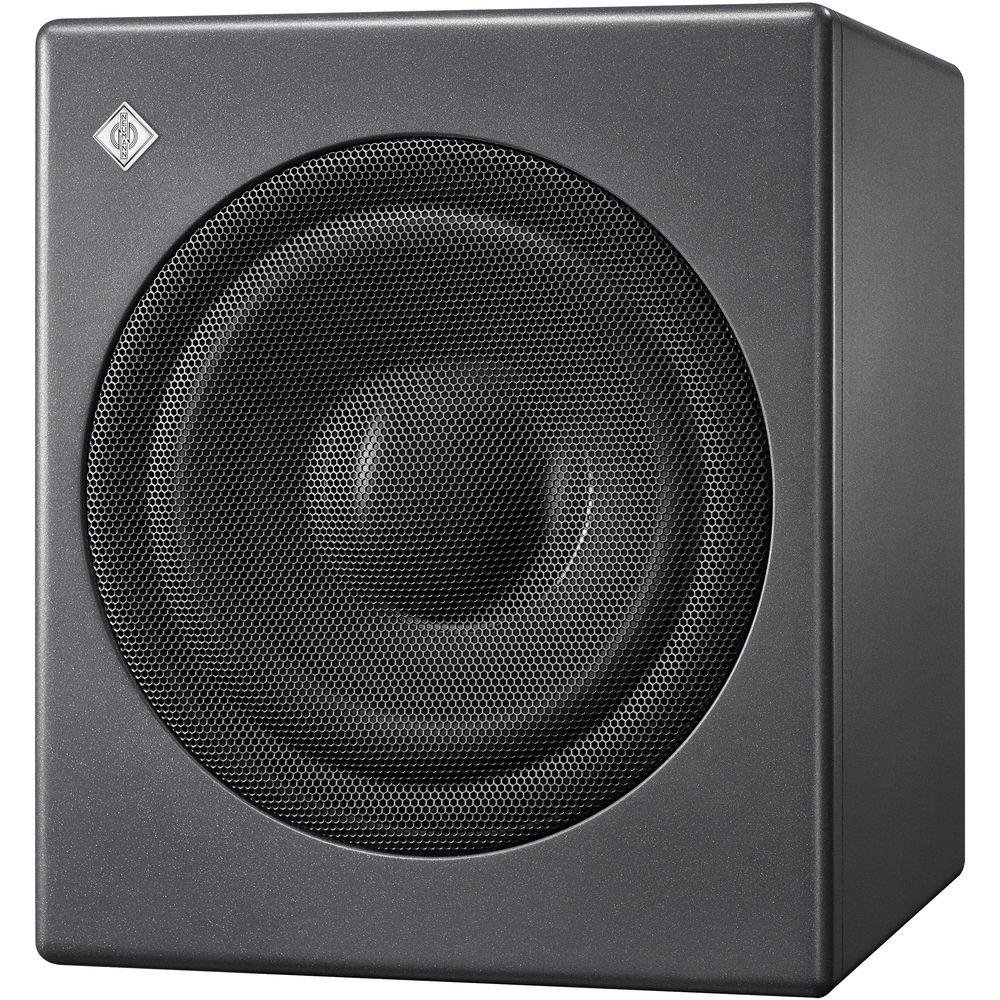

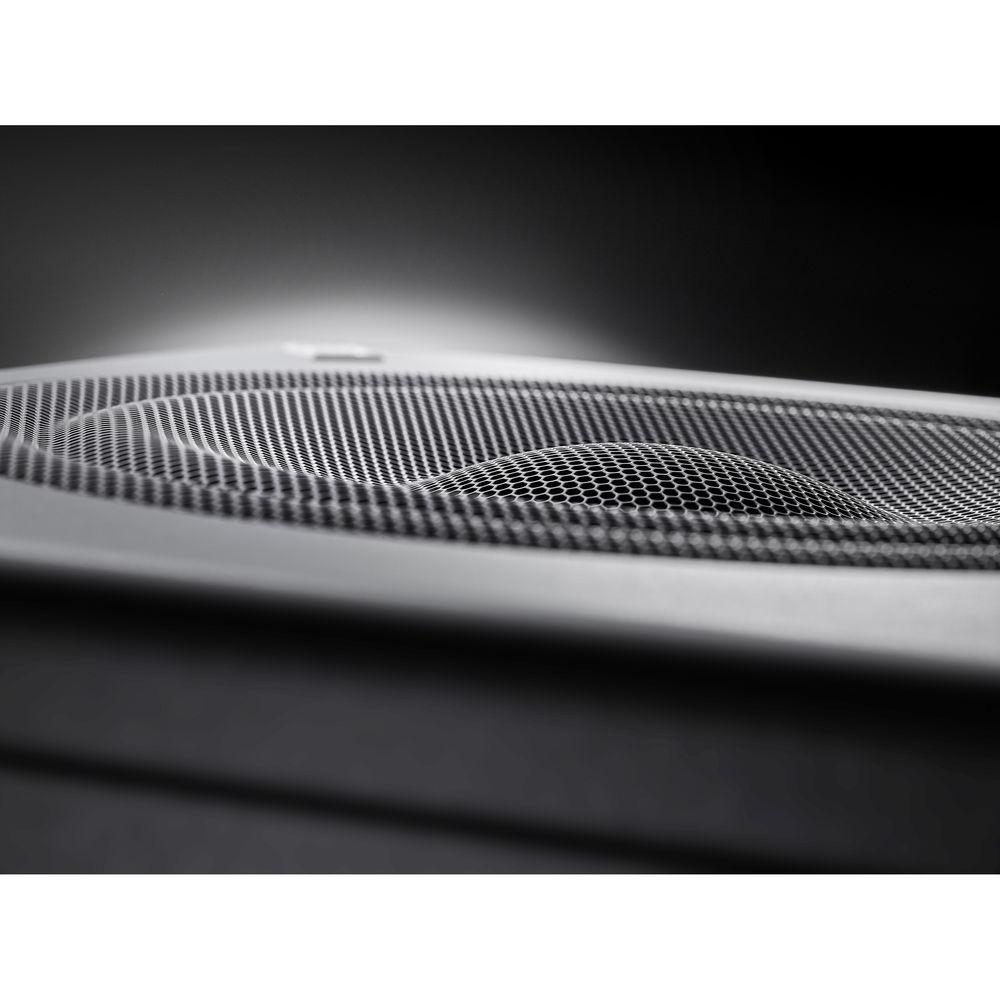

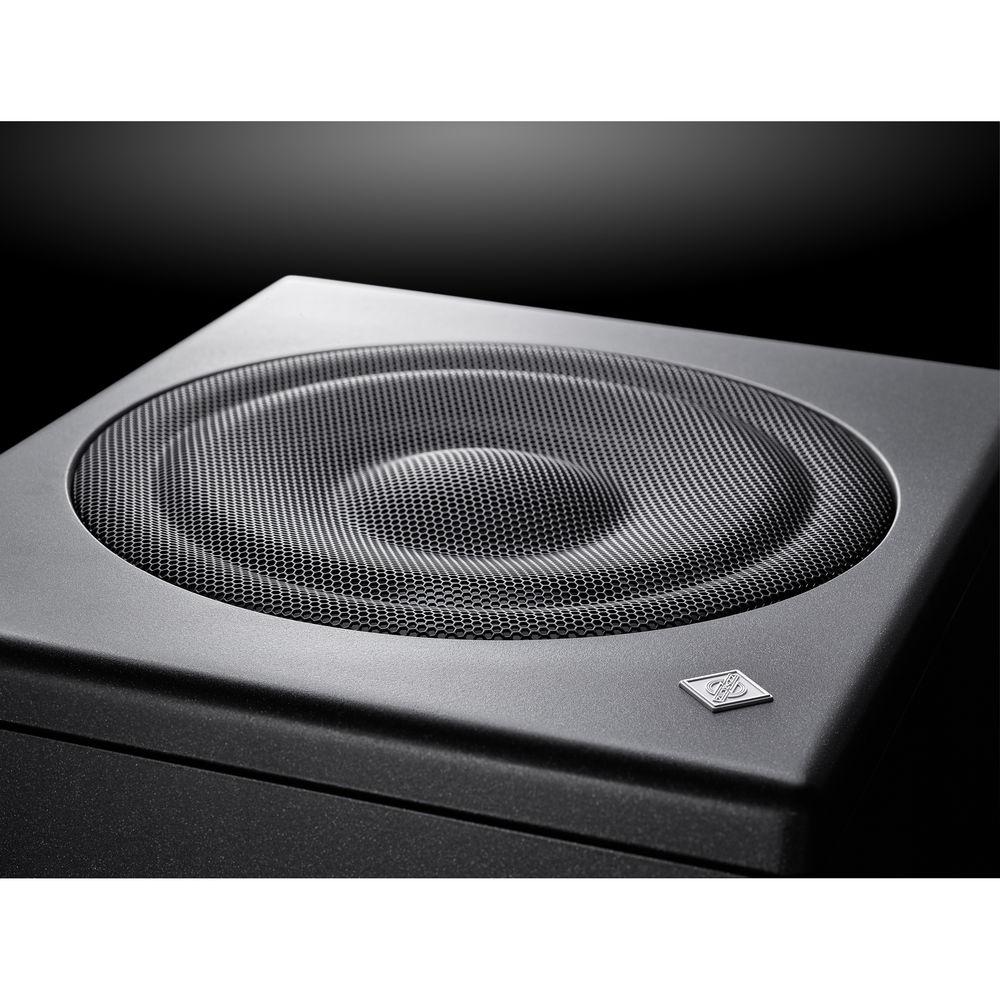

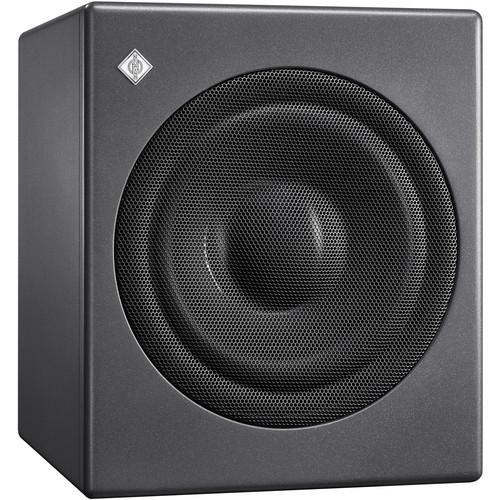

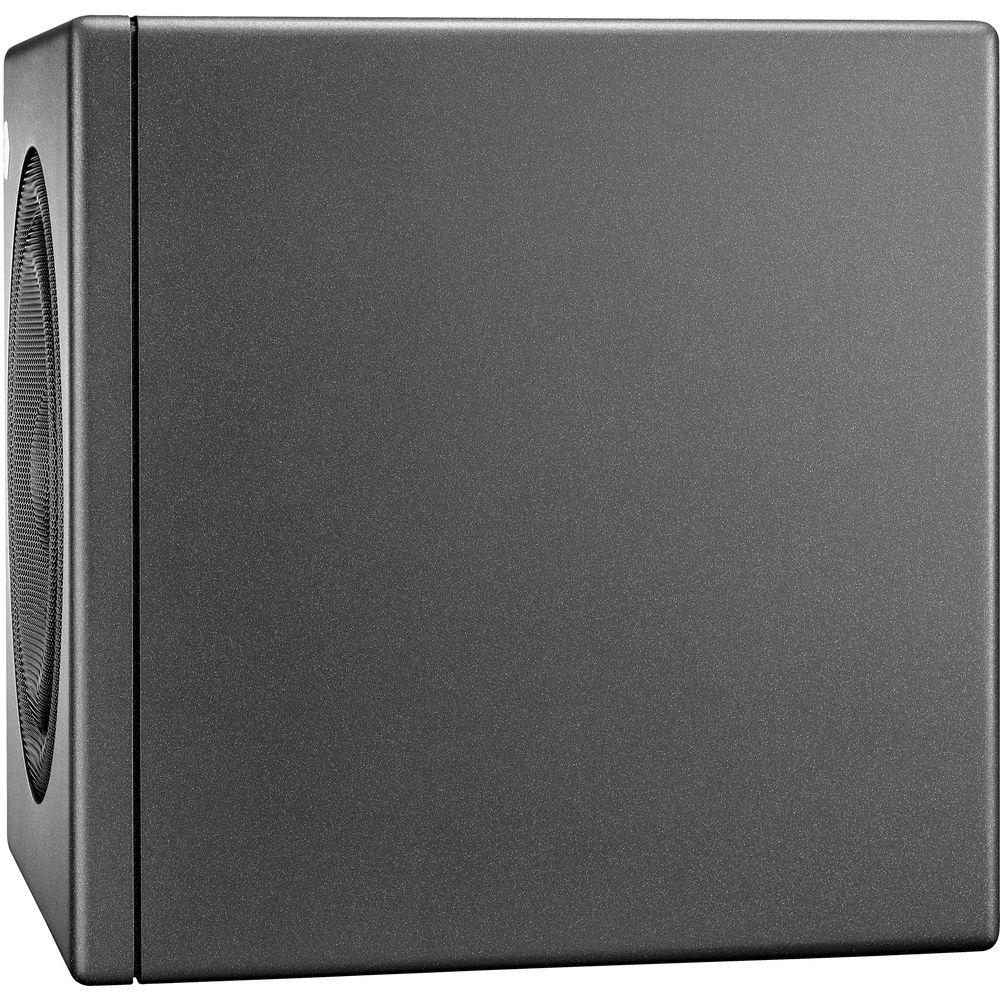

Product description Designed to complement both small rooms small studio monitoring systems, the Neumann KH 750 is a DSP-powered, 10" subwoofer capable of reproducing 18 to 300 Hz at SPLs of 105 dB. This model supplies a flexible 2.0/0.1 Bass Manager, so the sub can be implemented in many different scenarios. Use the KH 750 for the LFE channel in a 5.1 setup or as a sub in a conventional stereo mix position. The KH 750 can be easily integrated with Neumann's range of monitors and is suitable for use in mixing, mastering, music, and broadcast.

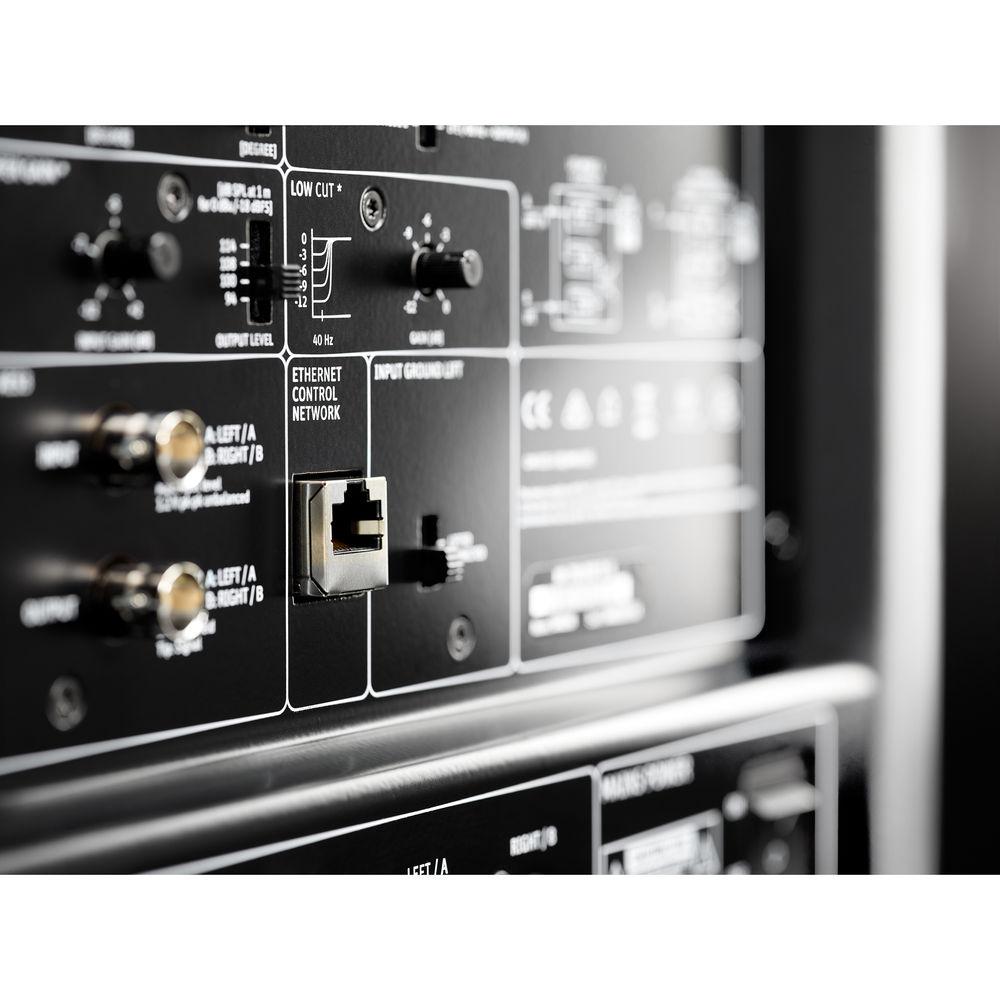

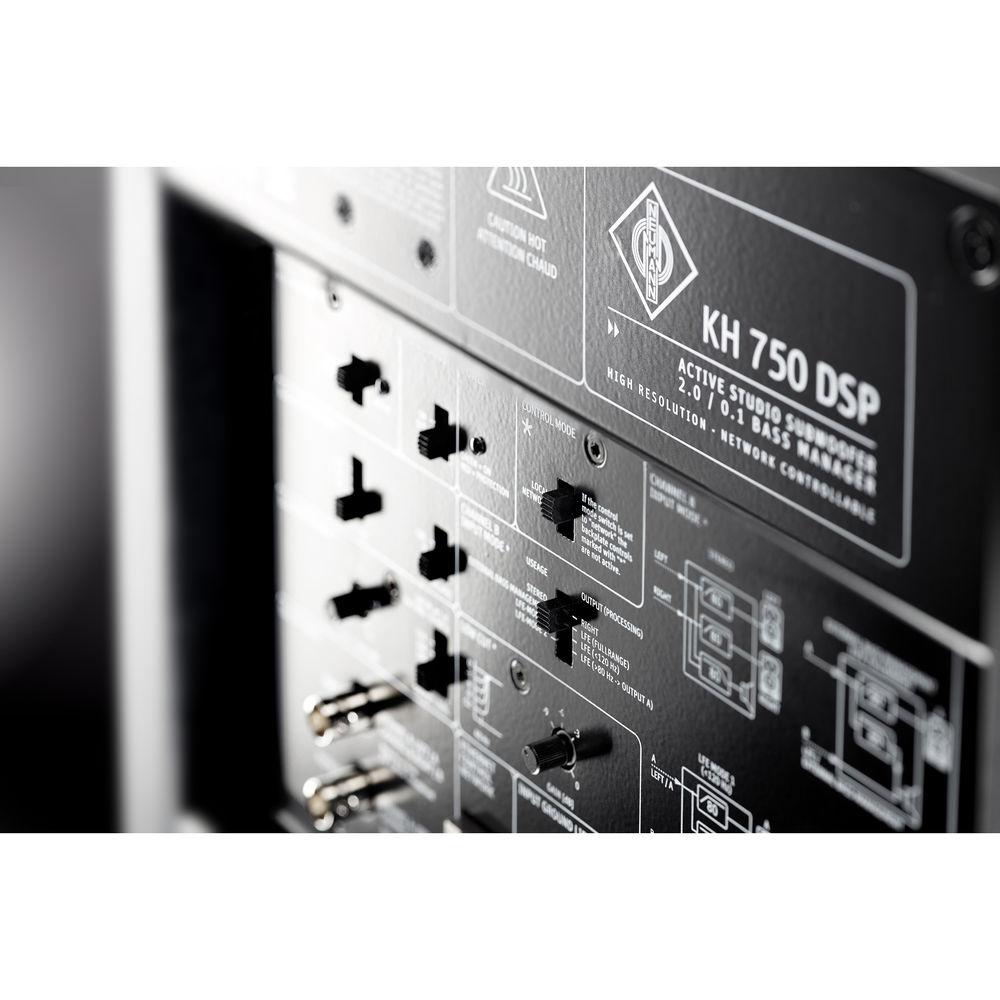

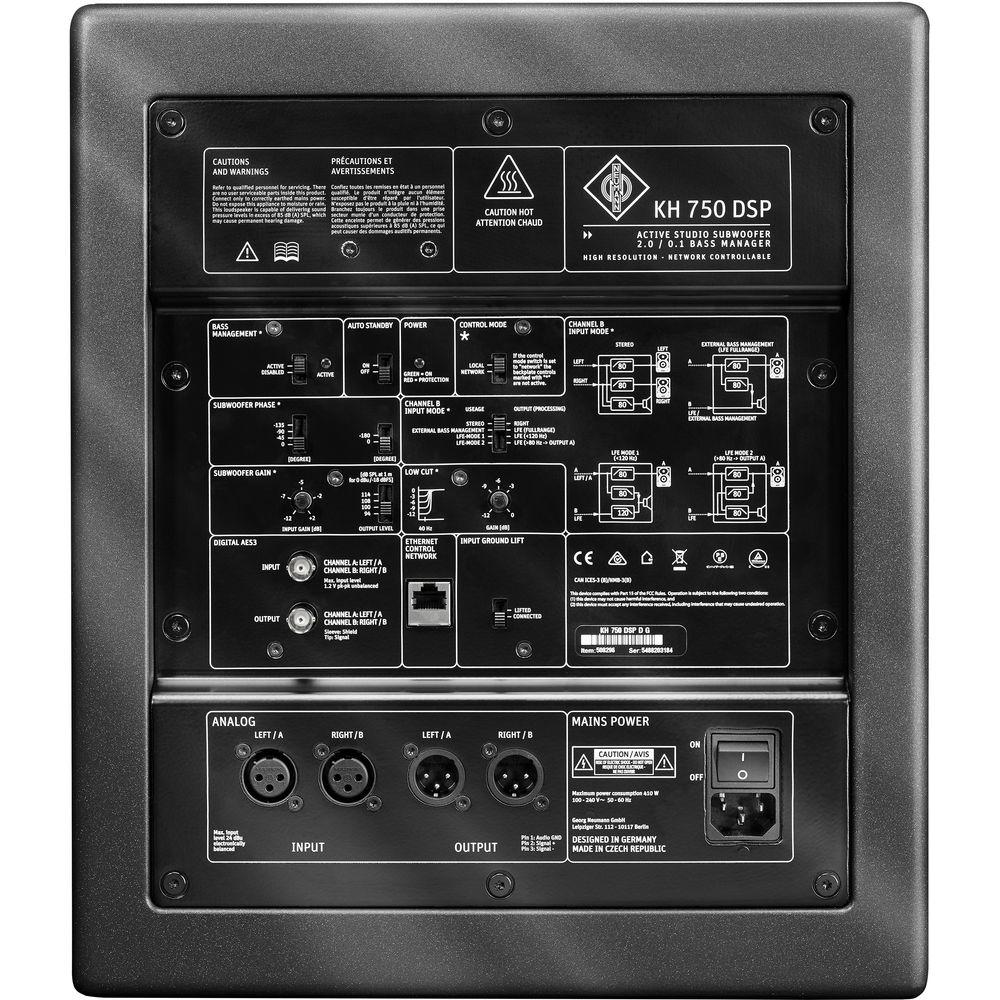

The KH 750 has multiple rear-panel options to suit various configurations such as four different routing modes. Analog and digital I/O is on hand, as are fourth-order DSP crossovers and acoustical controls to integrate the sub into your room. Using the RJ45 connection, you can utilize Neumann.Control, which operates over a standard IP network and offers controls for the KH 750 not found on the physical sub itself. These controls make it easier to set up, align, and operate the sub within your system, even in small locales. The Neumann.Control software can be controlled by means of your computer or an iPad.
Use the KH 750 to complement your small studio monitoring rig, and in doing so, relive the burden of bass extension from your existing monitoring system. By implementing this sub, you'll also notice a marked decrease of harmonic and intermodulated distortion from your main monitors, as that load has now been lessened. A pleasant side effect will be the ability to increase the overall SPL of your loudspeakers, so you can check for how the mix sounds at louder levels without inducing distortion. - Features at a Glance
-
- Decreases the bass extension of the monitoring system
- Increases the maximum SPL of loudspeakers
- Decreases harmonic and intermodulation distortion of loudspeakers
- Reproduces the LFE channel
- Reproduces the sub signal of a bass-managed multichannel source
- Makes a Plane Wave Bass Array system
- Works as an extension for KH 810, KH 870, and KH 805 subwoofer systems
UPC: 615104316560 In the Box Neumann KH 750 Compact DSP-Controlled Closed-Cabinet Subwoofer Mains Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KH 750 Compact DSP-Controlled Closed-Cabinet Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KH 750 Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Sealed, Shielded | | Power Rating | 256 W | | Drivers | LF Driver: 1 x 10" / 254 mm Woofer | | | | Frequency Range | 18 Hz to 300 Hz | | Frequency Response | 18 Hz to 800 Hz ± 6 dB Free field frequency response; 18 Hz to 750 Hz free field frequency response at +/-3 dB | | Maximum Sound Pressure Level (SPL) | 105 dB | | Dynamic Range | 119 dBA >120 dBA A/D/A, >123 dBA D/A | | THD+N | < -100 dB (Analog)
< 90 dB (Digital) | | Maximum Input Level | +24 dBu | | Analog Input Sensitivity/Gain | +2 dB to -12 dB | | Self-Generated Noise | Less Than 20 dBA (at 3" / 10 cm) | | Phase Adjustment | Phase Inversion 0 / 180° 0, 45, 90, and 135 via Neumann.Control | | Protections and Limiting | Limiter, Peak Limiter, Thermal Limiting | | CMRR | 56 dB | | | | EQ | 1 x LF Shelf dB
1 x HF Shelf dB These Filters, Plus 8 Parametric Controls, are available via Neumann.Control | | Filters | 1 x Low-Pass | | | | Crossover Frequency | 80 Hz 60 to 100 Hz via Neumann.Control | | Crossover Type | Active | | | | I/O | 2 x XLR Balanced Female Analog Input
2 x XLR Balanced Male Analog Output
1 x BNC AES/EBU Female Digital Input
1 x BNC AES/EBU Female Digital Output BNC Inputs Also S/PDIF Compatible | | Computer Interface | 1 x RJ45 (Controller) | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 410 W (Maximum) | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Operating Humidity | 90% | | Storage Temperature | -13 to 158°F / -25 to 70°C | | | | Enclosure Material | Aluminum, Wood | | Dimensions (W x H x D) | 13.0 x 15.1 x 15.1" / 330.0 x 383.0 x 383.0 mm (Each) | | Weight | 43.0 lb / 19.5 kg (Each) |
