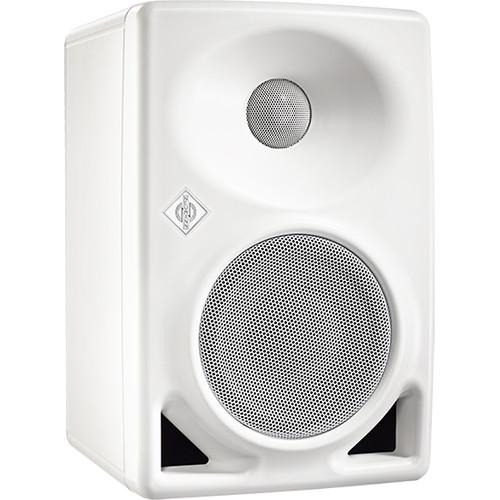

User Manual for Neumann KH 80 DSP 4" 1" Active 2-Way Studio Monitor Click to enlarge the picture
Contents of the user manual for the Neumann KH 80 DSP 4" 1"
- Product category: Studio Monitors Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Studio Monitors
|
User manual for the Neumann KH 80 DSP 4" 1" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The white Neumann KH 80 DSP is a 2-way active studio monitor well suited for near-field monitoring and multichannel setups in music studios, broadcast centers and vans, as well as home studios and desktop audio applications. The KH 80 utilizes two amplifiers (120W and 70W) to power the 4" woofer and 1" tweeter respectively, an onboard DSP engine, a Mathematically Modeled Dispersion waveguide (MMD), an analog input, and an extensive range of optional mounting hardware. The DSP function is accessed via a standard IP network connection that allows the monitoring system to be controlled using the Neumann.Control app, which runs on a Windows/Mac computer or iOS/Android tablet. With the use of the latest acoustic and electronic simulation and measurement technologies, the KH 80 can be used in diverse acoustical conditions with any source equipment and in a wide variety of physical locations, ensuring accurate sound reproduction. -
- Setup:
- 1, 2, 4, 5, 7, and 9 loudspeakers
- Identify loudspeakers on the network that are in the room
- Assign the identified loudspeakers to positions in the room
- Align:
- Guided Alignment: A process where you are asked very simple questions about the room and the loudspeaker position, and then the app adjusts the response of each loudspeaker accordingly
- Manual Alignment: 8-band fully parametric equalizer for expert users. Expert users have complete freedom to adjust an 8-band parametric equalizer, levels and delays in each loudspeaker as they wish. Manual Alignment can also be used to edit Guided Alignments in a more detailed way
- Operate:
- System and alignment selection
- Volume control, preset levels, dim, mute all
- Groups, solos, mutes
- Other system settings such as delay, standby level, and logo brightness
-
- In-house simulated 1" tweeter with alloy fabric dome
- Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
- Low-distortion high frequency reproduction
- Powered by highly efficient 70W amplifier
- Elliptical Mathematically Modeled Dispersion (MMD) waveguide
- Smoother off-axis response
- More forgiving of diverse acoustical environments
- Wide horizontal dispersion
- Freedom of movement across the mixing console
- Narrow vertical dispersion
- Reduces reflections off the mixing console
- Two-color + dimmable Neumann logo
- Displays operation status and activation of the extensive protection system
- Dimmable for low-lighting conditions or behind the screen applications
- In-house modeled long-throw composite sandwich 4" cone bass driver with Extremely Linear Force Factor (ELFF), magnetic shielding and flow optimized die cast basket
- Damping of break up modes brings low distortion at high sound levels
- Linear pistonic motor gives a very low harmonic distortion even at high excursions
- Reduced air noise and improved rocking modes
- Powered by highly efficient 120W amplifier
- Robust metal grilles
- Protects against mechanical damage
- Large high-capacity flow-optimized bass reflex ports with pipe resonance damping
- Fast bass transient response
- Reduced bass compression at high output levels
- No coloration from organ pipe resonance
- Easier to mount in tight spaces
- Compact polycarbonate composite cabinet
- Robust package for a long life
- No standing wave resonances
- One-piece front panel with no discontinuities
- Reduced diffraction and smoother frequency response
- Standby function
- Reduces power consumption when product is not in use
- Control function
- Use the back panel controls or the control set defined by the Neumann.Control software
- 4-position low-mid acoustical control
- Compensates for nearby desktops
- Fast acoustical set up in mobile applications
- Repeatable acoustical settings after moving loudspeakers
- Wide range input gain and output level controls
- Easier interfacing with signal sources
- Fully documented extensive mounting hardware range
- More flexibility in mounting cabinets in more diverse locations and backwards compatible to previous products
- Easy advanced planning for installations
- Universal double-insulated switched-mode power supply (100 to 240V)
- One version works in any country and robust to poor quality mains supply
- Ground loops are impossible
- Network connector using standard IP protocol and your existing network infrastructure
- No additional special equipment needed
- Loudspeaker system can be controlled via the Neumann.Control software
- Analog input socket can accept XLR or 6.3 mm (1/4”) jack plugs, electronically balanced with completely symmetrical internal signal chain
- Completely symmetrical internal signal routing minimizes noises caused by external electromagnetic interference
-
- Production consistency due to automated computer optimized alignment in final testing
- Any KH 80 DSP is pair matched to any other KH 80 DSP
- Separate fast acting thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers
- Woofer soft clip and excursion limiters
- Fast acting and highly reliable
- Allows extraction of the maximum performance
- Low heat dissipation amplifiers with large headroom and overheat limiting
- Improved transient response
- Assured reliability and safety
- 8 Precision Alignment acoustical controls accessible via control network
- Accurate and flexible alignment of the loudspeaker in the room and within systems
- Delay (0 to 70 ms)
- Lip-sync: To align audio and video signals up to 1.75 frames at 50 Hz or 2.1 frames at 60 Hz
- Time-of-flight: To compensate for listening distance differences up to 24 m (79 ft.)
- Linear phase crossover
- Flat phase response for timing transparency
UPC: 615104271067 In the Box Neumann KH 80 DSP 4" + 1" Active 2-Way Studio Monitor (White, Single) Power Cord 4 x Self-Adhesive Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KH 80 DSP 4" 1" Active 2-Way Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KH 80 DSP Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | LF Driver: 1 x 4" / 101.6 mm Composite Cone
HF Driver: 1 x 1" / 25.4 mm Tweeter | | Amplification | LF Amplifier: Rated at 90 W / 120 W Peak
HF Amplifier: Rated at 50 W / 70 W Peak | | | | Frequency Range | 53 Hz to 21 kHz ± 6 dB
57 Hz to 21 kHz ± 3 dB | | Maximum Sound Pressure Level (SPL) | 108.8 dB | | Dynamic Range | 114 dBA | | Maximum Input Level | +24 dBu (Balanced) | | Analog Input Sensitivity/Gain | 0 dB to -15 dB (Incrementally Variable) | | Protections and Limiting | Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting | | | | Crossover Frequency | Low-Pass Frequency: 1.8 kHz, 48 dB/Octave Slope | | | | I/O | 1 x Combo XLR / 1/4" Balanced Female Analog Input | | Computer Interface | 1 x RJ45 (Network) | | | | AC Input Power | 100 to 240 VAC at 50/60 Hz | | Power Consumption | 180 W (Maximum) | | | | Operating Temperature | 50 to 104°F / 10 to 40°C | | Storage Temperature | -13 to 158°F / -25 to 70°C | | | | Mounting Points | 2 x M6 (Rear Panel) | | Dimensions (W x H x D) | 6.1 x 9.2 x 7.6" / 154.0 x 233.0 x 194.0 mm | | Weight | 9.0 lb / 4.1 kg |
