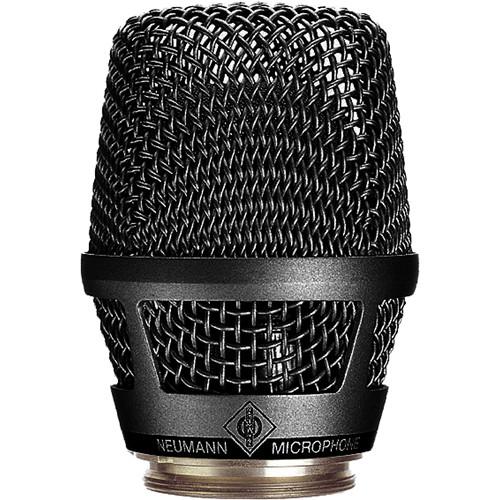

User Manual for Neumann KK 105S Capsule Head for Sennheiser SKM 5200 SKM 5000 N Handheld Transmitters Click to enlarge the picture
Contents of the user manual for the Neumann KK 105S Capsule Head for
- Product category: Microphone Capsules Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Microphone Capsules
|
User manual for the Neumann KK 105S Capsule Head for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The black Neumann KK 105S Capsule Head combines with the Sennheiser SKM 5200 / SKM 5000 N Wireless Systems to take sound into the wireless domain, thus opening up new dimensions for sophisticated live-performance engineering.
In terms of engineering, the KK 105S is a wireless variant of the KMS 105, 140, and 150 family of wired vocalist microphones. It inherits not only their impressive tonal characteristics and specifications, but also their sturdiness and efficiency in suppressing popping and handling noise.
The Sennheiser SKM 5200 and SKM 5000 N handheld transmitters are advanced versions of the SKM 5000, optimized for the capsule head, and ensuring reliable, interference-free, high-quality transmission of the capsule signal to the corresponding Sennheiser receiver. The capsule is available in a black-colored nickel finish to coordinate with the handheld transmitter. It also comes in a spacious, roadworthy nylon pouch, big enough to hold not only the capsule, but the transmitter (sold separately), battery packs (sold separately), and additional accessories (sold separately) as well.
This heavy-duty capsule features integrated foam pop-screen instead of wire mesh for even better plosive attenuation. In addition, the foam material provides a very large surface area and can therefore absorb moisture very well. Note: Existing Sennheiser SKM 5000 transmitter can be upgraded with the KK 105S capsule. To take full advantage of acoustical properties of the head it is recommended to utilize it with SKM 5200 / 5000 N. General - Capsule head engineering expands with Sennheiser live performance engineering
- Low susceptibility to handling noise & low self noise
- Built-in, highly effective suppression of popping noises
- Easy dismantling for cleaning
- Pure, open, and neutral sound transmission, free of coloration
Application - Vocals and speech on stage
- Especially suited for in-ear-monitoring
- Especially suitable with front-of-stage monitor systems
- For feedback-prone environment 1
Please Note: These are just some of the most common applications. Additional experimentation is recommended to gain maximum use from this microphone. close In the Box Neumann KK 105S Capsule Head for Sennheiser SKM 5200 / SKM 5000 N Handheld Transmitters (Black) Padded Nylon Bag Allen Wrench Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KK 105S Capsule Head for Sennheiser SKM 5200 SKM 5000 N Handheld Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KK 105-S Specs | Directional Pattern | Supercardioid | | Frequency Range | 20 Hz to 20 kHz | | Sensitivity | At 1 kHz into 1 kΩ: 1.3 mV/Pa ± 1 dB -58 dBV | | Equivalent Noise Level | 44 dB (CCIR)
33 dB-A (A-weighted) According to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS. | | Maximum SPL | For 0.5% THD: 150 dB
For 3% THD: 155 dB THD of microphone amplifier at an input voltage equivalent to the capsule output at the specified SPL. | | Dynamic Range | >117 dB-A (A-weighted) | | Switching Bandwidth | 24 MHz | | Transmitter | Frequency: 16 | | RF Output | 50 mW (-3 dB) | | Noise Suppression | Sennheiser HiDynplus | | Dimensions (Ø x L) | Inclusive of Transmitter: 1.8 x 10.1" (48.0 x 257.0 mm) | | Weight | Including Transmitter & Power Supply Unit: Approximately 11.4 oz (325.0 g) |
