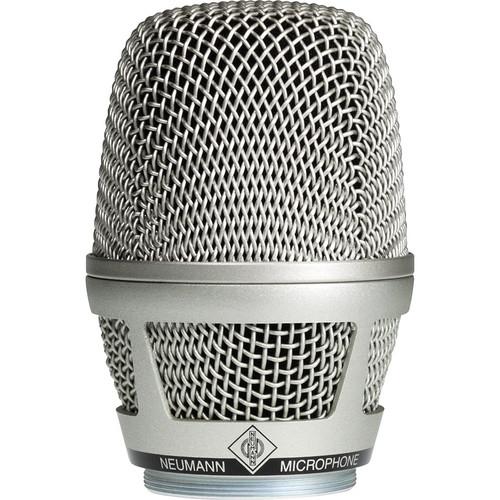

User Manual for Neumann KK 204 Cardioid Microphone Capsule for Sennheiser SKM 2000 System Click to enlarge the picture
Contents of the user manual for the Neumann KK 204 Cardioid Microphone Capsule
- Product category: Microphone Capsules Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Microphone Capsules
|
User manual for the Neumann KK 204 Cardioid Microphone Capsule contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The nickel Neumann KK 204 Cardioid Microphone Capsule for Sennheiser SKM 2000 System provides a full, transparent and naturally warm sound without excessive accentuation of the bass. Due to the single polar pattern design, the polar patterns are very uniform over the entire frequency range, thus providing the basis for excellent resistance to feedback.
The capsule is developed especially for the Sennheiser SKM 2000 system. Particular importance has been placed on further damping of pop sounds and handling noise, an extremely low level of self-noise, and ease of servicing. This capsule has integrated foam pop protection. The foam pores have a greatly increased surface area and can keep extreme moisture away from the capsule.
The capsule provides the best possible suppression of sound originating from 180° to the rear. - Low susceptibility to handling noise
- Built-in, highly effective suppression of popping noises
- Easy dismantling for cleaning
- Pure, open, and neutral sound transmission
UPC: 615104086517 Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KK 204 Cardioid Microphone Capsule for Sennheiser SKM 2000 System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KK 204 Specs | Directional Pattern | Cardioid | | Frequency Range | 40 Hz - 20 kHz | | Sensitivity | 2.8 mV/Pa ± 1 dB ≅ -51 dBV
Note: At 1 kHz into 100 kOhm rated load impedance. 1 Pa ≅ 94 dB SPL. | | Equivalent Noise Level | CCIR: 35 dB
A-Weighted: 24 dB-A
Note: According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS | | Max SPL (0dB=20µPa) | 150 dB
Note: THD of microphone amplifier at an input voltage equivalent to the capsule output at the specified SPL. | | Dynamic Range | >126 dB-A | | Diameter | 2.16" (55 mm) | | Total Length | 10.7" (272 mm) | | Weight | Approximately 1.1 lbs (500 g) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 12.2 x 3.8 x 3.0" |
