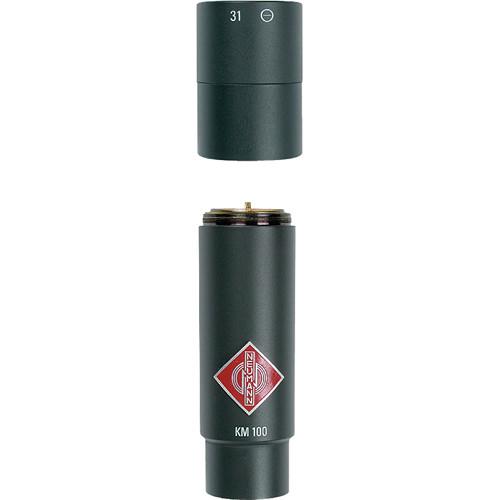

User Manual for Neumann KM 131 Microphone with AK 31 Capsule Click to enlarge the picture
Contents of the user manual for the Neumann KM 131 Microphone with AK
- Product category: Small Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Small Diaphragm Condenser
|
User manual for the Neumann KM 131 Microphone with AK contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The KM 131 from Neumann is simply a microphone combination set consisting of the KM 100 phantom power supply/output stage and AK 31 omni-directional, microphone element. The swivel mount and windscreen are also included in the set. Neumann's modular KM 100 series is designed to be versatile with the ability to interchange microphone elements and accessories based on individual applications. The KM 100 capsule is powered via 48 Volt phantom power and is designed for quick connection to all compatible elements and accessories. The KM 100 uses transformer-less circuitry resulting in high output capability and low self-noise. The balanced XLR output is protected against radio frequency interference. The entire microphone circuitry is built into the capsule on a single hybrid module measuring 2cm in area. The result is a compact, interchangeable output stage providing pristine output signal without any coloration. The AK 31 microphone element features a pressure gradient, single diaphragm transducer with an omnidirectional polar pattern. The AK 31 produces a flat frequency response up to 20 kHz. In the diffuse field the microphone has a high frequency roll-off above 5 kHz. The microphone is best applied as a spot microphone for piano, wind instruments, strings, percussion and drums, room ambiance capturing or stereo recording. - Modular Design
- The KM100 is modular allowing compatible, interchangeable elements to be used depending on the application. The KM100 is powered via 48 Volt phantom power.
- Omni Directional Pattern
- The pressure gradient element provides an omni-directional pattern providing even frequency response and output levels.
- Pristine Output Signal
- Transformerless design and custom circuitry provide a pristine, low noise, high output character to signal at the KM100 output stage.
- Swivel Mount & Wind Screen
- The microphone set includes the accessory swivel mount and windscreen. The mount clamps to any flat surface and the windscreen greatly reduces distortion due to explosive "pops".
UPC: 615104070615 In the Box Neumann KM 131 Microphone with AK 31 Capsule (KM100 Set) AK-31 Omnidirectional Active Capsule (KM 100) Output Stage (WNS 100) Windscreen (SG 21/17) Swivel Mount Wooden Jewelers Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KM 131 Microphone with AK 31 Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KM 131 Specs | | | Operating Principle | Pressure Gradient | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 69 dB CCIR
78 dB A-Weighted | | Equivalent Noise Level | 25 dB CCIR
16 dB A-Weighted | | Maximum SPL | 140 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 12 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2 mA | | Operating Voltage | 48 V ± 4 V | | Length | 3.62" / 92 mm | | Diameter | 0.87" / 22 mm | | Weight | 2.82 oz / 80 g |
