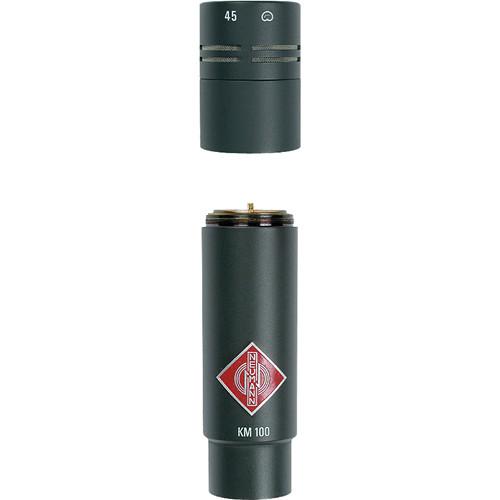

User Manual for Neumann KM 145 Microphone with AK 45 Capsule Click to enlarge the picture
Contents of the user manual for the Neumann KM 145 Microphone with AK
- Product category: Small Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Small Diaphragm Condenser
|
User manual for the Neumann KM 145 Microphone with AK contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The KM 145 from Neumann is simply a microphone combination set consisting of the KM 100 phantom power supply/output stage and AK 45 cardioid microphone element. The swivel mount and windscreen are also included in the set. Neumann's modular KM 100 series is designed to be versatile with the ability to interchange microphone elements and accessories based on individual applications. The KM 100 is powered via 48 Volt phantom power and is designed for quick connection to all compatible elements and accessories. The KM 100 uses transformer-less circuitry resulting in high output capability and low self-noise. The balanced XLR output is protected against radio frequency interference. The entire microphone circuitry is built into the capsule on a single hybrid module measuring 2cm in area. The result is a compact, interchangeable output stage providing pristine output signal without any coloration. The AK 45 microphone element features a pressure gradient, single diaphragm transducer with a cardioid polar pattern. Similar to the AK 40, the AK 45 offers a flat frequency response that accentuates mid and low-end frequencies; however, a low frequency roll-off curve attenuates hum and noise. The AK 45 is suitable for speech recording in voice over and conference situations as well as instruments such as bass, bass and guitar amps, leslie speakers and toms. - Modular Design
- The KM100 capsule is modular allowing compatible, interchangeable elements to be used depending on the application. The KM100 is powered via 48 Volt phantom power.
- Cardioid Polar Pattern
- The pressure gradient element provides a cardioid pattern, which effectively eliminates off-axis ambiance and noise.
- Pristine Output Signal
- Transformerless design and custom circuitry provide a pristine, low noise, high output character to signal at the KM100 output stage.
- Swivel Mount & Wind Screen
- The microphone set includes the accessory swivel mount and windscreen. The mount clamps to any flat surface and the windscreen greatly reduces distortion due to explosive "pops".
- Low Frequency Roll-Off
- The AK 45 features a roll-off curve at sub frequencies that may be problematic and cause noise.
UPC: 615104070684 In the Box Neumann KM 145 Microphone with AK 45 Capsule (KM100 Set) AK-45 Cardioid Active Capsule (KM 100) Output Stage (WNS 100) Windscreen (SG 21/17) Swivel Mount Wooden Jewelers Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KM 145 Microphone with AK 45 Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KM 145 Specs | | | Operating Principle | Pressure Gradient | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 68 dB CCIR
77 dB A-Weighted | | Equivalent Noise Level | 26 dB CCIR
17 dB A-Weighted | | Maximum SPL | 138 dB SPL | | Pad | -10 dB | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 14 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2 mA | | Operating Voltage | 48 V ± 4 V | | Length | 3.62" / 92 mm | | Diameter | 0.87" / 22 mm | | Weight | 2.82 oz / 80 g |
