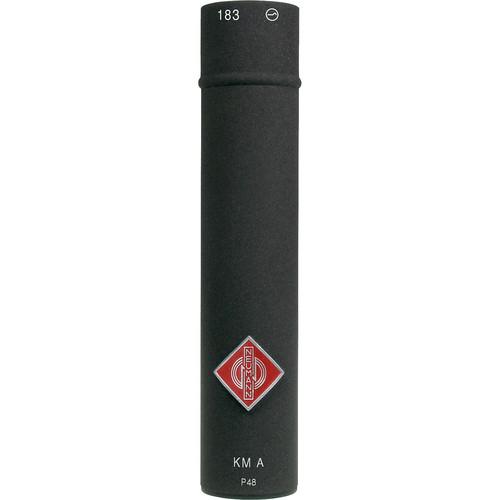

User Manual for Neumann KM 183 Omnidirectional Analog Microphone Click to enlarge the picture
Contents of the user manual for the Neumann KM 183 Omnidirectional Analog Microphone
- Product category: Small Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Small Diaphragm Condenser
|
User manual for the Neumann KM 183 Omnidirectional Analog Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The Nextel black Neumann KM 183 Omnidirectional Analog Microphone is an omnidirectional, condenser microphone. The mic is modular and compatible with 8 exchangeable capsules, and a single KK 183 omnidirectional capsule is included. The analog output stage has a switch for 10 dB of pre-attenuation, allowing the microphone to handle up to 150 dB SPL with the included capsule. - Miniature microphone compatible with 8 exchangeable capsules
- KK 183 omnidirectional capsule included
- Switchable 10 dB preattenuation
- Set includes windshield and clamp
- Transformerless circuitry
- For close-miking of instruments in a balanced acoustic environment when there is no need to attenuate extraneous noise—recommended for recording acoustic guitar, wind instruments, strings, percussion, drums
UPC: 615104086319 In the Box Neumann KM 183 Omnidirectional Analog Microphone (Black) WNS110 Foam Windscreen for KM Series Microphone SG21/17MT Swivel Mount with Clamp for 21mm Mics Wooden Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KM 183 Omnidirectional Analog Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KM 183 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 0.9" / 22.86 mm | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Omnidirectional: 69 dB CCIR
Omnidirectional: 81 dB A-Weighted | | Equivalent Noise Level | Omnidirectional: 24 dB CCIR
Omnidirectional: 13 dB A-Weighted | | Maximum SPL | Omnidirectional: 150 dB SPL With pad engaged | | Pad | -10 dB | | THD | < 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Omnidirectional: 12 mV/Pa at 1 kHz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 48 V | | Length | 4.25" / 108 mm | | Diameter | 0.87" / 22 mm | | Weight | 2.47 oz / 70 g Capsule: 0.38 oz /11 g |
