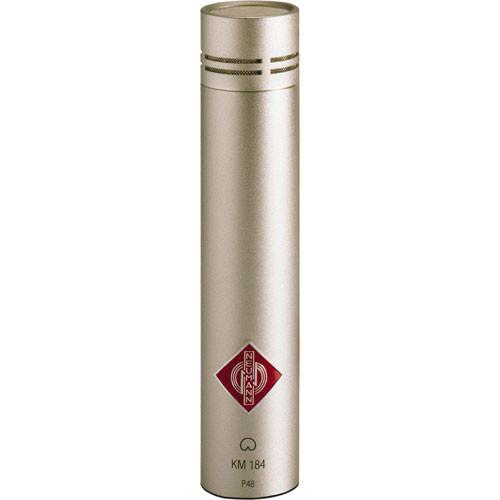

User Manual for Neumann KM 184 NI Microphone Click to enlarge the picture
Contents of the user manual for the Neumann KM 184 NI Microphone
- Product category: Small Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Small Diaphragm Condenser
|
User manual for the Neumann KM 184 NI Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The nickel KM 184 NI Microphone from Neumann is a small-diaphragm cardioid condenser microphone that offers premium Neumann sound that's both open and musical. It is great for solo instruments, ensemble, and spot miking.
The KM 180 series microphones feature an output stage based on the KM 100. Transformerless circuitry and balanced output result in high-output gain with a very low noise floor and no coloration to the output signal.
The KM 184 is powered via +48V phantom power. Its 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 184's cardioid polar pattern provides a targeted pickup area and handles sound-pressure levels up to 138 dB, allowing fairly close miking of instruments. - Cardioid Polar Pattern
- The cardioid polar pattern effectively isolates signal source.
- KM 100-Based Output Stage
- The KM 184 features the same output stage electronics as the KM 100. Transformerless circuitry and quiet balanced output design ensure a clean, high-gain output signal without any coloration. The KM 184 is powered via +48V phantom power, and its 20 Hz to 20 kHz frequency response provides flexibility for use in a wide range of recording situations. The KM 184 can handle sound-pressure levels up to 138 dB, allowing fairly close miking of instruments.
- Compact Rugged Construction
- The slim design and rugged construction allow easy microphone placement while remaining roadworthy.
UPC: 615104084391 In the Box Neumann KM 184 NI Microphone (Nickel) WNS100 Windscreen 45mm (Black) csvetdxqbyrbqezez SG21/17MT Swivel Mount with Clamp for 21mm Mics Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KM 184 NI Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KM 184 NI Specs | | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 72 dB CCIR
81 dB A-Weighted | | Equivalent Noise Level | 22 dB CCIR
13 dB A-Weighted | | Maximum SPL | 138 dB SPL | | THD | 0.5% | | Impedance | 50 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | 15 mV/Pa at 1 kHz into 1 kOhms | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.2 mA | | Operating Voltage | 48 V ± 4 V | | Length | 4.21" / 107 mm | | Diameter | 0.87" / 22 mm | | Weight | 2.82 oz / 80 g | | | | Package Weight | 1.04 lb | | Box Dimensions (LxWxH) | 8.9 x 4.75 x 2.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
