User Manual for Neumann KM 185 D NX Small Diaphragm Hypercardioid Digital Microphones with AES EBU Output Click to enlarge the picture
Contents of the user manual for the Neumann KM 185 D NX Small
- Product category: Small Diaphragm Condenser Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Small Diaphragm Condenser
|
User manual for the Neumann KM 185 D NX Small contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description The nextel black KM 185 D NX from Neumann is a matched, stereo pair of hypercardioid, pressure condenser microphones with an AES/EBU digital output and built-in A/D converter. Neumann continues to make strides in microphone technology with internal digital conversion and an AES/EBU 42 output standard that allows remote software operation with the DMI-2 digital microphone interface, or direct connection to AES inputs on digital mixers, field recorders, etc.The capsule, polar pattern and sonic characteristics are similar to the KM 185 analog model and is intended for live sound reinforcement and broadcast as well as recording applications. The hypercardioid polar pattern minimizes noise and off-axis audio signal. Vocals and instruments are captured without feedback, and ambiance. The KM 185D features a non-reflective finish. Note: Requires DMI-2 interface, AES/EBU or S/PDIF kit for direct connection to the digital inputs on portable recorders, mixers, computer interfaces, etc. - Stereo Matched Set
- This package includes a stereo matched pair of KM 185 D microphones for precise stereo capturing of vocals, instruments, ambiance, etc.
- Hypercardioid Polar Pattern
- The hypercardioid polar pattern offers greater attenuation at the off-axis sections of the microphone, resulting in a tighter pattern with even less noise caused by ambiance.
- AES/EBU Digital Output
- The KM 185D features a 24-bit AES/EBU digital output stage and built-in A/D converter for direct connection to the AES/EBU inputs on field-recorders, digital mixers, or the Neumann DMI-2 direct remote control unit.
- AES/EBU 42 Standard
- The digital output complies with the current AES/EBU 42 standard, which allows remote powering and software remote control via the optional DMI-2 interface.
- Compact Rugged Construction
- The slim design and rugged construction allow easy microphone placement while remaining road worthy.

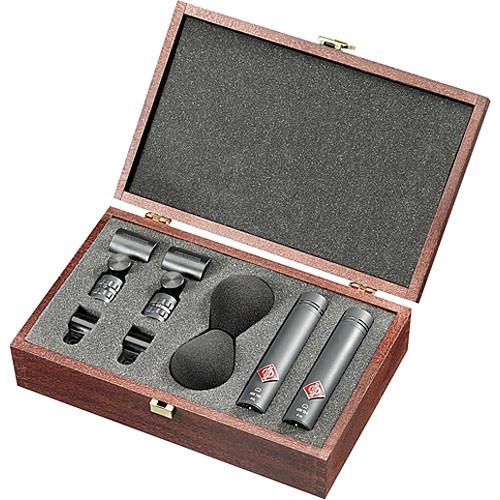

In the Box Neumann KM 185 D NX Small Diaphragm Hypercardioid Digital Microphones with AES/EBU Output (Stereo Set, Nextel Black) 2 x WNS110 Foam Windscreen for KM Series Microphone 2 x SG21/17MT Swivel Mount with Clamp for 21mm Mics Wooden Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KM 185 D NX Small Diaphragm Hypercardioid Digital Microphones with AES EBU Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KM 185 D Specs | Operating Principle | Pressure Gradient | Transducer | Condenser | Polar Pattern | Hypercardioid | Frequency Range | 20 Hz to 20 kHz | Signal to Noise Ratio | 69 dB CCIR 78 dB A-Weighted | Equivalent Noise Level | 25 dB CCIR 16 dB A-Weighted | Maximum SPL | 136 dB SPL | Pad | -18 dB | Impedance | 50 Ohms | Load Impedance | 1000 Ohms | Sensitivity | -42 dBFS at 1 kHz into 1 kOhms | | Output Connectors | 1 x 3-Pin XLR | Operating Current Consumption | 150 mA | Operating Voltage | 48 V ± 4 V | Length | 4.25" / 108 mm | Diameter | 0.87" / 22 mm | Weight | 3.14 oz / 89 g | | Package Weight | 2.0 lb | Box Dimensions (LxWxH) | 9.9 x 6.3 x 2.9" |
