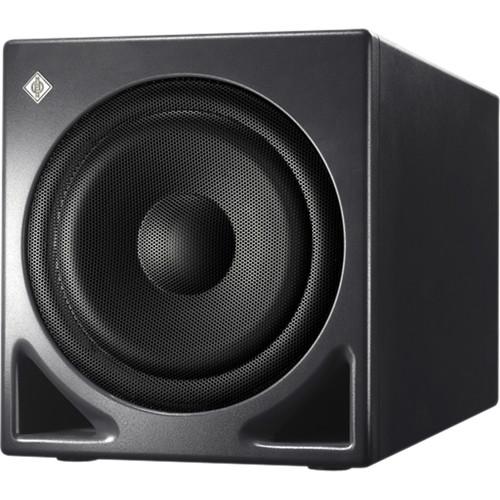

User Manual for Neumann KM 805 - 160W 10" Active Studio Subwoofer Click to enlarge the picture
Contents of the user manual for the Neumann KM 805 - 160W 10"
- Product category: Studio Monitors Neumann
- Brand: Neumann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Neumann Studio Monitors
|
User manual for the Neumann KM 805 - 160W 10" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Neumann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Neumann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Neumann product will considerably shorten its lifespan!
|
Product description Augment the power of your mixing room, project studio, or any other monitoring setup with the KH 805 Active Studio Subwoofer from Neumann, a 10" woofer that reaches all the way down to 18 Hz, boasts 160W RMS / 200W peak power-handling, and features a multitude of ways to integrate with your existing set up; fourth-order crossover points, manual acoustic controls, four different routing modes, and remoteable electronics (requires optional kit)—all of these allow for greater ease and flexibility in implementation.
In addition to providing a loud and accurate low-end, the magnetically-shielded subwoofer increases the maximum SPL of your loudspeaker set up by up to 8 dB, while simultaneously decreasing any harmonic/intermodulation distortion that might be imparted by your main monitors. You can also use the KH 805 as a daisy-chain point for other subs.
Furthermore, this unit features a bass management design compatible with 2.1 systems (the common two monitor/one subwoofer arrangement) or 0.1 systems—surround 5.1, 7.1, etc. Thus, it is suitable for music mixing and surround applications, be they musical or post-production in nature. - Flexible Electronic Design
-
- Bypassable fourth-order 80 Hz active crossover for compatibility with consumer reproduction
- Four routing modes on right input connector: right-channel bass management, LFE to subwoofer up to 120 Hz, wide for multichannel systems (where bass-management is the source), and Daisy Chain for subwoofer arrays
- Switchable acoustic controls: Output level, low cut, parametric equalizer, and 45° step phase control
- Remoteable electronics kit for less cabling and ease of use (available separately)
- Built-in limiter for amplifier/driver protection
- Low heat dissipation
- Powerful Driver and Cabinet Design
-
- Extends frequency response down to 18 Hz
- Low distortion due to magnetic shield and long throw driver
- Reduced bass compression at high SPL reproduces bass frequencies in balanced proportion
- Allows main speakers to play louder with lower distortion
- Wooden cabinet sports anthracite finish and high-density rubber isolating feet
UPC: 615104266100 In the Box Neumann KM 805 - 160W 10" Active Studio Subwoofer Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Neumann KM 805 - 160W 10" Active Studio Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNeumann KH 805 Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 160 W RMS
200 W Peak | | Drivers | LF Driver: 1 x 10" / 265 mm Woofer | | | | Frequency Range | 18 Hz to 300 Hz ± 3 dB (at -3 dB) | | Frequency Response | 19 Hz to 300 Hz ± 2 dB | | Maximum Sound Pressure Level (SPL) | 112 dB | | Dynamic Range | 119 dBA | | Total Harmonic Distortion (THD) | 0.001% | | Maximum Input Level | +24 dBu | | Analog Input Sensitivity/Gain | +2 to -12 dB (Continuously Variable) | | Self-Generated Noise | Less Than 20 dBA (at 3.93" / 10 cm) | | Protections and Limiting | Peak Limiter and Thermal Limiting | | CMRR | 56 dB | | | | EQ | 1 x LF Notch/Peak: -12 to 0 dB at 30 Hz 1.5 Q | | Filters | High-Pass at 6.5 Hz, 12 dB/Octave Slope | | Parametric EQ | -12 to +4 dB Between 20Hz and 120Hz, Q: 1 to 8 | | | | Crossover Frequency | 80 Hz, 24 dB/Octave Slope | | | | I/O | 2 x 3-Pin XLR Balanced Analog Input (13 kOhms)
3 x 3-Pin XLR Balanced Analog Output XLR Inputs are "Right/LFE" and "Left." XLR Outputs are "Daisy Chain," "Right," and "Left." | | | | AC Input Power | 100 to 120 VAC at 60 Hz
220 to 240 VAC at 50 Hz Voltage is Selectable | | Power Consumption | 14 W (Idle)
280 W (Maximum) | | | | Enclosure Material | Metal Grille | | Dimensions (W x H x D) | 13.0 x 14.2 x 25.4" / 330.0 x 360.0 x 645.0 mm | | Weight | 57.3 lb / 26.0 kg | | | | Package Weight | 69.0 lb | | Box Dimensions (LxWxH) | 29.5 x 20.0 x 19.0" |
